Polar Blade Standard 71, 72C, 75, Polar Paper Cutting Blade 12 Holes

1. Introduktion

This manual provides essential information for the safe and effective use of the Polar Blade Standard 71, 72C, 75 Paper Cutting Blade. This high-quality steel blade is designed for precision paper cutting applications on compatible Polar cutting machines. Please read this manual thoroughly before installation and operation to ensure optimal performance and safety.

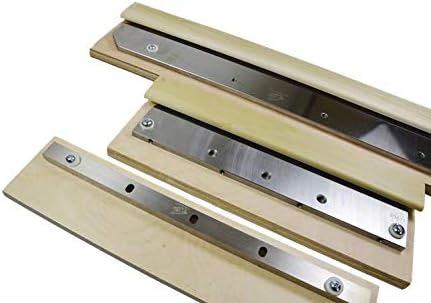

Image of three Polar paper cutting blades, each mounted on a wooden base, showing the metal blade with multiple screw holes.

Figur 1: Overview of the Polar Paper Cutting Blade. The image displays three individual cutting blades, each securely attached to a wooden mounting block. The blades are made of polished metal, featuring several circular holes along their length for secure fastening. The wooden blocks provide a stable base for the blades.

2. Opsætning og installation

Proper installation is crucial for the performance and safety of the cutting blade. Always ensure the cutting machine is powered off and disconnected from its power source before beginning installation.

2.1 Sikkerhedsforanstaltninger

Always wear appropriate personal protective equipment (PPE), including cut-resistant gloves and safety glasses, when handling the blade.
Ensure the cutting machine is completely de-energized and locked out before attempting any installation or maintenance.
Handle the blade by its non-sharp edges or protective casinkun g.

2.2 Installationstrin

Carefully remove the old blade from the cutting machine, following the machine manufacturer's instructions. Dispose of the old blade safely.
Inspect the blade mounting area on the machine for any debris or damage. Clean if necessary.
Align the new Polar Blade (Model: Polar 43250) with the mounting points on the machine. This blade features 12 pre-drilled holes for secure attachment.
Secure the blade using the appropriate fasteners provided by your machine manufacturer. Ensure all 12 holes are utilized and fasteners are tightened to the recommended torque specifications.
Verify that the blade is seated correctly and there is no wobble or misalignment.
Once installed, perform a manual check of the blade's movement before restoring power to the machine.

3. Betjeningsvejledning

This blade is designed for use with Polar Standard 71, 72C, and 75 paper cutting machines. Always refer to your specific machine's operating manual for detailed instructions on cutting procedures.

Ensure the blade is clean and free of debris before each cutting operation.
Properly align the paper stack according to your machine's guidelines to achieve precise cuts.
Monitor the blade's performance during operation. A sharp blade will produce clean, smooth cuts.
Do not attempt to cut materials beyond the machine's or blade's specified capacity.

4. Vedligeholdelse

Regular maintenance extends the life of your blade and ensures consistent cutting quality.

4.1 Rengøring

After each use or at regular intervals, clean the blade to remove paper dust, adhesive residue, or other contaminants. Use a soft cloth and a mild, non-abrasive cleaning solution. Ensure the blade is dry before storage or next use.

4.2 Eftersyn

Periodically inspect the blade for signs of wear, dullness, nicks, or damage. A dull blade can lead to poor cut quality and increased strain on the cutting machine. Replace the blade when signs of significant wear are observed.

4.3 Opbevaring

When not in use, store the blade in its original protective packaging or a suitable blade storage container to prevent damage and accidental injury. Store in a dry environment to prevent corrosion.

5. Fejlfinding

This section addresses common issues that may arise during the use of the paper cutting blade.

Problem	Mulig årsag	Løsning
Rough or jagged cuts	Dull blade, improper blade alignment, excessive material thickness.	Inspect and replace blade if dull. Re-align blade according to machine manual. Reduce material thickness per cut.
Blade not fitting correctly	Incorrect blade model, debris in mounting area, bent mounting screws.	Verify blade model (Polar 43250) is correct for your machine. Clean mounting area. Inspect and replace damaged screws.
Excessive noise during cutting	Loose blade, worn machine components.	Ensure blade is securely fastened. Consult machine manual for maintenance of other components.

6. Specifikationer

Key specifications for the Polar Paper Cutting Blade (Model: Polar 43250):

Mærke: PPE
Modelnummer: stang 43250
Kompatibilitet: Polar Standard 71, 72C, 75 Paper Cutting Machines
Materiale: Stål
Huller: 12
Længde: 34.173 tommer (ca. 86.8 cm)
Bredde: 4.094 tommer (ca. 10.4 cm)
Tykkelse: 0.381 tommer (ca. 0.97 cm)

7. Garanti og support

For specific warranty information regarding this Polar Paper Cutting Blade, please refer to the documentation provided by the manufacturer, PPE, or contact your point of purchase. Warranty terms typically cover manufacturing defects.

For technical support or inquiries not covered in this manual, please contact the seller or the manufacturer directly. Ensure you have the product model number (Polar 43250) and any relevant purchase details available when seeking support.
