1. Introduktion
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Edvivi Lantern Pendant Chandelier, Model EPL1119AB. This 4-light fixture features an antique bronze finish, glass panels, and an adjustable hanging chain, designed to provide ample illumination in various indoor settings.
Figure 1: Edvivi Lantern Pendant Chandelier, Model EPL1119AB.
2. Sikkerhedsoplysninger
ADVARSEL: For at mindske risikoen for brand, elektrisk stød eller personskade skal du altid følge disse sikkerhedsforanstaltninger:
- Afbryd strømmen: Sluk altid for strømforsyningen ved hovedsikringsboksen eller afbryderen, før du påbegynder installation eller udfører vedligeholdelse.
- Uddannet elektriker: If you are unsure about the installation process, consult a qualified licensed electrician.
- Jording: Sørg for, at armaturet er korrekt jordforbundet for at undgå potentielt elektrisk stød.
- Håndteres med forsigtighed: The fixture contains glass components. Handle with care to prevent breakage and injury.
- Pære specifikationer: Brug kun den specificerede pæretype og wattage. Exceeding the maximum wattage can cause overheating and fire.
- Kun indendørs brug: This fixture is designed for indoor use in dry locations only. Do not expose to water or moisture.
- Rensning: Do not use liquid or abrasive cleaners on the fixture. Clean with a soft, dry cloth.
3. Pakkens indhold
Carefully unpack the fixture and inspect all components for damage. Retain all packaging materials until you are certain all parts are present and in good condition. The package should include:
- Chandelier Frame with Glass Panels
- Montering af tværstang
- Monteringsskruer
- Trådmøtrikker
- Baldakin
- Chain (approx. 39 inches)
- Instruktionsmanual (dette dokument)
Note: Pærer medfølger ikke og skal købes separat.
4. Specifikationer
| Feature | Specifikation |
|---|---|
| Mærke | Edvivi |
| Modelnummer | EPL1119AB |
| Fixture Dimensions (L x W x H) | 10.5 cm x 10.5 cm x 19 cm |
| Maximum Hanging Height | 59 inches (including chain) |
| Canopy Dimensions (Dia x H) | 5.1 x 1 cm |
| Materiale | Glas, Metal |
| Slutte | Antik bronze |
| Antal lyskilder | 4 |
| Pære type | Kandelaber (E12) |
| Max Wattage pr. pære | 60 watt |
| Total Maks. Wattage | 240 watt |
| Voltage | 120 volt |
| Særlige funktioner | Dæmpbar (med kompatibel lysdæmper og pærer) |
| Strømkilde | Elektrisk med ledning |
| Monteringstype | Chain (40 inches) |
| Certificering | UL-listet |
| Montering påkrævet | Ja |
| Varens vægt | 11.2 pund |
Figure 2: Dimensional drawing of the chandelier.
5. Installationsvejledning
Read all instructions carefully before beginning installation. Ensure you have all necessary tools (screwdriver, wire strippers, electrical tape, ladder) and safety equipment (safety glasses, gloves).
5.1. Forinstallation
- Sluk for strømmen: Locate the circuit breaker or fuse box that supplies power to the fixture location. Turn off the power completely.
- Forbered område: Clear the work area. If replacing an existing fixture, carefully remove it.
- Pakker ud: Tag forsigtigt alle komponenter ud af emballagen. Placer dem på en ren, blød overflade for at undgå ridser.
5.2. Montering af armaturet
- Attach Mounting Crossbar: Secure the mounting crossbar to the electrical junction box in the ceiling using the provided mounting screws. Ensure it is firmly attached.
- Juster kædelængde: Determine the desired hanging height for your chandelier. The fixture comes with a 39-inch chain. You can adjust the length by opening and removing links from the chain using pliers.
- Thread Wires: Carefully thread the fixture's electrical wires through the chain, then through the canopy, and finally through the center hole of the mounting crossbar.
- Connect Chain to Canopy: Attach one end of the chain to the loop on the fixture and the other end to the loop on the canopy.
Figure 3: Chandelier with chain and canopy assembly.

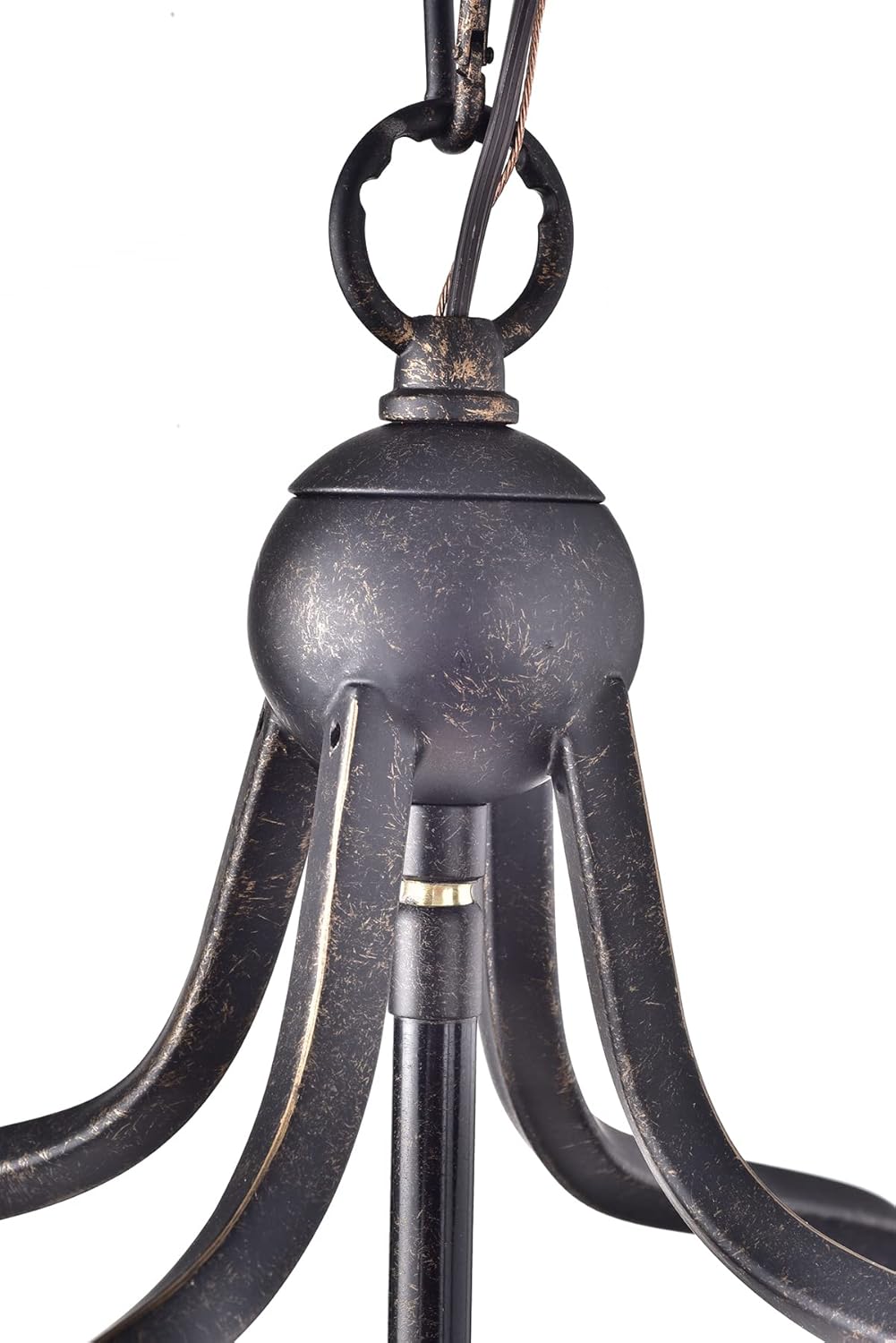

Figure 4: Detail of the chain and canopy connection.
5.3. Elektriske forbindelser
VIGTIG: Ensure power is OFF before making any electrical connections.
- Jordledning: Connect the bare copper ground wire from the fixture to the green or bare copper ground wire from the junction box. Secure with a wire nut.
- Neutral ledning: Connect the ribbed or white wire from the fixture to the white (neutral) wire from the junction box. Secure with a wire nut.
- Varm ledning: Connect the smooth or black wire from the fixture to the black (hot) wire from the junction box. Secure with a wire nut.
- Tuck-ledninger: Carefully tuck all connected wires into the junction box.
5.4. Fastgørelse af overdækningen
- Position Canopy: Slide the canopy up against the ceiling, covering the junction box and mounting crossbar.
- Sikker baldakin: Use the provided screws or collar ring to secure the canopy firmly to the mounting crossbar.
5.5. Montering af pære
- Installer pærer: Screw four Candelabra (E12) base bulbs (max 60 watts each, not included) into the sockets. Do not overtighten.
Figure 5: Detail of bulb sockets.
5.6. Gendan strømmen
- Tænd for strømmen: Genopret strømmen til hovedafbryderen eller sikringsskabet.
- Testopstilling: Tænd lyskontakten for at sikre, at armaturet fungerer korrekt.
6. Betjeningsvejledning
The Edvivi Lantern Pendant Chandelier operates via a standard wall switch. If a compatible dimmer switch and dimmable E12 bulbs are installed, the light output can be adjusted to your desired level.
- Til/fra: Brug vægkontakten til at tænde eller slukke lysekronen.
- Dæmpning: If equipped with a dimmer switch and dimmable bulbs, rotate or slide the dimmer control to adjust brightness.
7. Vedligeholdelse
Regelmæssig vedligeholdelse vil bidrage til at bevare din lysekrones udseende og funktionalitet.
- Rensning: Sørg for, at strømmen er slukket for at rengøre armaturet. Brug en blød, tør eller let fugtet klud.amp klud. Brug ikke slibende rengøringsmidler, opløsningsmidler eller polermidler, da de kan beskadige overfladen eller glasset.
- Udskiftning af pære: Before replacing bulbs, turn off the power and allow bulbs to cool completely. Unscrew old bulbs and replace with new Candelabra (E12) base bulbs, not exceeding 60 watts per bulb.
- Inspektion: Kontrollér regelmæssigt alle forbindelser og monteringsudstyr for at sikre, at de forbliver fastgjorte.
8. Fejlfinding
Hvis du støder på problemer med din lysekrone, kan du se følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | 1. Strømmen er slukket. 2. Løs ledningsforbindelse. 3. Faulty bulb(s). 4. Faulty wall switch. | 1. Check circuit breaker/fuse. Ensure wall switch is ON. 2. Turn off power, check all wire connections. 3. Replace bulb(s). 4. Consult a qualified electrician. |
| Lyse flimrer. | 1. Løs pære. 2. Løs ledningsforbindelse. 3. Incorrect bulb type for dimmer. 4. Defekt lysdæmperkontakt. | 1. Turn off power, tighten bulb(s). 2. Turn off power, check all wire connections. 3. Ensure dimmable bulbs are used with a dimmer. 4. Consult a qualified electrician. |
| Fixture is loose. | Monteringsudstyret er ikke sikkert. | Turn off power, tighten mounting screws and canopy screws. |
Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte kundesupport eller en kvalificeret elektriker.
9. Garanti og support
This Edvivi Lantern Pendant Chandelier is covered by a manufacturer's warranty. For specific warranty details, duration, and terms, please refer to the documentation provided at the time of purchase or contact Edvivi customer support directly.
For technical assistance, missing parts, or warranty claims, please contact the seller or manufacturer through the platform where the product was purchased. Provide your model number (EPL1119AB) and proof of purchase for faster service.
