1. Introduktion
The SFA Sanispeed+ is a high-performance wastewater lifting pump designed to evacuate wastewater from sanitary devices located below the sewer level. It is an ideal solution for installing kitchens, laundries, or bathrooms in basements or areas without direct access to gravity drainage. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Sanispeed+ pump.

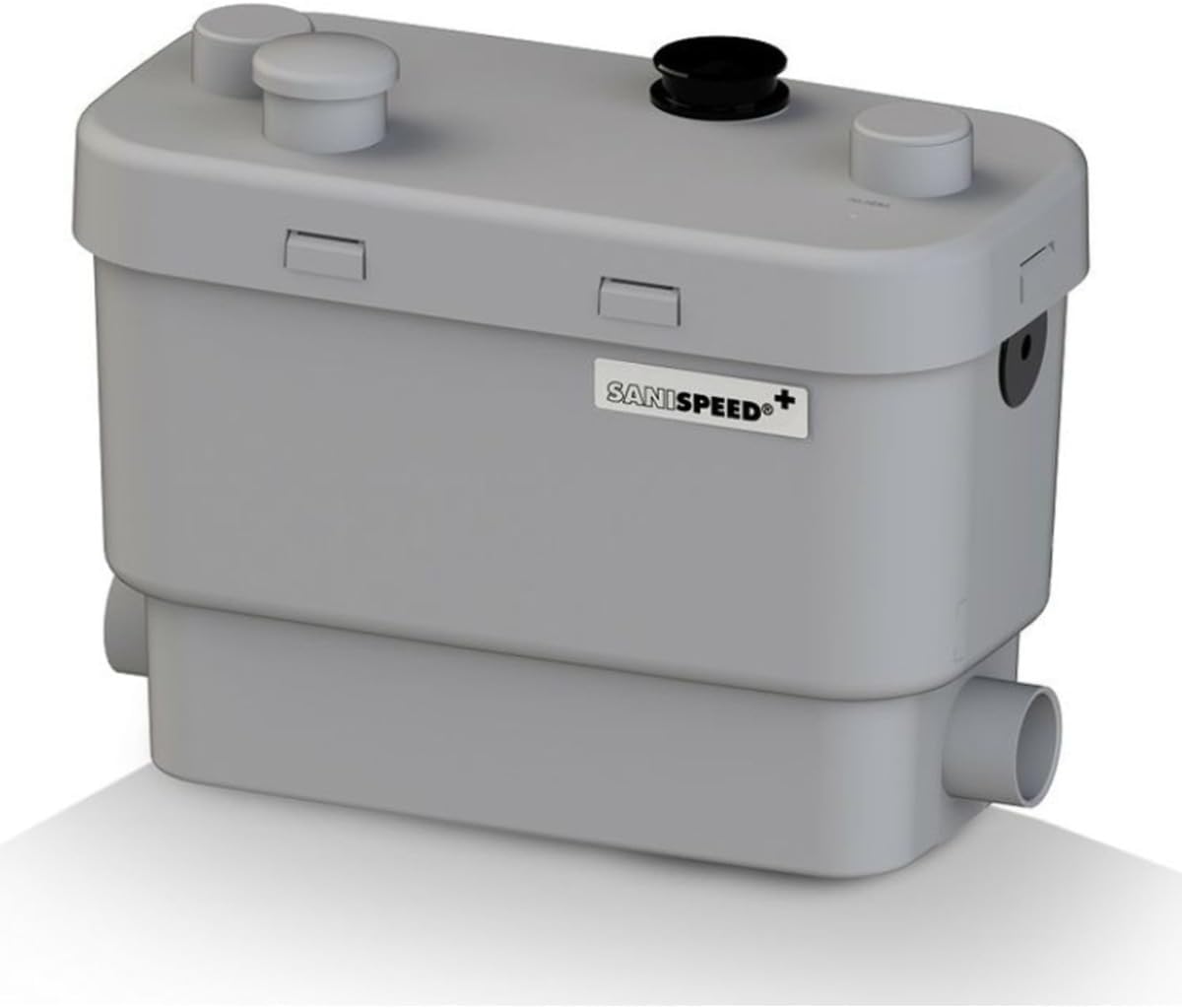

Figure 1: SFA Sanispeed+ Wastewater Lifting Pump. This image shows the compact, light grey unit with its various connection points and caps on the top surface.
2. Sikkerhedsoplysninger
Please read all safety instructions carefully before installing, operating, or performing maintenance on the Sanispeed+ pump. Failure to follow these instructions could result in electric shock, fire, serious injury, or property damage.
- Elektrisk sikkerhed: Ensure the pump is connected to a properly grounded electrical outlet. Disconnect power before any installation, maintenance, or repair work.
- Professionel installation: For optimal safety and to ensure warranty validity, installation by a qualified professional is highly recommended.
- Vandtemperatur: The pump can handle wastewater up to 75°C intermittently. Do not exceed this temperature.
- Ventilation: Ensure adequate ventilation around the pump to prevent overheating.
- Kemikalier: Do not dispose of corrosive chemicals, solvents, or flammable liquids through the pump.
- Børn og kæledyr: Keep children and pets away from the pump and its connections.
3. Opsætning og installation
The Sanispeed+ pump is designed for versatile installation in various settings, including kitchens, laundries, and bathrooms. It features four inlets for connecting multiple sanitary appliances.
3.1. Placeringsovervejelser
- Position the pump in a location that allows for easy access for maintenance and inspection.
- Ensure the pump is placed on a stable, level surface to minimize vibration and noise.
- Consider the proximity to the sanitary appliances and the main drainage system.
3.2. Connecting Appliances
The Sanispeed+ is equipped with 4 inlets, allowing connection of various appliances such as:
- Opvaskemaskiner
- Dræn
- Vaskemaskiner
- Brusere
- Vaskasins
It is also compatible with water softeners. Ensure all connections are secure and watertight to prevent leaks.
Figure 2: Sanispeed+ installed in a kitchen. This image shows the pump discreetly placed under a stainless steel kitchen counter, connected to a sink.
Figure 3: Sanispeed+ installed in a bathroom. The pump is visible on the floor, connected to a washbasin and a shower drain, against a brick wall.
3.3. Elektrisk tilslutning
Connect the pump to a dedicated 230 Volt electrical circuit. Ensure the circuit is protected by a residual current device (RCD) for safety.
3.4. Teknisk tegning
Figure 4: Technical dimensions of the Sanispeed+ pump. This diagram provides precise measurements (in millimeters) for installation planning, showing front and side views with inlet and outlet diameters.
4. Betjeningsvejledning
The SFA Sanispeed+ pump operates automatically. When wastewater enters the unit, a pressure switch activates the pump, which then discharges the wastewater through the discharge pipe to the main drainage system.
- Automatisk aktivering: The pump will automatically start when the water level inside reaches a certain threshold and stop once the water is evacuated.
- Stille drift: Designed for quiet performance, the Sanispeed+ operates at a low noise level of 42 dB(A), ensuring minimal disturbance.
- Høj flowhastighed: With a maximum flow rate of 6000 liters per hour, the pump efficiently handles high volumes of wastewater.
5. Vedligeholdelse
Regular maintenance ensures the longevity and optimal performance of your Sanispeed+ pump.
- Strømafbrydelse: Afbryd altid pumpen fra strømforsyningen, før du udfører nogen form for vedligeholdelse.
- Regelmæssig inspektion: Periodically check the pump for any signs of leaks, unusual noises, or blockages.
- Rensning: If necessary, clean the exterior of the pump with a damp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Inlet/Outlet Checks: Ensure that the inlet and outlet pipes are free from debris or obstructions. The unit includes a non-return valve and active carbon filter, which should be checked periodically.
- Professionel service: For internal cleaning or complex issues, it is recommended to contact a qualified service technician.
6. Fejlfinding
This section provides solutions to common issues you might encounter with your Sanispeed+ pump.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Pumpen starter ikke | No power supply; Clogged inlet; Faulty pressure switch. | Check power connection and circuit breaker; Clear any obstructions in the inlets; Contact a professional for switch replacement. |
| Pumpen kører kontinuerligt | Blocked non-return valve; Faulty pressure switch; Continuous water inflow. | Check and clear non-return valve; Contact a professional for switch replacement; Identify and stop continuous water source. |
| Usædvanlig støj eller vibrationer | Debris in pump; Improper installation; Worn components. | Disconnect power and check for debris (professional recommended); Ensure pump is level and secure; Contact service for worn parts. |
| Vandlækage | Loose connections; Damaged seals or pipes. | Check and tighten all pipe connections; Inspect seals and pipes for damage and replace if necessary. |
If the problem persists after attempting these solutions, please contact SFA customer support or a qualified technician.
7. Tekniske specifikationer
| Feature | Specifikation |
|---|---|
| Modelnummer | 6045 |
| Mærke | SFA |
| Dimensioner (L x B x H) | 37.5 x 18.5 x 27.7 cm (14.76 x 7.28 x 10.9 tommer) |
| Vægt | 6 kilo (13.2 lbs) |
| Voltage | 230 volt |
| Magt | 400W |
| Max flowhastighed | 6000 liter i timen |
| Max løftehøjde | 314.96 tommer (ca. 8 meter) |
| Maks. Vandtemperatur | 75°C (intermittently) |
| Støjniveau | 42 dB(A) |
| Number of Inlets | 4 |
| Materiale | Metal (hus) |
| Farve | Hvid |
| Inkluderede komponenter | Non-return valve, Connectors, Active carbon filter |
| Oprindelse | Made in France (Origine France Garantie) |
8. Garanti og support
The SFA Sanispeed+ pump comes with a 5 års garanti, provided it is installed by a qualified professional. This warranty covers manufacturing defects and ensures peace of mind regarding your investment.
For technical assistance, warranty claims, or to locate an authorized service professional, please contact SFA customer support through their official webwebstedet eller de kontaktoplysninger, der er angivet med dit køb.
As a product benefiting from the "Origine France Garantie" label, you can be assured of its quality and manufacturing standards, produced in SFA's factory in Brégy (Oise), France.
