Goobay 45241 Loddehjælp med LED Lamp og brugermanual til forstørrelsesglas

1. Introduktion

The Goobay 45241 Soldering Aid is a versatile tool designed to assist with delicate soldering and assembly tasks. It features a magnifying glass with LED illumination, flexible gooseneck crocodile clips, and an integrated soldering iron holder, providing stability and enhanced visibility for precision work.

Image 1.1: The Goobay 45241 Soldering Aid unit, showcasing its main components including the magnifying glass, LED lamp, gooseneck arms, and base with accessories.

2. Sikkerhedsinstruktioner

Læs og forstå alle sikkerhedsinstruktioner, før du bruger dette produkt. Manglende overholdelse af disse instruktioner kan resultere i personskade eller beskadigelse af produktet.

• Always use the soldering aid on a stable, non-slip surface.
• Hold enheden væk fra vand og andre væsker.
• Do not look directly into the LED light for extended periods to avoid eye strain.
• Ensure proper ventilation when soldering, as fumes can be harmful.
• Opbevares utilgængeligt for børn.
• Disconnect power when not in use or when cleaning.
• Use only the provided power adapter or recommended batteries.

3. Pakkens indhold

Bekræft, at alle nedenstående varer er til stede i din pakke:

• Goobay 45241 Soldering Aid main unit (base with magnifying glass, LED lamp, gooseneck arms, crocodile clips)
• Loddekolbeholder
• Rengøringssvamp
• Cleaning wool (brass wire)
• Soldering resin (flux)
• AC strømadapter

Billede 3.1: Overview of the soldering aid's features, including 16 LEDs, 3x magnification, soldering iron holder, sponge, cleaning wool, and flux.

Billede 3.2: Detaljeret view of the included accessories: brass tip cleaner, soldering resin (rosin), and cleaning sponge.

4. Montering

The Goobay 45241 Soldering Aid comes largely pre-assembled. Follow these steps for final setup:

1. Pak alle komponenter ud af emballagen.
2. Place the main unit on a stable, flat work surface. The robust metal base ensures stability.
3. Ensure the gooseneck arms for the magnifying glass and crocodile clips are securely attached to the base. Adjust their positions as needed.
4. Insert the soldering iron holder into its designated slot on the base.
5. Place the cleaning sponge, cleaning wool, and soldering resin into their respective compartments on the base.

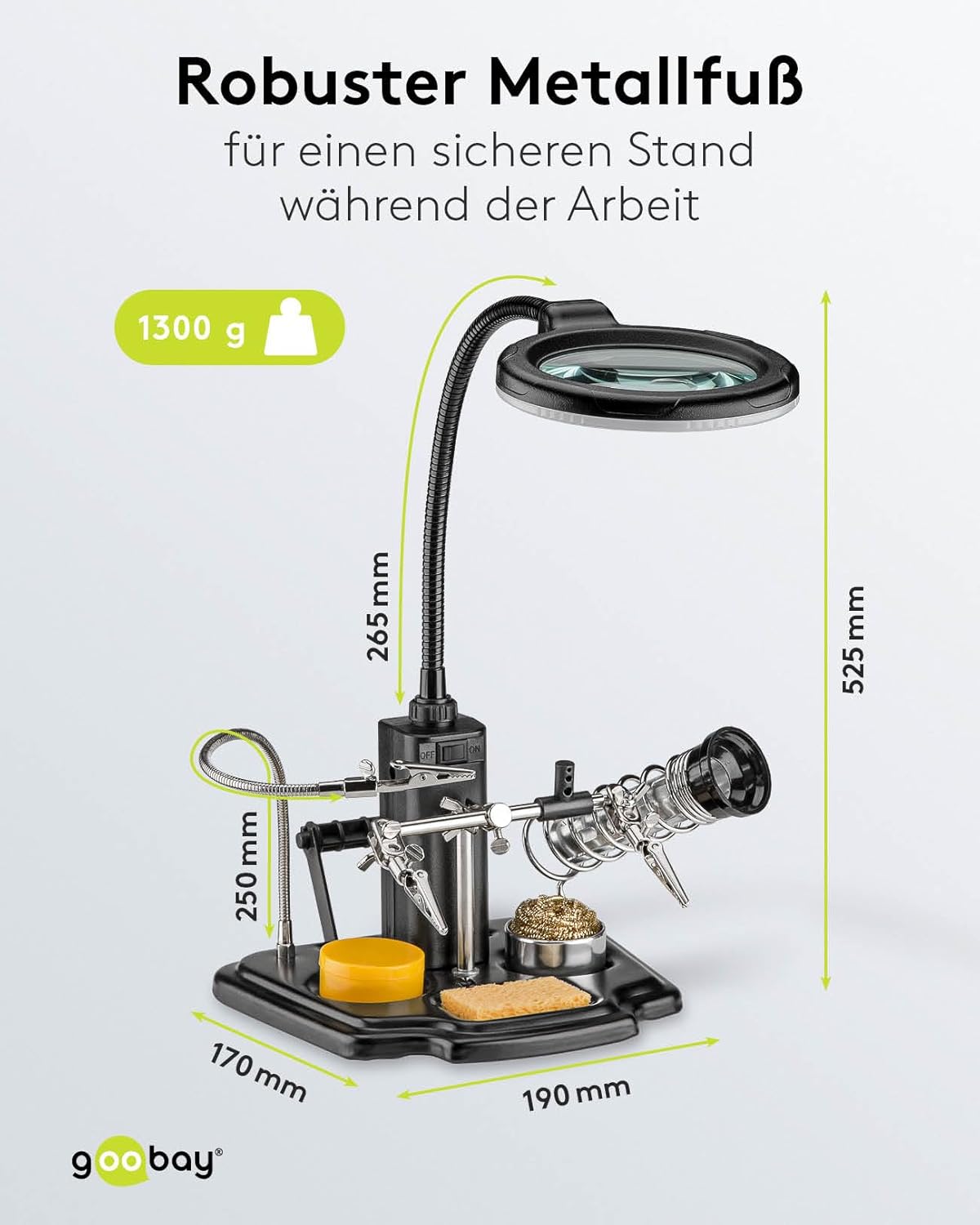

Image 4.1: The soldering aid with key dimensions, highlighting the robust metal base for secure positioning during work.

5. Strømstyring

The LED illumination can be powered either by batteries or via the included AC power adapter.

5.1. Batteridrift

For portable use, the LED light can be powered by 4x AA batteries (not included).

1. Find batterirummet på hovedenheden.
2. Åbn batterirummets dæksel.
3. Isæt 4x AA-batterier, og sørg for korrekt polaritet (+/-).
4. Luk batterirummets dæksel forsvarligt.

Image 5.1: The removable battery compartment, designed for 4x AA batteries, allowing for flexible power options.

5.2. Vekselstrømsadapter

For continuous operation, use the included AC power adapter.

1. Connect the DC plug of the power adapter to the power input port on the main unit.
2. Sæt strømadapteren i en passende stikkontakt.

Image 5.2: Details of the direct power supply via the included AC adapter, showing Europlug (Type C, CEE 7/16) and DC plug specifications.

6. Betjeningsvejledning

This section details how to use the various features of your Goobay 45241 Soldering Aid.

Image 6.1: Labeled diagram identifying key components: Magnifying glass, LED ring light, flexible goosenecks, On/Off switch, soldering iron holder, crocodile clips, cleaning wool, soldering resin holder, flux, and cleaning sponge.

6.1. Using the Magnifying Glass and LED Light

1. Position the magnifying glass gooseneck to bring the lens over your workpiece.
2. Flip the ON/OFF switch located on the main unit to activate the LED ring light.
3. Adjust the angle and distance of the magnifying glass for optimal viewing and illumination of your work area. The 3x magnification and 16 LEDs provide clear visibility for fine details.

Billede 6.2: Nærbillede view of the magnifying glass, detailing the LED ring light with 16 SMD LEDs, cold white light color (6500 K), 280 lm luminous flux, and the 90 mm diameter glass lens with 3x magnification (8 diopters).

6.2. Utilizing the Crocodile Clips

1. Use the flexible gooseneck arms of the crocodile clips to securely hold small components or circuit boards in place.
2. Adjust the angle and position of the clips to achieve the desired orientation for your workpiece. The strong clips prevent trembling or wobbling.

Image 6.3: The soldering aid in use, holding a circuit board, demonstrating its function as a practical helper for hands-free operation.

Image 6.4: The soldering aid providing a helping hand for intricate soldering and crafting tasks, shown with close-ups of fine component work and wire soldering.

6.3. Soldering Iron Holder and Cleaning

• Place your soldering iron in the integrated holder when not actively soldering to keep it secure and prevent accidental burns.
• Use the cleaning wool (brass wire) to effectively remove solder residue from the soldering tip.
• Dampen the cleaning sponge with water and use it to wipe the soldering tip clean.
• Apply a small amount of soldering resin (flux) to the soldering tip or workpiece to improve solder flow and joint quality.

7. Vedligeholdelse

Regular maintenance ensures the longevity and optimal performance of your soldering aid.

• Rengøring af linsen: Gently wipe the magnifying glass lens with a soft, lint-free cloth. For stubborn smudges, use a lens cleaning solution. Avoid abrasive cleaners.
• Rengøring af basen: Wipe the base and plastic components with a damp klæde. Nedsænk ikke enheden i vand.
• Svampepleje: Keep the cleaning sponge damp during use. Replace it when it becomes worn or heavily soiled.
• Udskiftning af batteri: If using batteries, replace all four AA batteries simultaneously when the LED light dims.
• Opbevaring: Store the soldering aid in a clean, dry environment when not in use.

8. Fejlfinding

If you encounter issues with your Goobay 45241 Soldering Aid, refer to the following common problems and solutions:

9. Specifikationer

10. Garanti og support

The Goobay 45241 Soldering Aid comes with a 2 års garanti fra købsdatoen. Denne garanti dækker fabrikationsfejl ved normal brug.

For technical support, warranty claims, or further assistance, please contact your retailer or the manufacturer directly. Keep your proof of purchase for warranty validation.
