MIDAS DM16 User Manual

1. Introduktion

This manual provides comprehensive instructions for the operation and maintenance of your MIDAS DM16 16 Input Analogue Live and Studio Mixer. The DM16 is designed for both live performance and studio recording environments, featuring award-winning MIDAS microphone preamplifiers and robust construction.

Please read this manual thoroughly before operating the device to ensure proper usage and to maximize its lifespan.

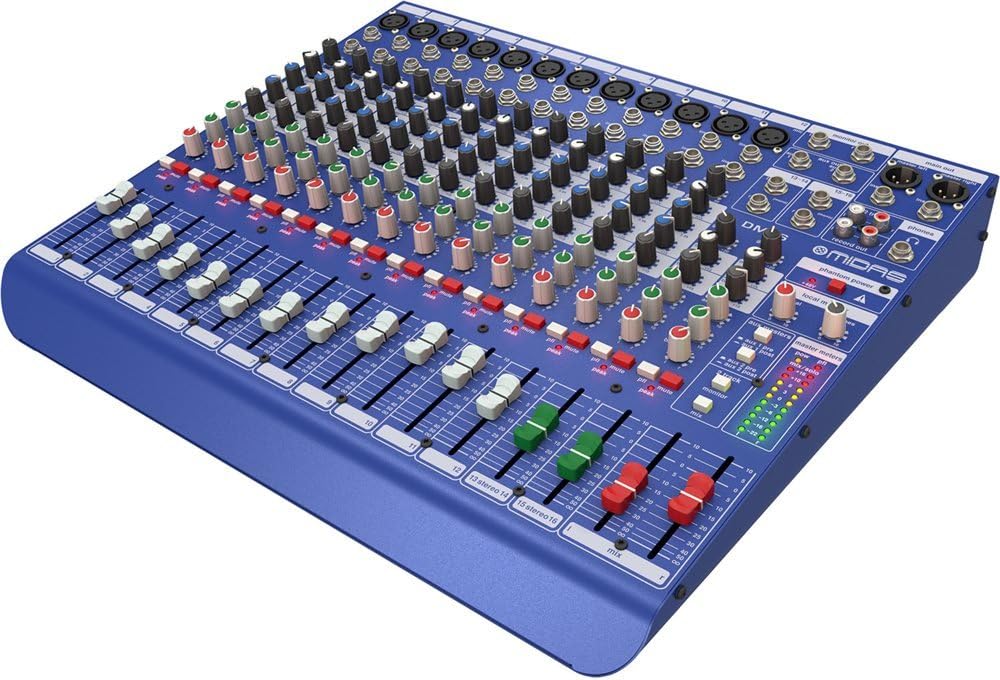

Figur 1.1: Forfra vinklet view of the MIDAS DM16 mixer.

2. Opsætning

2.1 Udpakning og inspektion

Upon receiving your MIDAS DM16, carefully unpack the unit and inspect it for any signs of damage that may have occurred during transit. Retain the original packaging materials for future transport or storage.

Inkluderet i æsken:

• MIDAS DM16 16-input analog live- og studiemixer
• Strømledning
• Brugervejledning (dette dokument)

2.2 Strømtilslutning

The DM16 operates on a standard AC power supply. Connect the provided power cord to the AC inlet on the rear panel of the mixer and then to a suitable power outlet. Ensure the power switch is in the 'Off' position before connecting to power.

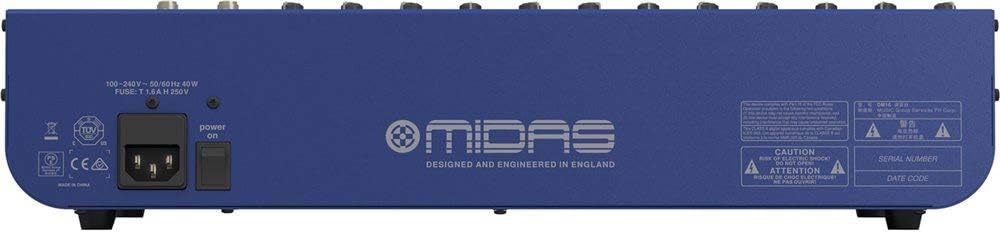

Figure 2.1: Rear panel of the MIDAS DM16 showing power input and warnings.

2.3 Ind- og udgangsforbindelser

The DM16 features a variety of input and output options for connecting microphones, instruments, and other audio devices.

• Mikrofonindgange: 12 mono input channels with XLR connectors for microphones. These channels feature MIDAS microphone preamplivførere.
• Linjeindgange: 2 electronically-balanced stereo line input channels on 1/4" TRS connectors for instruments or line-level devices.
• Hovedudgange: Connect to your main PA system or recording interface.
• Aux Sends: For monitor mixes or effects sends.
• Hovedtelefonudgang: For monitoring audio.

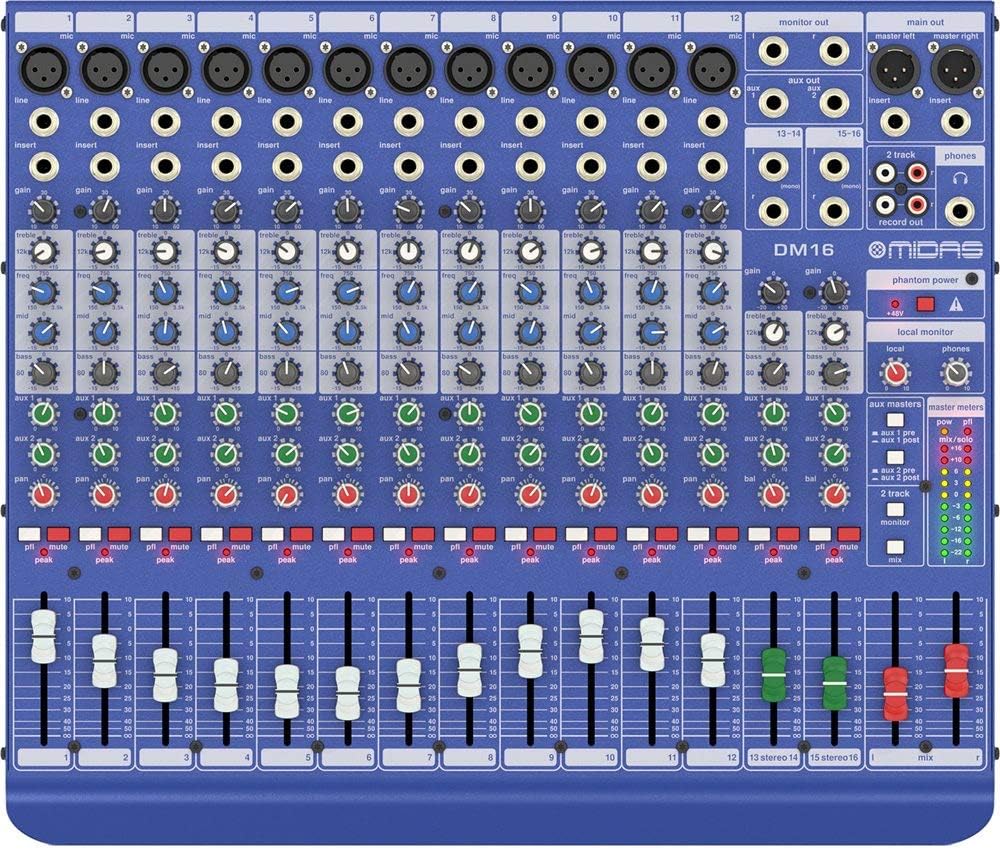

Figur 2.2: Øverst view of the MIDAS DM16 showing all input/output connections and controls.

3. Betjeningsvejledning

3.1 Kanalkontrol

Each mono input channel on the DM16 features the following controls:

• GEVINST: Adjusts the input sensitivity for the microphone preamplivligere.
• EQ: A 3-band equalizer with a swept mid-band for precise tone shaping.


  Figur 3.1: Detaljeret view of the 3-band EQ section on a mono channel.

• AUX 1/2: Controls the level sent to the auxiliary outputs. These can be switched pre/post fader.


  Figure 3.2: Aux masters section with pre/post fader switching.

• PANDE: Justerer kanalens stereoposition.
• STUM: Silences the channel.
• PEAK LED: Indicates when the input signal is clipping.
• FADER: Styrer udgangsniveauet fra kanalen til hovedmixet.


  Figure 3.3: Channel faders for precise level control.

3.2 Phantom Power

The DM16 provides +48V phantom power for condenser microphones. This is a global switch, meaning it applies to all microphone inputs simultaneously. Ensure all connections are made before activating phantom power to prevent damage to non-phantom powered devices.

Figure 3.4: Phantom power switch.

3.3 Overvågning

Use the headphone output and monitor controls to listen to the main mix or specific auxiliary sends. The monitor section includes controls for local monitor and phones output levels.

Figure 3.5: Monitor and headphone controls.

4. Vedligeholdelse

Proper maintenance ensures the longevity and optimal performance of your MIDAS DM16 mixer.

• Rensning: Use a soft, dry cloth to clean the exterior of the mixer. Avoid abrasive cleaners or solvents that could damage the finish or controls.
• Støvbeskyttelse: Keep the mixer covered when not in use to prevent dust accumulation, especially around faders and knobs.
• Ventilation: Sørg for tilstrækkelig luftgennemstrømning omkring enheden for at forhindre overophedning. Bloker ikke ventilationsåbningerne.
• Opbevaring: Store the mixer in a cool, dry environment away from direct sunlight and extreme temperatures.

5. Fejlfinding

This section addresses common issues you might encounter with your DM16 mixer.

• Ingen strøm:
  • Kontroller, om netledningen er korrekt tilsluttet både mixeren og stikkontakten.
  • Kontroller, at stikkontakten fungerer.
  • Ensure the power switch on the rear panel is in the 'On' position.
• Ingen lydoutput:
  • Kontroller alle indgangs- og udgangskabelforbindelser.
  • Ensure channel faders and the main mix fader are raised.
  • Verify that the MUTE buttons on active channels are not engaged.
  • Check the gain settings for each channel.
  • Confirm that your connected speakers or monitoring system are powered on and functioning correctly.
• Forvrænget lyd:
  • Reduce the GAIN setting on the input channel if the PEAK LED is frequently illuminating.
  • Lower the output level of the connected source device.
  • Kontroller for defekte kabler.
• Brummen eller støj:
  • Sørg for, at alle kabler er korrekt afskærmede og i god stand.
  • Check for ground loops; try connecting all audio equipment to the same power strip.
  • Hold lydkabler væk fra strømkabler.

If you encounter issues not covered here, please refer to the support section.

6. Specifikationer

7. Garanti og support

7.1 Garantioplysninger

Your MIDAS DM16 mixer is covered by a limited warranty against defects in materials and workmanship. Please refer to the warranty card included with your product or visit the official MIDAS webhjemmeside for detaljerede garantivilkår.

Note: The warranty may not cover damage caused by improper use, unauthorized modifications, or natural disasters.

7.2 Kundesupport

For technical assistance, troubleshooting, or service inquiries, please contact MIDAS customer support through their official webwebstedet eller kontaktoplysningerne i din produktdokumentation.

Online ressourcer:

• Official MIDAS Webwebsted: www.midasconsoles.com
• Product Support Page: (Specific link if available, otherwise general webwebsted)

When contacting support, please have your product model number (DM16) and serial number ready.
