Whynter ARC-126MDB Bærbar Klimaanlæg Brugermanual

1. Produktet er slutview

The Whynter ARC-126MDB is a 12000 BTU (ASHRAE) dual-hose portable air conditioner designed to provide efficient cooling, dehumidification, and fan-only operation for various indoor spaces. Its portable design and dual-hose system contribute to effective air circulation and temperature control. This unit features a 3M and SilverShield filter for improved air quality.

Nøglefunktioner:

• Designed around portability and space utilization.
• Product engineered to improve home life comfort.
• Optimized for both form and function.

2. Product Components and Parts Identification

Familiarize yourself with the main components of your Whynter ARC-126MDB portable air conditioner and its accessories.

Figur 2.1: Front view of the Whynter ARC-126MDB Portable Air Conditioner. This image shows the sleek black exterior with a silver trim and the Whynter logo.

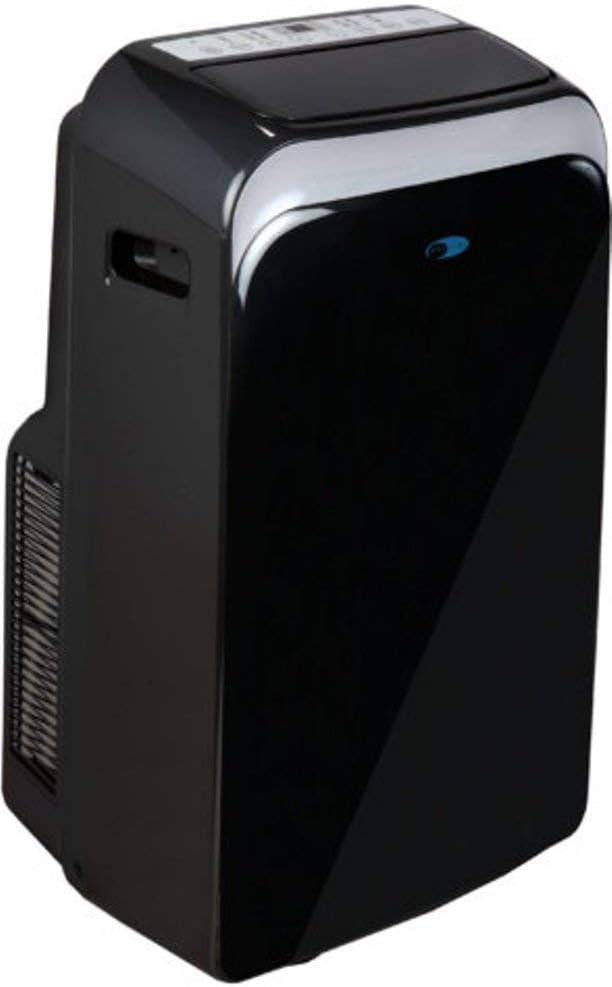

Figur 2.2: Vinklet view of the portable air conditioner, highlighting its compact design and side vents.

Figur 2.3: Side view showing the air intake and exhaust grilles.

Figur 2.4: Bagud vinklet view, showing the hose connections and power cord area.

Figur 2.5: Close-up of the top control panel with digital display and function buttons (Swing, Timer, Mode, Fan, Sleep, Power).

Figur 2.6: Storage bag for the user manual and remote control, indicating their presence with the product.

Figur 2.7: Included accessories: two exhaust hoses, two hose adapters, window kit panel, remote control, and foam seal.

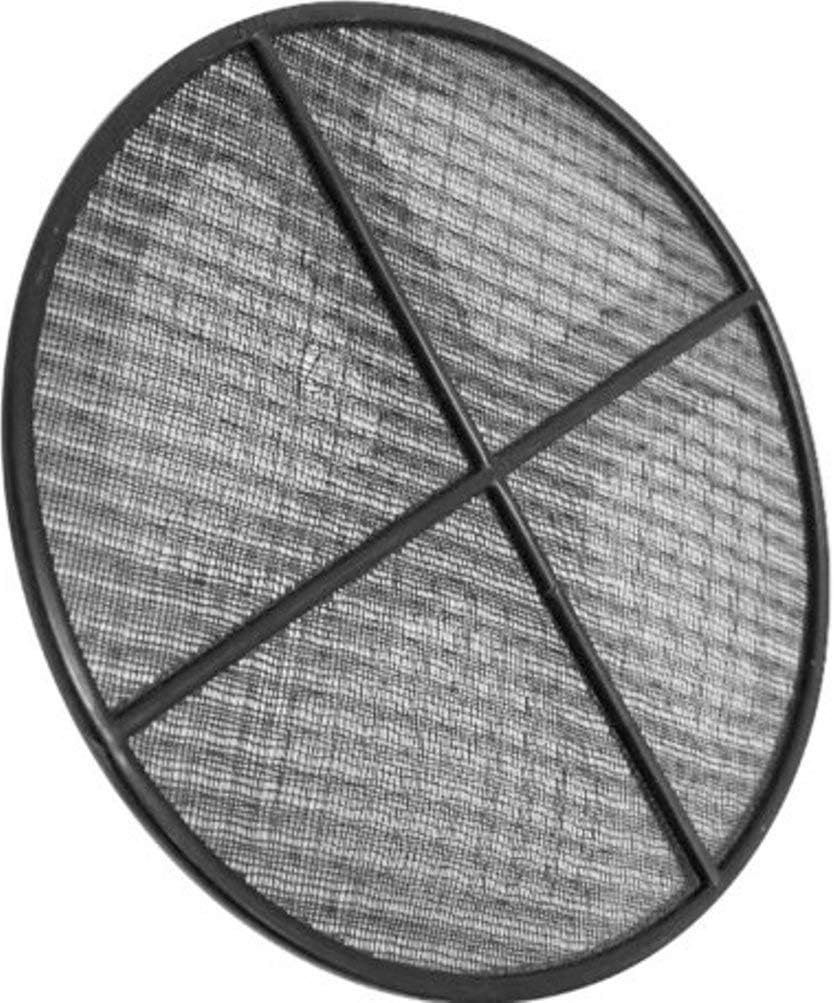

Figur 2.8: The SilverShield filter, designed to improve air quality.

Figur 2.9: Dimensional drawing of the unit, showing height (30.25"), width (18.5"), and depth (18.75").

3. Opsætning og installation

Proper installation is crucial for the efficient operation of your portable air conditioner. Ensure the unit is placed on a flat, stable surface and is at least 20 inches away from any wall or obstruction to allow for proper airflow.

3.1 Montering af vinduessæt:

1. Assemble the window kit panel by sliding the adjustable panel into the main panel. Secure with screws if provided.
2. Attach the hose adapters to the exhaust hoses.
3. Insert the exhaust hoses into the corresponding openings on the window kit panel.
4. Open the window and place the assembled window kit into the window opening. Extend the adjustable panel to fit snugly and secure the window.
5. Connect the other end of the exhaust hoses to the air conditioner's exhaust ports. Ensure a secure connection to prevent air leakage.
6. Seal any gaps around the window kit with the provided foam seal to maximize cooling efficiency.

Figur 3.1: The portable air conditioner set up next to a window with the dual hoses connected to the window kit.

4. Betjeningsvejledning

Your Whynter ARC-126MDB portable air conditioner offers multiple operating modes for your comfort.

4.1 Control Panel and Remote Control:

Enheden kan betjenes via kontrolpanelet oven på enheden eller den medfølgende fjernbetjening. Funktionerne er identiske.

• Tænd/sluk-knap (⏻): Tænder eller slukker enheden.
• Mode knap: Cycles through operating modes: Cool, Dehumidify (Dry), and Fan.
• Temperature Buttons (+ / -): Justerer den ønskede temperaturindstilling.
• Ventilatorhastighedsknap: Selects fan speed: Low, Medium, High.
• Timer knap: Indstiller timeren for automatisk tænding eller automatisk slukning.
• Sving knap: Activates or deactivates the automatic louver swing for wider air distribution.
• Sleep knap: Aktiverer dvaletilstand for stille drift og gradvis temperaturjustering under søvn.

4.2 driftstilstande:

• Cool tilstand: Giver køling. Indstil den ønskede temperatur mellem 16 °C og 32 °C.
• Dehumidify (Dry) Mode: Removes moisture from the air without significant cooling. Fan speed is fixed to low.
• Ventilatortilstand: Cirkulerer luft uden køling. Ventilatorhastigheden kan justeres.

5. Vedligeholdelse

Regelmæssig vedligeholdelse sikrer optimal ydeevne og levetid for dit klimaanlæg.

5.1 Rengøring af filter:

The Whynter ARC-126MDB is equipped with a 3M and SilverShield filter. These filters should be cleaned regularly, typically every two weeks, or more frequently depending on usage and air quality.

1. Sluk for enheden, og tag stikket ud før rengøring.
2. Locate the filter access panel (usually at the rear or side of the unit).
3. Fjern filteret/filtrene.
4. Wash the filter(s) under warm running water (below 104°F / 40°C). Do not use hot water.
5. Allow the filter(s) to air dry completely before reinstalling. Do not expose to direct sunlight.

5.2 Drainage:

The unit has an auto-evaporation function which exhausts most of the condensate. However, in high humidity conditions, the internal water tank may fill up. When this occurs, the unit will stop operating and display an error code (e.g., "FL" for full tank).

1. Sluk og tag stikket ud af enheden.
2. Placer en lav gryde eller bakke under afløbsporten nederst på bagsiden af ​​enheden.
3. Fjern aftapningsproppen/dækslet.
4. Lad alt vandet løbe helt ud.
5. Sæt aftapningsproppen/dækslet ordentligt på.

5.3 Opbevaring:

Hvis enheden opbevares i en længere periode:

1. Tøm alt kondensvand ud.
2. Rengør luftfiltrene.
3. Kør enheden i ventilatortilstand i et par timer for at tørre de indvendige komponenter.
4. Tag netledningen ud, og rul den pænt op.
5. Remove the exhaust hoses and window kit.
6. Cover the unit with a plastic bag or original packaging to protect it from dust.
7. Opbevares på et køligt, tørt sted.

6. Fejlfinding

Før du kontakter kundesupport, bedes du læse følgende fejlfindingsvejledning for almindelige problemer.

7. Specifikationer

8. Garanti og kundesupport

For warranty information or technical assistance, please contact Whynter customer support. Keep your purchase receipt as proof of purchase for warranty claims.

Whynter Customer Support:

• Visit the official Whynter webwebsted for de mest opdaterede kontaktoplysninger og supportressourcer.
• Refer to the warranty card included with your product for specific terms and conditions.
