Orbit H2O-Six® Gear-Drive Sprinkler Head on Tripod

Produkt overview

The Orbit H2O-Six® Gear-Drive Sprinkler is a highly versatile watering solution designed for various lawn and garden sizes. Its innovative gear-drive mechanism ensures quiet operation and consistent performance. Mounted on a sturdy, adjustable tripod, this sprinkler offers flexible placement and precise water distribution.

Nøglefunktioner:

• NO TOOLS REQUIRED: Ready to use out of the box, simple to operate, and offers versatility in spray settings.
• DÆKNING AF STORT OMRÅDE: Sprøjter op til 80 meter i diameter og dækker 5,026 kvadratmeter, når den er indstillet til en fuld cirkel.
• JUSTERBAR SPRAYDÆKNING: Use the collar tabs to adjust your spray from partial to full circle (360°) coverage.
• 6 SPRAYMØNSTRE: Vælg mellem lille, mellem, stor, bruser, lodret og flad.
• 4-POSITIONS DIFFUSER: Tilpas din spray til at fordele vand i dråber eller små stråler.
• LET AT BRUGE: Drej blot og klik på plads for at vælge mønster.
• INNOVATIVT DESIGN: Tandhjulsdrevet, designet af Orbit, tilbyder hviskende stille drift.
• LANGVARIG KONSTRUKTION: Lavet af stærk og holdbar plastik for at sikre, at dette produkt holder sæson efter sæson uden rust eller korrosion.
• TELESCOPING TRIPOD: Metal tripod, with three-leg adjustment, to water at the perfect height as your garden grows. Tripod adjusts from 25 to 48 inches.
• OPERATING WATER PRESSURE: Works from 15 to 65 psi.

Pakkens indhold

• 1 x H2O-Six® Gear-Drive Sprinkler Head
• 1 x Adjustable Tripod Base
• Instruktionsmanual (dette dokument)

Opsætningsinstruktioner

1. Unpacking and Initial Assembly

Carefully remove all components from the packaging. The Orbit H2O-Six® Gear-Drive Sprinkler comes pre-assembled on its tripod base, requiring no tools for initial setup.

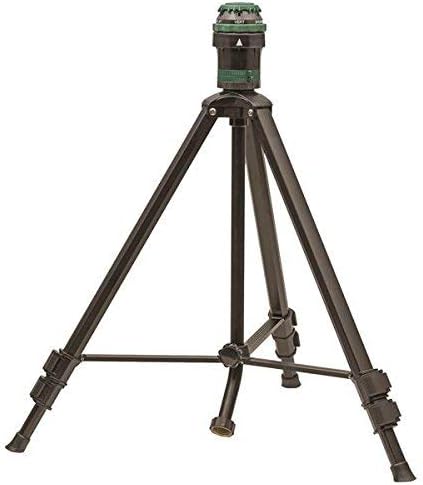

Image: The Orbit H2O-Six® Gear-Drive Sprinkler head mounted on its adjustable tripod base, ready for use.

2. Justering af stativhøjde

The sturdy metal tripod legs are telescoping and can be adjusted from 25 to 48 inches. To adjust the height, locate the quick-release locking mechanisms on each leg. Open the locks, extend or retract the legs to your desired height, and then firmly close the locks to secure them. Ensure the tripod is stable on a level surface before operation.

Billede: Et nærbillede view of a hand operating the locking mechanism on a tripod leg to adjust its length.

3. Connecting to Water Source

Connect a standard garden hose to the inlet located at the base of the tripod. Hand-tighten the connection to ensure it is secure and leak-free. The sprinkler is designed to operate efficiently with water pressure between 15 and 65 PSI.

Betjeningsvejledning

1. Selecting Spray Pattern

The H2O-Six® sprinkler offers six distinct spray patterns to suit various watering needs: small, medium, large, shower, vertical, and flat. To select a pattern, simply rotate the green ring on the top of the sprinkler head. You will feel and hear a click as each pattern locks into place. No tools are required for this adjustment.

Billede: En detaljeret view of the sprinkler head, highlighting the adjustable ring and the labels for the six different spray patterns.

2. Adjusting Spray Coverage (Arc)

To define the watering arc (from 25 to 360 degrees), locate the two adjustment collar tabs at the base of the sprinkler head, just above the tripod connection. Slide these tabs to set the desired start and end points for the sprinkler's rotation. The sprinkler will automatically reverse direction when it reaches either tab.

Image: A hand demonstrating how to adjust the black tabs on the sprinkler's collar to control the spray arc.

3. Utilizing the 4-Position Diffuser

The sprinkler is equipped with a four-position diffuser, providing complete control over the water spray. This feature allows you to customize the water distribution from a fine mist to larger, more concentrated jets, optimizing watering for different plant types or soil conditions.

Image: The Orbit H2O-Six® Sprinkler actively watering a lawn, showcasing its effective spray pattern.

Opretholdelse

The Orbit H2O-Six® Gear-Drive Sprinkler is built for durability. Regular maintenance will ensure its optimal performance and extend its lifespan:

• Rengør regelmæssigt: Periodically inspect the sprinkler head and nozzles for any debris, dirt, or mineral buildup. Use a soft brush or cloth to gently clean any obstructions.
• Vinterisering: Before the first frost, disconnect the sprinkler from the water source. Drain all water from the unit to prevent freezing and potential damage to internal components. Store the sprinkler in a dry, protected area during winter months.
• Tjek forbindelser: Routinely check all hose connections to ensure they remain tight. Loose connections can lead to water leaks and reduced water pressure, affecting sprinkler performance.

Fejlfinding

Specifikationer

• Mærke: Orbit
• Modelnummer: 56481
• Stil: Sprinkler on Tripod
• Materiale: Plastic, Zinc
• Farve: Grøn
• Emnemål (L x B x H): 33 x 4 x 3 tommer
• Varens vægt: 4.69 pund
• Maksimalt tryk: 65 PSI
• Maksimal gennemstrømningshastighed: 29.41 liter i minuttet
• Dækningsområde: Up to 5,026 square feet (80 feet diameter at full circle)
• Justering af stativ: 25 til 48 tommer
• Spray mønstre: 6 (Small, Medium, Large, Shower, Vertical, Flat)
• UPC: 046878564817

Garanti og support

For detailed warranty information or technical support regarding your Orbit H2O-Six® Gear-Drive Sprinkler, please visit the official Orbit webwebstedet eller kontakt deres kundeserviceafdeling direkte. Det anbefales at gemme din købskvittering som købsbevis i tilfælde af garantikrav.
