Indledning
This manual provides essential information for the proper installation, operation, and maintenance of your Watts LF26A Water Pressure Regulator Valve. Please read this manual thoroughly before installation and keep it for future reference. This valve is designed to reduce incoming water pressure to a safe and functional level for residential and light commercial applications, protecting plumbing systems and fixtures from high pressure damage.
Produkt overview og funktioner
The Watts LF26A is a high-quality water pressure regulator valve engineered for reliable performance and durability. Key features include:
- Lead-Free Brass Body: Constructed from durable lead-free brass for safe potable water applications.
- Justerbart trykområde: Allows for precise adjustment of outlet pressure from 1 to 25 psi.
- FIP Connections: Features 3/8 inch Female Iron Pipe (FIP) connections for easy installation.
- NSF godkendt: Certified to meet NSF standards for water quality and safety.
- Kompakt design: Efficient design with dimensions of 2.3 x 2.3 x 5.1 inches.
- Højt maksimalt tryk: Capable of handling maximum inlet pressures up to 300 psi.
- Temperatur bedømmelse: Suitable for water temperatures up to 140 degrees F.

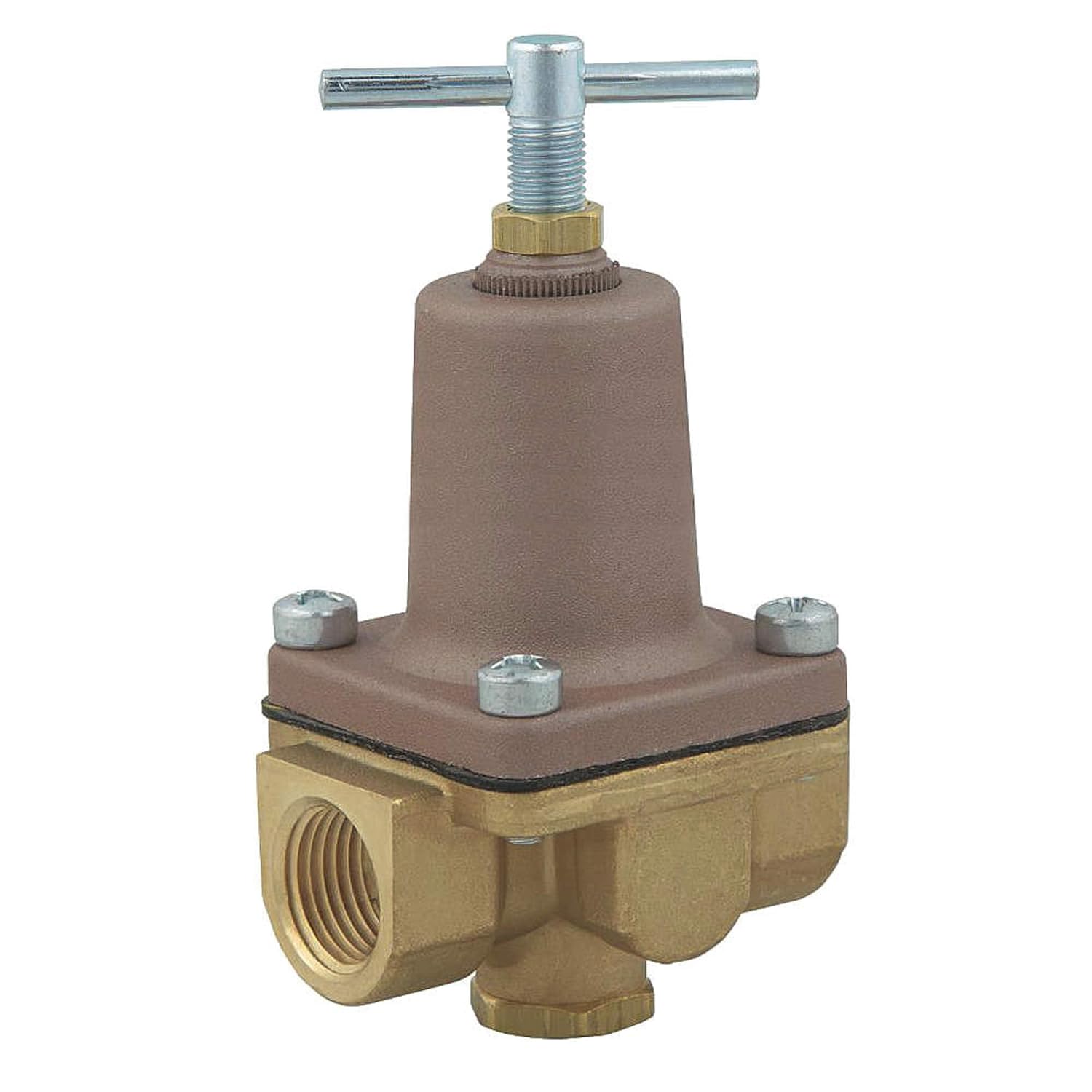

Figure 1: Watts LF26A Water Pressure Regulator Valve. This image displays the valve's brass body, the FIP threaded connections on the side, and the pressure adjustment screw located at the top of the brown housing.
Sikkerhedsoplysninger
Always observe the following safety precautions during installation and maintenance:
- Ensure water supply is shut off and pressure is relieved before beginning any work.
- Brug passende personlige værnemidler (PPE), såsom sikkerhedsbriller og handsker.
- Overskrid ikke det maksimale driftstryk eller den maksimale temperatur, der er angivet for ventilen.
- Hvis du er usikker på et trin, skal du kontakte en kvalificeret VVS-installatør.
- Comply with all local plumbing codes and regulations.
Installation
Tjekliste før installation:
- Verify that the valve model (LF26A) and size (3/8 inch) are correct for your application.
- Ensure you have the necessary tools: pipe wrenches, thread sealant (Teflon tape or pipe dope), and a pressure gauge.
- Inspect the valve for any visible damage before installation.
Installationstrin:
- Sluk for vandforsyningen: Locate the main water shut-off valve for your property and turn it off.
- Afløbssystem: Open a faucet at the lowest point in your system to drain water and relieve pressure.
- Vælg placering: Install the pressure regulator valve in an accessible location, typically after the main shut-off valve and before any branch lines. Ensure there is sufficient space for future maintenance.
- Forbered forbindelser: Apply appropriate thread sealant (Teflon tape or pipe dope) to the male threads of the pipes connecting to the valve.
- Install Valve: Orient the valve according to the flow arrow cast on its body. The arrow must point in the direction of water flow. Thread the valve onto the pipes, tightening securely with pipe wrenches. Avoid overtightening.
- Install Pressure Gauge (Recommended): For accurate pressure monitoring, install a pressure gauge downstream of the regulator.
- Genopret vandforsyningen: Slowly open the main water shut-off valve. Check for leaks at all connections.
- Udluftning: Open faucets throughout the system to purge air until water flows smoothly.
Operation
The Watts LF26A valve is factory preset to a nominal pressure. Adjustment may be necessary to achieve the desired system pressure.
Adjusting Outlet Pressure:
- Ensure a pressure gauge is installed downstream of the valve for accurate readings.
- Til øge the outlet pressure, turn the adjustment screw (located on top of the valve) med uret.
- Til formindske the outlet pressure, turn the adjustment screw mod uret.
- Make small adjustments (e.g., quarter turns) and observe the pressure gauge. Allow the system pressure to stabilize after each adjustment.
- Once the desired pressure is set, ensure the locknut (if present) is tightened to secure the setting.
The adjustable pressure range for this model is 1 to 25 psi.
Opretholdelse
Regular maintenance helps ensure the longevity and optimal performance of your pressure regulator valve.
- Årlig inspektion: Annually inspect the valve for any signs of leaks, corrosion, or external damage.
- Trykbekræftelse: Periodically check the outlet pressure using a pressure gauge to ensure it remains at the desired setting. Fluctuations may indicate a need for adjustment or service.
- Rensning: The exterior of the valve can be wiped clean with a damp cloth. Do not use harsh chemicals. Internal cleaning or servicing should only be performed by a qualified professional.
- Vinterisering: In areas subject to freezing temperatures, ensure the valve and associated piping are adequately protected from freezing. Drain the system if it will be out of service for an extended period in freezing conditions.
Fejlfinding
If you experience issues with your Watts LF26A pressure regulator valve, refer to the following common problems and solutions:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| No pressure reduction or high outlet pressure. | Valve set too high; debris in valve; worn internal components. | Adjust pressure setting counter-clockwise; flush system; consult professional for repair/replacement. |
| Low or fluctuating outlet pressure. | Valve set too low; insufficient inlet pressure; debris in valve; worn internal components. | Adjust pressure setting clockwise; check main water supply pressure; flush system; consult professional. |
| Water leaking from valve body or connections. | Loose connections; damaged threads; faulty seals/gaskets; cracked valve body. | Tighten connections; re-apply thread sealant; replace seals/gaskets; replace valve if cracked. |
| No water flow through valve. | Valve completely closed; significant debris blockage; incorrect installation (e.g., backward). | Check adjustment setting; flush system; verify flow arrow direction; consult professional. |
For issues not listed or if solutions do not resolve the problem, it is recommended to contact a qualified plumbing professional or Watts customer support.
Specifikationer
| Attribut | Værdi |
|---|---|
| Modelnummer | LF26A |
| Kropsmateriale | Blyfri messing |
| Indløbsstørrelse | 3/8 tomme |
| Outlet størrelse | 3/8 tomme |
| Tilslutningstype | FIP (Female Iron Pipe) |
| Trykjusteringsområde | 1 til 25 psi |
| Maksimalt indløbstryk | 300 psi |
| Maksimal temperatur | 140°F (60°C) |
| Produktmål (L x B x H) | 2.3 x 2.3 x 5.1 tommer |
| Vægt | 1 pund |
| Anvendelse | Vand |
| Certificeringer | NSF-godkendt |
| Fabrikant | CAI - WATTS |
Garanti og support
Warranty information for the Watts LF26A Water Pressure Regulator Valve is typically provided with the product packaging or can be obtained directly from the manufacturer, Watts. Please refer to the official Watts website or contact their customer service for detailed warranty terms and conditions.
For technical support, replacement parts, or further assistance, please contact Watts customer service or visit their official website. When contacting support, please have your product model number (LF26A) and purchase details readily available.
Watts Officiel Webwebsted: www.watts.com
