Neo 10-i-1 varm dampmopperenser brugermanual

Indledning

Neo 10-i-1 varm dampmoppe er et alsidigt og kraftfuldt rengøringsapparat designet til effektivt at rengøre forskellige overflader ved hjælp af dampkraft. Denne manual indeholder vigtige oplysninger om sikker betjening, montering, brug og vedligeholdelse af din damprenser.

Image: The Neo 10-in-1 Steam Mop in its upright configuration, ready for use on hard floors.

Vigtige sikkerhedsoplysninger

Læs venligst alle instruktioner omhyggeligt, inden du bruger dette apparat. Manglende overholdelse af disse instruktioner kan resultere i elektrisk stød, brand eller alvorlig personskade.

• Always ensure the appliance is unplugged from the power outlet before filling with water or performing maintenance.
• Do not leave the steam cleaner unattended while it is powered on.
• Opbevares utilgængeligt for børn og kæledyr.
• Use only clean tap water in the water tank. Do not add cleaning solutions, perfumes, or other chemicals.
• Ret ikke dampen mod mennesker, dyr eller elektriske apparater.
• Lad altid apparatet køle helt af før opbevaring.
• Undersøg netledningen og stikket for skader før hver brug. Må ikke anvendes, hvis de er beskadiget.

Pakkens indhold

Carefully unpack your Neo 10-in-1 Steam Mop and ensure all items are present and undamaged. If any items are missing or damaged, contact customer support.

Image: All components of the Neo 10-in-1 Steam Mop, including the main unit, various nozzles, brushes, and cloths.

Inkluderet tilbehør:

• Main Steam Mop Unit (Upright and Handheld)
• Målebæger
• Window / Glass Cleaner Tool
• Round Small Brass Brush
• Grout / Slender Brush
• Skraber værktøj
• Carpet / Fabric Tool
• Glider (for carpets)
• Jet-dyse
• Nylonbørste
• Washable Micro Fibre Cloth Pad

Opsætning

1. Forsamling: Connect the handle to the main body of the steam mop until it clicks into place. Ensure it is securely fastened.
2. Påfyldning af vandtanken:
   • Sørg for, at enheden er afbrudt.
   • Åbn vandtankens dæksel.
   • Using the provided measuring cup, fill the 450ml water tank with clean tap water. Do not overfill.
   • Luk vandtankens dæksel forsvarligt.
3. Attaching the Microfibre Cloth Pad: For floor cleaning, attach the microfibre cloth pad to the bottom of the mop head, ensuring it is securely fastened with the hook-and-loop strips.
4. Strømtilslutning: Sæt netledningen i en jordet stikkontakt.

Betjeningsvejledning

Generel drift:

• Once plugged in, the unit will begin to heat up. It is ready to use in approximately 30 seconds.
• The steam mop features variable steam control. Adjust the steam output according to the surface being cleaned and the level of dirt.
• The 450ml tank provides approximately 30 minutes of continuous steaming time.

Using as an Upright Steam Mop (for Floors):

This mode is ideal for cleaning sealed hard floors such as tile, laminate, and sealed hardwood. Ensure the microfibre cloth pad is attached.

1. Ensure the water tank is filled and the cloth pad is attached.
2. Sæt stikket i enheden, og vent på, at den varmer op.
3. Press the power button to turn on the steam.
4. Move the mop slowly and steadily across the floor surface. For stubborn stains, hold the mop over the area for a few seconds to allow the steam to penetrate.
5. For carpets, attach the carpet glider over the mop head with the cloth pad. Move the mop back and forth over the carpet to refresh and deodorize.

Using as a Handheld Steamer (2-in-1 Function):

The main body detaches to become a versatile handheld steamer, perfect for cleaning various surfaces and hard-to-reach areas.

1. Tag stikket ud af stikkontakten.
2. Press the release button to detach the handheld unit from the main mop body.
3. Select the appropriate accessory for your cleaning task and attach it securely to the handheld unit's nozzle.
4. Plug in the handheld unit and wait for it to heat up.
5. Direct the steam towards the surface to be cleaned. Use short bursts of steam for delicate surfaces.

Specific Handheld Attachments Usage:

• Carpet / Fabric Tool: Ideal for refreshing upholstery, curtains, and small carpeted areas. Attach the fabric tool with its cloth cover.


  Image: The handheld unit with the fabric tool attached, being used to steam clean a fabric couch.
• Window / Glass Cleaner: For streak-free cleaning of windows, mirrors, and glass surfaces. Attach the window squeegee tool.


  Image: The handheld unit with the window cleaning tool, used to clean window blinds.

• Grout / Slender Brush: Designed for cleaning narrow gaps, tile grout, and hard-to-reach crevices.

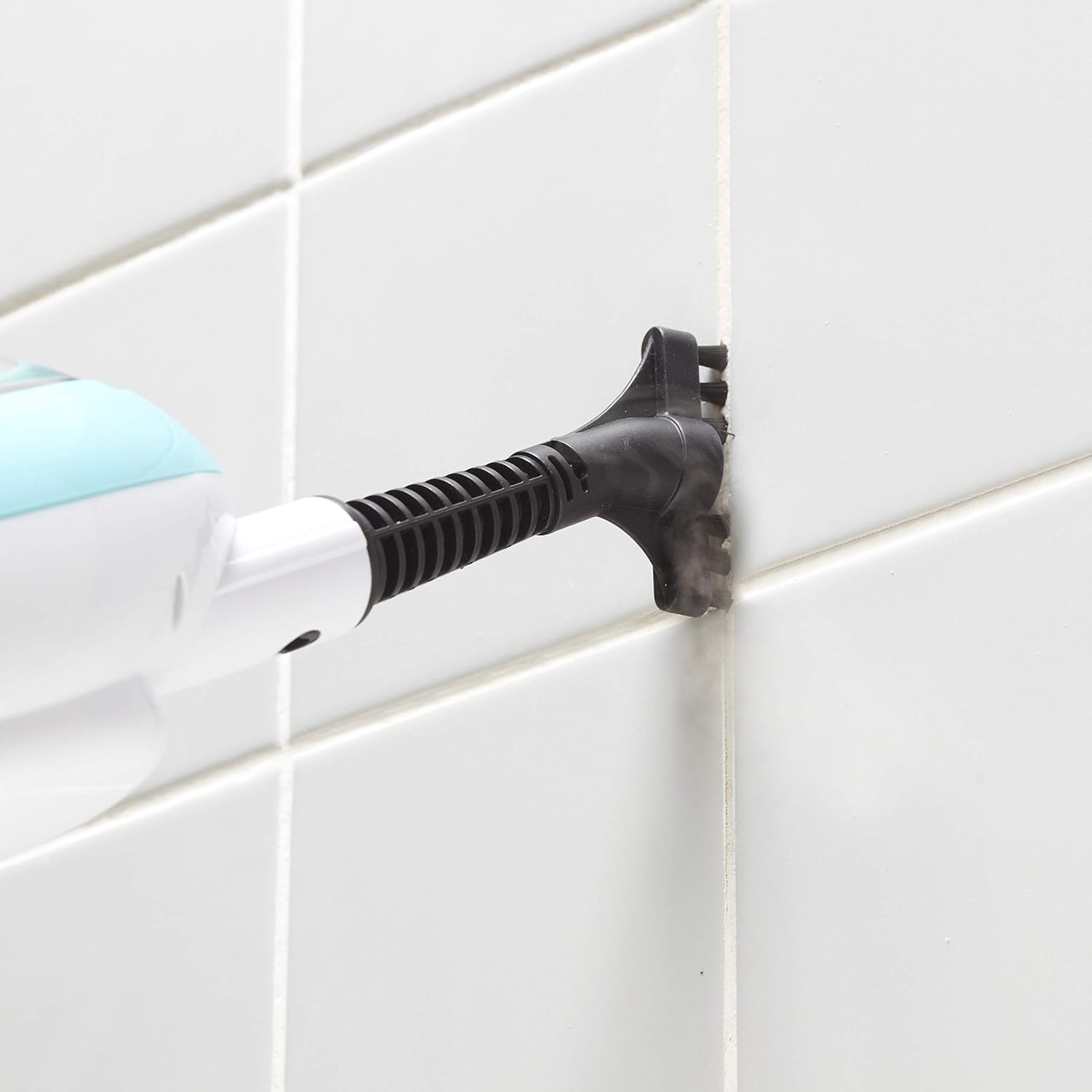

  Image: The handheld unit with the grout brush attachment, effectively cleaning grout lines on a tiled wall.

• Round Small Brass Brush / Nylon Brush: For scrubbing tough dirt and grime on durable surfaces like ovens, stovetops, and BBQ grills. Use the brass brush for very stubborn stains, nylon for general scrubbing.


  Image: The handheld unit with a brush attachment, cleaning the interior of a microwave oven.


  Image: The handheld unit with a brush attachment, cleaning a stovetop burner.

• Jet dyse: Provides a concentrated blast of steam for precision cleaning in tight spots or for blasting away concentrated dirt.


  Image: The handheld unit with the jet nozzle attachment, cleaning around a bathroom faucet.

• Scraper Tool: For removing baked-on grime or sticky residues from hard surfaces.

Opretholdelse

Regelmæssig vedligeholdelse sikrer din damprensers lange levetid og optimale ydeevne.

• Tømning af vandtanken: After each use, unplug the unit and allow it to cool. Empty any remaining water from the tank to prevent mineral buildup.
• Cleaning Microfibre Cloth Pads: The microfibre cloth pads are washable. Remove them from the mop head and machine wash with similar colors. Do not use bleach or fabric softener. Air dry or tumble dry on low.
• Rengøringstilbehør: Tør alt tilbehør af med reklameamp cloth after use. Ensure they are dry before storing.
• Afkalkning (hvis nødvendigt): If you notice reduced steam output or mineral buildup, a descaling solution designed for steam appliances can be used. Follow the descaling product's instructions carefully.
• Opbevaring: Store the steam cleaner in a cool, dry place, out of direct sunlight and away from children.

Fejlfinding

Specifikationer

Garanti og support

This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your original packaging for specific terms and conditions. For technical support, replacement parts, or warranty claims, please contact Neo customer service through their official webwebstedet eller forhandleren, hvor produktet blev købt.

Gem din købskvittering som købsbevis af garantihensyn.
