Rosewill Electric Hot Water Boiler and Warmer User Manual

Indledning

Tak for købetasing the Rosewill Electric Hot Water Boiler and Warmer. This appliance is designed to provide convenient access to hot water for various uses, such as preparing beverages, instant meals, and cooking. Please read this manual thoroughly before operation to ensure safe and efficient use of your new appliance. Keep this manual for future reference.

Sikkerhedsoplysninger

To prevent personal injury or property damage, always follow basic safety precautions when using electrical appliances. This includes, but is not limited to:

• Nedsænk ikke apparatet, ledningen eller stikket i vand eller andre væsker.
• Sørg for, at voltagSørg for, at den angivne strømforsyning på apparatet stemmer overens med din lokale strømforsyning, før du tilslutter den.
• Betjen ikke apparatet med en beskadiget ledning eller stik, eller efter at apparatet ikke fungerer korrekt eller er blevet beskadiget på nogen måde.
• Opbevar apparatet utilgængeligt for børn. Nøje opsyn er nødvendigt, når et apparat bruges af eller i nærheden af ​​børn.
• Brug kun apparatet til det tilsigtede formål i husholdningen.
• Anbring ikke apparatet på eller i nærheden af ​​en varm gas- eller elektrisk brænder eller i en opvarmet ovn.
• Sørg altid for, at låget er forsvarligt lukket under drift.
• Exercise extreme caution when moving an appliance containing hot water.
• Fyld ikke over den maksimale påfyldningslinje for at undgå overløb.
• Træk stikket ud af stikkontakten, når det ikke er i brug, og før rengøring. Lad det køle af, før du sætter dele på eller af, og før du rengør apparatet.
• Dette apparat har Kog tør beskyttelse og Automatisk sluk for sikkerheden.

Produkt overview

Nøglekomponenter:

• Hovedenhed: Stainless steel body with black accents.
• Låg: Removable for filling and cleaning.
• Kontrolpanel: Located on the top, with buttons for temperature settings, reboil, auto cool, and dispense.
• Water Level Gauge Window: Large, clear window on the front to easily monitor water levels.
• Dispenseringstud: For pouring hot water.
• Løftehåndtag: For nem transport.
• Strømledning: Detachable for convenience.

Funktioner:

• 4.0 liters kapacitet: Large volume for family use or entertaining.
• 18/8 Stainless Steel Interior: Ensures durability, corrosion resistance, and easy cleaning.
• Flere temperaturindstillinger: Choose from 208°F, 185°F, or 149°F for various needs.
• Dual Water Dispensing Modes:
  • Button Press Dispenser: Press the 'Dispense' button on the control panel.
  • Cup Trigger Dispenser: A convenient trigger located under the spout for one-handed operation.



• Reboil Function: Quickly reboil water to your desired temperature.
• Auto Cool Function: Saves energy by returning water to room temperature when not needed.
• Automatic Keep Warm Function: Maintains selected water temperature for extended periods.
• Sikkerhedslås: Requires unlocking before dispensing to prevent accidental spills.
• Vacuum Insulation Technology: Helps maintain heat even without continuous electricity.

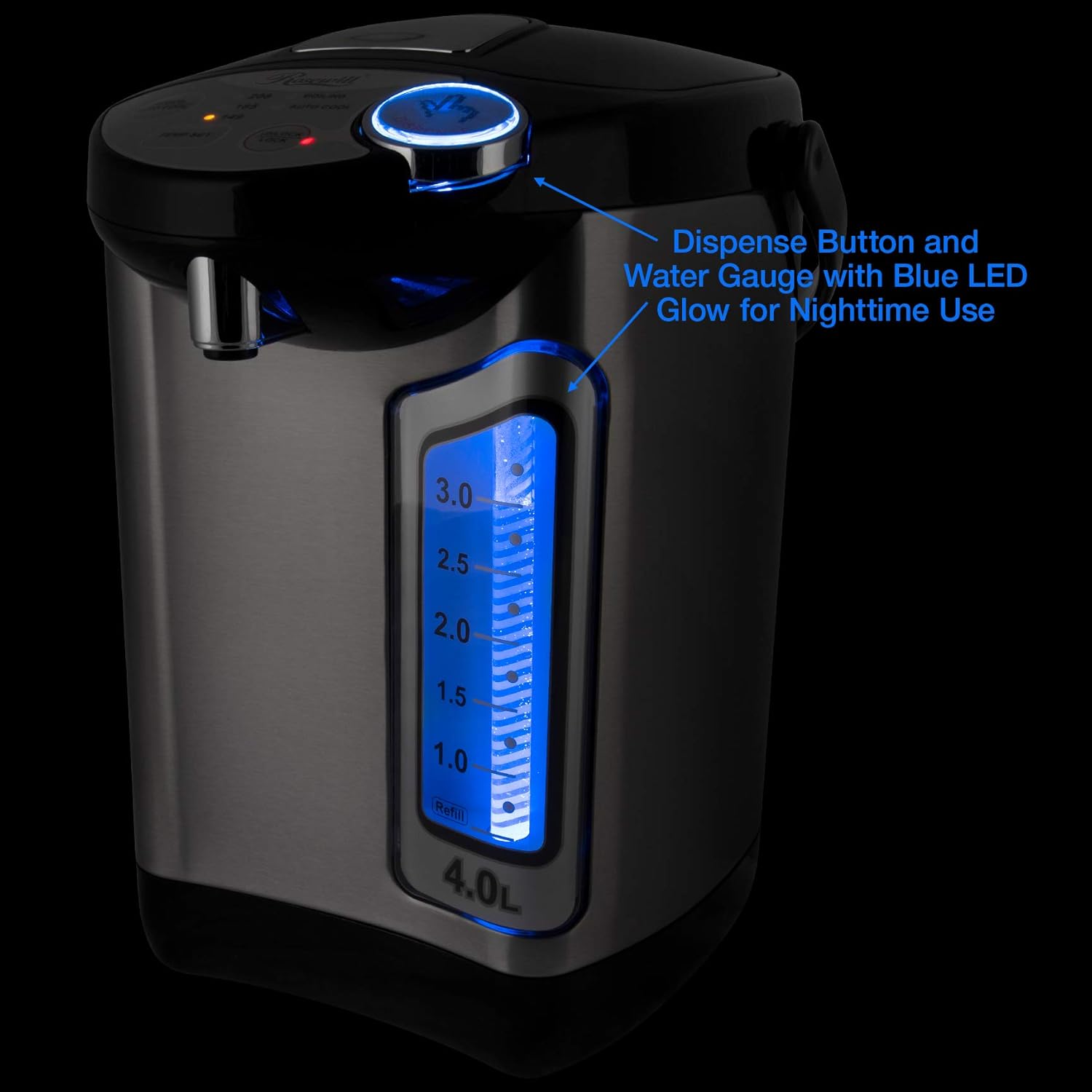

• Natlys: Blue LED glow for the dispense button and water gauge for nighttime use.



• Automatisk rengøringsfunktion: For easy maintenance.
• Tørkogningsbeskyttelse: Automatically shuts off if water level is too low.
• 360° drejelig base: Allows for easy access from any angle.

Opsætning

1. Udpakning: Tag forsigtigt apparatet ud af emballagen. Gem emballagen til senere opbevaring eller transport.
2. Indledende rengøring: Before first use, clean the interior of the appliance. Fill the water tank with clean water up to the MAX line. Boil the water, then discard it. Repeat this process 2-3 times to remove any manufacturing residues.
3. Placering: Place the appliance on a stable, flat, heat-resistant surface, away from walls and heat-sensitive materials. Ensure there is adequate ventilation around the unit.
4. Strømtilslutning: Tilslut netledningen til apparatet, og sæt den derefter i en jordforbundet stikkontakt.

Betjeningsvejledning

Påfyldning af vandtanken:

1. Sørg for, at apparatet er taget ud af stikkontakten.
2. Åbn låget.
3. Fill the water tank with fresh, clean water. Do not exceed the "MAX" fill line indicated on the water level gauge.
4. Luk låget forsvarligt.

Kogende vand:

1. Plug in the appliance. The unit will automatically begin boiling the water.
2. Once boiling is complete, the appliance will automatically switch to the "Keep Warm" mode at the default temperature setting.

Setting Temperature and Dispensing:

• Valg af temperatur: Tryk på "TEMP SET" button to cycle through available temperatures: 208°F, 185°F, and 149°F. The corresponding indicator light will illuminate.
• Reboil: Tryk på "REBOIL" button to reboil the water to the selected temperature.
• Auto Cool: Tryk på "AUTO COOL" button to allow the water to cool down to room temperature, saving energy.
• Dispensering af vand:
  1. Tryk på "UNLOCK/LOCK" button. A red LED light will indicate the unit is unlocked.
  2. To dispense, either press the large "UDLEVER" button on the control panel or use the cup trigger located under the spout.
  3. The unit will automatically re-lock after approximately 10 seconds of inactivity.



Vedligeholdelse og rengøring

Regelmæssig rengøring sikrer optimal ydeevne og levetid for dit apparat.

Daglig rengøring:

• Tag stikket ud af stikkontakten, og lad det køle helt af.
• Tør ydersiden af ​​med en blød, damp klæde. Brug ikke slibende rengøringsmidler eller skuresvampe.
• Tøm eventuelt resterende vand fra tanken.

Descaling (Auto Clean Function):

Over time, mineral deposits (limescale) may build up inside the water tank, especially in areas with hard water. Use the Auto Clean function for descaling.

1. Ensure the appliance is empty and cool.
2. Fill the water tank with a mixture of water and white vinegar (e.g., 1 part vinegar to 2 parts water) or a commercial descaling solution, up to the MAX line.
3. Luk låget og sæt apparatet i stikkontakten.
4. Tryk på "AUTO CLEAN" button (refer to control panel image for location). Follow the appliance's specific instructions for the auto-clean cycle.
5. After the cycle is complete, discard the cleaning solution.
6. Rinse the interior thoroughly by filling with clean water and dispensing it several times to remove any residual cleaning solution.

Note: The frequency of descaling depends on water hardness and usage. Descale at least once a month for hard water areas, or every 2-3 months for soft water areas.

Fejlfinding

Specifikationer

• Model: RHAP-16002
• Kapacitet: 4.0 liter
• Materiale: Rustfrit stål / Sort
• Dimensioner (L x B x H): 11.65 cm x 9.33 cm x 12.83 cm
• Vægt: 5.5 pund
• Temperaturindstillinger: 208°F, 185°F, 149°F
• Særlige funktioner: Boil Dry Protection, Night Light, Lift Handle, Dual Water Dispensing Modes, Auto Lock, Auto Clean, Vacuum Insulation.

Garanti og support

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your purchase or visit the official Rosewill website. Please have your model number (RHAP-16002) and purchase date available when contacting support.

Rosewill Official Webwebsted: www.rosewill.com
