Hotpoint Ariston PCN752TIXHA 5-brænder gaskomfur brugermanual

1. Vigtige sikkerhedsoplysninger

Please read this manual carefully before installing, operating, or performing maintenance on your gas hob. Keep this manual for future reference.

• Gassikkerhed: Ensure proper ventilation. Do not store flammable materials near the appliance. In case of gas leak, turn off the gas supply, open windows, and do not operate electrical switches.
• Elektrisk sikkerhed: Ensure the appliance is correctly earthed. Do not use adapters or extension cords.
• Børns sikkerhed: Hold børn væk fra apparatet under drift og afkøling.
• Installation: Installationen skal udføres af en kvalificeret tekniker i overensstemmelse med lokale regler.
• Opretholdelse: Disconnect from power and gas supply before cleaning or maintenance.

2. Produktet er slutview

The Hotpoint Ariston PCN752TIXHA is a stylish and functional 5-burner gas hob designed for modern kitchens. It features a durable stainless steel surface and precise front-mounted controls.

Nøglefunktioner:

• 5-burner gas hob
• Super powerful central burner
• Overflade i rustfrit stål
• Enameled cast iron grates
• Total bredde: 75 cm
• Thermocouple safety device

Produktbilleder:

Front view of the Hotpoint Ariston PCN752TIXHA 5-burner gas hob, showcasing its stainless steel surface and five control knobs.

The Hotpoint Ariston PCN752TIXHA gas hob seamlessly integrated into a modern kitchen countertop, highlighting its sleek design.

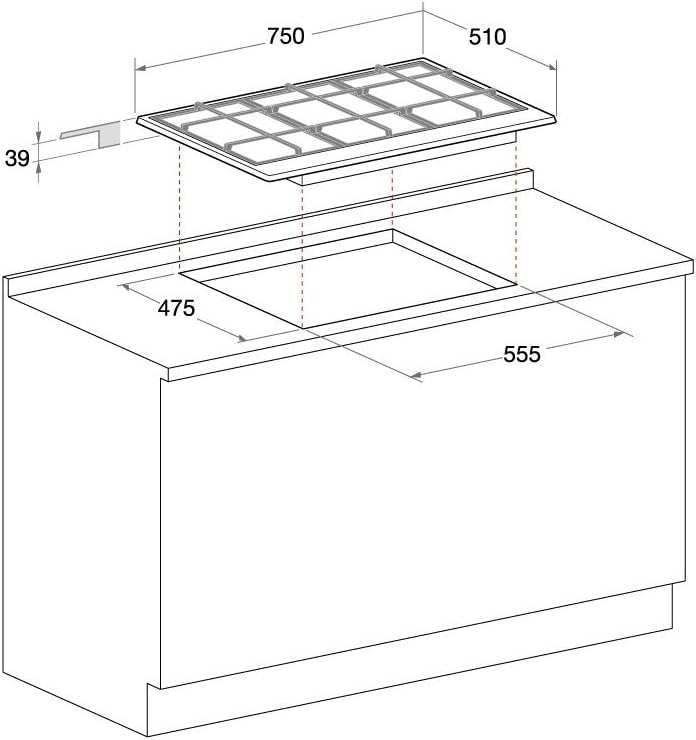

Detailed diagram illustrating the overall and cutout dimensions of the Hotpoint Ariston PCN752TIXHA gas hob for installation planning.

3. Installation

Proper installation is crucial for the safe and efficient operation of your gas hob. It must be carried out by a qualified professional.

3.1 Countertop Preparation:

• Sørg for, at bordpladematerialet er varmebestandigt.
• Cutout Dimensions (WxD): 55.5 cm x 47.5 cm.
• Ensure adequate clearance around the hob for ventilation.

3.2 Gasforbindelse:

The gas hob is pre-installed with a natural gas nozzle. If you are using propane/butane gas, you must replace the nozzles yourself using the provided kit.

• Connect the gas supply line to the appliance's gas inlet.
• Use appropriate seals and ensure all connections are tight to prevent leaks.
• Perform a leak test after connection.

3.3 Elektrisk tilslutning:

• Electrical Connection: Single-phase 230V - 6 A.
• Power Frequency: 50/60 Hz.
• The appliance comes without a connector. An electrical cable (3 x 0.75mm2) is included.
• Sørg for, at apparatet er korrekt jordet.

3.4 Burner Assembly:

Ensure burner caps, flame diffusers, and pot supports are correctly placed. Incorrect placement can damage accessories or cause abnormal flames.

• Place the flame diffusers onto their respective burner bases.
• Position the burner caps on top of the diffusers.
• Place the enameled cast iron grates securely over the burners, ensuring they are stable.

Installationsvideoer:

4. Betjening

Your Hotpoint Ariston gas hob is designed for easy and precise cooking control.

4.1 Burner Types and Power:

• Bageste venstre: Rapid, 10 cm diameter, 2600W
• Foran til venstre: Auxiliary, 5.5 cm diameter, 1000W
• Bageste højre: Semi-rapid, 7.5 cm diameter, 1650W
• Foran til højre: Semi-rapid, 7.5 cm diameter, 1650W
• Centrum: Triple Crown, 13 cm diameter, 3600W

4.2 Using the Control Knobs:

• Each burner has a dedicated control knob located at the front of the hob.
• To ignite a burner, push down and turn the corresponding knob counter-clockwise to the maximum flame setting. The integrated ignition will spark.
• Hold the knob down for a few seconds after ignition to allow the thermocouple safety device to activate. Release the knob; if the flame goes out, repeat the process.
• Juster flammens størrelse ved at dreje knappen mellem maksimum og minimum.
• To turn off a burner, turn the knob clockwise until it clicks into the 'OFF' position.

5. Vedligeholdelse og rengøring

Regelmæssig rengøring og vedligeholdelse vil sikre din gaskomfurs levetid og optimale ydeevne.

5.1 Daglig rengøring:

• Lad kogepladen køle helt af, inden den rengøres.
• Wipe the stainless steel surface with a soft cloth and a mild detergent. Avoid abrasive cleaners or scouring pads that can scratch the surface.
• For stubborn stains, use a specialized stainless steel cleaner.

5.2 Burner Components:

• Remove the burner caps, flame diffusers, and grates.
• Wash these components with warm soapy water. For baked-on food, soak them before cleaning.
• Ensure all components are thoroughly dry before reassembling them to prevent ignition issues.
• Periodically check the ignition pins and thermocouples for any blockages or damage.

6. Specifikationer

7. Fejlfinding

If you encounter issues with your gas hob, please refer to the following common troubleshooting steps:

• Brænderen tænder ikke: Check if the gas supply is open. Ensure the burner cap and flame diffuser are correctly seated. Clean the ignition pin if it appears dirty.
• Irregular flame: Ensure burner components are clean and correctly assembled. Check for any blockages in the gas jets.
• Gas smell: Immediately turn off the gas supply and open windows. Do not operate electrical switches. Contact a qualified technician.

For persistent problems, contact a qualified service technician.

8. Garanti og support

For warranty information, please refer to the documentation provided with your purchase or contact the retailer. For technical support or service, please contact Hotpoint Ariston customer service or an authorized service center.
