1. Introduktion
Thank you for choosing the Einhell GE-CL 36 Li E-Solo Power X-Change Cordless Leaf Blower Vac. This versatile tool is designed for efficient clearing of leaves and debris from patios and medium-sized gardens. It features both blowing and vacuuming functions with an integrated shredder. As part of the Power X-Change family, this unit operates with two 18V Power X-Change rechargeable batteries (not included).
Please read this instruction manual carefully before operating the device. It contains important information regarding safety, assembly, operation, and maintenance to ensure safe and effective use of your leaf blower vac.
2. Sikkerhedsinstruktioner
Overhold altid følgende sikkerhedsforanstaltninger for at forhindre personskade eller beskadigelse:
- Personligt beskyttelsesudstyr: Always wear eye protection, hearing protection, and sturdy footwear when operating the device.
- Tilskuere: Keep children, pets, and other bystanders at a safe distance from the operating area.
- Inspicer arbejdsområdet: Before starting, clear the work area of any objects that could be thrown or entangled in the machine, such as rocks, glass, or wire.
- Sikkert greb: Always maintain a firm grip on the device with both hands during operation.
- Batterisikkerhed: Use only Einhell Power X-Change batteries and chargers. Do not expose batteries to heat, direct sunlight, or water. Store batteries in a dry place.
- Opretholdelse: Disconnect the battery pack before performing any maintenance, cleaning, or when the device is not in use.
- Vejrforhold: Do not use the device in wet conditions or rain.
- Ventilation: Ensure the ventilation openings are kept clear of debris to prevent overheating.
3. Produktkomponenter
The Einhell GE-CL 36 Li E-Solo Cordless Leaf Blower Vac includes the following main components:
- Main Unit (Motor Housing with Handle)
- Blowing Tube
- Sugerør
- Collection Bag (45 L capacity)
- Bælte
- Guide Wheels (2 large)
- Adjustable Secondary Handle
Note: Batteries and charger are sold separately.

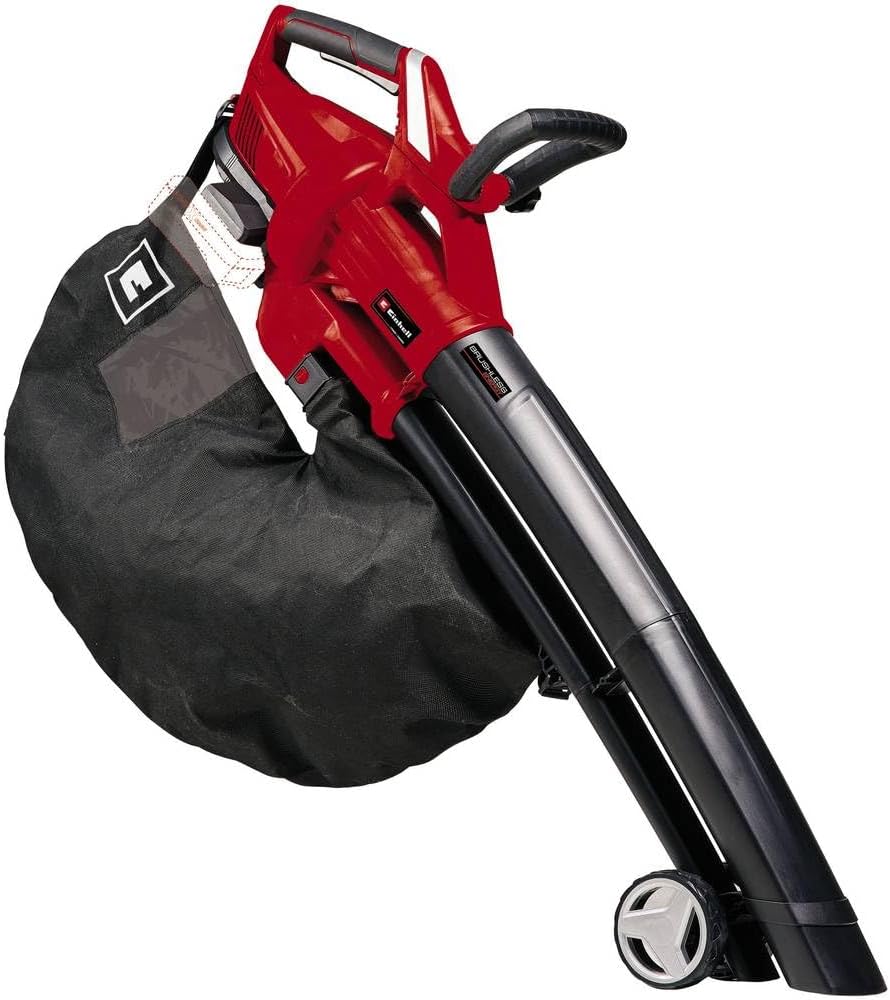

Figur 1: Overview of the Einhell GE-CL 36 Li E-Solo Cordless Leaf Blower Vac, showing the main unit, attached collection bag, and guide wheels.
4. Opsætning og montering
Follow these steps to assemble your leaf blower vac:
- Attach Blowing/Suction Tubes: Depending on the desired function, securely attach either the blowing tube or the suction tube to the main unit. Ensure it clicks into place or is fastened according to the device's mechanism.
- Installer opsamlingspose: For vacuuming, attach the 45-liter collection bag to the designated outlet on the main unit. Ensure it is securely fastened to prevent debris leakage.
- Attach Carrying Belt: Connect the comfortable carrying belt to the attachment points on the device. Adjust the belt length for optimal weight distribution and comfort during use.
- Indsæt batterier: Insert two fully charged 18V Power X-Change batteries into the battery compartments on the device. Ensure they are correctly seated and locked.
- Adjust Secondary Handle: Adjust the position of the secondary handle to provide a comfortable and secure grip for your operating posture.
5. Betjeningsvejledning
The Einhell GE-CL 36 Li E-Solo offers both blowing and vacuuming functions, easily switchable without tools.
5.1. Switching Between Functions
The device allows for quick and tool-free switching between blowing and vacuuming modes. Refer to the markings on the device for the specific lever or switch mechanism to change modes.
5.2. Blowing Function
To use the blowing function:
- Ensure the blowing tube is securely attached and the device is set to blowing mode.
- Hold the device firmly with both hands, using the main and secondary handles.
- Start the device. Use the electronic speed control to adjust the blowing intensity (up to 210 kph) according to the task.
- Direct the airflow to clear leaves and light debris into piles for easier collection.
5.3. Vacuuming and Shredding Function
To use the vacuuming function:
- Ensure the suction tube and collection bag are securely attached, and the device is set to vacuuming mode.
- Hold the device firmly. The guide wheels can be used to rest the device on the ground, reducing strain during operation.
- Start the device. Adjust the suction intensity using the electronic speed control. The device has a maximum suction capacity of 720 m³/h.
- Move the suction tube over the leaves and debris. The integrated shredder will reduce the volume of leaves in a 10:1 ratio, maximizing the collection bag's capacity.
- Monitor the collection bag through its window and empty it when full.
Figure 2: An individual demonstrating the use of the Einhell GE-CL 36 Li E-Solo Cordless Leaf Blower Vac for clearing leaves, highlighting its handheld operation.
5.4. Electronic Speed Control
The electronic speed control allows you to adjust both the blowing and suction intensity to suit different types of debris and surfaces. This feature helps optimize performance and battery runtime.
5.5. Ergonomic Features
- Carrying Belt: The included carrying belt helps distribute the device's weight, reducing user fatigue during extended operation.
- Styrehjul: The two large guide wheels allow the device to be pushed along the ground, further minimizing the physical strain on the user.
6. Vedligeholdelse
Regular maintenance ensures the longevity and optimal performance of your Einhell leaf blower vac.
- Rensning: After each use, clean the device, especially the air inlets, tubes, and collection bag. Use a soft brush or cloth. Do not use water or harsh chemicals.
- Samlingstaske: Regularly inspect the collection bag for wear, tears, or blockages. Empty it frequently to maintain suction efficiency.
- Børsteløs motor: The brushless motor is designed to be maintenance-free, offering higher performance and longer service life.
- Batteripleje: Always charge batteries in a well-ventilated area. Store batteries in a cool, dry place away from direct sunlight. Do not store fully discharged batteries for extended periods.
- Opbevaring: Opbevar enheden et tørt og sikkert sted, utilgængeligt for børn.
7. Fejlfinding
Hvis du støder på problemer med din enhed, kan du se følgende almindelige problemer og løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden starter ikke | Batteries not inserted correctly or discharged. | Sørg for, at batterierne er fuldt opladet og korrekt isat. |
| Lav blæse-/sugekraft | Collection bag full or clogged. Obstruction in tubes. Speed setting too low. | Empty collection bag. Clear any obstructions. Increase speed using electronic control. |
| Overdreven vibration/støj | Debris caught in impeller. Loose components. | Disconnect batteries and carefully inspect/clear impeller. Check all connections are secure. |
| Kort driftstid | Batteries not fully charged or nearing end of life. | Ensure batteries are fully charged before use. Consider replacing old batteries. |
Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte Einhells kundesupport.
8. Specifikationer
| Feature | Specifikation |
|---|---|
| Mærke | Einhell |
| Modelnavn | 3433600 |
| Strømkilde | Battery Powered (Power X-Change) |
| Voltage | 36 Volts (requires 2x 18V batteries) |
| Blæsehastighed | Up to 210 Kilometers per Hour |
| Sugekapacitet | Op til 720 m³/t |
| Shredding Ratio | 10:1 |
| Opsamlingsposens volumen | 45 liter |
| Varens vægt | 3.38 kilo (7.44 pund) |
| Produktmål (L x B x H) | 17.72 cm x 9.61 cm x 12.01 cm |
| Støjniveau | 66 decibel |
| Speciel funktion | Turbo Mode, Electronic Speed Control |
9. Garanti og support
This Einhell product is part of the Power X-Change system, ensuring compatibility with other tools and batteries within the range. For specific warranty information, please refer to the warranty card included with your purchase or visit the official Einhell webwebsted.
For technical support, spare parts, or service inquiries not covered in this manual, please contact your authorized Einhell dealer or the Einhell customer service department. Always provide the model number (3433600) and serial number (if applicable) when contacting support.
