Indledning
The KitchenAid Artisan Mini 3.5 Quart Tilt-Head Stand Mixer offers powerful performance in a compact design. It is engineered to handle a variety of mixing tasks, from whipping cream to kneading dough, making it suitable for diverse culinary needs. This manual provides essential information for the safe and effective use of your stand mixer.
Image: KitchenAid Artisan Mini 3.5 Quart Tilt-Head Stand Mixer in Contour Silver.

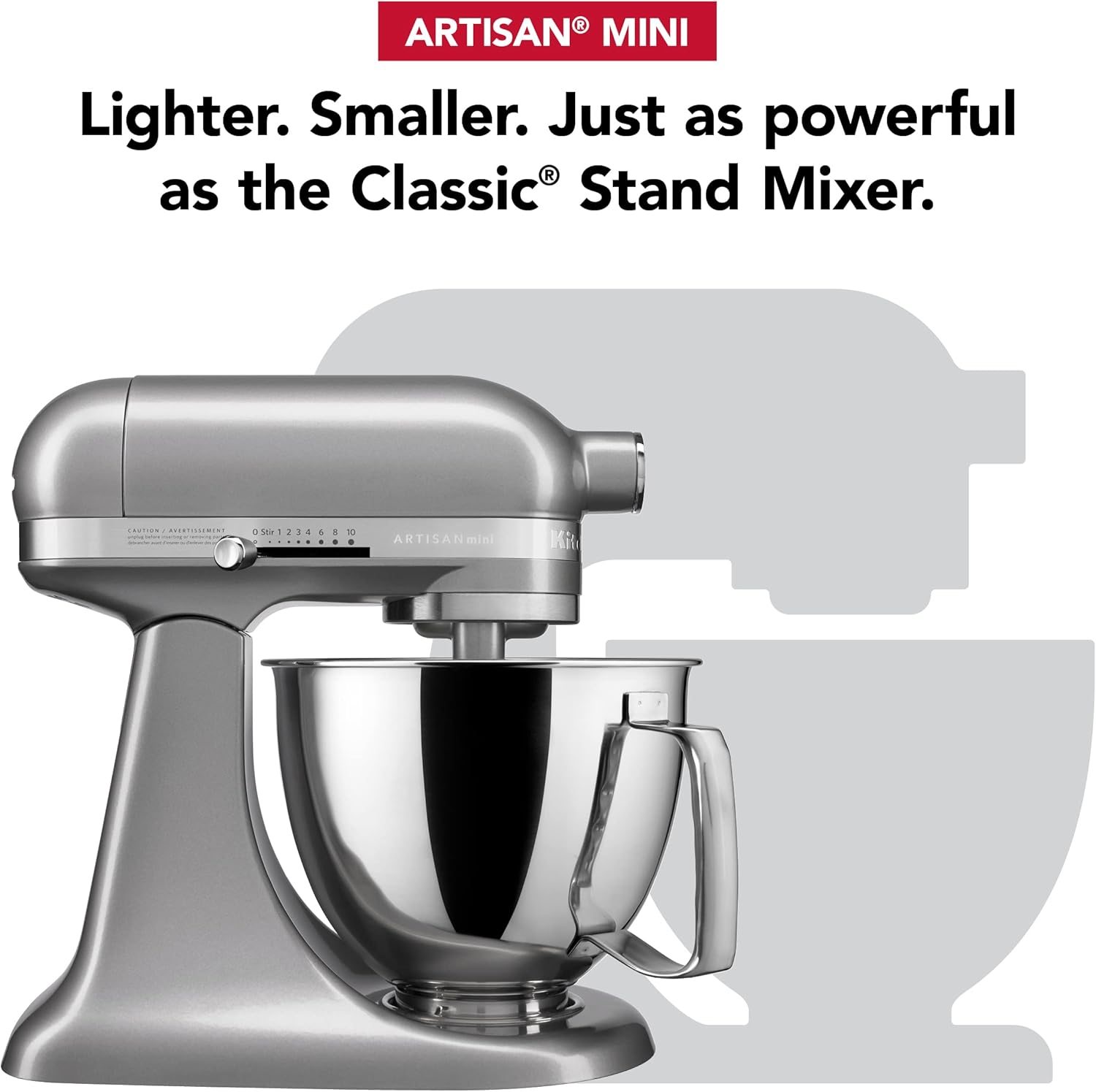

Image: Visual comparison highlighting the smaller footprint of the Artisan Mini compared to the Classic Stand Mixer.
Vigtige sikkerhedsoplysninger
ADVARSEL: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and/or injury to persons. Read all instructions before using the stand mixer.
Hvad er inkluderet
Your KitchenAid Artisan Mini Stand Mixer (Model KSM3316X) includes the following standard accessories:
- 3.5 liter skål i rustfrit stål: Ideal for smaller batches, capable of mixing up to 5 dozen cookies in a single batch (using the flat beater; 28g dough each).
- Flex Edge Beater: Designed for thorough mixing, scraping the sides of the bowl as it mixes.
- Coated Dough Hook: Til blanding og æltning af gærdeje.
- 6-tråds piskespinde: Used for incorporating air into ingredients, such as eggs, egg whites, and heavy cream.
Image: The three included attachments: Flex Edge Beater, Coated Dough Hook, and 6-Wire Whip.
Opsætningsinstruktioner
- Placering af skålen: Ensure the mixer is unplugged. Place the 3.5-quart stainless steel bowl onto the base of the mixer, twisting it gently to secure it in place.
- Attaching the Beater/Whisk/Hook:
- Ensure the speed control is set to '0' (OFF) and the mixer is unplugged.
- Skub låsehåndtaget til vippehovedet til UNLOCK-positionen, og vip motorhovedet tilbage.
- Slide the desired attachment (Flex Edge Beater, Dough Hook, or Wire Whip) onto the beater shaft. Rotate the attachment until it locks onto the pin on the shaft.
- Push the tilt-head lock lever to the LOCK position to secure the motor head.
Image: The tilt-head design allows for easy access to the bowl and attachments.
- Strømtilslutning: Sæt mixeren i en jordet stikkontakt.
Betjeningsvejledning
- Hastighedskontrol: The mixer features 10 speeds, allowing for precise control over mixing tasks. Use the speed control lever located on the side of the motor head to select the desired speed, from 'Stir' (lowest) to '10' (highest).
Image: The speed control dial with settings from 'Stir' to '10'.
- Blanding: Begin mixing at a lower speed and gradually increase to the desired setting. The 67-point planetary mixing action ensures thorough ingredient incorporation.
- Using the Power Hub for Attachments: The front of the mixer features a power hub designed to accommodate over 10 optional hub-powered attachments (sold separately). To use an attachment:
- Ensure the mixer is unplugged and the speed control is set to '0' (OFF).
- Fjern tilbehørsnavdækslet.
- Insert the attachment shaft into the hub, ensuring the power shaft of the attachment fits into the square hub socket. Rotate the attachment back and forth if necessary until it seats properly.
- Tighten the attachment knob until the attachment is completely secured to the mixer.
- Plug in the mixer and select the appropriate speed for the attachment.

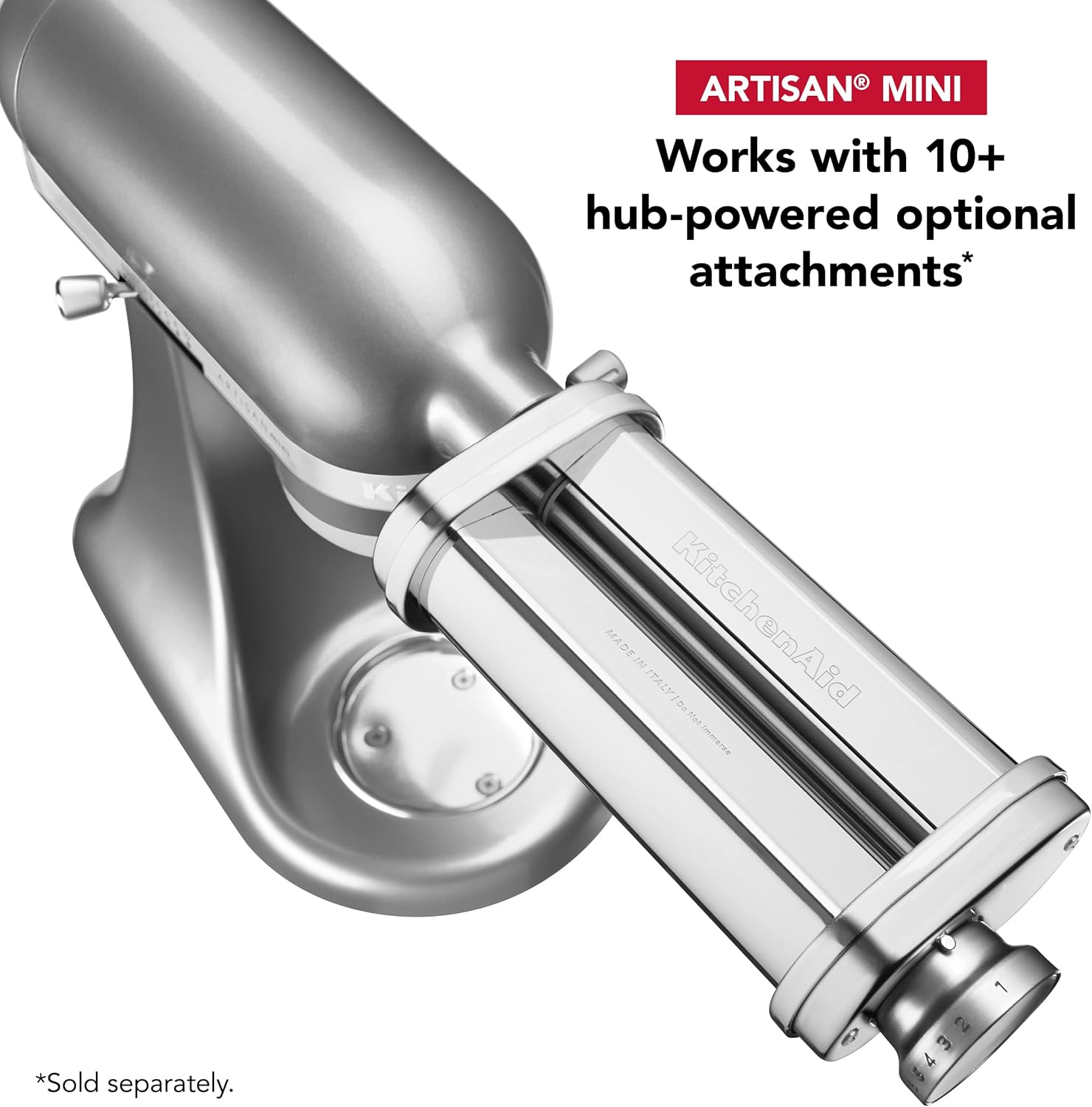

Image: The power hub on the front of the mixer, shown with an optional pasta maker attachment.
Image: A display of various KitchenAid stand mixers utilizing different optional attachments like pasta makers and food processors.
Vedligeholdelse og rengøring
- Skål i rustfrit stål: The 3.5 Quart Stainless Steel Bowl is dishwasher safe for easy cleaning.
- Vedhæftede filer: The Flex Edge Beater and Coated Dough Hook are typically dishwasher safe. The 6-Wire Whip should be hand-washed to maintain its integrity. Refer to individual attachment instructions for specific care.
- Mixerhus: Tør blanderens krop af med adamp klud. Nedsænk ikke mixeren i vand eller andre væsker.
Specifikationer
| Mærke | KitchenAid |
| Modelnavn | KSM3316XCU |
| Farve | Kontur Sølv |
| Produktdimensioner | 12.3" D x 7.8" B x 12.3" H |
| Speciel funktion | Vippehoved |
| Kapacitet | 3.5 Quarts |
| Kontroltype | Knop |
| Tåler opvaskemaskine | Yes (Bowl) |
| Varens vægt | 14.3 pund |
