Indledning
This manual provides detailed instructions for the installation, operation, and maintenance of your Vesta Atlanta 860CFM 30-inch Stainless Steel Range Hood. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.
Figure 1: Vesta Atlanta 30-inch Stainless Steel Range Hood
Sikkerhedsoplysninger
Følg altid grundlæggende sikkerhedsforanstaltninger, når du bruger elektriske apparater, for at mindske risikoen for brand, elektrisk stød eller personskade.
- Sørg for, at strømforsyningen er afbrudt før installation, vedligeholdelse eller rengøring.
- Installationen skal udføres af en kvalificeret tekniker i overensstemmelse med alle lokale forskrifter og standarder.
- Do not operate the range hood if the power cord or plug is damaged.
- Sørg for tilstrækkelig ventilation i rummet, når emhætten bruges samtidig med gas- eller andre apparater, der bruger brændstof.
- Clean grease filters regularly to prevent grease accumulation and potential fire hazards.
- Flambér aldrig under emhætten.
Produkt overview og funktioner
The Vesta Atlanta range hood is designed for efficient kitchen ventilation, featuring a robust stainless steel construction and advanced functionalities.
- Powerful Dual Motors: Equipped with dual motors providing 860 CFM suction for effective smoke and odor removal.
- Berøringsskærm kontrolpanel: Features a modern touch screen with clock display, delay shut-off, and filter cleaning reminders.
- 6 blæserhastigheder: Adjustable fan speeds to accommodate various cooking needs.
- Stille præstation: Operates at a maximum noise level of 65dB.
- LED belysning: Dual LED lights provide enhanced cooking visibility with two brightness levels.
- Alsidige udluftningsmuligheder: Compatible with 6-inch round, 3.25x10-inch top rectangle, or 3.25x10-inch back rectangle vents.
- Opvaskemaskine-sikre baffelfiltre: Easy-to-clean stainless steel baffle filters.
- Olieopsamler: Includes a long oil tray for convenient grease collection.
Figure 2: Dual Motor System for Enhanced Suction
Opsætning og installation
The Vesta Atlanta range hood is designed for under-cabinet mounting. An installation kit and positioning guide are included to assist with the setup process.
Dimensioner
Refer to the diagram below for product dimensions to ensure proper fit and clearance.
Figure 3: Product Dimensions (29.8" W x 22" D x 7" H)
Udluftningsmuligheder
This range hood offers flexible venting solutions. Choose the appropriate vent shape for your installation:
- 6-inch round vent (top)
- 3.25 x 10-inch rectangle vent (top)
- 3.25 x 10-inch rectangle vent (back)
Figure 4: Adjustable Venting Shapes
Use the provided positioning guide to mark drilling locations for mounting screws. Ensure the cabinet structure can support the weight of the range hood (approximately 42 pounds).
Betjeningsvejledning
The range hood is controlled via an intuitive touch screen panel located on the front.

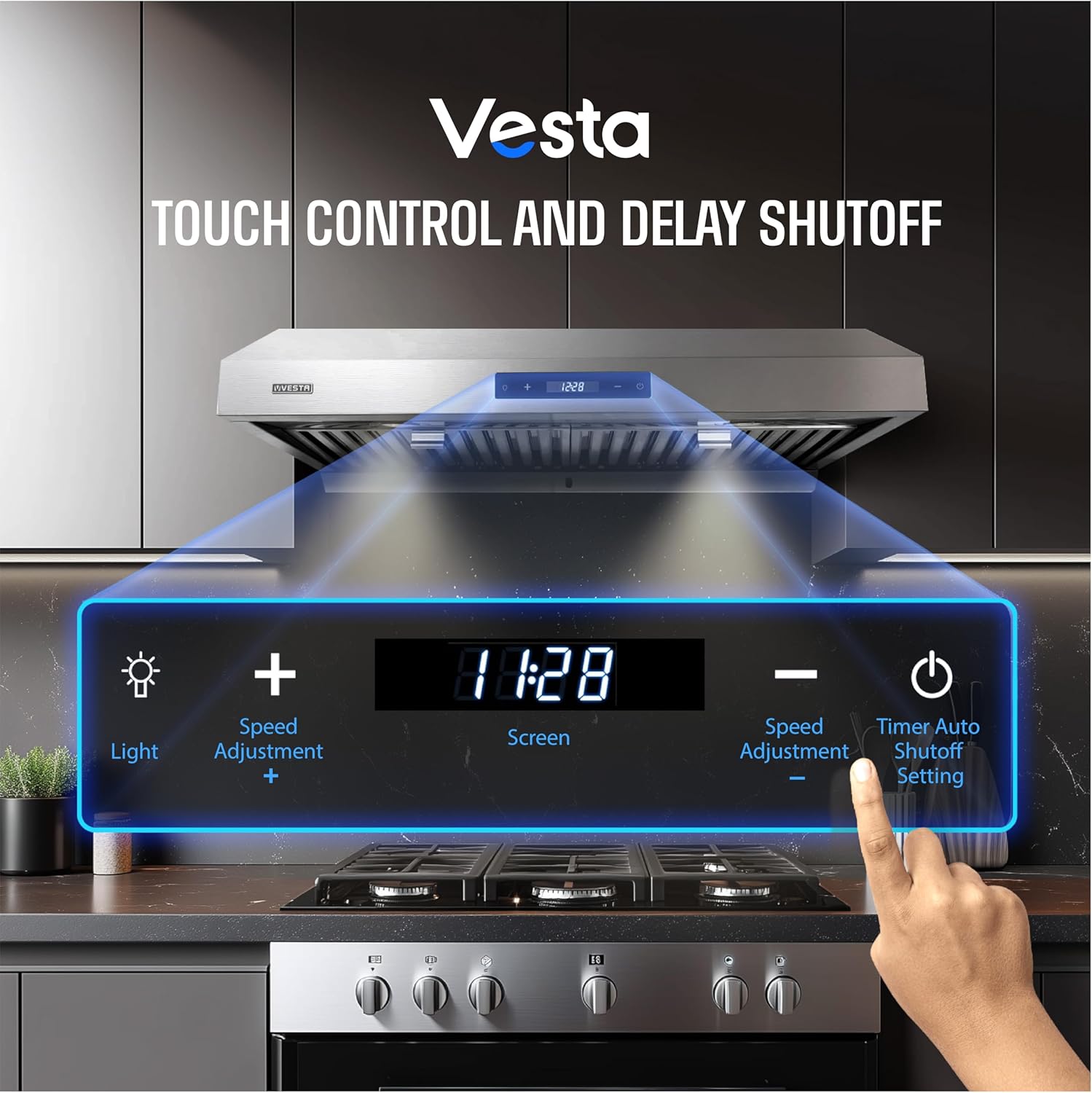

Figure 5: Touch Control Panel
Kontrolpanelets funktioner:
- Power knap: Tænder eller slukker emhætten.
- Fan Speed Adjustment (+/-): Increases or decreases the fan speed through 6 available levels.
- Lys knap: Toggles the LED lights and adjusts brightness between two levels.
- Timer/Auto Delay Shut-off: Activates the customizable 1-15 minute timer for automatic shut-off. Press to cycle through delay times.
- Urvisning: Viser det aktuelle tidspunkt.
- Påmindelse om filterrengøring: An indicator will illuminate to remind you when it's time to clean the baffle filters.
Opretholdelse
Regelmæssig vedligeholdelse sikrer optimal ydeevne og levetid for din emhætte.
Rengøring af baffelfiltre
The stainless steel baffle filters should be cleaned regularly, especially when the filter cleaning reminder activates. They are dishwasher safe for convenience.
- Remove the baffle filters by sliding them out of their slots.
- Place the filters in a dishwasher for cleaning or wash them by hand with warm, soapy water.
- Sørg for, at filtrene er helt tørre, før de monteres igen.
- Re-insert the filters into their slots until securely in place.
Figure 6: Dishwasher-Safe Baffle Filters
Cleaning the Oil Tray
The long oil tray collects grease and should be emptied and cleaned periodically.
- Carefully slide out the oil tray located at the back of the unit.
- Dispose of collected grease responsibly.
- Wash the tray with warm, soapy water and dry thoroughly.
- Re-insert the oil tray into its designated slot.
Udvendig rengøring
Wipe the stainless steel exterior with a soft cloth and a non-abrasive stainless steel cleaner. Avoid harsh chemicals or abrasive pads that could scratch the surface.
Fejlfinding
If you encounter issues with your Vesta Atlanta range hood, refer to the following common troubleshooting steps. For problems not listed here, contact customer service.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Emhætten tænder ikke | Ingen strømforsyning; afbryder udløst; løse ledninger. | Check power connection; reset circuit breaker; ensure all wiring is secure (consult a technician if unsure). |
| Lav sugeevne | Tilstoppede filtre; forkert kanalføring; ekstern blokering. | Clean baffle filters; check ductwork for obstructions or leaks; ensure proper duct size. |
| Overdreven støj | Løse komponenter; blokering af ventilator; forkert installation. | Check for loose screws or parts; remove any foreign objects from fan blades; verify secure mounting. |
| Lys virker ikke | Bulb failure; loose connection. | Replace LED bulbs; check light connections. |
Specifikationer
Detailed technical specifications for the Vesta Atlanta 860CFM 30-inch Stainless Steel Range Hood.
| Feature | Specifikation |
|---|---|
| Modelnummer | Atlanta 30SS |
| Luftmængde kapacitet | 860 kubikfod pr. minut (CFM) |
| Materiale | Rustfrit stål |
| Støjniveau | 65 dB (maksimalt) |
| Monteringstype | Under kabinetmontering |
| Kontroltype | Røre |
| Voltage | 110 volt |
| Antal hastigheder | 6 |
| Varens vægt | 42 pund |
| Lyskildetype | LED |
| Filtertype | Forbløffe |
| Produktdimensioner | 29.8 x 22 x 7 tommer (B x D x H) |
| Ventilationstype | Convertible (Top Round, Top Rectangle, Back Rectangle) |
| Særlige funktioner | Auto Fan Shut-Off, Built-In Oil Collector, Grease Filter, LED Lighting, Timer |
Garanti og support
Vesta is committed to providing reliable products and customer service.
Garantioplysninger:
- 1-Year Limited Factory Warranty: Dækker materiale- og fabrikationsfejl i et år fra købsdatoen.
- Livstids motorgaranti: The dual motors are covered by a lifetime warranty.
For warranty claims or technical assistance, please contact Vesta customer service.
Kundesupport:
Phone: (905) 886-5858 (during business days)
Vesta ensures that all customer service inquiries are directed to a qualified specialist.
