1. Vigtige sikkerhedsoplysninger
Always keep hands and other body parts away from the auger while the machine is in operation. Do not use this snow blower in enclosed spaces.
Generelle sikkerhedsretningslinjer:
- Read and understand all instructions before operating the snow blower.
- Brug passende personlige værnemidler, herunder øjenbeskyttelse og robust fodtøj.
- Ensure the work area is clear of debris and other objects that could be thrown by the auger.
- Never allow children or untrained individuals to operate the snow blower.
- Always disconnect the battery pack before performing any adjustments, cleaning, or maintenance.
2. Produktet er slutview
The Snow Joe ION15SB-LT is a 15-inch 40-volt cordless single-stage snow blower designed for clearing snow from sidewalks, driveways, and decks. It features a 500W brushless motor and a 2-blade temperature-resistant durable plastic auger. The unit is lightweight and offers a clearing width of 15 inches and a depth of 8 inches, with a throw distance of up to 20 feet.
Figure 1: Snow Joe ION15SB-LT Cordless Snow Blower, showing its overall design.
Figur 2: Forside view of the snow blower, detailing the auger housing and clearing path.
Figure 3: Close-up of the battery compartment, illustrating the placement of the 40V lithium-ion battery.

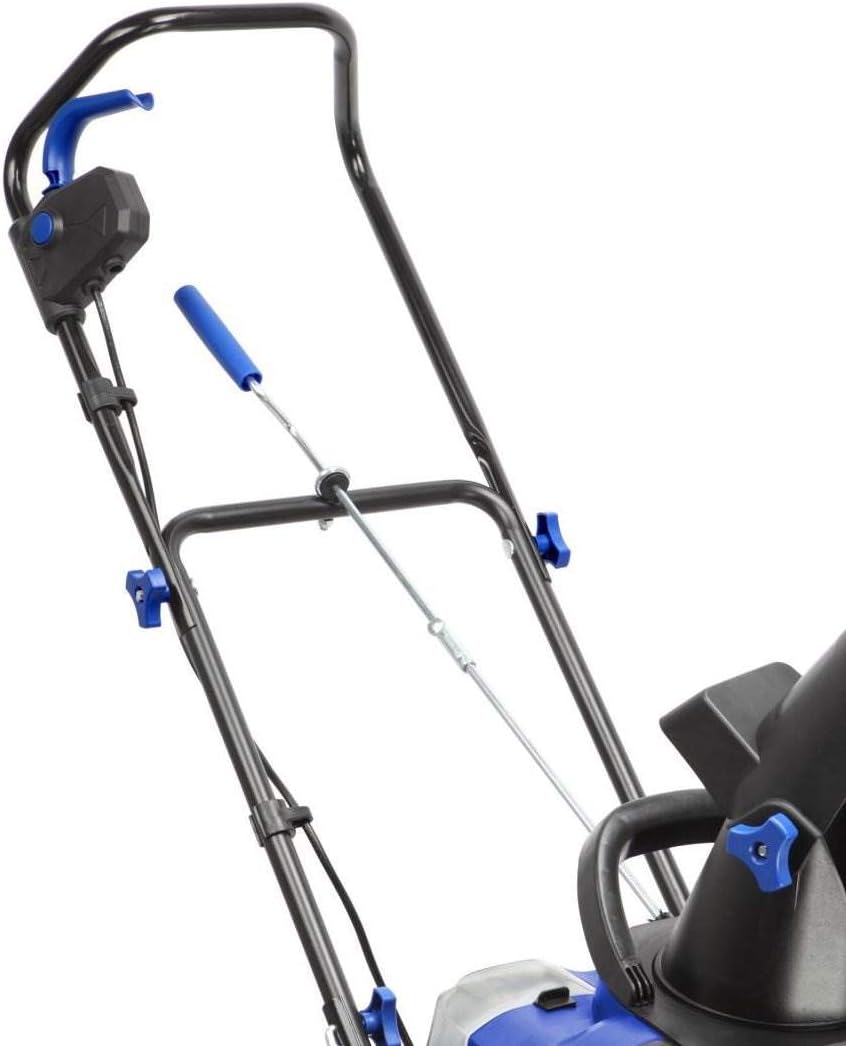

Figur 4: Detaljeret view of the handle controls, including the power button and chute adjustment.
3. Opsætning og montering
The Snow Joe ION15SB-LT requires minimal assembly. Typically, this involves attaching the handle, chute, and any other accessories. Ensure all bolts and knobs are securely tightened before use.
For a visual guide on assembly and initial setup, please refer to the official product video below:
Video 1: Official product video demonstrating the assembly and initial use of the Snow Joe iON15SB-LT snow blower.
4. Batteriopladning
The Snow Joe ION15SB-LT is powered by a 40-volt lithium-ion battery. It comes with a charger to ensure your battery is ready for use.
- Insert the battery pack into the charging unit.
- Sæt opladeren i en almindelig stikkontakt.
- Monitor the indicator lights on the charger to confirm charging status. The battery is fully charged when all indicator lights are solid green.
- Når det er fuldt opladet, skal du fjerne batteriet fra opladeren.
- Store the battery in a cool, dry place when not in use. Avoid charging in extremely cold conditions, as this can affect battery performance.
Figure 5: The battery inserted into the snow blower's compartment.
5. Betjeningsvejledning
Follow these steps for safe and effective operation of your snow blower.
5.1 Start af sneslyngen
- Ensure the fully charged 40V battery is securely inserted into the battery compartment.
- Press and hold the safety switch button located on the handle.
- While holding the safety switch, squeeze the bail switch lever towards the handle. The auger will begin to rotate.
- Release the safety switch button once the auger is running.
5.2 Snerydning
- Skub sneslyngen fremad i et behageligt tempo. Undgå at tvinge enheden gennem tung sne.
- For deep snow, it may be necessary to make multiple passes, clearing a portion of the snow depth with each pass.
- The scraper bar at the base helps clear snow close to the ground without damaging surfaces.
5.3 Chute Control
- The 180° adjustable chute allows you to direct the snow discharge.
- Use the chute crank on the handle to adjust the direction of the snow throw.
- Always direct discharged snow away from people, animals, and property.
For a visual demonstration of the snow blower in operation, refer to the official product video in the Setup section (Video 1).
Figure 6: The Snow Joe ION15SB-LT effectively clearing snow from a pathway.
6. Vedligeholdelse
Regular maintenance ensures the longevity and optimal performance of your Snow Joe ION15SB-LT snow blower.
- Rensning: After each use, remove any snow, ice, or debris from the auger housing, chute, and exterior surfaces. Use a damp klud til rengøring.
- Opbevaring: Store the snow blower in a dry, protected area away from direct sunlight and moisture. Remove the battery pack before long-term storage.
- Batteripleje: Keep the battery charged, especially during off-season storage. Recharge it every few months to maintain battery health.
- Inspektion af snegl: Periodically inspect the auger and scraper bar for wear or damage. Replace worn parts as needed to maintain efficient snow clearing.
7. Fejlfinding
Her er nogle almindelige problemer og deres potentielle løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Snow blower does not start | Battery not inserted correctly or discharged; Safety switch/bail switch not engaged. | Ensure battery is fully charged and properly seated. Engage both the safety switch and bail switch simultaneously. |
| Reduced snow throwing distance or auger performance | Auger or chute clogged; Worn auger blades/scraper bar; Battery low. | Clear any clogs from the auger and chute (ensure unit is off and battery removed). Inspect and replace worn parts. Recharge battery. |
| Battery keeps coming out | Battery not fully latched; Compartment issue. | Ensure the battery is pushed firmly until it clicks into place. Check for any obstructions in the battery compartment. |
| Chute clogs easily | Wet, heavy snow; Operating too fast. | Reduce forward speed when clearing wet snow. Clear the chute frequently (with power off and battery removed). |
8. Specifikationer
Detailed technical specifications for the Snow Joe ION15SB-LT:
| Specifikation | Værdi |
|---|---|
| Mærke | Sne Joe |
| Modelnummer | ION15SB-LT |
| Strømkilde | Trådløs |
| Voltage | 40 volt |
| Motortype | Elektrisk |
| Rydningsbredde | 15 tommer |
| Ideel snedybde | 8 tommer |
| Kasteafstand | 20 ft (6 m) Max |
| Varens vægt | 19.4 pund |
| Produktdimensioner | 42.1 x 34.9 x 17.1 tommer |
| Batterier | 1 Lithium Ion batteri påkrævet (medfølger) |
| UPC | 810829026781 |
9. Garanti og support
The Snow Joe ION15SB-LT comes with a 2 års garanti, ensuring peace of mind regarding product quality and performance. Additionally, a bonus year of warranty coverage may be available upon product registration or specific conditions.
For technical support, warranty claims, or to purchase replacement parts, please contact Snow Joe customer service directly. Refer to the product packaging or the official Snow Joe webhjemmeside for de mest opdaterede kontaktoplysninger.
