Indledning
This manual provides essential information for the proper installation, operation, and maintenance of your CAT 2229021 222-9021 Advanced High Efficiency Engine Air Filter. Adhering to these instructions will ensure optimal performance and longevity of the filter and the engine it protects.
Produkt overview

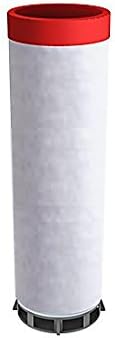

Billede 1: The CAT 2229021 222-9021 Advanced High Efficiency Engine Air Filter. This cylindrical filter features a white filtration medium, a red cap on one end, and a black base with structural supports on the other end, designed for radial sealing in heavy-duty engine air intake systems.
The CAT 2229021 222-9021 is an Advanced High Efficiency Engine Air Filter designed to protect heavy-duty engines from airborne contaminants. It is a secondary filter, providing an additional layer of protection. Key features include:
- Effektivitetsklassificering: Standard effektivitet
- Primary vs Secondary: Sekundært filter
- Forseglingstype: Radial Seal
- Designed to meet strict standards for optimal engine protection.
Sikkerhedsoplysninger
Always follow safety procedures when working with heavy machinery and engine components. Wear appropriate personal protective equipment (PPE) such as gloves and eye protection. Ensure the engine is turned off and cooled down before attempting any installation or maintenance.
Opsætning og installation
- Forberedelse: Ensure the engine is completely shut down and cool. Locate the air filter housing.
- Fjern gammelt filter: Open the air filter housing. Carefully remove the existing secondary air filter. Note its orientation for correct installation of the new filter.
- Inspicer bolig: Clean the inside of the air filter housing, removing any dust or debris. Inspect the housing for damage or cracks.
- Installer nyt filter: Insert the new CAT 2229021 222-9021 secondary air filter into the housing, ensuring it seats correctly and the radial seal is properly engaged. Do not force the filter.
- Sikker bolig: Close and secure the air filter housing according to the manufacturer's specifications for your specific equipment.
- Endelig kontrol: Kontroller, at alle clamps and fasteners are tightened and the housing is sealed to prevent unfiltered air from entering the engine.
Driftsmæssige overvejelser
Once installed, the air filter operates passively, continuously filtering intake air. No specific operational steps are required beyond ensuring proper installation. Regular monitoring of the air filter restriction indicator (if equipped on your machinery) is recommended to determine when maintenance is due.
Opretholdelse
The CAT 2229021 222-9021 is a secondary air filter and is generally replaced, not cleaned. Refer to your equipment's service manual for specific replacement intervals. Factors influencing replacement frequency include:
- Operating environment (dusty conditions require more frequent checks/replacement).
- Engine hours.
- Air filter restriction indicator readings.
Udskiftningsprocedure: Follow the same steps as installation (see "Setup and Installation" section) to replace a used filter with a new one.
Fejlfinding
Most issues related to air filtration stem from improper installation or neglected maintenance.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Reduced Engine Performance / Increased Fuel Consumption | Clogged air filter (primary or secondary) | Inspect and replace primary and secondary air filters as needed. |
| Engine Air Filter Restriction Indicator Activated | Air filter is restricted and requires service | Replace the primary and secondary air filters. |
| Dust or Debris in Air Intake System | Improperly sealed air filter housing or damaged filter | Re-install filter, ensuring proper seal. Inspect housing for damage. Replace filter if damaged. |
Specifikationer
- Model: 222-9021
- Producentens varenummer: 222-9021, 2229021
- Mærke: KAT
- Effektivitetsklassificering: Standard effektivitet
- Primary vs Secondary: Sekundær
- Forseglingstype: Radial Seal
- Varens vægt: 1.16 pund
- Pakkedimensioner: 19.33 x 4.76 x 4.69 tommer
This filter is compatible with various Caterpillar equipment, including but not limited to: ASPHALT PAVER AP555F, AP500F; INTEGRATED TOOLCARRIER IT28G; PAVING COMPACTOR CS-64B, CS-66B, CP-54B, CB-54B, CS-54B, CB-68B, CB-44B, CB-66B, CB-64B, CP-44B, CS-44B; WHEELED EXCAVATOR M316C, M318C, M315C, M318C MH, M313C, M322C; WHEEL-TYPE LOADER 924G, 924H, 928G, 938K, 930H, 924GZ, 928HZ, 924K, 930G, 938M, 926M, 930K, 924HZ, 930M; EXCAVATOR 325F LCR, 318D2 L, 318E L, 316E L.
Garanti og support
For warranty information and technical support, please refer to the official CAT website or contact your authorized CAT dealer. Keep your purchase receipt for warranty claims.
Official CAT Webwebsted: www.cat.com
