Indledning
This manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of your iHome iPL24 Dual Alarm FM Clock Radio. Please read this manual thoroughly before using the device to ensure proper functionality and to maximize your user experience.
Opsætning
1. Strømtilslutning
Connect the included AC adapter to the DC 9V 2.7A jack located on the back of the unit. Plug the other end into a standard wall outlet. The unit will power on automatically.
Billedbeskrivelse: A black AC power adapter with a cord, used to power the iHome iPL24 unit. The adapter has a standard US two-prong plug.
2. FM-antennetilslutning
For optimal FM radio reception, connect the included FM antenna wire to the "fm antenna" jack on the back of the unit. Extend the wire fully and position it for best reception.
3. Installation af batteribackup
The iPL24 requires 1 Lithium Metal battery (CR2450, not included) for backup power. This battery maintains time and alarm settings during a power outage. Open the battery compartment on the bottom of the unit, insert the battery with the correct polarity, and close the compartment.

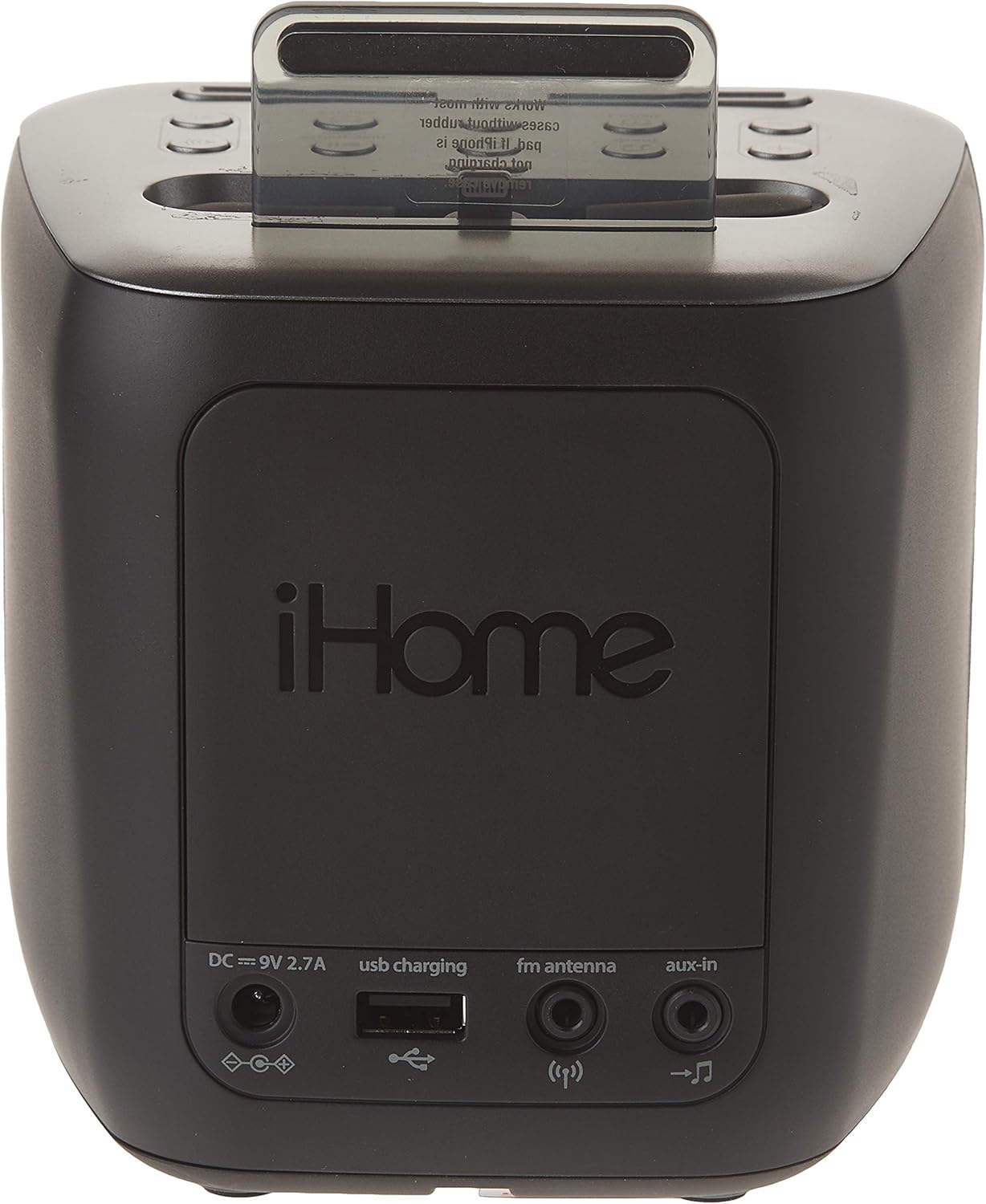

Billedbeskrivelse: The back panel of the iHome iPL24, showing the DC power input, USB charging port, FM antenna jack, and Aux-in port. The iHome logo is prominently displayed.
4. Time Synchronization (with iPhone)
When an iPhone is docked, the iPL24 can automatically synchronize its time with the iPhone's time. Ensure your iPhone's time settings are accurate.
Betjeningsvejledning
Kontrol overview
Billedbeskrivelse: Top view of the iHome iPL24 showing the control buttons and the Lightning dock. Buttons include Power, Mode, Volume, Alarm 1, Alarm 2, Sleep, Play/Pause, and Display Dimmer.
- Power knap: Tænder eller slukker for enheden.
- Mode knap: Cycles through FM radio, Aux-in, and docked device audio.
- Lydstyrkeknapper (+/-): Justerer lydstyrken.
- Alarm 1 / Alarm 2 Buttons: Aktiverer og indstiller Alarm 1 eller Alarm 2.
- Sleep knap: Aktiverer sleep-timeren.
- Afspil/pause knap: Controls playback for docked devices. Also used for setting FM presets.
- Zzz / Display Dimmer Button: Snoozes an active alarm; press and hold to adjust display brightness.
1. Indstilling af tid
If not synchronized with an iPhone, press and hold the "Time Sync" button (located near the dock) until the time flashes. Use the Volume +/- buttons to adjust hours and minutes, then press "Time Sync" again to confirm.
2. Indstilling af alarmer
- Tryk på og hold en af Alarm 1 or Alarm 2 knappen, indtil alarmtidspunktet blinker.
- Brug Volumen +/- buttons to adjust the alarm hour, then press the respective Alarm button to confirm.
- Brug Volumen +/- buttons to adjust the alarm minute, then press the respective Alarm button to confirm.
- Select the alarm source (Buzzer, FM Radio, or Docked Device) using the Volumen +/- buttons, then press the Alarm button to confirm.
- The alarm indicator will illuminate on the display, indicating the alarm is active.
For at slukke en aktiv alarm skal du trykke på den tilsvarende knap Alarm 1 or Alarm 2 knappen. For at snooze skal du trykke på Zzz knap.
3. Betjening af FM-radio
- Tryk på Mode knappen, indtil "FM" vises på displayet.
- Brug Volumen +/- knapperne til manuelt at stille ind på en station.
- For automatisk at scanne efter den næste tilgængelige station skal du trykke på og holde Volumen +/- knapper.
- Indstilling af forudindstillinger: Stil ind på den ønskede station. Tryk og hold nede Afspil/pause knappen indtil et forudindstillet nummer blinker. Brug Volumen +/- for at vælge et forudindstillet nummer (1-6), og tryk derefter på Afspil/pause igen for at gemme.
- Genkaldelse af forudindstillinger: Tryk kort på Afspil/pause -knappen for at gennemgå gemte forudindstillinger.
4. Docking and Charging Devices
Carefully place your Lightning-compatible iPhone onto the Lightning connector in the dock. Ensure it is seated properly for charging and audio playback. The unit also features a USB-opladningsport on the back for charging other USB-powered devices (cable not included).
Billedbeskrivelse: En frontvinkel view of the iHome iPL24, showcasing its compact design, fabric speaker grille, digital display, and the prominent Lightning dock connector at the top.
Note: Some thicker phone cases may need to be removed for proper docking. The dock connector is designed with some flexibility to accommodate various devices.
5. Aux-in-tilslutning
Connect an external audio device (e.g., MP3 player) to the "aux-in" jack on the back of the unit using a 3.5mm audio cable (not included). Press the Mode button until "AUX" appears on the display to play audio from the connected device.
Opretholdelse
Rensning
Tør enheden af med en blød, tør klud. Brug ikke flydende rengøringsmidler eller slibende materialer. Sørg for, at enheden er frakoblet, inden rengøring.
Udskiftning af batteri
If the backup battery is depleted, the time and alarm settings may be lost during a power outage. Replace the CR2450 Lithium Metal battery as described in the Setup section.
Fejlfinding
| Problem | Løsning |
|---|---|
| Enheden tænder ikke. | Ensure the AC adapter is securely connected to both the unit and a working wall outlet. |
| Alarmen lyder ikke. | Verify that the alarm is set and activated (indicator light on). Check alarm volume. Ensure the alarm source is correctly selected. |
| Dårlig FM-radiomodtagelse. | Træk FM-antennen ud og flyt den. Prøv at flytte enheden til en anden placering. |
| iPhone not charging/playing audio. | Ensure the iPhone is properly seated on the Lightning connector. Remove any thick cases if necessary. Check the USB cable if using the USB charging port. |
| Tid/indstillinger mistet efter strømafbrydelsetage. | Udskift CR2450-backupbatteriet. |
Specifikationer
- Model: iPL24
- Strømkilde: Corded Electric (AC Adapter: DC 9V 2.7A)
- Backup batteri: 1 x CR2450 Lithium Metal (not included)
- Forbindelse: Lightning Connector, USB Charging Port, 3.5mm Aux-in
- Radiobånd: FM
- Produktdimensioner: 9 x 5 x 7 tommer
- Varens vægt: 1.48 pund
- Fabrikant: iHome
Garanti og support
For garantioplysninger og teknisk support henvises til den dokumentation, der fulgte med dit køb, eller besøg den officielle iHome website. Contact information for customer service is typically available on the manufacturer's support pages.
