Indledning
This manual provides detailed instructions for the setup, operation, and maintenance of your BIOS Weather Indoor/Outdoor Wireless Thermometer & Hygrometer. Please read this manual thoroughly before using the device to ensure proper function and longevity.
The BIOS Weather Indoor/Outdoor Wireless Thermometer & Hygrometer is designed to provide accurate readings of indoor temperature and humidity, as well as outdoor temperature. It features wireless connectivity for the outdoor sensor, a moon phase display, and the capability to connect with up to three sensors (additional sensors sold separately).
- Wireless range up to 30 meters (100 feet) from the outdoor sensor.
- Indoor monitor includes a hygrometer sensor for RH percentage readings (20% to 95%).
- Displays temperature from up to 3 sensors (Model No. 312TX, sold separately).
- Tracks relative indoor humidity and moon phase.
Pakkens indhold
Når du åbner pakken, skal du kontrollere, at alle komponenter er til stede og i god stand:
- 1 x Main Display Unit (Indoor Monitor)
- 1 x trådløs udendørssensor
- 1 x Brugsanvisning (dette dokument)

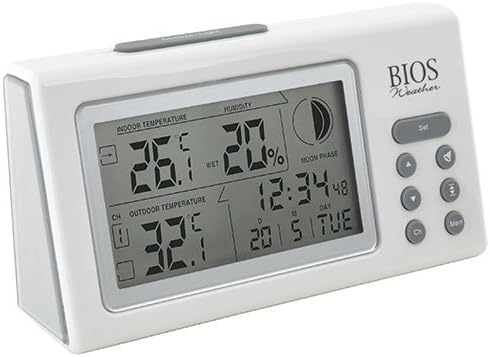

Image: The main display unit (left) and the wireless outdoor sensor (right). The main unit shows indoor temperature, humidity, moon phase, time, and outdoor temperature. The outdoor sensor displays its current temperature.
Opsætningsvejledning
1. Batteriinstallation
Both the main display unit and the wireless outdoor sensor require batteries (not included).
- Open the battery compartment on the back of both the main display unit and the outdoor sensor.
- Insert the required batteries (e.g., AA or AAA, refer to the battery compartment markings for correct type and polarity).
- Luk batterirummene forsvarligt.
Note:
- It is recommended to insert batteries into the outdoor sensor first, then the main display unit, to facilitate immediate pairing.
- Use high-quality alkaline batteries for optimal performance, especially in cold weather for the outdoor sensor.
2. Sensorplacering
Proper placement of both units is crucial for accurate readings and reliable wireless communication.
- Hoveddisplayenhed: Place indoors, away from direct sunlight, heat sources, or drafts that could affect temperature and humidity readings. Ensure it is within 30 meters (100 feet) of the outdoor sensor.
- Trådløs udendørs sensor:
- Mount in a shaded area to avoid direct sunlight, which can cause artificially high temperature readings.
- Protect from direct rain and snow. An overhang or a weather-resistant enclosure is ideal.
- Avoid placing near large metal objects, electrical appliances, or thick walls that could interfere with the wireless signal.
- Ensure it is within the 30-meter (100-foot) wireless range of the main unit.
3. Indledende parring
The main display unit and outdoor sensor should automatically pair upon battery installation. If pairing does not occur:
- Sørg for, at begge enheder har nye batterier.
- Bring the outdoor sensor closer to the main display unit.
- Press the "CH" (Channel) button on the main display unit to cycle through channels or initiate a search for the sensor.
- If issues persist, remove batteries from both units, wait a few minutes, and reinsert them, starting with the outdoor sensor.
Betjeningsvejledning
1. Display overview
Billede: Vinklet view of the main display unit, highlighting the various segments for indoor temperature, humidity, moon phase, time, and outdoor temperature.
The main display unit provides the following information:
- Indendørs temperatur: Displays the current temperature inside the room where the main unit is located.
- Fugtighed: Shows the relative indoor humidity percentage.
- Udendørs temperatur: Displays the temperature from the connected wireless outdoor sensor.
- Tid og dato: Nuværende tidspunkt og dato.
- Månefase: An icon indicating the current moon phase.
- Kanalindikator: Shows which outdoor sensor channel is currently displayed (if multiple sensors are used).
2. Knapfunktioner
The main display unit features several buttons for configuration and viewinddata:
| Knap | Fungere |
|---|---|
| SÆT | Enters setup mode for time, date, and other settings. Press to confirm settings. |
| ▲ / ▼ (Up/Down) | Adjusts values during setup. Cycles through channels for outdoor sensors. |
| CH (kanal) | Switches between outdoor sensor channels (1, 2, 3) or initiates a search for sensors. |
| MEM (hukommelse) | Displays maximum and minimum temperature/humidity readings. Press again to clear. |
3. Indstilling af tid og dato
- Tryk og hold på SÆT knappen, indtil tidsvisningen blinker.
- Brug ▲ or ▼ knapper for at justere timen.
- Trykke SÆT to confirm and move to the next setting (minutes, year, month, day).
- Repeat steps 2 and 3 until all settings are configured.
- Trykke SÆT one last time to exit setup mode.
4. ViewMaks./min. aflæsninger
Tryk på MEM knap til view the maximum recorded indoor temperature, humidity, and outdoor temperature. Press MEM igen til view the minimum readings. To clear the memory, press and hold the MEM button while the max/min readings are displayed.
Opretholdelse
1. Rensning
To clean the display unit and outdoor sensor, use a soft, damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these may damage the plastic casing eller elektroniske komponenter.
2. Udskiftning af batteri
When the battery indicator appears on the display, it is time to replace the batteries in the respective unit (main unit or outdoor sensor). Always replace all batteries in a unit at the same time with new, high-quality batteries of the correct type.
Vigtig:
- Bortskaf gamle batterier ansvarligt i henhold til lokale regler.
- Hvis enheden ikke skal bruges i en længere periode, skal batterierne fjernes for at forhindre lækage og skader.
Fejlfinding
If you experience issues with your BIOS Weather Thermometer & Hygrometer, please refer to the following common problems and solutions:
| Problem | Mulig årsag/løsning |
|---|---|
| No outdoor temperature reading or "---" displayed. |
|
| Unøjagtige temperatur-/fugtighedsmålinger. |
|
| Skærmen er svag eller tom. |
|
| Tid/dato er forkert. |
|
Produktspecifikationer
Image: The main display unit with indicated dimensions: 21.59 cm (length), 7.62 cm (width), and 19.05 cm (height).
| Feature | Detalje |
|---|---|
| Modelnummer | BBYCA10300783 (312BC) |
| Type | Indoor/Outdoor Thermometer and Hygrometer |
| Materiale | Plast |
| Farve | Hvid |
| Dimensioner (hovedenhed) | Højde: 19.05 cm, Bredde: 7.62 cm, Dybde: 21.59 cm |
| Vægt | 0.30 kg |
| Wireless Range | Op til 30 meter (100 fod) |
| Indendørs luftfugtighedsområde | 20% til 95% RH |
| Sensor Capability | Supports up to 3 outdoor sensors (additional sensors Model No. 312TX, sold separately) |
| Særlige funktioner | Wireless connectivity, Multi-Sensor support, Humidity Tracking, Moon Phase Display |
| Strømkilde | Batteridrevet |
Garantioplysninger
This BIOS Weather product comes with a 1 års garanti på dele from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, accident, unauthorized modification, or improper installation.
Gem venligst dit købsbevis for garantikrav.
Kundesupport
If you have any questions, require technical assistance, or need to make a warranty claim, please contact Bios customer support. For more information and resources, you may also visit the official Bios store on Amazon:
Visit the Bios Store on Amazon
Please have your product model number (BBYCA10300783) and purchase date ready when contacting support.
