1. Introduktion
This user manual provides comprehensive instructions for the safe and efficient operation of the Showtec Compact Par 7 Q4 7 x 3W RGBW LED Floor PAR Spot. Please read this manual thoroughly before installation, operation, or maintenance to ensure proper use and to prevent damage to the unit or injury to personnel.
The Showtec Compact Par 7 Q4 is a compact RGBW PAR can designed for various lighting applications, offering versatile color mixing and robust performance.
2. Sikkerhedsinstruktioner
Overhold altid følgende sikkerhedsforanstaltninger for at mindske risikoen for elektrisk stød, brand eller personskade:
- Sørg for, at strømforsyningen voltage matcher voltage angivet på enheden.
- Tilslut altid enheden til en jordforbundet stikkontakt.
- Brug ikke enheden, hvis netledningen er beskadiget.
- Disconnect from mains power before cleaning or servicing.
- Udsæt ikke enheden for regn eller fugt.
- Sørg for tilstrækkelig ventilation omkring enheden for at forhindre overophedning.
- Undgå direkte øjeneksponering for lyskilden.
- Denne enhed er kun til indendørs brug.
3. Produktet er slutview
The Showtec Compact Par 7 Q4 features seven 3W RGBW LEDs, providing a wide spectrum of colors. Its compact design makes it suitable for floor standing or truss mounting.
Figur 3.1: Forside view of the Showtec Compact Par 7 Q4 with red light output, showcasing its seven powerful RGBW LEDs.
Figure 3.2: The PAR spot emitting a bright white light, demonstrating its full spectrum capabilities.
Figure 3.3: The PAR spot displaying a vibrant blue light, highlighting its color mixing versatility.
Figur 3.4: Nærbillede view of the LED array when the unit is off, showing the individual lenses.

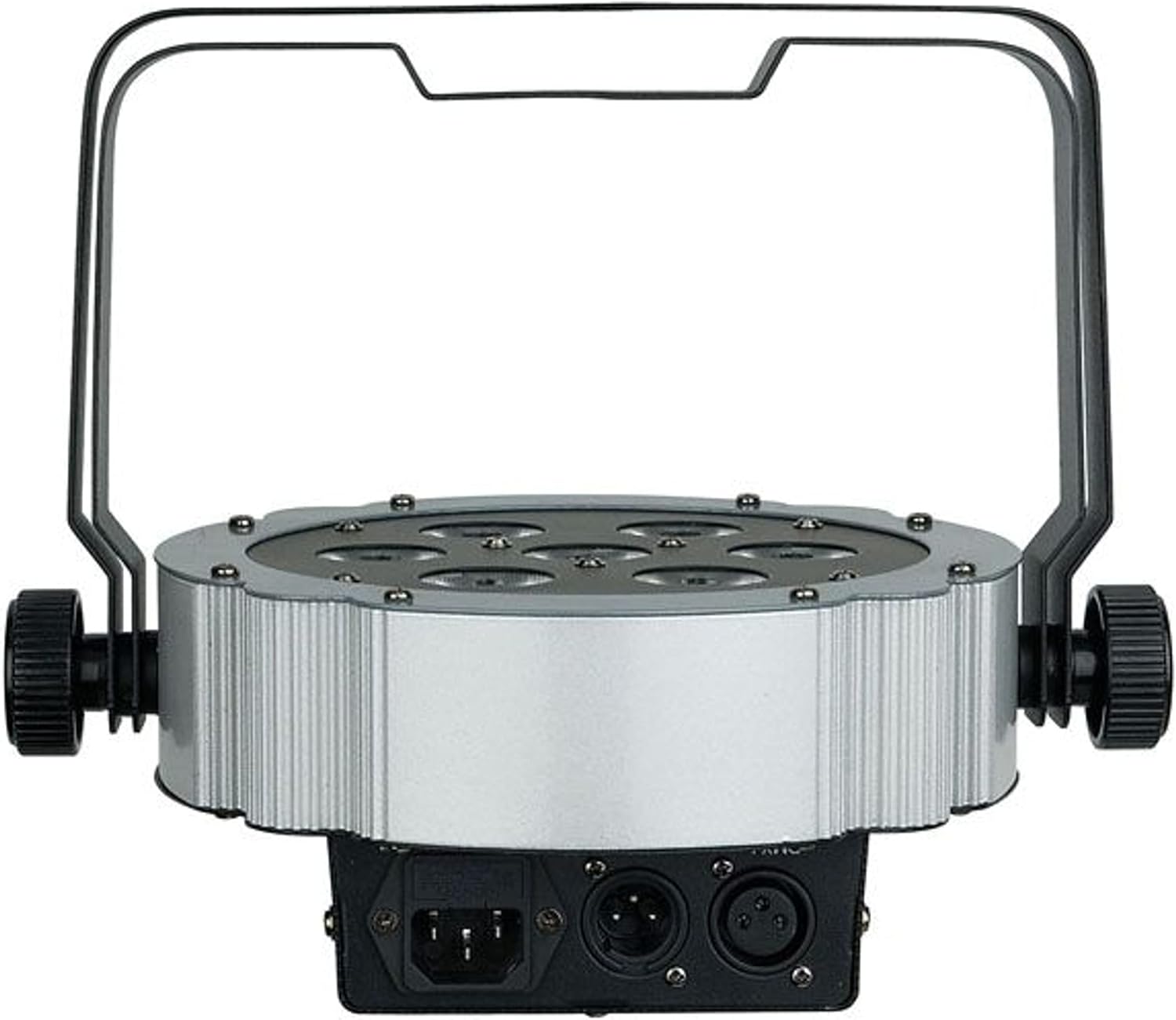

Figur 3.5: Bagside view of the unit, showing the power input and DMX connections (XLR 3-pin).
Figur 3.6: Vinklet view of the PAR spot, demonstrating the adjustable mounting bracket for floor or truss applications.
4. Opsætning
4.1 Udpakning
Carefully unpack the unit and check for any damage during transit. Retain the packaging material for future transport or storage.
4.2 Montering
The Compact Par 7 Q4 can be used as a floor spot or mounted to a truss using the integrated bracket. Ensure the mounting surface or truss can support the weight of the fixture. Use appropriate clampog sikkerhedskabler ved montering over hovedhøjde.
4.3 Strømtilslutning
Connect the power cable to the unit's power input and then to a grounded electrical outlet. Verify that the local voltage matcher enhedens krav (240 volt).
4.4 DMX-tilslutning (valgfrit)
For DMX control, connect a DMX cable from your DMX controller to the DMX IN port of the fixture. If connecting multiple units, daisy-chain them by connecting the DMX OUT of the first unit to the DMX IN of the next.
5. Betjening
5.1 Kontrolpanel
The unit features a digital display and control buttons (Menu, Up, Down, Enter) on the rear for setting modes and DMX addresses.
5.2 driftstilstande
The Showtec Compact Par 7 Q4 typically offers several operating modes:
- DMX-tilstand: Allows control via an external DMX controller. Set the DMX address using the control panel.
- Automatisk tilstand: Pre-programmed light shows that run automatically.
- Lyd aktiv tilstand: The light reacts to sound via a built-in microphone.
- Master/Slave-tilstand: Link multiple units where one acts as the master and others as slaves, synchronizing their operation.
- Statisk farvetilstand: Select and display a single static color.
5.3 DMX-kanaldiagram
Refer to the specific DMX channel chart in the full product manual for detailed information on controlling each function via DMX. Common channels include Dimmer, Red, Green, Blue, White, Strobe, and Program selection.
6. Vedligeholdelse
6.1 Rengøring
Regular cleaning of the lenses and housing is recommended to maintain optimal light output and extend the unit's lifespan. Use a soft, lint-free cloth and a mild glass cleaner. Do not use abrasive materials.
6.2 Udskiftning af sikringer
If the unit does not power on, check the fuse located near the power input. Replace it with a fuse of the same type and rating only.
6.3 Opbevaring
When not in use, store the unit in its original packaging or a suitable flight case in a dry, dust-free environment.
7. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke | No power supply; Blown fuse; Damaged power cable | Check power connection; Replace fuse; Replace cable |
| Ingen DMX kontrol | Forkert DMX-adresse; Defekt DMX-kabel; Problem med DMX-controlleren | Verify DMX address; Check/replace DMX cable; Test controller |
| Lys flimrer eller opfører sig uregelmæssigt | Poor DMX signal; Overheating; Internal fault | Check DMX connections; Ensure proper ventilation; Contact support |
| Farverne er forkerte | Incorrect DMX channel values; Internal calibration issue | Adjust DMX values; Perform factory reset if available; Contact support |
8. Specifikationer
| Feature | Detalje |
|---|---|
| Mærke | Showtec |
| Model | Q4 |
| Referencenummer | LIG0013729-000 |
| Lyskilde | 7 x 3W RGBW LED'er |
| Magt | 3 watt (pr. LED) |
| Voltage | 240 volt |
| Strømkilde | El-kabel |
| Dimensioner (L x B x H) | 31.5 x 31 x 15.5 cm |
| Vægt | 2.73 kilo |
| ASIN | B01F04U758 |
9. Garanti og support
Information regarding specific warranty terms and conditions for the Showtec Compact Par 7 Q4 is not available in the provided product details. Please refer to the retailer or manufacturer's official webwebsted for de mest opdaterede garantioplysninger.
For technical support, service, or spare parts inquiries, please contact your authorized Showtec dealer or the manufacturer directly. Always provide the model number (Q4) and reference number (LIG0013729-000) when seeking support.
