Brugermanual til Garrett ACE 400i metaldetektor

1. Introduktion

The Garrett ACE 400i is an advanced metal detector designed for hobbyists and enthusiasts. It builds upon the success of previous ACE models, offering enhanced features for improved target identification and detection depth. This manual provides comprehensive instructions for assembling, operating, and maintaining your ACE 400i to ensure optimal performance and longevity.

Nøglefunktioner omfatter:

• Target Conductivity Indication: A numerical display (1-100) helps identify the probable nature of the target.
• Iron Audio: Allows users to hear discriminated ferrous targets, aiding in distinguishing valuable items from trash.
• Increased Frequency (10 kHz): Provides enhanced detection depth and sensitivity to smaller targets.
• Frekvensjustering: Helps eliminate interference when detecting near other metal detectors or electrical sources.
• Notch-diskrimination: Customize discrimination patterns to ignore unwanted metals.
• Pinpoint Function: Precisely locate targets for easier recovery.
• Letvægtsdesign: Weighing approximately 1.32 kg, it is comfortable for extended use.

Figure 1: The Garrett ACE 400i Metal Detector, fully assembled. This image shows the main components including the search coil, shaft, control box, and arm cuff.

2. Sikkerhedsoplysninger

Always exercise caution when operating the metal detector to prevent injury or damage to the device. Adhere to the following safety guidelines:

• Avoid using the detector near active electrical lines or in adverse weather conditions.
• Be aware of your surroundings, especially when digging.
• Hold øje med børn under drift.
• Do not attempt to detect in areas where digging is prohibited or dangerous.
• Always obtain permission before detecting on private property.

3. Komponenter inkluderet

Your Garrett ACE 400i package typically includes the following components:

• Garrett ACE 400i Control Box with Shaft
• 18 x 26 cm (7" x 10") PROformance™ DD Search Coil
• Search Coil Cover
• Garrett ClearSound Easy Stow Headphones
• Garrett ACE Environmental Cover-Up (Rain Cover for Control Box)
• AA Batteries (4 required, may or may not be included depending on region/seller)
• Brugervejledning (dette dokument)

Figure 2: Garrett ClearSound Easy Stow Headphones, included with the detector for clear audio signals.

Figure 3: The protective cover for the search coil, designed to prevent scratches and wear during use.

4. Samling og opsætning

Follow these steps to assemble your Garrett ACE 400i metal detector:

1. Fastgør søgespolen:

   Align the search coil with the lower stem. Insert the plastic bolt through the holes on the coil and stem, then secure it with the wing nut. Ensure the coil cable is wrapped snugly around the lower and middle stems.



   Figure 4: The DD search coil, which attaches to the lower shaft of the detector.

2. Tilslut kontrolboksen:

   Slide the control box onto the upper shaft. Secure it using the provided cam-locks. The new cam-lock rings prevent movement and play over time.



   Figure 5: The control box attached to the upper shaft, showing the arm cuff and handle.
3. Indsæt batterier:

   Open the battery compartment on the control box. Insert four (4) AA batteries, ensuring correct polarity. Close the compartment securely.

4. Adjust Length and Arm Cuff:

   Adjust the length of the shaft to a comfortable height, allowing the search coil to be parallel to the ground when you are standing upright. Adjust the arm cuff for a snug but comfortable fit on your forearm.

5. Connect Coil Cable:

   Plug the search coil cable connector into the corresponding port on the control box. Ensure a secure connection.

5. Betjeningsvejledning

Familiarize yourself with the control panel and its functions before beginning your search.

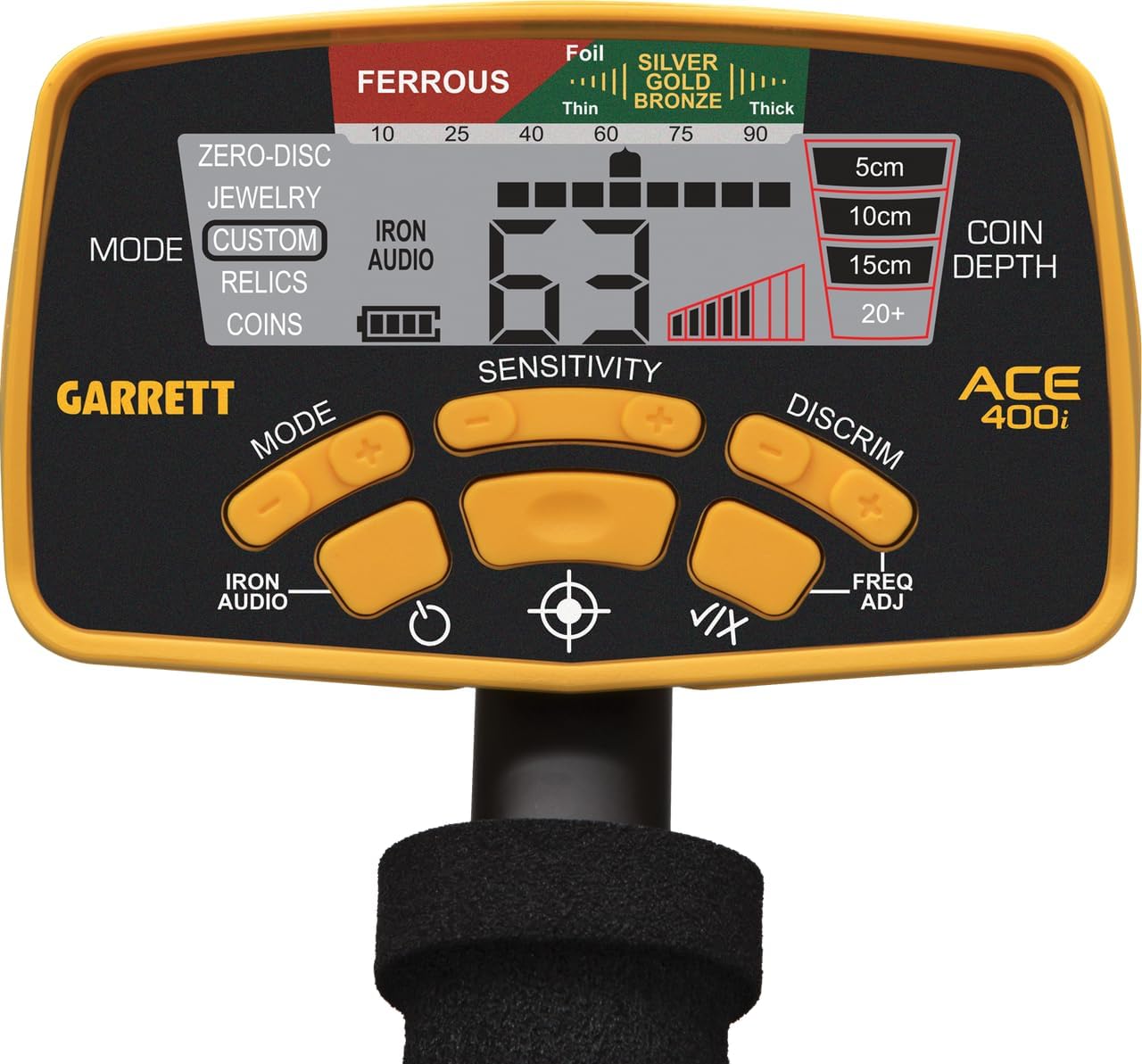

Figure 6: Close-up of the Garrett ACE 400i control panel, showing the LCD screen and various buttons.

5.1. Tænd/sluk

Tryk og hold på MAGT button to turn the detector on or off. The detector will power on in the last used search mode.

5.2. Understanding the Display (LCD)

The large LCD screen provides crucial information:

• Mål-ID-markør: Indicates the probable target type (e.g., Iron, Foil, Nickel, Zinc, Copper, Silver).
• Digital Target ID (1-100): A numerical value representing the target's conductivity. Higher numbers indicate more conductive targets (e.g., silver coins), while lower numbers indicate less conductive targets (e.g., iron).
• Dybdeindikator: Estimates the depth of the target in centimeters (5cm, 10cm, 15cm, 20+cm).
• Batteriniveauindikator: Viser den resterende batterilevetid.
• Følsomhedsindikator: Displays the current sensitivity setting.

5.3. Søgetilstande

The ACE 400i features five pre-programmed search modes. Press the MODE knap for at bladre gennem dem:

• Zero-Disc: All-metal mode. Detects all types of metal without discrimination.
• Smykker: Designed to ignore iron and small trash items, focusing on jewelry.
• Skik: Allows you to create and save your own discrimination pattern. Use the DISCRIM og V/X buttons to adjust the NOTCH segments.
• Mønt: Optimized for coin hunting, typically discriminating against iron and some foil.
• Relics: Designed to find relics, often with minimal iron discrimination, as many historical artifacts contain iron.

5.4. Følsomhedsjustering

Brug FØLSOMHED knapper (+ og -) to adjust the detector's sensitivity. Higher sensitivity increases detection depth but can also lead to more false signals in mineralized ground or areas with electrical interference. Adjust as needed for stable operation.

5.5. Discrimination (NOTCH and Iron Audio)

• NOTCH Discrimination: In Custom mode, you can eliminate specific target segments from detection. Use the DISCRIM button to move the cursor and V/X to toggle segments on/off.
• Iron Audio: Tryk på IRON AUDIO button to activate this feature. It allows you to hear discriminated iron targets at a low tone, even when they are notched out. This helps in identifying complex targets (e.g., a valuable non-ferrous target next to iron) and avoiding large iron objects.

5.6. Frekvensjustering

The ACE 400i operates at 10 kHz. If you experience interference from other detectors or electrical sources, press the FREQ ADJ button to slightly shift the operating frequency, which can help mitigate interference.

5.7. Pinpoint Function

Once a target is detected, press and hold the PINPOINT button (target icon). Keep the coil steady over the target. The detector will emit a continuous tone, and the signal strength indicator on the LCD will help you center the coil directly over the target for precise location.

6. Vedligeholdelse

• Rensning: Wipe down the detector with a damp cloth after each use. Do not use abrasive cleaners or solvents. The control box is rain-resistant but not submersible.
• Coil Care: Always use the search coil cover to protect the coil from scratches and impacts.
• Udskiftning af batteri: Replace batteries when the low battery indicator appears. Remove batteries if storing the detector for extended periods to prevent leakage.
• Opbevaring: Store the detector in a cool, dry place. Avoid extreme temperatures.

7. Fejlfinding

8. Specifikationer

9. Garanti og support

For detailed warranty information, please refer to the official Garrett Metal Detectors website or contact your authorized dealer. Warranty terms and conditions may vary by region.

For technical support, troubleshooting assistance, or spare parts, please contact Garrett Customer Service through their official channels. Always provide your product model (ACE 400i) and serial number when seeking support.
