Indledning
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your OSCULATI Lewmar Integra 12V Autopilot Actuator. Please read this manual thoroughly before attempting any installation or operation.
The Lewmar Integra 12V Autopilot Actuator is designed to provide reliable steering control for marine vessels when integrated with a compatible autopilot system. It operates on a 12V DC power supply.
Sikkerhedsoplysninger
ADVARSEL:
- Afbryd altid strømmen, før du udfører nogen form for installation eller vedligeholdelse.
- Sørg for, at alle elektriske forbindelser er sikre og korrekt isolerede for at forhindre kortslutninger og korrosion.
- Installationen skal udføres af kvalificeret personale, der er bekendt med marine elektriske systemer.
- Do not operate the actuator if it shows signs of damage.
Produkt overview
The OSCULATI Lewmar Integra 12V Autopilot Actuator is a critical component of a marine autopilot system. It translates electrical signals from the autopilot course computer into mechanical movement to steer the vessel.

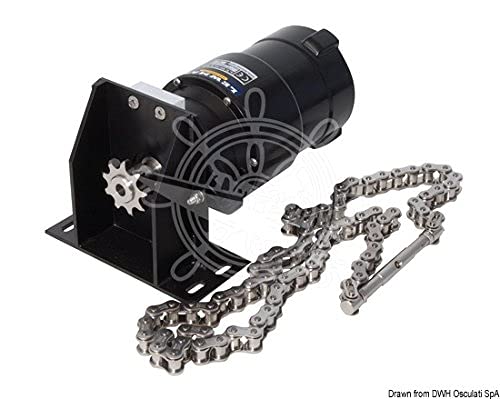

Figure 1: Lewmar Integra 12V Autopilot Actuator. This image shows the main unit of the actuator, typically including the motor housing and output shaft.
Nøglekomponenter omfatter typisk:
- Actuator Body: Houses the motor and gearing.
- Udgangsaksel: Connects to the vessel's steering mechanism.
- Elektriske stik: For power and control signals.
Opsætning og installation
Proper installation is crucial for the performance and longevity of the autopilot actuator.
- Monteringssted: Select a dry, protected location near the steering quadrant or tiller arm, ensuring sufficient space for movement and access. The actuator should be mounted securely to a rigid surface.
- Mekanisk forbindelse: Connect the actuator's output shaft to the vessel's steering mechanism (e.g., tiller arm, steering quadrant) using appropriate linkages. Ensure there is no binding or excessive play.
- Elektriske ledninger:
- Connect the 12V DC power supply to the actuator's power terminals. Observe correct polarity (+ and -).
- Connect the control cables from the autopilot course computer to the actuator's control terminals as per the autopilot system's instructions.
- Use marine-grade wiring and connectors.
- Indledende kontrol: After installation, manually move the rudder to its full port and starboard positions to ensure the actuator and linkages move freely without obstruction.
Refer to your autopilot course computer manual for specific wiring diagrams and calibration procedures.
Betjeningsvejledning
The Lewmar Integra 12V Autopilot Actuator operates under the command of a compatible autopilot course computer. It does not have direct user controls.
- Tænd: Ensure the vessel's main power and the autopilot system are switched on.
- Autopilot Engagement: Engage the autopilot system according to its specific operating instructions. The actuator will then respond to commands from the course computer to maintain the set course.
- Frakobling: Disengage the autopilot system when manual steering is required or in emergency situations.
Always monitor the vessel's steering and be prepared to take manual control, especially in challenging conditions.
Opretholdelse
Regular maintenance ensures optimal performance and extends the life of your actuator.
- Månedlig kontrol:
- Inspect all mechanical connections for tightness and wear.
- Kontrollér elektriske forbindelser for korrosion eller skader.
- Ensure the actuator moves freely without excessive noise or resistance.
- Årlig kontrol:
- Lubricate moving parts as recommended by the manufacturer (if applicable).
- Clean the exterior of the actuator, removing any salt residue or dirt.
- Inspect the wiring for chafing or degradation.
FORSIGTIGHED:
Do not attempt to open the sealed actuator unit. Internal repairs should only be performed by authorized service technicians.
Fejlfinding
This section provides solutions to common issues. For more complex problems, consult a qualified marine technician.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Aktuatoren reagerer ikke | No power; Loose electrical connections; Faulty course computer signal. | Check 12V power supply; Verify all wiring connections; Consult autopilot course computer manual. |
| Overdreven støj eller vibrationer | Mechanical binding; Worn linkages; Internal actuator issue. | Inspect mechanical connections for obstructions; Check for worn parts; Contact service technician if internal issue is suspected. |
| Inaccurate steering | Autopilot calibration issue; Mechanical play in steering system. | Recalibrate autopilot system; Inspect steering linkages for excessive play. |
Specifikationer
- Model: Integra 12V
- Mærke: OSKULER
- Producentreference: 69.310.01
- Strømforsyning: 12V DC
- Anvendelse: Marine Autopilot Systems
- ASIN: B01DPVQV76
Garantioplysninger
OSCULATI products are manufactured to high standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official OSCULATI webwebsted. Gem din købsbevis til garantikrav.
Support og kontakt
For technical assistance, spare parts, or service inquiries, please contact your local OSCULATI dealer or visit the official OSCULATI webwebsted for kontaktoplysninger.
Webwebsted: www.osculati.com (Eksamplinket, det faktiske link kan variere)
