1. Introduktion
The Datavideo HRS-30 is a versatile portable recorder and integrated 10.1-inch monitor designed for professional field recording and playback applications. This device supports both HD and SD video equipment, accepting signals via HD/SD-SDI inputs. It is compatible with various video formats including 1080i, 720p, 576i, and 480i.
The HRS-30 offers flexible recording formats, including MPEG-II Long-GOP or intra-frame (i-frame) with 4:2:2 color sampling. Recorded files are stored in the MXF/OP1A format, ensuring compatibility with a wide range of Non-Linear Editing (NLE) systems and playout solutions. Storage is facilitated by a removable caddy, compatible with standard 2.5-inch HDD and SSD drives.

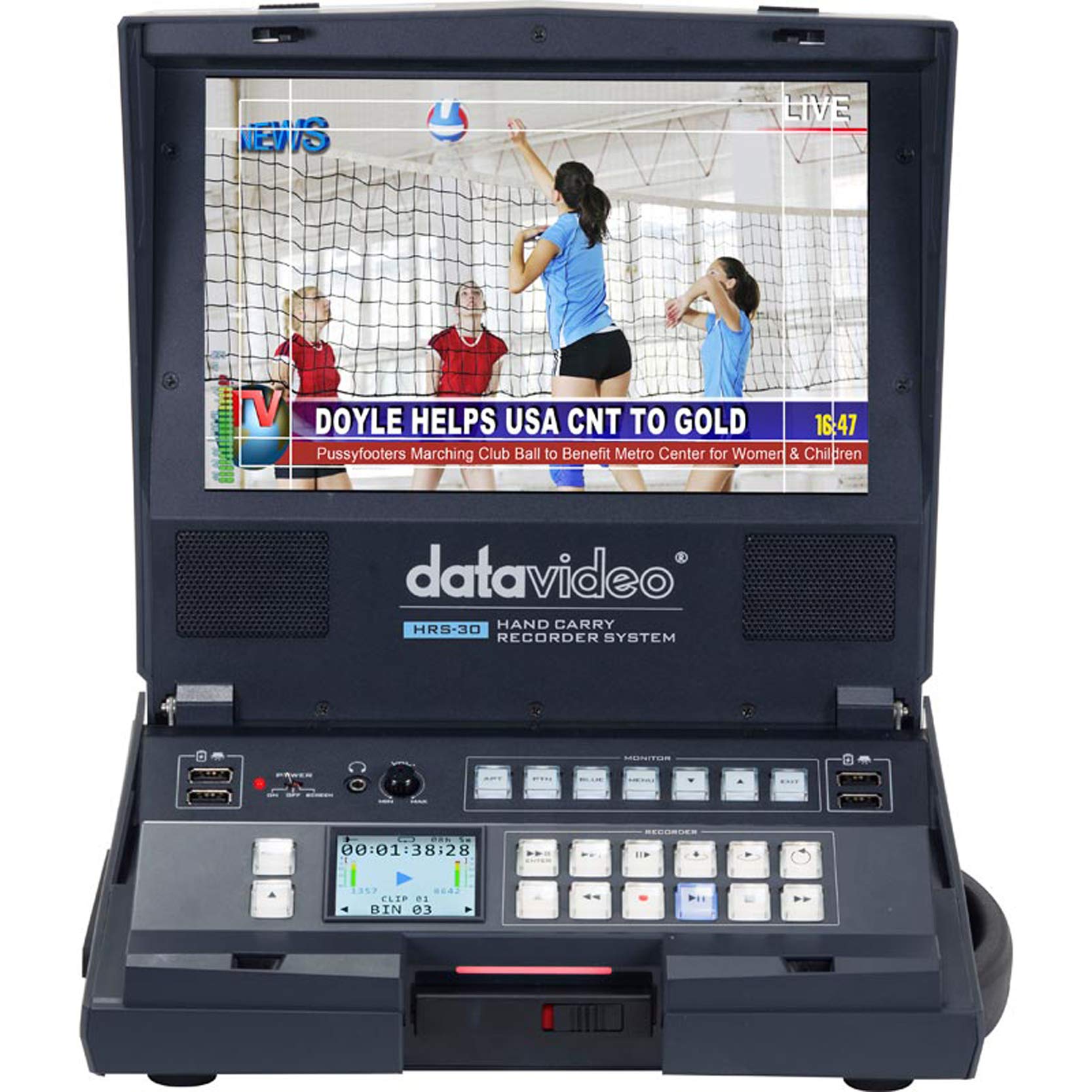

Figur 1.1: Forside view of the Datavideo HRS-30 Portable Recorder Monitor, showing the integrated screen and control interface.
2. Sikkerhedsoplysninger
Please read and understand all safety instructions before operating the HRS-30. Failure to follow these instructions may result in electric shock, fire, or damage to the unit.
- Strømkilde: Brug kun den angivne strømadapter, og sørg for at lydstyrkentage matcher enhedens krav.
- Ventilation: Bloker ikke ventilationsåbningerne. Sørg for tilstrækkelig luftgennemstrømning omkring enheden for at forhindre overophedning.
- Vand og fugt: Udsæt ikke enheden for regn, fugt og nedsænk den ikke i vand.
- Service: Forsøg ikke selv at servicere dette produkt. Overlad al service til kvalificeret servicepersonale.
- Placering: Place the unit on a stable, level surface. Avoid placing it in direct sunlight or near heat sources.
3. Pakkens indhold
Verify that all items are present in the package. If any items are missing or damaged, contact your dealer immediately.
- Datavideo HRS-30 Portable Recorder Monitor Unit
- Strømadapter
- Removable Caddy for 2.5" HDD/SSD
- Brugervejledning (dette dokument)
- Additional accessories as specified by your retailer
4. Opsætning
Follow these steps to set up your HRS-30 unit for operation.
4.1 Installing Storage Media
- Ensure the HRS-30 is powered off.
- Locate the removable caddy slot on the unit.
- Insert a compatible 2.5-inch HDD or SSD into the removable caddy.
- Slide the caddy with the installed drive into the HRS-30's caddy slot until it clicks securely into place.
4.2 Tilslutning af strøm
- Connect the power adapter to the DC IN 12V port on the rear of the HRS-30.
- Sæt strømadapteren i en passende stikkontakt.
- Press the POWER switch on the rear panel to turn on the unit.
4.3 Video- og lydforbindelser
The HRS-30 supports various input and output connections. Refer to the rear panel diagram for port locations.

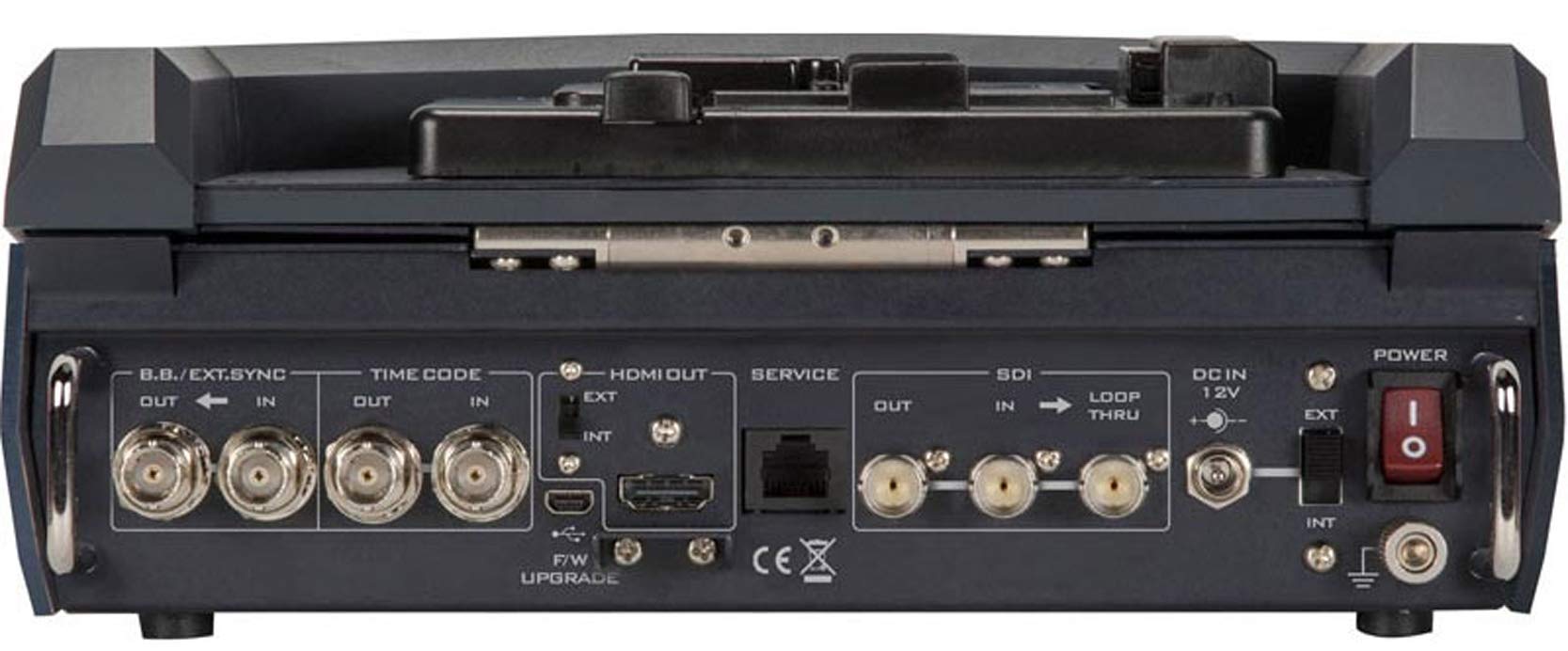

Figure 4.1: Rear panel connections of the Datavideo HRS-30, including SDI, HDMI, Timecode, and Power inputs/outputs.
- SDI input: Connect your HD/SD-SDI video source to the SDI IN port. The unit also features an SDI LOOP THRU for connecting to another device.
- HDMI udgang: Connect an external monitor or display to the HDMI OUT port for video monitoring.
- Tidskode: Use the TIME CODE IN/OUT ports for external timecode synchronization.
- BB/EXT.SYNC: Connect Black Burst or external sync signals to the BB/EXT.SYNC IN/OUT ports.
- Serviceport: For firmware upgrades and maintenance.
5. Betjeningsvejledning
This section details the basic operation of the HRS-30 for recording and playback.
5.1 Tænd og startskærm
- Ensure all necessary connections are made and the storage caddy is installed.
- Flip the POWER switch on the rear panel to the 'ON' position.
- The integrated 10.1-inch monitor will display the boot-up sequence, followed by the live video input or the last recorded clip.
5.2 Optagelse af video
The HRS-30 records video from HD/SD-SDI sources in various formats.
- Vælg input: Use the control panel buttons to select the desired SDI input source.
- Monitorinput: Verify the incoming video signal on the integrated monitor.
- Start optagelse: Tryk på REC button on the control panel to begin recording. The recording indicator will illuminate.
- Stop optagelse: Tryk på STOP button to end the recording. The recording indicator will turn off.
The HRS-30 supports recording in MPEG-II Long-GOP or intra-frame (i-frame) with 4:2:2 color sampling, producing MXF/OP1A files.
5.3 Afspilning
Til review recorded content:
- Access Playback Mode: Use the navigation buttons to enter playback mode.
- Select Clip: Browse through your recorded clips using the navigation controls.
- Start afspilning: Tryk på SPIL button to start playback of the selected clip.
- Styr afspilning: Brug PAUSE, FFW (Spol frem), og REW (Rewind) buttons to control playback.
5.4 Menunavigation
The HRS-30 features an on-screen menu system for configuring settings such as video format, recording quality, audio settings, and system preferences. Use the MENU button and directional arrows to navigate, and the ENTER button to confirm selections.
6. Vedligeholdelse
Proper maintenance ensures the longevity and optimal performance of your HRS-30.
- Rensning: Use a soft, dry cloth to clean the exterior of the unit. For the screen, use a specialized screen cleaning solution and a microfiber cloth. Do not use abrasive cleaners or solvents.
- Opbevaring: When not in use, store the HRS-30 in a cool, dry place, away from direct sunlight and extreme temperatures.
- Firmwareopdateringer: Periodically check the Datavideo website for firmware updates to ensure your unit has the latest features and bug fixes. Follow the instructions provided with the firmware update carefully.
7. Fejlfinding
This section addresses common issues you might encounter with the HRS-30.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Enheden tænder ikke | No power, faulty adapter, power switch off | Check power cable connection, verify power outlet, ensure power switch is ON. |
| No video on screen | Incorrect input selected, no signal from source, faulty cable | Select correct input, check video source, replace SDI/HDMI cable. |
| Kan ikke optage | No storage media, full storage, media error | Ensure caddy with drive is installed, check available storage space, format or replace drive if necessary. |
| Playback issues | Korrupt file, incompatible format | Try playing another clip. Ensure recorded files er ikke beskadiget. |
8. Specifikationer
Detailed technical specifications for the Datavideo HRS-30.
- Model: HRS-30
- Synlig skærmdiagonal: 10 tommer / 26 cm
- Produktdimensioner: 10.83 x 10.24 x 3.94 tommer (27.5 x 26 x 10 cm)
- Varens vægt: 7.92 pund (3.6 kg)
- Videoindgange: HD/SD-SDI
- Videooutput: HDMI, SDI Loop Thru
- Understøttede videoformater: 1080i, 720p, 576i, 480i
- Optagelsesformater: MPEG-II Long-GOP, Intra-frame (i-frame) with 4:2:2 color sampling
- File Format: MXF/OP1A
- Lagermedier: Removable caddy for 2.5" HDD & SSD drives
- Fabrikant: Datavideo
- Dato først tilgængelig: 23. marts 2016
9. Garanti og support
For warranty information and technical support, please refer to the official Datavideo website or contact your authorized Datavideo dealer. Keep your purchase receipt as proof of purchase for warranty claims.
