Audibax Onyx 130 Dobbelt Artikuleret Keyboardstativ Brugermanual

1. Introduktion

This manual provides instructions for the assembly, operation, and maintenance of your Audibax Onyx 130 Double Articulated Keyboard Stand. Please read this manual thoroughly before use to ensure proper setup and safe operation.

2. Sikkerhedsoplysninger

• Sørg for, at alle komponenter er forsvarligt fastgjort, før du placerer et instrument på stativet.
• Overskrid ikke den maksimale bæreevne på 50 kg.
• Always adjust the height with care, ensuring the locking mechanism is fully engaged.
• Hold hænder og fingre væk fra bevægelige dele under justering.
• Placer stativet på en stabil, plan overflade for at forhindre, at det vælter.
• Undersøg regelmæssigt stativet for tegn på slid eller skader. Stop brugen, hvis der konstateres skader.

3. Pakkens indhold

Bekræft, at alle følgende komponenter er til stede i din pakke:

• Audibax Onyx 130 Double Articulated Keyboard Stand frame
• Sekskantnøgle til montering
• Brugervejledning (dette dokument)

4. Opsætning og montering

The Audibax Onyx 130 keyboard stand is designed for quick and easy assembly. Follow these steps:

1. Unfold the main X-frame structure of the stand.
2. Identify the upper and lower support arms.
3. Using the provided hexagonal key, securely attach the upper support arms to the top section of the X-frame.
4. Similarly, attach the lower support arms to the bottom section of the X-frame. Ensure all screws are tightened to prevent wobbling.
5. Confirm that the non-slip elastic pads are correctly positioned on both the upper and lower arms. These pads provide stability for your instrument and protect your floor.

The assembly process typically takes less than 10 minutes.

Figure 1: Fully assembled Audibax Onyx 130 Keyboard Stand.

Figure 2: Detail of the non-slip elastic pads on the upper support arm.

5. Betjeningsvejledning

5.1 Højdejustering

The Audibax Onyx 130 features an integrated adjustment system with an Easy Lock mechanism for precise height settings.

1. Locate the Easy Lock lever and adjustment mechanism at the center joint of the X-frame.
2. To adjust the height, gently lift the Easy Lock lever. This will disengage the locking pins.
3. While holding the lever, carefully move the X-frame to your desired height. The stand can be adjusted up to a maximum height of 97 cm.
4. Once the desired height is reached, release the Easy Lock lever. Ensure the locking pins fully engage into one of the preset positions to secure the stand's height.
5. Before placing your instrument, gently press down on the stand to confirm it is stable and locked in position.

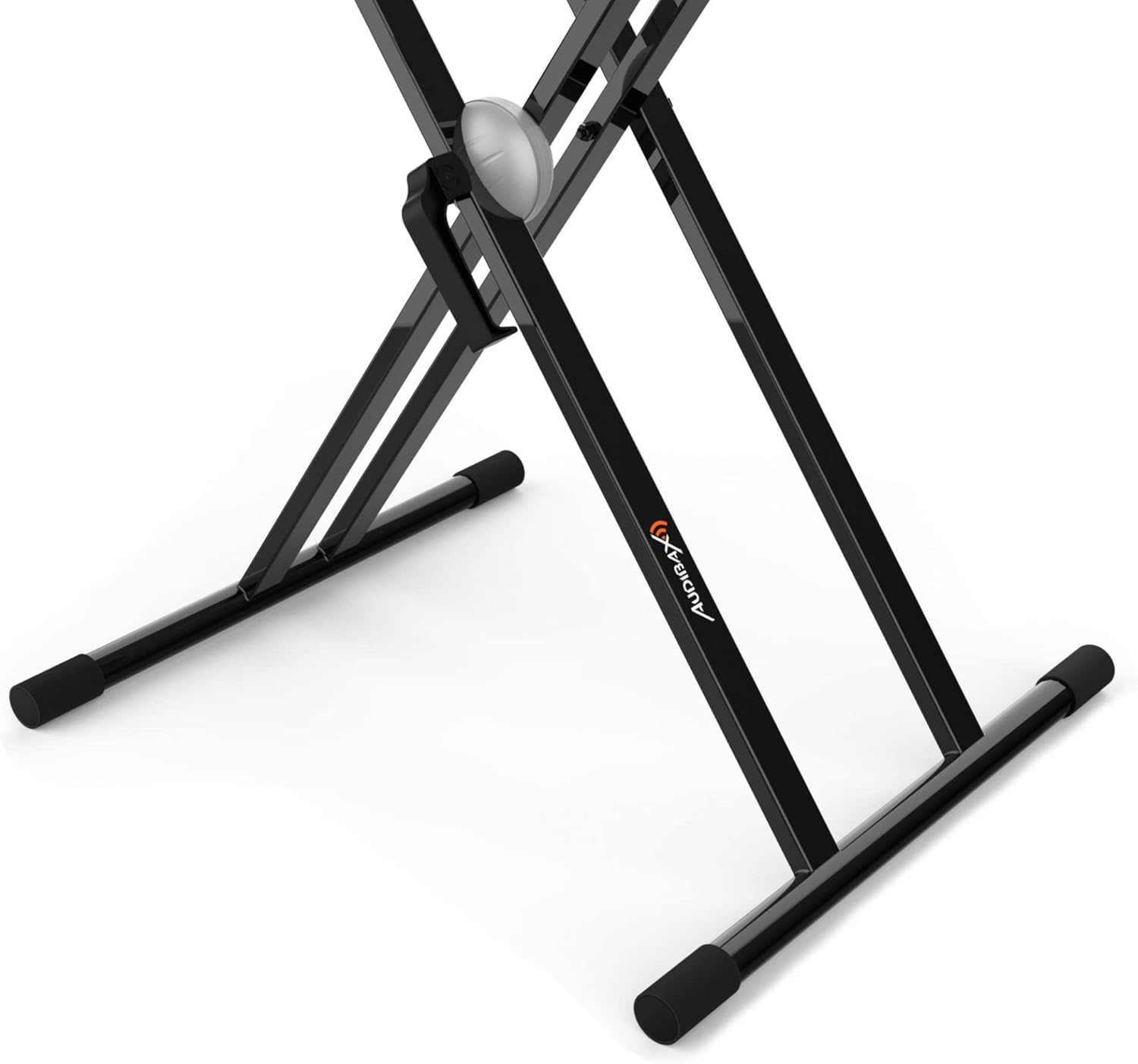

Figure 3: Easy Lock height adjustment mechanism.

5.2 Sammenfoldning til transport og opbevaring

The stand is designed to be foldable for easy transport and storage.

1. Remove any instrument from the stand.
2. Lift the Easy Lock lever and fully collapse the X-frame to its lowest and most compact position.
3. Release the lever to lock it in the folded position.
4. The stand can now be easily stored or transported due to its compact size and light weight (4.5 kg).

Figur 4: Forside view of the stand in its folded configuration.

6. Vedligeholdelse

• Rensning: Wipe the stand with a soft, dry cloth. For stubborn dirt, a slightly damp en klud kan bruges, efterfulgt af øjeblikkelig tørring. Undgå slibende rengøringsmidler eller opløsningsmidler.
• Inspektion: Periodically check all screws and bolts for tightness. Ensure the Easy Lock mechanism operates smoothly and engages fully. Inspect the non-slip pads for wear or damage.
• Opbevaring: Store the stand in a dry environment, away from extreme temperatures and direct sunlight, to prolong its lifespan.

7. Fejlfinding

• Stativet føles ustabilt:
  • Sørg for, at alle monteringsskruer er helt spændt.
  • Verify the Easy Lock mechanism is fully engaged at the desired height.
  • Check that the stand is placed on a flat, level surface.
  • Confirm the non-slip pads are intact and properly positioned.
• Vanskeligheder med at justere højden:
  • Ensure the Easy Lock lever is fully lifted before attempting to adjust.
  • Check for any obstructions in the adjustment mechanism.

8. Specifikationer

9. Garanti og support

For warranty information and customer support, please refer to the documentation provided at the point of purchase or visit the official Audibax webwebstedet. Behold din købskvittering som købsbevis.
