Kuzco Lighting VL0118-BN Lighthouse LED-bordlampe brugermanual

1. Introduktion

Thank you for choosing the Kuzco Lighting VL0118-BN Lighthouse LED Vanity Light. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions thoroughly before beginning installation and retain them for future reference.

The VL0118-BN is a contemporary LED vanity light featuring a brushed nickel finish and a white opal glass cylinder, designed for indoor bathroom use. It offers dimmable functionality and can be controlled via an app or remote.

2. Sikkerhedsoplysninger

ADVARSEL: For at mindske risikoen for brand, elektrisk stød eller personskade skal du altid følge disse grundlæggende sikkerhedsforanstaltninger:

• Afbryd strømmen: Always turn off the main power supply at the circuit breaker or fuse box before beginning installation or performing any maintenance.
• Uddannet elektriker: Installation should be performed by a qualified electrician in accordance with all applicable local electrical codes.
• Jording: Sørg for, at armaturet er korrekt jordforbundet for at undgå potentielt elektrisk stød.
• Håndteres med forsigtighed: Håndter ikke armaturet med våde hænder.
• Voltage: Kontroller, at forsyningen voltage is compatible with the fixture's requirements (120 Volts).
• Armaturintegritet: Do not alter the wiring, components, or structure of the fixture.
• Rensning: Brug kun en blød, tør klud til rengøring. Undgå slibende rengøringsmidler eller opløsningsmidler.

3. Pakkens indhold

Carefully unpack your fixture and inspect all components for damage. Keep all packaging materials until you are satisfied with the product. The package should contain:

• Kuzco Lighting VL0118-BN LED Vanity Light Fixture (with integrated LED module)
• Monteringssæt (skruer, trådmøtrikker, monteringsplade)
• Instruktionsmanual

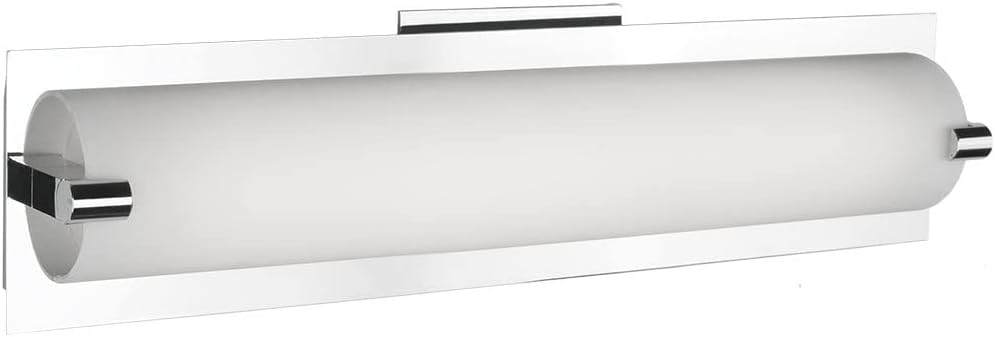

Image 1: Kuzco Lighting VL0118-BN Lighthouse LED Vanity Light in Brushed Nickel finish. The fixture features a rectangular backplate with a cylindrical white opal glass shade extending horizontally, supported by two brushed nickel brackets.

4. Opsætning og installation

Note: It is highly recommended that this fixture be installed by a licensed electrician.

1. Forbered til installation:
   • Turn off the electrical power at the main fuse box or circuit breaker.
   • Sørg for, at strømmen er slukket, før du fortsætter.
2. Montering af monteringsplade:
   • Fastgør monteringspladen (inkluderet i monteringssættet) til samledåsen i væggen med de medfølgende skruer. Sørg for, at den er forsvarligt fastgjort.
3. Ledningsforbindelser:
   • Tilslut armaturets sorte ledning til husets sorte (varme) ledning.
   • Tilslut armaturets hvide ledning til husets hvide (neutrale) ledning.
   • Connect the fixture's ground wire to the house's ground wire (or to the mounting plate if no house ground wire is available).
   • Secure all connections with wire nuts and wrap them with electrical tape for added safety.
4. Fastgørelsesanordning:
   • Stik forsigtigt alle ledninger ind i samledåsen.
   • Align the fixture's backplate with the mounting plate and secure it using the provided screws.
5. Installation af glasskærm:
   • Gently attach the white opal glass cylinder to the fixture according to the design. Ensure it is seated properly and securely.
6. Gendan strøm:
   • Når installationen er færdig, skal strømmen genoprettes ved afbryderen.
   • Test the fixture to ensure proper operation.

Image 2: A slightly angled view of the Kuzco Lighting VL0118-BN fixture, highlighting the brushed nickel finish of the backplate and end caps, and the uniform glow of the white opal glass shade.

5. Betjeningsvejledning

The Kuzco Lighting VL0118-BN is designed for ease of use and offers advanced control options.

• Grundlæggende betjening: Turn the light on or off using a standard wall switch connected to the fixture's power supply.
• Dæmpbar funktionalitet: This fixture is dimmable. To utilize the dimming feature, ensure you have a compatible LED dimmer switch installed. Follow the dimmer switch manufacturer's instructions for proper operation.
• Smart Control (App/Remote): The VL0118-BN supports control via an app and a remote. Refer to the specific instructions provided with your Kuzco Lighting smart control accessories (sold separately or included with specific kits) for pairing and operation. This typically involves downloading the Kuzco Lighting app and following the in-app pairing guide, or synchronizing the remote control with the fixture.

6. Vedligeholdelse

Regelmæssig vedligeholdelse vil bidrage til at bevare dit armaturs udseende og funktionalitet.

• Rensning: Always turn off the power to the fixture before cleaning. Use a soft, dry, or slightly damp cloth to wipe down the metal finish and glass shade. Do not use abrasive cleaners, solvents, or polishes as they may damage the finish or electrical components.
• LED -modul: The LED light source in this fixture is integrated and not user-replaceable. If the LED module fails, contact Kuzco Lighting customer support for assistance.
• Inspektion: Periodically check for any loose connections or signs of wear. If any issues are observed, disconnect power and consult a qualified electrician.

7. Fejlfinding

If you experience issues with your fixture, refer to the following troubleshooting guide:

If these steps do not resolve the issue, please contact Kuzco Lighting customer support.

8. Specifikationer

9. Garanti og support

Garantioplysninger:

All products purchased have a 30-day replacement parts policy to ensure a fully working item. All products are covered under a 1-year warranty when purchased on Amazon. The warranty period begins on the day the product is originally shipped. The warranty covers all items and conditions identified in the original manufacturer's warranty. Items specifically not covered by the warranty include loss and theft, water damage, customer abuse, and finish deterioration due to UV or coastal exposure.

Kundesupport:

For technical assistance, warranty claims, or replacement parts, please contact Kuzco Lighting customer support. Refer to the contact information provided on the Kuzco Lighting official webwebstedet eller din købsdokumentation.
