Chamberlain T1EML-05 Basic Timer Instruction Manual

1. Introduktion

This instruction manual provides detailed guidance for the safe and efficient installation, operation, and maintenance of your Chamberlain T1EML-05 Basic Timer. Please read this manual thoroughly before attempting to install or use the device. Retain this manual for future reference.

The Chamberlain T1EML-05 is an embedded timer designed for various electrical applications, offering reliable time-based control for your devices.

2. Vigtige sikkerhedsoplysninger

ADVARSEL: Risiko for elektrisk stød!

• Always disconnect power at the circuit breaker or fuse box before installing or servicing the timer.
• Installation should only be performed by a qualified electrician or competent person in accordance with all local electrical codes and regulations.
• Brug ikke denne enhed med belastninger, der overstiger dens angivne elektriske kapacitet.
• Do not expose the timer to water or extreme moisture.
• Sørg for, at alle ledningsforbindelser er sikre og korrekt isolerede.

3. Package Contents and Product Overview

3.1 Pakkens indhold

• 1 x Chamberlain T1EML-05 Basic Timer
• Instruktionsmanual (dette dokument)

3.2 Produkt overview

The Chamberlain T1EML-05 is a compact, embedded timer designed for flush-mounting. It features a digital display and three control buttons for easy programming.

Figur 1: Front view of the Chamberlain T1EML-05 Basic Timer. This image displays the timer's white casing, a central square digital screen, and three rectangular buttons positioned horizontally below the screen. The buttons appear to have symbols for 'Up', 'Mode/Select', and 'Down'.

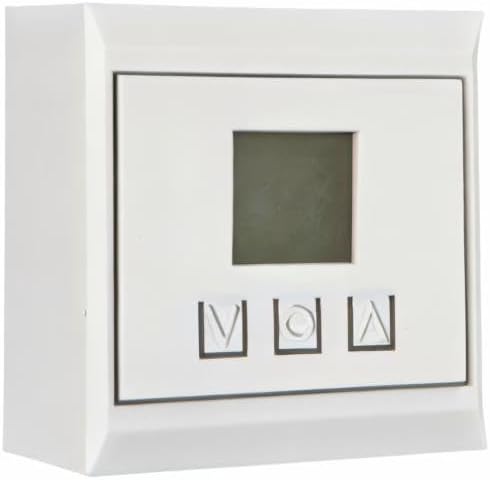

Figur 2: Side perspective view of the Chamberlain T1EML-05 Basic Timer. This image illustrates the depth of the timer unit, highlighting its design for embedded or flush installation within a wall or panel. The front face with the display and buttons is visible from an angle.

4. Installation og opsætning

This timer is designed for embedded installation. Ensure you have the necessary tools and electrical knowledge before proceeding. If unsure, consult a qualified electrician.

4.1 Nødvendigt værktøj

• Skruetrækker (passende type til terminalskruer)
• Afisoleringstænger
• Voltage tester
• Mounting box (if not already present)

4.2 Installationstrin

1. Strømafbrydelse: Locate the circuit breaker or fuse controlling the power to the installation area and turn it OFF. Verify power is off using a voltage tester.
2. Forbered ledningsføring: Carefully remove the existing switch or outlet, if applicable. Strip the ends of the electrical wires (Live, Neutral, Load) to the appropriate length as indicated by the timer's terminals.
3. Tilslut ledninger: Connect the electrical wires to the corresponding terminals on the Chamberlain T1EML-05 timer. Refer to the wiring diagram provided with the product packaging (if available) or standard electrical wiring practices. Typically:
   • Live (L) to Live input
   • Neutral (N) to Neutral input
   • Load (OUT) to the device being controlled
   Sørg for, at alle forbindelser er tætte og sikre.
4. Monter timeren: Gently push the wired timer into the wall mounting box. Secure it with screws provided (if applicable) or by tightening the mounting clamps.
5. Installer frontplade: Attach the decorative faceplate (if separate) to the timer.
6. Gendan strøm: Tænd for strømmen igen ved afbryderen eller sikringsboksen.
7. Indledende test: The timer display should illuminate. Proceed to the operating instructions.

5. Betjeningsvejledning

The Chamberlain T1EML-05 timer features a digital display and three control buttons: Up (▲), Mode/Set (M), and Down (▼).

5.1 Indstilling af det aktuelle klokkeslæt

1. Tryk og hold på Mode/Set (M) -knappen i cirka 3 sekunder, indtil tidsdisplayet begynder at blinke.
2. Brug Op (▲) or Ned (▼) knapper for at justere timen.
3. Tryk på Mode/Set (M) button again to move to the minutes setting. Use Op (▲) or Ned (▼) for at justere minutterne.
4. Trykke Mode/Set (M) once more to confirm and exit the time setting mode.

5.2 Programmering af tænd/sluk-cyklusser

The timer allows you to set multiple ON/OFF programs. The exact number of programs may vary, but the general procedure is as follows:

1. Tryk på Mode/Set (M) button briefly to cycle through program settings (e.g., P1 ON, P1 OFF, P2 ON, P2 OFF, etc.).
2. When you reach the desired program (e.g., "P1 ON"), the time will flash. Use the Op (▲) or Ned (▼) buttons to set the desired ON time (hour and then minutes).
3. Trykke Mode/Set (M) to confirm the ON time and move to the OFF time for that program (e.g., "P1 OFF").
4. Brug Op (▲) or Ned (▼) buttons to set the desired OFF time.
5. Gentag for yderligere programmer efter behov.
6. After setting all programs, press the Mode/Set (M) button until the display returns to the current time.

5.3 Manuel tilsidesættelse

To manually switch the connected device ON or OFF outside of the programmed schedule, briefly press the Op (▲) or Ned (▼) button while the timer is displaying the current time. This will typically cycle through ON, OFF, and AUTO modes. Select AUTO for programmed operation.

6. Vedligeholdelse

The Chamberlain T1EML-05 Basic Timer requires minimal maintenance.

• Rensning: Wipe the surface of the timer with a soft, dry cloth. Do not use abrasive cleaners, solvents, or excessive moisture, as these can damage the unit.
• Inspektion: Periodically check the timer for any visible damage or loose connections. If any issues are found, disconnect power and consult a qualified electrician.

7. Fejlfinding

If you encounter issues with your Chamberlain T1EML-05 timer, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Chamberlain customer support.

8. Tekniske specifikationer

9. Garantioplysninger

Chamberlain products are manufactured to high-quality standards. This product is covered by a limited warranty against defects in materials and workmanship. The specific terms and duration of your warranty may vary by region and purchase date. Please retain your proof of purchase for warranty claims. For detailed warranty information, refer to the documentation included with your product or visit the official Chamberlain webwebsted.

10. Kundesupport

If you have any questions, require technical assistance, or need to report a problem with your Chamberlain T1EML-05 Basic Timer, please contact Chamberlain customer support.

• Online support: Besøg den officielle kammerherre webwebsted med ofte stillede spørgsmål, supportressourcer og kontaktformularer.
• Telefonsupport: Refer to your product packaging or the Chamberlain webwebsted for regionale kontaktnumre.

When contacting support, please have your product model number (T1EML-05) and proof of purchase readily available.
