1. Introduktion
This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your Respekta Dallas 100 x 50 cm Stainless Steel Built-in Kitchen Sink. Please read this manual carefully before installation and use to ensure proper function and longevity of the product. Keep this manual for future reference.
1.1 Sikkerhedsoplysninger
- Always wear appropriate personal protective equipment (PPE) during installation, such as gloves and eye protection.
- Ensure all connections are watertight to prevent leaks and water damage.
- Do not use abrasive cleaners or scourers on the stainless steel surface, as this can cause scratches.
- Hvis du er usikker på nogen af installationstrinnene, skal du kontakte en kvalificeret fagmand.
2. Produktet er slutview
The Respekta Dallas is a high-quality stainless steel built-in kitchen sink designed for durability and functionality. It features a double bowl configuration with an integrated drainer, suitable for various kitchen layouts.

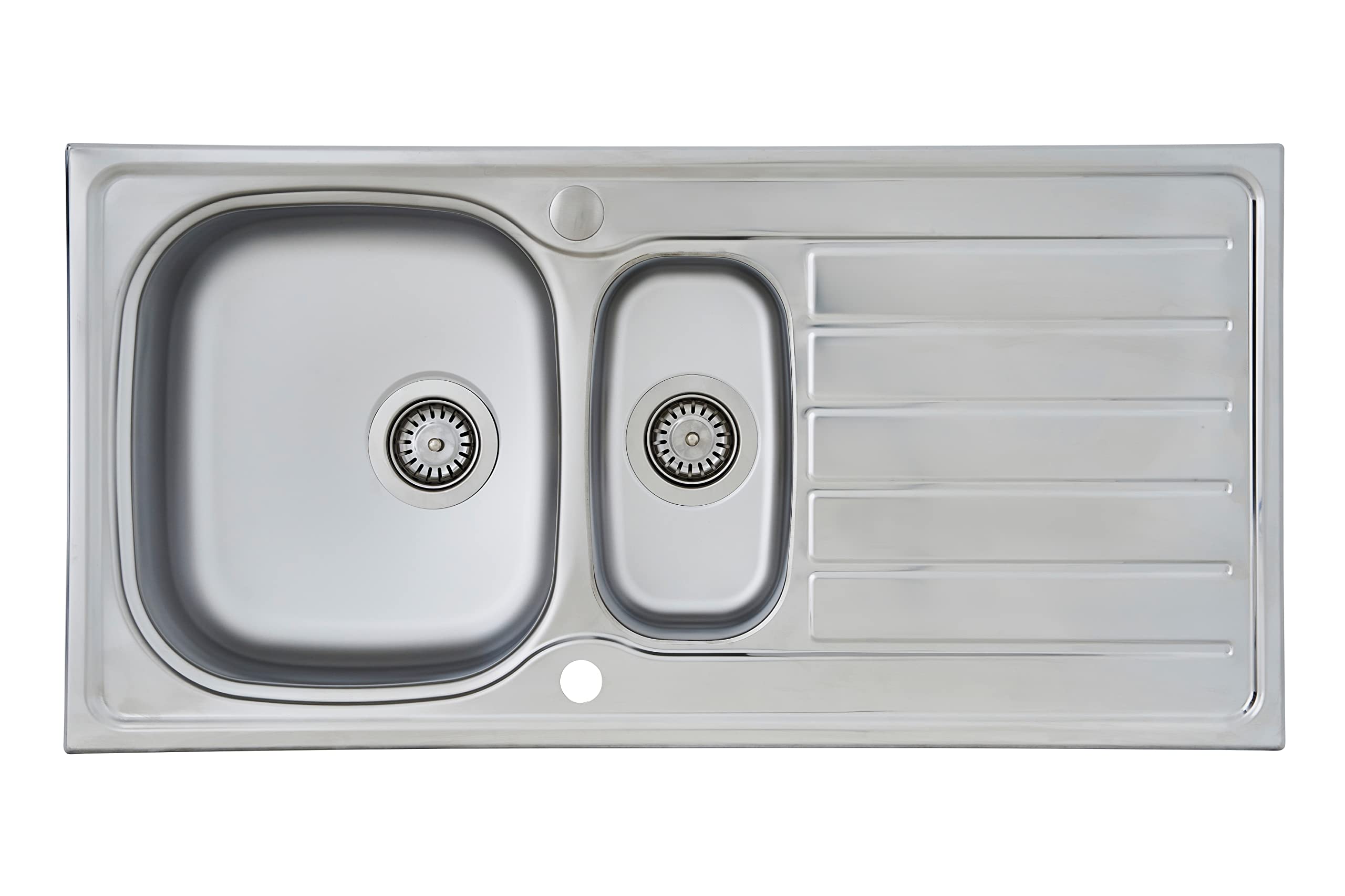

Figur 2.1: Top-down view of the Respekta Dallas sink, showcasing its two bowls and integrated drainer area.
2.1 Komponenter
The sink package typically includes the following components:
- Stainless steel sink unit (main body)
- Waste kits for both bowls (strainers, plugs, seals)
- Overflow pipe and connection
- Mounting clips/fasteners
- Sealing tape/compound (may be included or purchased separately)
- Flexible waste pipes (may be included or purchased separately)
Figur 2.2: Overview of all included components for the Respekta Dallas sink, including the waste kits and flexible pipes.
3. Specifikationer
| Feature | Specifikation |
|---|---|
| Mærke | Respekta |
| Modelnummer | DALLAS100X50 |
| Materiale | Rustfrit stål |
| Overordnede mål (L x B x H) | 100 cm x 50 cm x 17 cm |
| Vægt | 3.5 kg |
| Installationstype | Drop-In |
| Skålkonfiguration | Double Bowl (one large, one small) with Drainer |
| Afløbstype | Grille (Basket Strainer) |

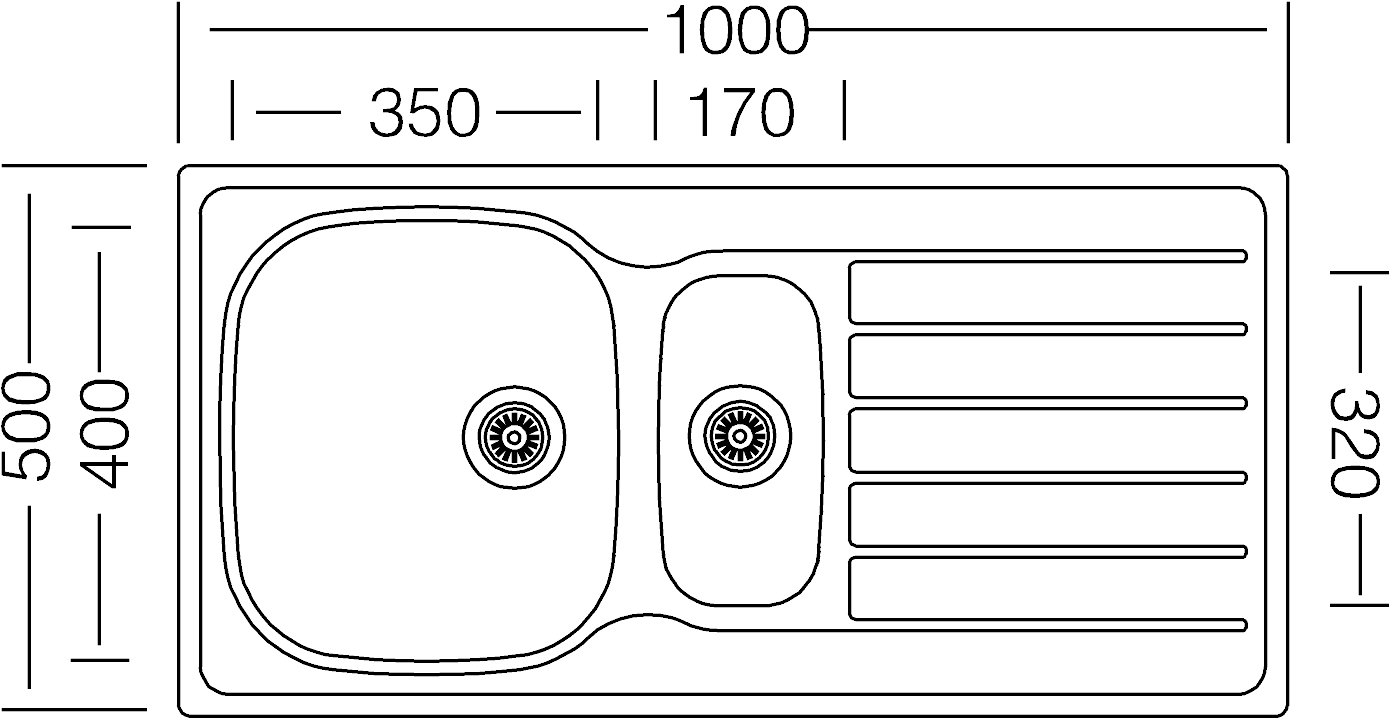

Figure 3.1: Detailed technical drawing showing the dimensions of the Respekta Dallas sink, including bowl sizes and overall length/width.
4. Opsætning og installation
Before beginning installation, ensure you have all necessary tools and components. It is recommended to have a second person assist with lifting and positioning the sink.
4.1 Nødvendige værktøjer
- Stiksav eller passende skæreværktøj til bordplade
- Bore
- Skruetrækker (Phillips og fladhoved)
- Justerbar skruenøgle
- Sealant gun and silicone sealant
- Målebånd og blyant
- Sikkerhedshandsker og øjenbeskyttelse
4.2 Installationstrin
- Forbered bordpladen: Place the sink upside down on the countertop in the desired position. Trace the outline of the sink onto the countertop. Carefully measure and mark the cutting line, ensuring it is slightly inside the sink's rim to allow for proper support.
- Klip åbningen: Using a jigsaw or appropriate cutting tool, carefully cut along the marked line. Ensure the edges are smooth.
- Install Faucet and Accessories (Optional): If your sink has pre-drilled holes for a faucet or other accessories, install them now according to their respective manuals.
- Attach Waste Kits: Assemble the waste kits for both bowls. This typically involves placing the strainer into the drain hole, securing it with a rubber gasket and nut from underneath. Connect the overflow pipe to the designated opening in the main bowl.
- Påfør tætningsmiddel: Apply a bead of silicone sealant around the perimeter of the sink opening on the underside of the sink rim. This will create a watertight seal between the sink and the countertop.
- Placering af vasken: Carefully lower the sink into the countertop opening. Ensure it is properly aligned. Press down firmly to engage the sealant.
- Fastgør vasken: From underneath the countertop, attach the mounting clips/fasteners to the sink rim and tighten them evenly. Do not overtighten, as this can damage the sink or countertop.
- Tilslut VVS: Connect the waste pipes from the sink bowls to your household drainage system. Ensure all connections are tight and leak-free.
- Test for lækager: Run water into both sink bowls and check all connections for any signs of leakage. Address any leaks immediately.

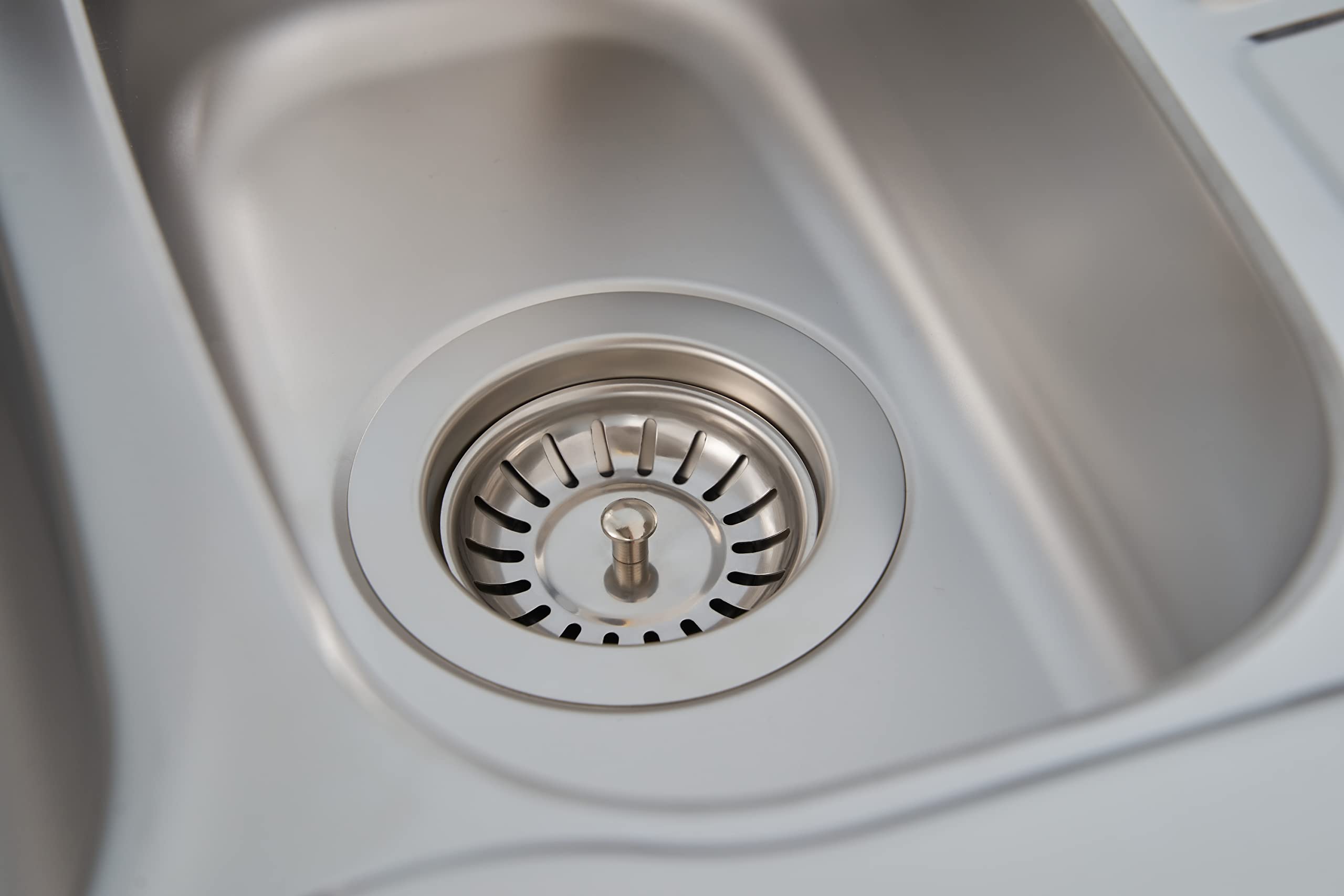

Figure 4.1: Detail of the basket strainer drain assembly in the sink bowl.
5. Betjening
The Respekta Dallas sink is designed for everyday kitchen tasks. Its double bowl configuration allows for versatile use, such as washing dishes in one bowl and rinsing in the other, or preparing food while soaking items.
5.1 Using the Bowls
- The larger bowl is ideal for washing larger pots, pans, and dishes.
- The smaller bowl can be used for rinsing, draining, or as a temporary holding area.
5.2 Drainer Area
The integrated drainer area provides a convenient space for drying dishes, glasses, and cutlery. Ensure water drains properly into the sink bowls.

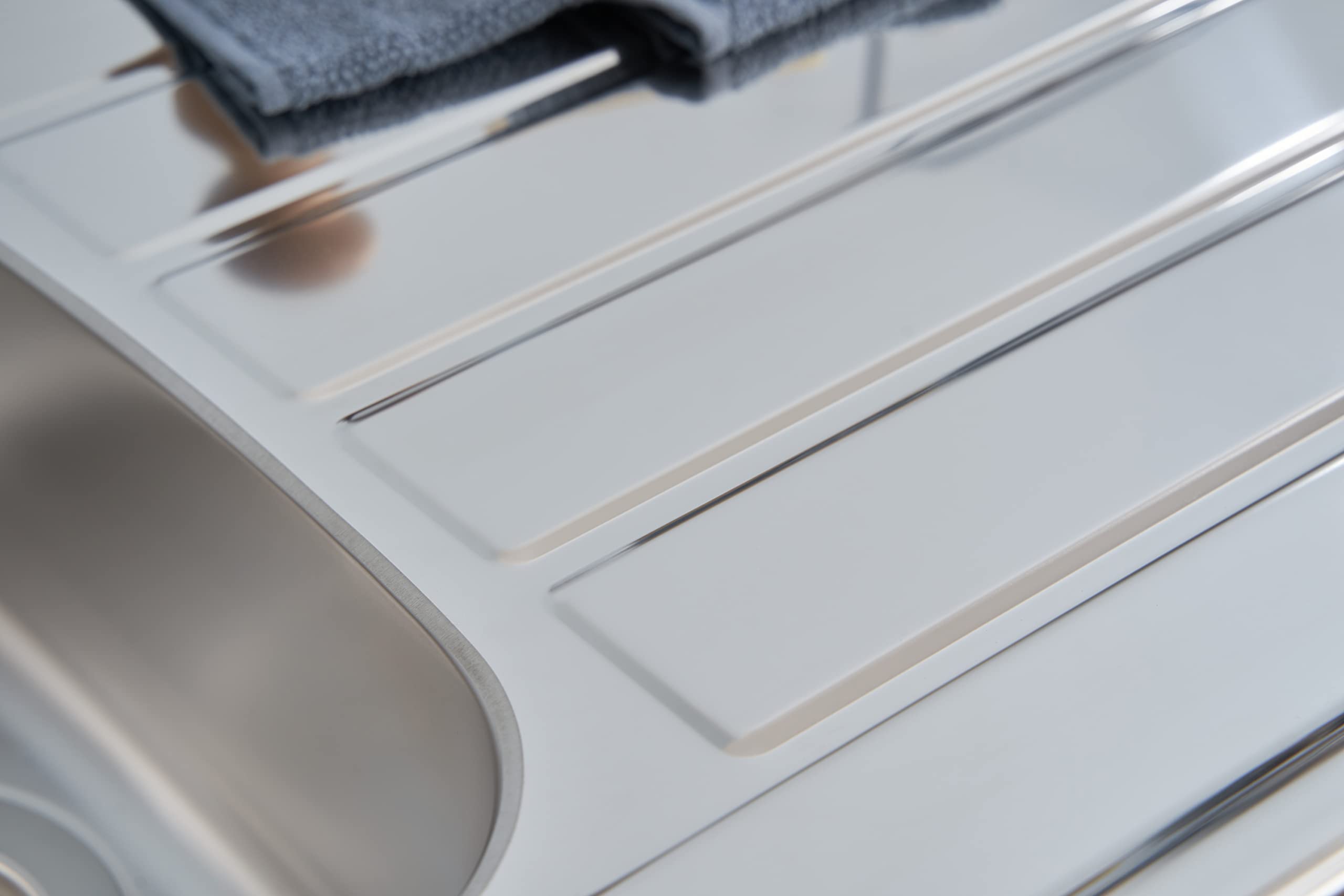

Figure 5.1: Detail of the drainer grooves, designed to facilitate water runoff.
6. Vedligeholdelse
Regular cleaning and proper care will help maintain the appearance and extend the life of your stainless steel sink.
6.1 Daglig rengøring
- After each use, rinse the sink thoroughly with clean water to remove food particles and soap residue.
- Tør vasken af med en blød klud for at forhindre vandpletter og mineralophobning, især i områder med hårdt vand.
6.2 Grundig rengøring
- For stubborn stains, use a mild non-abrasive cleaner specifically designed for stainless steel.
- Apply the cleaner with a soft sponge or cloth and rub in the direction of the grain.
- Skyl grundigt og tør straks.
6.3 What to Avoid
- Slibende rengøringsmidler: Do not use steel wool, abrasive pads, or harsh chemical cleaners (e.g., bleach, oven cleaner) as these can scratch or corrode the stainless steel.
- Acidic Foods: Avoid leaving highly acidic foods (e.g., citrus juices, vinegar) in contact with the sink surface for extended periods.
- Metalgenstande: Do not leave wet cast iron or other metal objects in the sink, as they can cause rust stains.
7. Fejlfinding
This section addresses common issues you might encounter with your sink.
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Water spots/Stains | Hard water deposits; not drying the sink after use. | Wipe the sink dry after each use. Use a stainless steel cleaner for existing spots. |
| Langsom dræning | Drain blockage (food particles, grease). | Clear the basket strainer. Use a plunger or a drain cleaner designed for kitchen sinks. |
| Leaks under the sink | Loose plumbing connections; improperly sealed drain or overflow. | Check and tighten all plumbing connections. Re-seal drain or overflow if necessary. |
| Ridser på overfladen | Slibende rengøringsmidler; skarpe genstande. | Use only soft cloths and non-abrasive cleaners. Minor scratches may be buffed out with specialized stainless steel scratch removal kits. |
8. Garanti og support
Respekta products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official Respekta website. For technical support or spare parts, please contact Respekta customer service.
Kontaktoplysninger:
- Fabrikant: Respekta
- Webwebsted: www.respekta.com (Bemærk: Dette er en pladsholder URL, please refer to your product documentation for the correct webwebsted.)
