1. Introduktion
This manual provides essential information for the safe and efficient operation of your OttLite LED FlexNeck Table Lamp. Please read these instructions thoroughly before use and retain them for future reference.
The OttLite LED FlexNeck Table Lamp is designed to provide natural daylight illumination, featuring a flexible neck for adjustable lighting, three brightness settings, and a convenient USB charging port.
2. Produktet er slutview og komponenter
Familiarize yourself with the main components of your OttLite LED FlexNeck Table Lamp:
- LED-lyshoved: Emits natural daylight LEDs.
- Fleksibel hals: Allows for precise positioning of the light.
- Touch Control: Located on the base for power and brightness adjustments.
- USB opladningsport: Integrated into the base for charging compatible devices.
- Stabil base: Provides support for the lamp.
Image 2.1: Labeled diagram of the OttLite LED FlexNeck Table Lamp komponenter.
3. Opsætning
Follow these steps to set up your lamp:
- Pakker ud: Fjern forsigtigt alle komponenter fra emballagen.
- Placering: Placer lamp base on a stable, flat surface. Ensure the base diameter of 4.75 inches (11.6 cm) is fully supported.
- Tilslut strøm: Insert the included A/C adapter into the power port on the lamp base, then plug the adapter into a standard 120-volt electrical outlet.

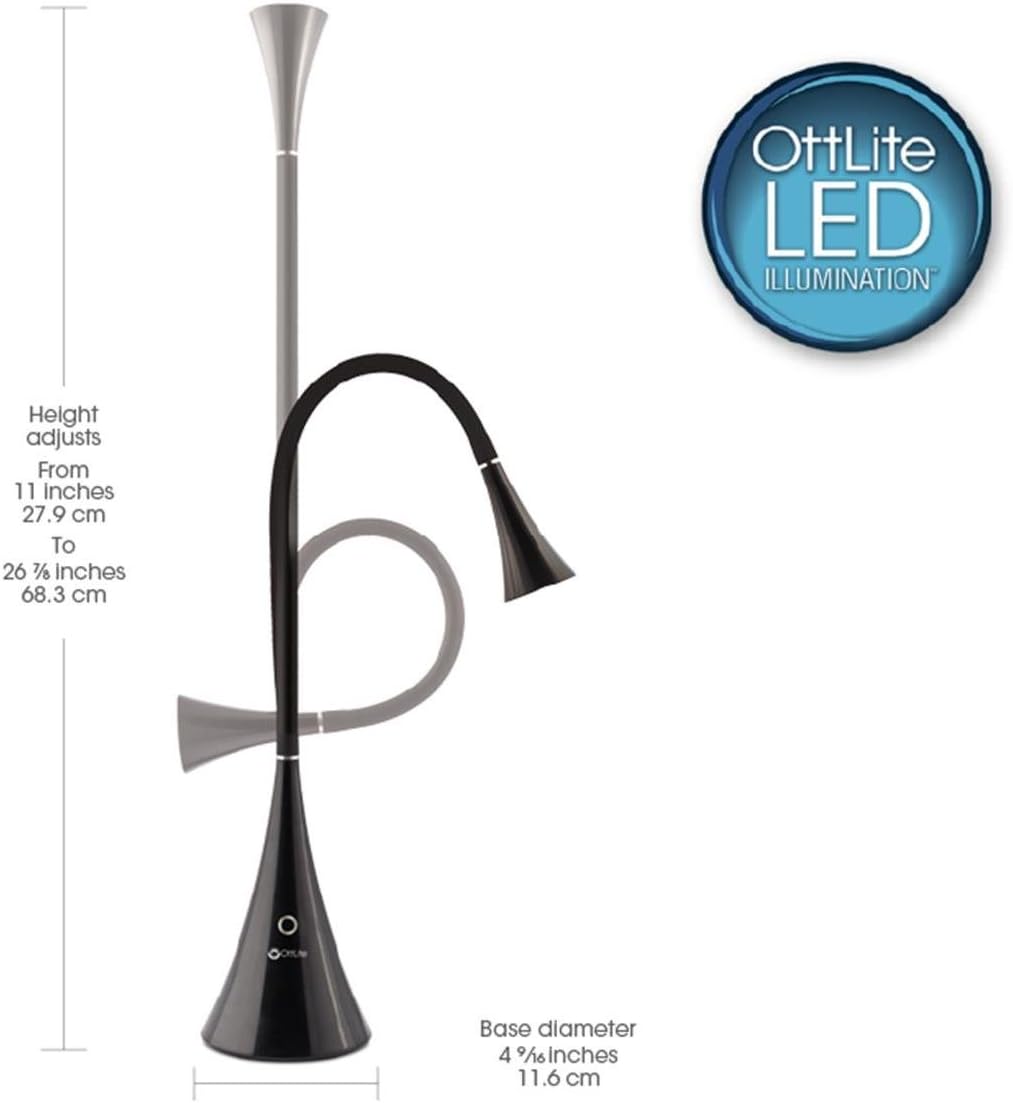

Image 3.1: Lamp dimensions and height adjustment range.
4. Betjeningsvejledning
4.1 Power and Brightness Control
Lamp features a touch-sensitive control button on its base:
- Tænd/sluk: Lightly touch the control button to turn the lamp til eller fra.
- Indstillinger for lysstyrke: Lamp has three brightness levels. Each subsequent touch of the control button will cycle through the brightness settings (Low, Medium, High) before turning off.
4.2 Flexible Neck Adjustment
The flexible neck allows you to direct the light precisely where needed. Gently bend and position the neck to achieve your desired lighting angle and height. The lamp's height can adjust from 11 inches (27.9 cm) to 26.8 inches (68.3 cm).
4.3 USB-opladningsport
A USB charging port is located on the lamp's base. Connect your mobile device's USB charging cable to this port to charge your device. The USB port provides 5V, 2.1A output.
Image 4.1: Detail of the touch-sensitive control and flexible neck.
5. Vedligeholdelse
To ensure the longevity and optimal performance of your lamp:
- Rensning: Afbryd lamp from the power source before cleaning. Use a soft, dry cloth to wipe the lamp. Avoid abrasive cleaners or solvents.
- lysdioder: The integrated LEDs are designed for long life (up to 40,000 hours) and are not user-replaceable.
- Opbevaring: Hvis du opbevarer lampSørg for, at den er ren og tør. Opbevares køligt og tørt, beskyttet mod direkte sollys.
6. Fejlfinding
If you encounter issues with your OttLite LED FlexNeck Table Lamp, se følgende almindelige løsninger:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lamp tændes ikke. | Ingen strømtilslutning. | Ensure the A/C adapter is securely plugged into both the lamp og en fungerende stikkontakt. Test stikkontakten med en anden enhed. |
| USB port is not charging devices. | Device not compatible or cable issue. | Verify your device is compatible with 5V, 2.1A USB charging. Try a different USB cable. Ensure the lamp er tændt. |
| Lamp flimren eller lyset er inkonsekvent. | Løs forbindelse eller strømsvingninger. | Check all power connections. Try plugging the lamp ind i en anden stikkontakt. |
| Lamp Basen føles ustabil. | Ujævn overflade eller forkert placering. | Sørg for at lamp is placed on a completely flat and stable surface. Avoid extending the flexible neck too far horizontally without proper counter-balance. |
Hvis problemet fortsætter efter at have forsøgt disse løsninger, bedes du kontakte kundesupport.
7. Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | A59G5B-FFP |
| Mærke | OttLite |
| Lamp Type | Skrivebord L.amp |
| Lyskildetype | LED |
| Maksimal lysudbytte | 300 lumen |
| Indstillinger for lysstyrke | 3 (Touch-controlled) |
| Flexible Neck Height Adjustment | 11 to 26.8 inches (27.9 cm to 68.3 cm) |
| Grunddiameter | 4.75 tommer (11.6 cm) |
| USB Charging Port Output | 5V, 2.1A |
| Strømkilde | Elektrisk med ledning |
| Wattage | 10 watt |
| Voltage | 120 volt |
| Produktmål (D x B x H) | 10" D x 4.63" B x 16.25" H |
| Varens vægt | 2.94 pund |
| Grundmateriale | Gummi |
| Certificering | UL-listet |
| UPC | 761712010991 |
8. Garantioplysninger
OttLite provides a warranty for its products. Warranty coverage for OttLite lamps and accessories (excluding batteries) is for 2 years from the date of purchase. OttLite bulbs are covered for 1 year from the date of purchase. This warranty does not cover damages resulting from the use of the product for any purpose other than its intended use. Additionally, warranty coverage excludes OttLite items purchased "as is" or from unauthorized retailers.
9. Supportoplysninger
For further assistance, product inquiries, or warranty claims, please visit the official OttLite website or contact their customer support directly. Refer to the product packaging or the OttLite webhjemmeside for de seneste kontaktoplysninger.
