Comelit AHCAM631A Vandal-Dome AHD 960p kamera brugermanual

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of your Comelit AHCAM631A Vandal-Dome AHD 960p Camera. Please read this manual thoroughly before installation and use to ensure proper functionality and to prevent damage to the device. Keep this manual for future reference.

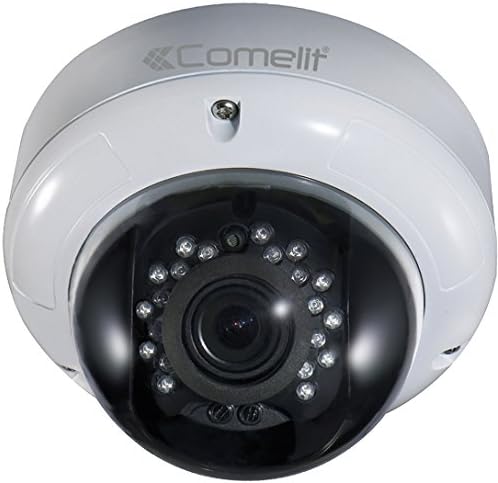

Figur 1: Comelit AHCAM631A Vandal-Dome AHD 960p Camera. This image displays the white dome-shaped camera with a dark lens housing, featuring multiple infrared LEDs surrounding the central camera lens.

2. Produktet er slutview

2.1 Nøglefunktioner

• HD-video: Provides clear 960p resolution for detailed surveillance.
• Vandal-Dome Design: Robust construction designed to resist tampering and impact.
• Infrarødt nattesyn: Equipped with IR illumination for clear visibility up to 25 meters in low-light conditions.
• IP66 Vejrbestandighedsklassificering: Suitable for both indoor and outdoor installations, protected against dust and powerful water jets.
• Varifokal linse: Adjustable focal length from 2.8mm to 12mm for flexible viewing vinkler.
• AHD Technology: Analog High Definition for reliable video transmission over coaxial cable.

2.2 Pakkens indhold

Please check the package contents upon receipt. If any items are missing or damaged, contact your supplier immediately.

• Comelit AHCAM631A Vandal-Dome Camera Unit
• Monteringsskruer og vægdyvler
• Installationsskabelon (hvis inkluderet)
• Hurtigstartguide / Brugermanual

3. Opsætning og installation

Before beginning installation, ensure that power is disconnected from the installation area. Professional installation is recommended.

3.1 Montering af kameraet

1. Vælg placering: Choose a suitable indoor or outdoor location for mounting, considering the desired viewing angle and cable routing. The camera is designed for wall mounting.
2. Forbered overflade: Use the provided mounting template (if available) to mark drilling points on the wall or ceiling.
3. Bore huller: Drill pilot holes for the mounting screws and insert wall plugs if necessary.
4. Sikkert kamera: Fastgør kamerabasen sikkert til monteringsfladen med de medfølgende skruer.

3.2 Ledningsforbindelser

The AHCAM631A camera requires two main connections: video and power.

• Videoforbindelse: Connect a BNC coaxial cable from the camera's video output to an AHD-compatible Digital Video Recorder (DVR) or monitor. Ensure the connection is secure.
• Strømtilslutning: Connect a 12V DC power supply (not included) to the camera's power input. Ensure the power supply meets the camera's power requirements.

3.3 Indledende opstart

Once all connections are made, apply power to the camera. The camera should power on, and video should appear on the connected DVR/monitor. Allow a few moments for the camera to initialize.

4. Betjeningsvejledning

4.1 Adjusting the Varifocal Lens

The AHCAM631A features a varifocal lens, allowing you to adjust the field of view and focus. This adjustment is typically done manually after installation.

1. Access Lens: Carefully open the dome cover to access the lens adjustment screws.
2. Adjust Zoom: Rotate the zoom adjustment ring to achieve the desired field of view (between 2.8mm wide angle and 12mm telephoto).
3. Juster fokus: Rotate the focus adjustment ring until the image on your monitor is clear and sharp.
4. Sikker dækning: Once adjustments are complete, securely close the dome cover to maintain its IP66 rating.

4.2 On-Screen Display (OSD) menu

Many AHD cameras feature an OSD menu for advanced settings adjustments (e.g., exposure, white balance, DNR). Access to the OSD menu is typically controlled via a joystick on the camera cable or through a UTC (Up The Coax) controller connected to your DVR.

• Refer to your DVR's manual or the camera's specific OSD instructions for detailed navigation and setting adjustments.
• Common settings include: Brightness, Contrast, Sharpness, Backlight Compensation (BLC), Wide Dynamic Range (WDR), Digital Noise Reduction (DNR), and Day/Night mode.

5. Vedligeholdelse

5.1 Rengøring af kameraet

Regular cleaning helps maintain optimal image quality.

• Use a soft, clean cloth to wipe the dome cover.
• For genstridigt snavs, dampda kluden lidt med vand eller en mild, ikke-slibende rengøringsopløsning.
• Avoid using harsh chemicals, solvents, or abrasive materials, as these can damage the dome's surface.

5.2 Miljøhensyn

While the camera has an IP66 rating, extreme environmental conditions can affect its lifespan and performance.

• Sørg for tilstrækkelig ventilation, hvis den installeres i et lukket rum.
• Avoid direct exposure to lightning or extreme voltage udsving.
• Periodically check cable connections for corrosion or damage, especially in outdoor installations.

6. Fejlfinding

Hvis du støder på problemer med dit kamera, kan du se følgende almindelige problemer og løsninger.

7. Tekniske specifikationer

8. Garanti og support

8.1 Garantioplysninger

Comelit products are manufactured to high standards and are subject to strict quality control. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Comelit webGarantien dækker typisk defekter i materialer og udførelse under normal brug.

8.2 Kundesupport

If you require technical assistance, have questions about your product, or need to report a fault, please contact Comelit customer support. Contact details can usually be found on the official Comelit webwebstedet eller på din produktemballage.

• Before contacting support, please have your product model number (AHCAM631A) and a description of the issue ready.
• For the most up-to-date information and support resources, visit the official Comelit webwebsted.
