BRIO World 33599 Genopladelig Motor Brugermanual

1. Sikkerhedsoplysninger

This product is designed for children aged 3 years and up. Please ensure adult supervision during play, especially during initial setup and charging. No specific safety warnings are applicable beyond general toy safety guidelines.

2. Produktet er slutview

The BRIO World 33599 Rechargeable Engine is a battery-powered toy train designed to enhance your BRIO World railway system. It features forward and backward motion, a functional headlamp, and is easily rechargeable via a mini USB cable. This engine is compatible with all BRIO World railway components, offering versatile play opportunities.

BRIO World 33599 Rechargeable Engine and packaging

Image 1: The BRIO World 33599 Rechargeable Engine shown with its packaging, highlighting the product and its USB charging cable.

3. Pakkens indhold

Når du åbner pakken, bør du finde følgende ting:

1x BRIO World 33599 Rechargeable Engine
1 x Mini USB-kabel

Contents of BRIO World 33599 package: one engine and one mini USB cable

Image 2: The package contents, including the rechargeable engine and the mini USB charging cable.

4. Opsætning

The BRIO World 33599 Rechargeable Engine comes ready for use after an initial charge. No assembly is required.

Remove the engine and mini USB cable from the packaging.
Proceed to the "Charging the Engine" section to prepare your engine for its first use.

5. Charging the Engine

The engine is equipped with a rechargeable battery. Follow these steps to charge it:

Locate the mini USB charging port on the side of the engine.
Connect the mini USB cable to the engine's charging port.
Plug the other end of the USB cable into any standard USB power source (e.g., computer USB port, USB wall adapter).
A red light on the engine will blink to indicate that it is charging.
The red light will stop blinking when the engine is fully charged.
Frakobl USB-kablet, når opladningen er fuldført.

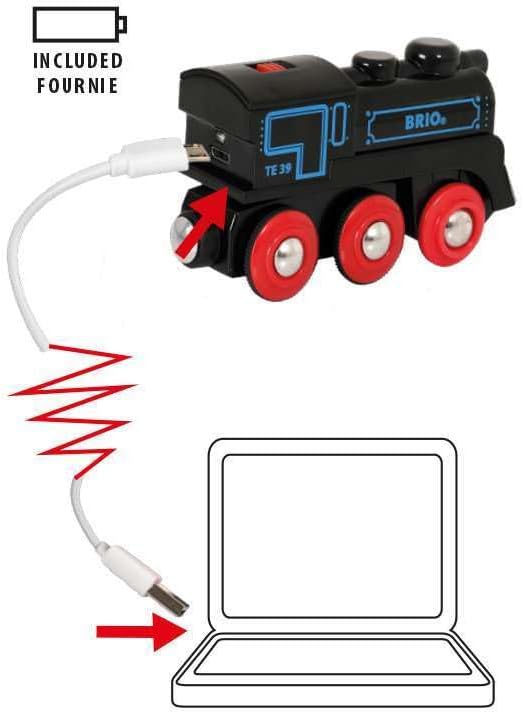

Diagram showing BRIO engine connected to a laptop via USB for charging

Image 3: Illustration of the engine being charged by connecting the mini USB cable to a laptop.

6. Betjening

To operate your BRIO World 33599 Rechargeable Engine:

Place the engine on a BRIO World railway track.
Locate the red switch on the top of the engine.
Slide the switch forward to make the engine move forward. The headlamp vil lyse.
Slide the switch backward to make the engine move in reverse.
Set the switch to the middle position to stop the engine.

Hand operating the red switch on top of the BRIO engine for forward and reverse motion

Image 4: A hand demonstrating the use of the red switch on top of the engine to control its direction.

7. Vedligeholdelse

Proper care will ensure the longevity of your BRIO World 33599 Rechargeable Engine:

Rensning: Wipe the engine with a damp cloth to remove dust and dirt. Do not submerge in water.
Opbevaring: Store the engine in a dry place away from direct sunlight and extreme temperatures.
Batteripleje: For optimal battery life, avoid completely draining the battery frequently. Charge the engine regularly, even if not in use for extended periods.

8. Fejlfinding

Se tabellen nedenfor for almindelige problemer og løsninger på disse:

Problem	Mulig årsag	Løsning
Motoren bevæger sig ikke.	Batteriet er afladet.	Charge the engine using the mini USB cable.
Motoren bevæger sig langsomt eller ujævnt.	Lav batteriopladning.	Recharge the engine.
Engine stops unexpectedly.	Battery depleted or switch moved to 'off' position.	Check battery charge and switch position.
Red charging light does not illuminate.	Cable not properly connected or USB power source issue.	Ensure cable is securely connected to both engine and power source. Try a different USB port or adapter.

9. Specifikationer

Modelnummer: 33599
Produktdimensioner: 3.94 x 1.57 x 1.97 tommer (10.2 x 5 x 5 cm)
Varens vægt: 7.7 ounce
Anbefalet alder: 3 år og opefter
Strømkilde: Rechargeable battery (1 LR44 battery included, non-replaceable by user)
Opladning: Mini USB-kabel (medfølger)
Materiale: Plastic, FSC sourced European beech wood

10. Garanti og support

BRIO products are manufactured to high-quality standards. For information regarding warranty coverage or customer support, please refer to the official BRIO webwebstedet eller kontakt din lokale forhandler. Gem din købsbevis i tilfælde af garantikrav.

For yderligere hjælp, besøg BRIO-butik på Amazon.
