Cyclone BX21528 550CFM Ultra-Quiet Insert Range Hood

Indledning

This manual provides detailed instructions for the installation, operation, and maintenance of your Cyclone BX21528 550CFM Ultra-Quiet Insert Range Hood. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.

The Cyclone BX21528 is a 28-inch, 550CFM ultra-quiet insert range hood from the Stainless Steel Classic Collection, designed to efficiently remove smoke, grease, and odors from your kitchen environment.

Sikkerhedsoplysninger

Følg altid grundlæggende sikkerhedsforanstaltninger, når du bruger elektriske apparater, for at mindske risikoen for brand, elektrisk stød eller personskade.

• Installation: Installation must be performed by a qualified installer in accordance with all applicable codes and standards.
• Elektrisk jordforbindelse: This appliance must be properly grounded. Consult a qualified electrician if you are unsure whether the appliance is properly grounded.
• Brandfare: Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Clean grease filters frequently. Grease accumulated on filters may ignite.
• Ventilation: Ensure proper ventilation in the kitchen area. Do not exhaust air into attics or other enclosed spaces.
• Opretholdelse: Afbryd strømmen før servicering eller rengøring af enheden.
• Børn: Hold børn væk fra apparatet under brug og rengøring.

Pakkens indhold

Kontroller, at alle komponenter er til stede, før installationen påbegyndes:

• Cyclone BX21528 Range Hood Unit
• Mesh Grease Filters (Pre-installed)
• Monteringsudstyr (skruer, ankre)
• Brugervejledning (dette dokument)

Installation

Proper installation is crucial for the performance and safety of your range hood. It is recommended that installation be performed by a professional.

Tjekliste før installation

• Ensure the mounting surface is strong enough to support the weight of the range hood.
• Confirm that the ducting system (6-inch round duct opening) is properly sized and routed.
• Verify that the electrical supply meets the requirements (120V, 60Hz).

Montering af emhætten

1. Prepare the cabinet opening according to the dimensions provided in the specifications.
2. Carefully lift the range hood into the prepared opening.
3. Secure the range hood to the cabinet using the provided mounting screws. Ensure it is level and firmly attached.

Kanalforbindelse

1. Connect the 6-inch round ductwork from your home's ventilation system to the exhaust outlet on the top of the range hood.
2. Use aluminum foil tape or appropriate sealant to ensure an airtight connection.

Elektrisk tilslutning

1. Ensure power is OFF at the circuit breaker before making any electrical connections.
2. Connect the household wiring to the range hood's wiring according to local electrical codes. Ensure proper grounding.
3. Secure all wire connections with wire nuts.

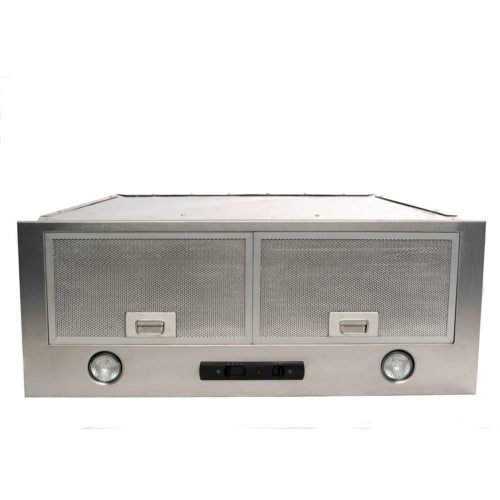

Figur 1: Forside view of the Cyclone BX21528 Insert Range Hood. This image displays the stainless steel finish, the two mesh filters with handles, the central control panel for fan speed and lighting, and the two integrated lights on either side.

Operation

Once installed and connected, your Cyclone range hood is ready for use.

Blæserhastighedskontrol

• The control panel located on the front of the unit allows you to adjust the fan speed.
• Press the fan speed button to cycle through different fan settings (e.g., Low, Medium, High) or to turn the fan off.
• For light cooking, a lower speed is sufficient. For heavy cooking or frying, use a higher speed for optimal smoke and odor removal.

Let drift

• Press the light button on the control panel to turn the integrated lights on or off.
• The lights provide illumination for your cooking surface.

Opretholdelse

Regelmæssig vedligeholdelse sikrer din emhættes levetid og effektive drift.

Rengøring af fedtfiltre

• The mesh grease filters should be cleaned regularly, ideally every 3-4 weeks depending on cooking frequency.
• To remove filters, locate the release latches/handles and pull down.
• Filtrene er tåler opvaskemaskine. Alternatively, wash them by hand with hot water and a non-abrasive detergent.
• Lad filtrene tørre helt, før de monteres igen.

Cleaning the Exterior Surface

• Clean the stainless steel surface with a soft cloth and a non-abrasive stainless steel cleaner.
• Tør altid i træets retning for at undgå ridser.
• Do not use abrasive pads or harsh chemicals.

Udskiftning af pære

• Ensure the power to the range hood is turned off at the circuit breaker before replacing bulbs.
• Lad pærerne køle af før de røres.
• Replace with bulbs of the same type and wattage as specified by the manufacturer (refer to specifications section).

Fejlfinding

Before contacting customer support, try these common solutions for minor issues:

Specifikationer

Garantioplysninger

This Cyclone range hood comes with a limited manufacturer's warranty. Please refer to the warranty card included with your product for specific terms, conditions, and duration. Keep your purchase receipt as proof of purchase for warranty claims.

Kundesupport

If you have any questions, require technical assistance, or need to report a problem with your Cyclone range hood, please contact our customer support team:

• Webwebsted: www.cyclone.com (til generelle forespørgsler og ofte stillede spørgsmål)
• E-mail: support@cyclone.com
• Telefon: 1-800-XXX-XXXX (mandag - fredag, 9:00 - 5:00 EST)

Please have your model number (BX21528) and date of purchase ready when contacting support.
