Gardena Comfort Spray Lance Instruction Manual

1. Introduktion

The Gardena Comfort Spray Lance (Model 18334-20) is designed for efficient and targeted watering and cleaning tasks in your garden. Its extended reach and adjustable spray patterns provide versatility for various applications, from delicate plant watering to robust surface cleaning. This manual provides essential information for the proper setup, operation, and maintenance of your spray lance.

2. Produktfunktioner

• Justerbare sprøjtemønstre: Easily switch between a gentle soft spray for delicate plants and a powerful hard jet for targeted cleaning.
• Robust design: Features a soft plastic ring on the sprayer head to protect against accidental damage.
• Variable Water Flow: The water flow can be precisely adjusted, shut off, and locked into an on/off position for continuous use without constant pressure.
• Frost and UV Protection: Constructed with materials resistant to frost and UV radiation, allowing the spray lance to remain outdoors year-round.
• Udvidet rækkevidde: The 90 cm (approximately 35.4 inches) long lance is ideal for reaching shrubs, hanging baskets, and plants in beds without excessive bending or stretching.
• Kompatibilitet: Designed to be compatible with other leading watering brands.

3. Opsætning

To begin using your Gardena Comfort Spray Lance, follow these simple steps:

1. Tilslut til slange: Attach the spray lance to your garden hose. Ensure a secure connection to prevent leaks. The inlet connection size is 12.7 mm (1/2 inch) and uses a barb type connection.
2. Tjek vandforsyning: Ensure your water supply is turned on.

Figure 1: Gardena Comfort Spray Lance connected to a standard garden hose.

4. Betjeningsvejledning

The Gardena Comfort Spray Lance offers intuitive controls for various watering and cleaning needs.

4.1 Justering af sprøjtemønstre

The sprayer head can be easily rotated to select between two primary jet types:

• Soft Spray: Ideal for gentle watering of delicate plants, seedlings, and large areas. This prevents damage to foliage and soil erosion.
• Hard Jet: Suitable for targeted cleaning tasks, such as removing dirt from stone tiles, joints, or other hard surfaces.

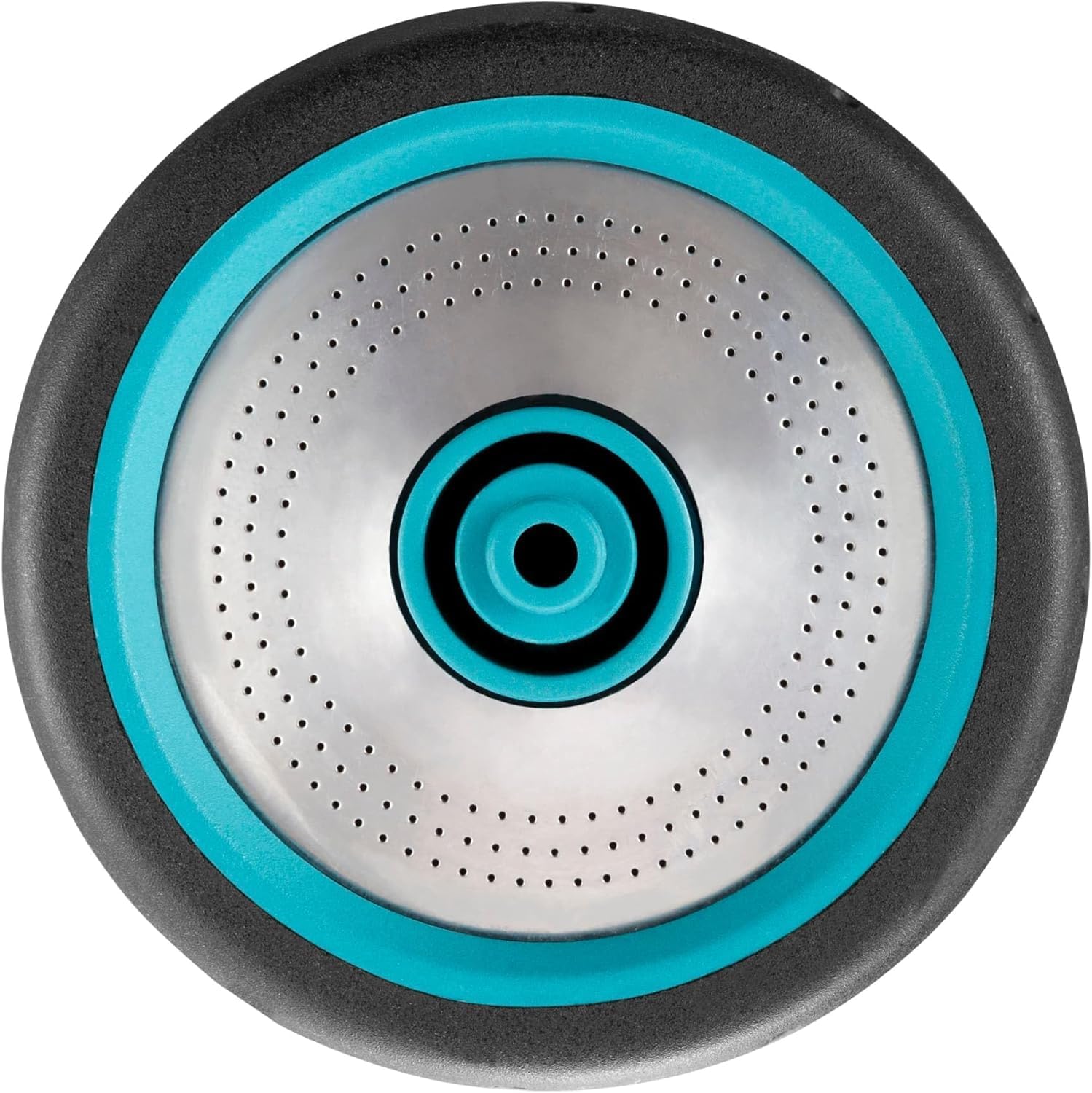

Figure 2: The nozzle head allows for easy rotation to select spray patterns.

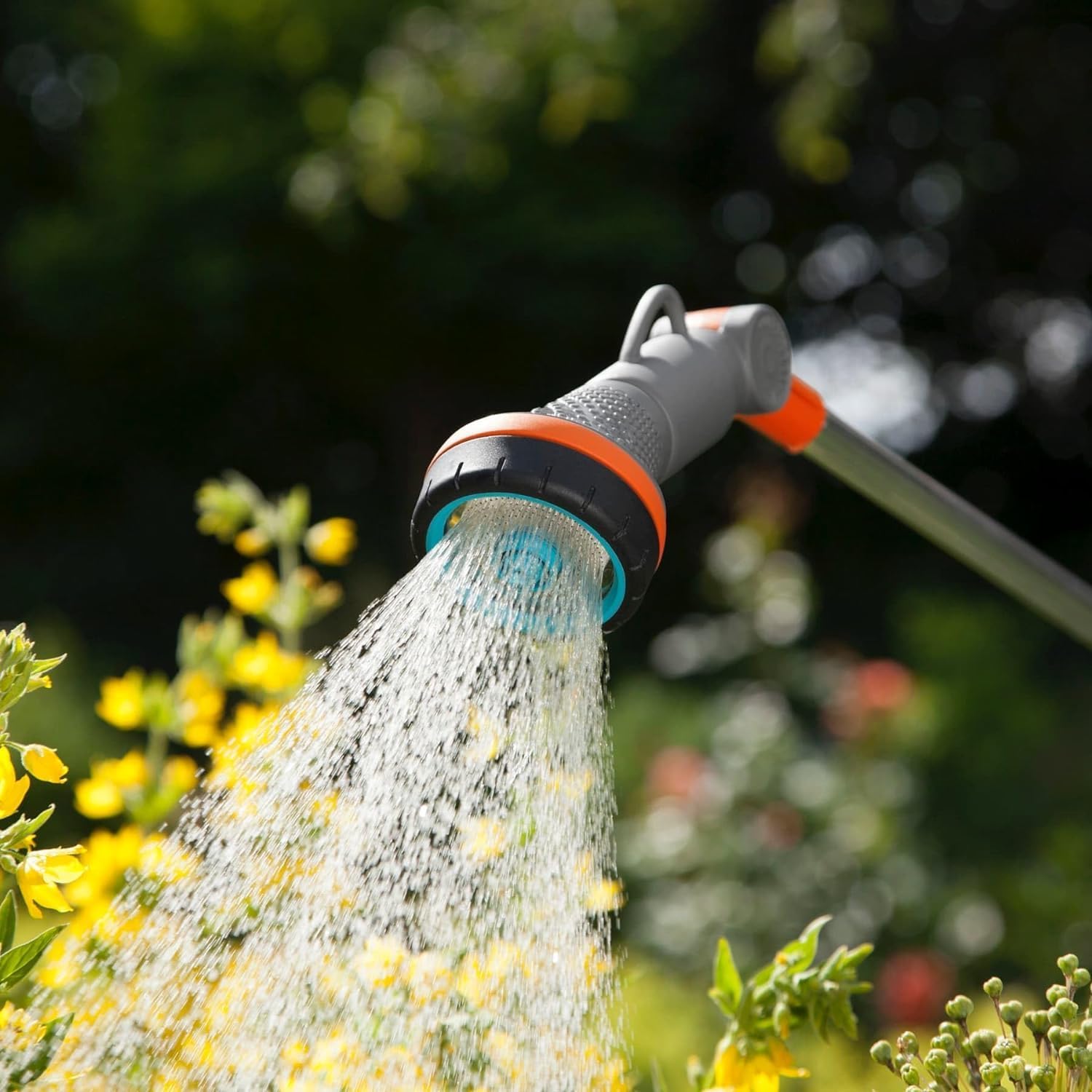

Figure 3: Demonstrating the gentle soft spray for watering plants.

Figure 4: Demonstrating the powerful hard jet for cleaning tasks.

4.2 Vandstrømningskontrol

The spray lance features an on/off trigger and a locking mechanism for continuous flow:

• Triggeroperation: Squeeze the trigger to activate water flow. Release to stop.
• Flow Lock: For extended watering, engage the locking mechanism to maintain continuous water flow without holding the trigger. Disengage to resume manual control.

5. Vedligeholdelse

Proper maintenance ensures the longevity and optimal performance of your Gardena Comfort Spray Lance.

• Rensning: After each use, rinse the spray lance with clean water to remove any dirt or debris.
• Frostbeskyttelse: The spray lance is designed with frost protection. However, for prolonged periods of freezing temperatures, it is recommended to drain any remaining water from the lance and store it in a frost-free environment if possible.
• Opbevaring: Utilize the practical hanging function for easy and convenient storage. Store in a clean, dry place away from direct sunlight when not in use for extended periods.

6. Fejlfinding

If you encounter any issues with your spray lance, refer to the following common problems and solutions:

• Lavt vandtryk: Check the water supply to your hose. Ensure the hose is not kinked or blocked. Verify the spray lance's flow control is fully open.
• Leaks from Connection: Ensure the hose connection is tight and that the rubber washer inside the connector is properly seated and not damaged. Replace the washer if necessary.
• Uregelmæssigt sprøjtemønster: Check the nozzle head for any blockages from debris. Clean the nozzle holes if necessary.

7. Specifikationer

8. Garanti og support

The Gardena Comfort Spray Lance comes with a 5 års producentgaranti, reflecting its high quality and durability. For warranty claims, technical support, or further assistance, please refer to the contact information provided with your product packaging or visit the official Gardena webwebsted.
