Indledning
The Carvin X100B is a versatile guitar combo ampLifier designet til at levere en bred vifte af toner, der er egnede til forskellige musikalske stilarter. amplifier features a robust tube-driven preamp section utilizing three AX7 tubes and a power section driven by four 6L6 tubes, ensuring rich, dynamic sound. Its solid construction and comprehensive control set make it a reliable choice for musicians seeking quality amplifikation.
Vigtige sikkerhedsinstruktioner
- Read these instructions thoroughly before operating the amplivligere.
- Gem disse instruktioner til fremtidig reference.
- Overhold alle advarsler på produktet og i betjeningsvejledningen.
- Følg alle instruktioner.
- Brug ikke dette apparat i nærheden af vand.
- Rengør kun med en tør klud.
- Bloker ikke ventilationsåbninger. Installer i overensstemmelse med producentens anvisninger.
- Må ikke installeres i nærheden af varmekilder såsom radiatorer, varmeapparater, komfurer eller andre apparater (inklusive ampløftere), der producerer varme.
- Beskyt netledningen mod at blive trådt på eller klemt, især ved stik, stikkontakter og det sted, hvor de kommer ud af apparatet.
- Brug kun tilbehør/tilbehør specificeret af producenten.
- Træk stikket ud af dette apparat under tordenvejr, eller når det ikke skal bruges i længere perioder.
- Overlad al service til kvalificeret servicepersonale. Service er påkrævet, når apparatet er blevet beskadiget på nogen måde, såsom strømforsyningsledning eller stik er beskadiget, væske er blevet spildt, eller genstande er faldet ind i apparatet, apparatet har været udsat for regn eller fugt, ikke fungerer normalt , eller er blevet droppet.
Opsætning
Udpakning og inspektion
Fjern forsigtigt amplifier from its packaging. Inspect the unit for any signs of damage that may have occurred during shipping. If any damage is found, contact your dealer immediately.
Placering
Placer amplifier on a stable, level surface. Ensure adequate ventilation around the unit to prevent overheating. Avoid placing the amplifier in direct sunlight or near heat sources.
Forbindelser
- Strømtilslutning: Tilslut det medfølgende netkabel til amplifier's AC inlet and then to a grounded electrical outlet. Ensure the voltage matcher amplifers krav.
- Instrumentindgang: Plug your guitar cable into the "INPUT" jack on the front panel.
- Højttalerforbindelse: If using an external speaker cabinet, connect it to the appropriate speaker output jack on the rear panel. Ensure the impedance of the speaker cabinet matches the amplifier's output impedance setting.

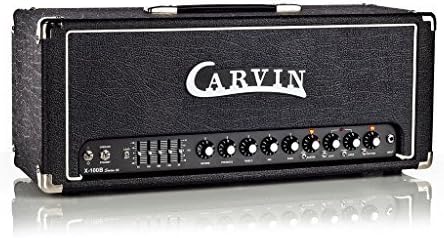

Figur 1: Forside view of the Carvin X100B Guitar Combo Amplifier, showing the input, EQ sliders, and control knobs.
Betjeningsvejledning
Tænd/sluk
For at tænde amplifier, ensure all volume controls are set to minimum, then flip the power switch to the "ON" position. Allow a few moments for the tubes to warm up. To turn off, reverse the process, turning off the power switch before unplugging.
Kontrol på frontpanelet
- Indgangsstik: Tilslut dit instrument her.
- Køre: Controls the amount of gain and distortion in the drive channel. Higher settings produce more saturated tones.
- 4 Band EQ (75Hz, 300Hz, 1.2kHz, 3kHz): Adjusts the frequency response of the amplifier. Each slider boosts or cuts specific frequency ranges, allowing for precise tone shaping.
- rumklang: Controls the amount of built-in spring reverb effect.
- Hovedvolumen: Styrer den overordnede udgangsvolumen for amplivligere.
- Additional controls may include presence, channel switching, and effects loop send/return, depending on the specific model revision.
Tube Information
The X100B utilizes three AX7 tubes in its preamp section for tone shaping and gain, and four 6L6 tubes in the power section for output amplification. These tubes are crucial to the amplifier's characteristic sound. Refer to the maintenance section for tube care.
Opretholdelse
Rensning
Rengør ampRengør ydersiden af apparatet med en blød, tør klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler, da de kan beskadige overfladen. Sørg for, at ampStrømforsyningen tages ud af stikkontakten før rengøring.
Udskiftning af rør
Vacuum tubes have a finite lifespan and will eventually need replacement. If you notice a decrease in performance, loss of volume, or unusual noise, it may be time to replace the tubes. Tube replacement should ideally be performed by a qualified technician. If replacing tubes yourself, ensure the amplifier is unplugged and completely cooled down. Handle tubes carefully, avoiding contact with the glass, and ensure they are inserted correctly into their sockets.
Opbevaring
Når den ikke er i brug i længere perioder, skal den opbevares amplifier in a cool, dry place, away from direct sunlight and extreme temperatures. Covering the amplifier with a dust cover can help protect it from dust and debris.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Ingen lyd |
|
|
| Forvrænget lyd |
|
|
| Hum eller Buzz |
|
|
Specifikationer
- Model: X100B
- Mærke: Carvin
- Output Wattage: 100 watt
- Strømkilde: Elektrisk med ledning
- Kompatible enheder: Guitar
- Preamp Rør: 3 x AX7
- Powerrør: 4 x 6L6
- Udligning: 4 Band EQ (75Hz, 300Hz, 1.2kHz, 3kHz)
- Effekter: Reverb, Drive
- Varens vægt: 29 pund (ca. 13.15 kg)
- Produktdimensioner: 13 x 29 x 14 tommer (ca. 33 x 73.7 x 35.6 cm)
Garanti og support
For warranty information and technical support, please refer to the official Carvin website or contact your authorized Carvin dealer. Keep your purchase receipt as proof of purchase for warranty claims.
Bemærk: Specifikationerne kan ændres uden varsel.
