Tecnolite LED-12V-360W-PR 360W strømforsyningsdriver brugermanual

1. Introduktion

This manual provides detailed instructions for the safe and efficient use of the Tecnolite LED-12V-360W-PR 360W Power Supply Driver. This device is designed for project applications, converting AC input voltage to a stable 12V DC output for LED lighting systems and other compatible devices. Please read this manual thoroughly before installation and operation.

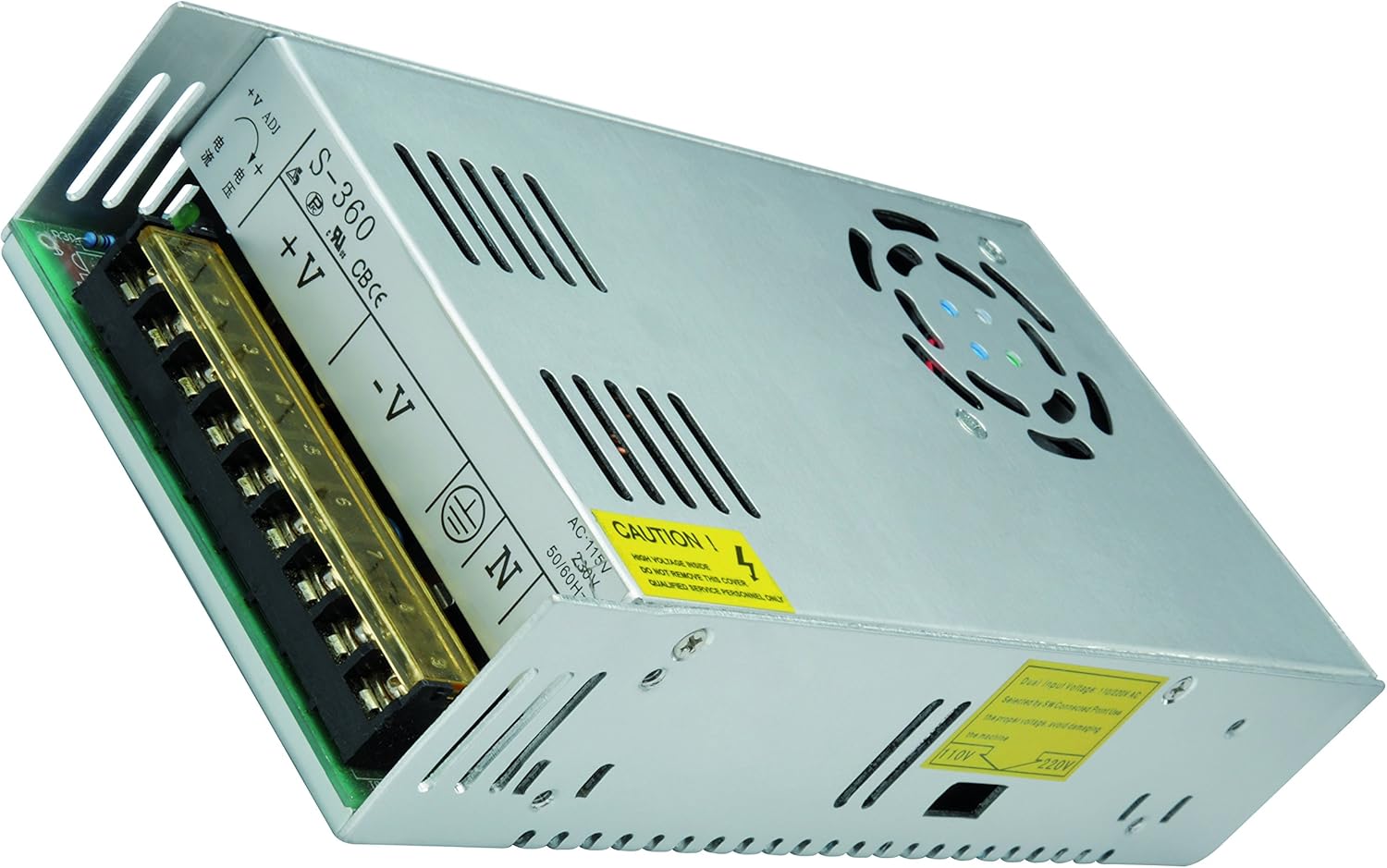

Figur 1: Tecnolite LED-12V-360W-PR 360W Power Supply Driver. This image shows the aluminum casing, ventilation slots, input/output terminals, and voltage valgkontakt.

2. Sikkerhedsoplysninger

Overhold altid følgende sikkerhedsforanstaltninger for at forhindre personskade eller beskadigelse af enheden:

• FORSIGTIGHED! HØJ VOLTAGE INDE. Do not remove this cover. Only qualified service personnel should perform maintenance or repairs.
• Sørg for, at input voltage switch (115V/230V) is correctly set before connecting to the power source to avoid damaging the unit.
• Afbryd strømmen, før du foretager nogen tilslutninger eller justeringer.
• Install the driver in a well-ventilated area to prevent overheating.
• Udsæt ikke enheden for fugt eller ekstreme temperaturer.
• Ensure proper grounding (indicated by the # symbol on the terminal block).
• Overskrid ikke den maksimale belastningskapacitet på 360 W.

3. Produktfunktioner

• Designed for project applications.
• Bred input voltagE-område: 100-277 VAC.
• Stabil output voltage: 12 VDC.
• High power output: 360 W maximum load.
• Holdbart aluminium casing for heat dissipation and protection.
• Integrated drivers for efficient power conversion.

4. Opsætning og installation

1. Udpakning: Carefully remove the power supply from its packaging and inspect for any physical damage.
2. Montering: Mount the driver securely in a location that allows for adequate ventilation. Ensure no obstructions block the ventilation slots.
3. Input bindtage Valg: Find voltage selection switch on the side of the unit. Set it to either 115V or 230V according to your local mains voltage. Incorrect selection can damage the unit.
4. Wiring Input (AC): Connect the AC input wires to the terminal block labeled 'L' (Live), 'N' (Neutral), and '#' (Ground). Ensure all connections are tight and secure.
5. Wiring Output (DC): Connect your 12V DC load (e.g., LED strips, modules) to the output terminals labeled '+V' and '-V'. Observe correct polarity (+ to + and - to -).
6. Endelig kontrol: Double-check all connections and the input voltage selection before applying power.

5. Betjeningsvejledning

Once the power supply is correctly installed and wired, you can apply power. The unit will convert the AC input to a stable 12V DC output. The output voltage can be finely adjusted using the '+V ADJ' potentiometer if necessary, though it is typically pre-calibrated.

• Ensure the total power consumption of connected devices does not exceed 360W.
• Monitor the unit for any unusual noises or excessive heat during initial operation.

6. Vedligeholdelse

The Tecnolite LED-12V-360W-PR driver requires minimal maintenance. Follow these guidelines to ensure longevity:

• Hold enheden ren og fri for støv og snavs. Brug en blød, tør klud til rengøring.
• Periodically check ventilation openings to ensure they are not blocked.
• Inspect wiring connections for tightness and signs of wear or corrosion.
• Forsøg ikke at åbne casing, as it contains high voltage components and should only be serviced by qualified personnel.

7. Fejlfinding

8. Specifikationer

9. Garanti og support

For warranty information or technical support, please contact Tecnolite customer service or visit the official Tecnolite brand store.

Tecnolite Brand Store: Tecnolite on Amazon.com.mx
