1. Introduktion
Thank you for choosing the NICOLAS HOLIDAY GE97575 100 Count Multi C5 LED Light Set. This product is designed to provide festive illumination for both indoor and outdoor environments. This manual provides essential information for safe installation, operation, and maintenance of your light set.
Figure 1: NICOLAS HOLIDAY GE97575 100 Count Multi C5 LED Light Set Packaging
2. Vigtige sikkerhedsinstruktioner
WARNING: To reduce the risk of fire and electric shock, read and follow all instructions carefully.
- Brug ikke sæsonbestemte produkter udendørs, medmindre de er mærket egnet til indendørs og udendørs brug. Når produkter bruges i udendørs applikationer, skal produktet tilsluttes en stikkontakt med jordfejlskredsløbsafbrydelse (GFCI). Hvis en sådan ikke er leveret, skal du kontakte en kvalificeret elektriker for korrekt installation.
- Dette sæsonprodukt er ikke beregnet til permanent installation eller brug.
- Må ikke monteres eller placeres i nærheden af gas- eller elektriske varmeapparater, pejse, stearinlys eller andre lignende varmekilder.
- Fastgør ikke produktets ledninger med hæfteklammer eller søm, og anbring ikke på skarpe kroge eller søm.
- Lad ikke lamps hvile på forsyningsledningen eller på en hvilken som helst ledning.
- Tag stikket ud af produktet, når du forlader huset, når du går på pension for natten, eller hvis det efterlades uden opsyn.
- This is an electrical product, not a toy! To avoid risk of fire, burns, personal injury and electric shock, it should not be played with or placed where small children can reach it.
- Brug ikke dette produkt til andet end dets tilsigtede brug.
- Hæng ikke ornamenter eller andre genstande fra ledning, ledning eller lyssnor.
- Luk ikke døre eller vinduer på produktet eller forlængerledninger, da dette kan beskadige ledningsisoleringen.
- Dæk ikke produktet til med klud, papir eller andet materiale, der ikke er en del af produktet, når det er i brug.
- Læs og følg alle instruktioner, der er på produktet eller følger med produktet.
3. Opsætning og installation
3.1 Udpakning
Carefully remove the light set from its packaging. Inspect the string for any signs of damage to the bulbs, wires, or plug. If any damage is found, do not use the product.
Figure 2: Light set as packaged, including spare parts
3.2 Placering
This light set is suitable for both indoor and outdoor use. Ensure the chosen location is free from obstructions and potential hazards. For outdoor use, connect to a GFCI protected outlet.
3.3 Connecting Multiple Sets
The GE97575 light set features an end connector plug, allowing you to connect multiple sets together. You can connect up to 25 identical GE LED sets end-to-end. Always ensure the total wattage of connected sets does not exceed the maximum recommended load for your power outlet.
Figur 3: Eksample of light set installation around a door frame
3.4 Strømtilslutning
Plug the fused plug of the light set into a standard electrical outlet. For outdoor use, ensure the outlet is weather-protected and GFCI compliant.
4. Betjeningsvejledning
To operate the light set, simply plug it into a suitable power outlet. The lights will illuminate immediately. To turn off, unplug the light set from the power source.
5. Vedligeholdelse
5.1 Udskiftning af pære
This light set uses long-life LED bulbs. While designed for durability, spare steady burning LEDs are included for replacement if needed. To replace a bulb:
- Unplug the light set from the power source.
- Gently twist the faulty bulb counter-clockwise and pull it out.
- Insert a new spare LED bulb by aligning the base and twisting clockwise until secure.

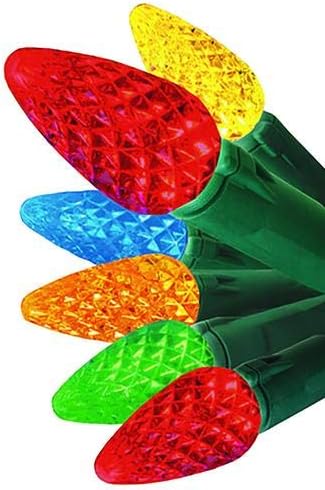

Figure 4: Close-up of C5 LED bulbs
5.2 Udskiftning af sikringer
The light set is equipped with a fused plug for safety. If the entire string fails to light, the fuse may need replacement. Two (2) 3-amp fuses are included as spares.
- Unplug the light set from the power source.
- Slide open the fuse access cover on the plug.
- Carefully remove the old fuse and replace it with a new 3-amp sikring.
- Close the fuse access cover securely.
5.3 Rengøring og opbevaring
Before cleaning or storing, ensure the light set is unplugged. Wipe the bulbs and wires with a soft, dry cloth. Store the light set in a cool, dry place, away from direct sunlight and extreme temperatures. Keep it in its original packaging or a protective container to prevent damage.
6. Fejlfinding
6.1 Lysene lyser ikke
- Sørg for, at stikket er sat helt i en fungerende stikkontakt.
- Check the fuse in the plug and replace if blown (refer to Section 5.2).
- If connecting multiple sets, ensure all connections are secure.
6.2 ConstantON® Feature
This light set features Energy Smart ConstantON® technology. This means the set continues to operate even if a bulb is burned out or loose. If a bulb is out, you may replace it at your convenience without affecting the rest of the string's operation.
7. Specifikationer
Figur 5: Produktspecifikationer
| Feature | Specifikation |
|---|---|
| Antal lysdioder | 100 |
| Total Set Wattage | 8 watt |
| Socket Spacing | 4 inches (10.1 cm) between lights |
| Lighted Length (1 set) | 33 fod (10 m) |
| Maximum Connected Sets | 25 identical GE LED sets end-to-end |
| Stiksystem | Single end; end connector |
| Fusing System | Sikret stik |
| Spare Parts Included | 2 steady burning LEDs, 2 (3-amp) fuses |
| Indendørs/Udendørs brug | Indendørs, Udendørs |
| Lys farve | Flerfarvet |
| Strømkilde | Elektrisk med ledning |
8. Garantioplysninger
This NICOLAS HOLIDAY GE97575 100 Count Multi C5 LED Light Set comes with a 5-year consumer warranty. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper installation.
9. Support
For further assistance, troubleshooting, or warranty inquiries, please contact NICOLAS HOLIDAY customer support. Refer to the product packaging or the retailer's webhjemmeside for de seneste kontaktoplysninger.
