1. Introduktion

This manual provides detailed instructions for the installation, programming, and operation of your Kanlux 18721 JVT3 16 AS Digital Programmable Time Switch. Please read this manual thoroughly before installation and use to ensure proper function and safety. Keep this manual for future reference.

2. Produktet er slutview

The Kanlux JVT3 16 AS is a digital programmable time switch designed for controlling electrical circuits based on a set schedule. It features a digital display, control buttons, and terminal connections for power and load. This device also includes an astronomical function for advanced scheduling.

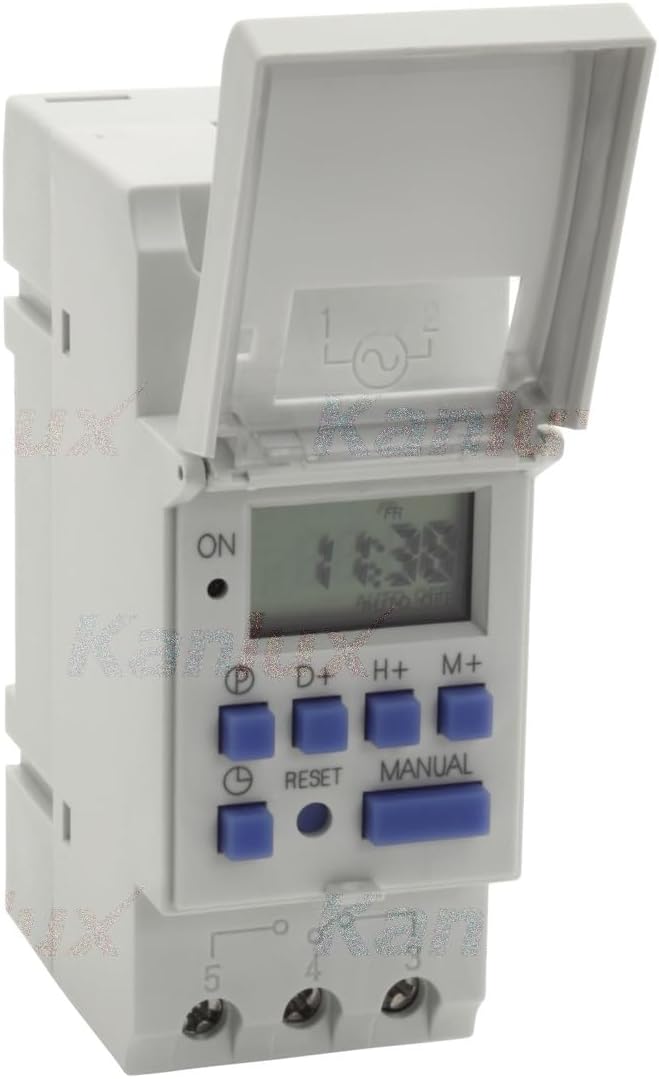

Figur 2.1: Front view of the Kanlux JVT3 16 AS Digital Programmable Time Switch. This image shows the device with its protective cover open, revealing the digital display, the 'ON' indicator, and control buttons labeled 'P', 'D+', 'H+', 'M+', 'RESET', and 'MANUAL'. Below the buttons are the terminal connections.

Figur 2.2: Front view of the Kanlux JVT3 16 AS. This image displays the device with its protective cover closed, clearly showing the "Kanlux JVT3-16AS" branding and the CE mark.

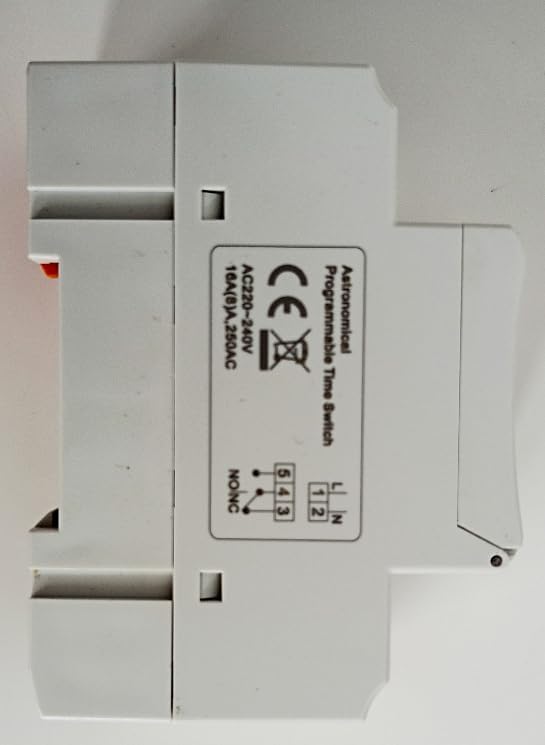

Figur 2.3: Side view of the Kanlux JVT3 16 AS. This image shows the side of the timer with a label indicating "Astronomical Programmable Time Switch" and a wiring diagram for AC 220-240V, 16A (8)A, 250VAC connections (L, N, 1, 2, 3, 4, 5).

3. Sikkerhedsoplysninger

• Installation and maintenance should only be performed by a qualified electrician.
• Sørg for, at strømforsyningen er afbrudt før installations- eller ledningsføringsarbejde.
• Overskrid ikke den maksimale belastningsgrænse, der er angivet for enheden.
• This device is designed for indoor use in dry environments. Avoid exposure to moisture or extreme temperatures.
• Verify all connections are secure to prevent electrical hazards.

4. Opsætning og installation

4.1 Montering

The Kanlux JVT3 16 AS is designed for DIN rail mounting. Securely attach the device to a standard DIN rail within an appropriate electrical enclosure.

4.2 Ledningsføring

Refer to the wiring diagram on the side of the device (Figure 2.3) and the following instructions:

• Connect the Live (L) and Neutral (N) power supply wires to the corresponding input terminals (typically labeled 1 and 2).
• Connect the load (e.g., light fixture, appliance) to the output terminals. The common terminal is usually 3, with normally open (NO) and normally closed (NC) contacts labeled 4 and 5 respectively. Consult the specific diagram on your device for exact terminal assignments.
• Sørg for, at alle forbindelser er tætte og korrekt isolerede.

4.3 Initial Power-Up and Time Setting

1. After wiring, restore power to the circuit. The display should illuminate.
2. If the display is blank, check power connections.
3. Tryk på NULSTIL button (small recessed button) using a pointed object (e.g., pen tip) to clear any previous settings and initialize the device.
4. Set the current time and day:
   • Tryk på P button repeatedly to cycle through day settings (e.g., MO, TU, WE...).
   • Brug H+ knappen for at indstille timen.
   • Brug M+ knappen for at indstille minutter.

5. Betjeningsvejledning

5.1 Programming ON/OFF Cycles

The timer allows for multiple ON/OFF programs. Follow these steps to set a program:

1. Tryk på P button once to enter program setting mode. The display will show "1 ON".
2. Brug D+ button to select the day(s) for this program (e.g., individual days, weekdays, weekends, all days).
3. Brug H+ -knappen for at indstille den ønskede ON-time.
4. Brug M+ -knappen for at indstille det ønskede ON-minut.
5. Trykke P igen. Displayet vil vise "1 OFF".
6. Gentag trin 2-4 for at indstille den ønskede SLUKNINGstid for det første program.
7. Fortsæt med at trykke P to set additional ON/OFF programs (e.g., "2 ON", "2 OFF", etc.).
8. To exit program setting mode and return to the current time display, press the MANUEL knap.

5.2 Manuel tilsidesættelse

De MANUEL button allows you to override the programmed settings temporarily or permanently:

• Trykke MANUEL gentagne gange for at skifte mellem tilstande:
  • AUTO TIL: The timer is currently ON and will follow the next programmed OFF event.
  • AUTO OFF: The timer is currently OFF and will follow the next programmed ON event.
  • PÅ: The timer is forced ON, ignoring all programs.
  • OFF: The timer is forced OFF, ignoring all programs.
• Vælge AUTO TIL or AUTO FRA to resume automatic operation based on your programs.

5.3 Astronomical Function

The JVT3 16 AS includes an astronomical function, which can automatically adjust ON/OFF times based on sunrise and sunset times for your geographical location. Refer to the device's specific programming menu for setting up the astronomical function, which typically involves inputting your latitude and longitude or selecting a predefined region. This feature allows for energy-efficient control of lighting or other applications.

6. Vedligeholdelse

• Rensning: Tør enheden af ​​med en blød, tør klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
• Batteri: The device typically contains an internal battery to maintain settings during power outages. This battery is usually non-replaceable by the user and has a long lifespan. If the display frequently resets or loses time during power interruptions, the internal battery may need servicing by a qualified technician.
• Inspektion: Kontroller regelmæssigt ledningsforbindelserne for tæthed og tegn på slid.

7. Fejlfinding

• Enheden tænder ikke:
  • Check the main power supply to the circuit.
  • Verify that the Live (L) and Neutral (N) wires are correctly connected to the input terminals.
• Load not switching ON/OFF as programmed:
  • Ensure the device is in "AUTO ON" or "AUTO OFF" mode (not forced ON/OFF).
  • Review your programmed ON/OFF times for accuracy.
  • Check the current time and day setting on the timer.
  • Verify the load wiring (terminals 3, 4, 5) is correct and secure.
  • Confirm the load is not exceeding the maximum current rating of the timer.
• Skærmen er tom eller flimrer:
  • Tjek strømforsyningen.
  • If power is stable, the internal battery may be low or faulty. Contact a qualified technician.

8. Specifikationer

9. Garanti og support

Information regarding specific warranty terms and customer support contacts for the Kanlux 18721 JVT3 16 AS Digital Programmable Time Switch is not available in the provided product data. Please refer to the product packaging or the official Kanlux website for warranty details and support contact information.
