Channel Vision NVR-04N-1000 Netværksvideooptager Brugermanual

Indledning

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Channel Vision NVR-04N-1000 Network Video Recorder. This NVR is designed to be a flexible recording solution for surveillance systems, supporting up to four IP cameras, each up to 5 megapixels. It features automatic networking for simplified setup and integrates with HDMI and ONVIF protocols, including RTSP stream input for third-party camera compatibility.

For optimal performance and longevity of your device, please read this manual thoroughly before use and retain it for future reference.

Produkt overview

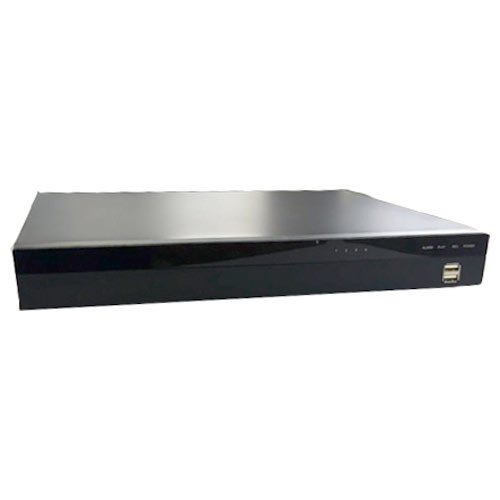

Billede: Forside view of the Channel Vision NVR-04N-1000 Network Video Recorder. The device is a black rectangular unit with a silver top panel. The front panel features indicator lights and two USB ports on the right side.

The Channel Vision NVR-04N-1000 is a 4-channel Network Video Recorder equipped with a 1000GB (1TB) hard drive. It offers advanced features for reliable surveillance recording and management.

Nøglefunktioner:

• Supports up to four 5-megapixel IP cameras per channel.
• HDMI-videointerface til optagelse i høj kvalitet.
• 1080p-video i realtid viewvia internetbrowser eller mobilapplikation.
• Three distinct recording modes: Manual, Scheduled, and Alarm (Event-Triggered).
• Integrated time and event search functions for efficient footage-hentning.
• Understøtter op til to 4TB harddiske (HDD'er).
• CMS (Central Management System) control compatibility.
• Audio backup for all channels.
• Time-point backup function under Ethernet remote control.
• Watchdog monitoring for continuous recording reliability.
• Daylight Saving Time support, Watermark, Privacy Mask, PTZ Control, Digital Zoom.
• Motion Detection, Video Loss Detection, Alarm Recording, Pre-Alarm Recording, Buzzer.

Opsætning og installation

Automatisk netværk:

The NVR-04N-1000 simplifies initial setup with its automatic networking feature. Upon powering on and connecting to your network, the NVR will automatically detect and add compatible IP cameras to the system. Ensure all IP cameras are properly connected to the network before powering on the NVR.

Fysiske forbindelser:

• Magt: Connect the DC48V 12V power adapter to the NVR's power input.
• Netværk: Connect the NVR to your network router or switch using an Ethernet cable via the WAN Ethernet port (RJ-45 x1). The LAN Ethernet ports (RJ-45 x4) provide PoE 802.3at for direct camera connections.
• Video output: Tilslut en skærm til NVR'en ved hjælp af enten HDMI- eller VGA-udgangsporten.
• USB-enheder: Connect a mouse or other USB devices to the USB 2.0 ports (two on the front, one on the back).
• Lyd: If required, connect audio input/output devices to the 3.5mm phone jacks on the back.

After all connections are made, power on the NVR. Follow the on-screen prompts for any initial configuration, such as setting date, time, and administrator passwords.

Driftstilstande

The NVR-04N-1000 offers three primary recording modes to accommodate various surveillance needs:

• Manuel tilstand: This mode allows you to manually initiate and stop recording at any time. It is suitable for situations where specific events need to be recorded on demand.
• Planlagt tilstand: In Scheduled mode, recording begins and ends based on predefined time intervals. You can configure daily, weekly, or custom schedules to ensure continuous or periodic recording during specific hours.
• Alarmtilstand (hændelsesudløst): This mode activates recording automatically when specific events occur. Configurable triggers include motion detection, video loss, external alarm inputs, and digital inputs from connected cameras. This conserves storage space by recording only when an event is detected.

You can configure these modes through the NVR's on-screen interface or via the remote access options (Internet browser or mobile app).

Opretholdelse

Watchdog Monitoring:

The Channel Vision NVR-04N-1000 incorporates watchdog monitoring technology to ensure uninterrupted recording. In the event of a system error or malfunction, the NVR will automatically restart to restore normal operation and maintain continuous surveillance recording. This feature minimizes downtime and ensures the reliability of your security system.

Data backup:

Sikkerhedskopier regelmæssigt vigtige fødevarertage. The NVR supports USB backup for local storage and time-point backup functions under Ethernet remote control mode, allowing users to select specific time periods for remote backup.

Firmwareopdateringer:

Periodically check the Channel Vision website for firmware updates to ensure your NVR operates with the latest features and security enhancements. Follow the provided instructions carefully when performing firmware updates.

Fejlfinding

If you encounter issues with your NVR, consider the following general troubleshooting steps:

• Ingen videoudgang:
  • Ensure the monitor is correctly connected to the HDMI or VGA port and is powered on.
  • Kontroller, at NVR'en er tændt, og at dens indikatorlamper er aktive.
  • Check the video input source on your monitor.
• Cameras Not Recording:
  • Confirm that cameras are properly connected to the network and are powered.
  • Check the recording schedule and event triggers in the NVR settings.
  • Verify that the hard drive has sufficient free space.
• Problemer med netværksforbindelse:
  • Ensure the Ethernet cable is securely connected to the NVR's WAN port and your router/switch.
  • Check your network router for proper operation.
  • Restart the NVR and your network equipment.
• System reagerer ikke:
  • Perform a hard reboot by disconnecting and reconnecting the power adapter.
  • If the issue persists, consult the Channel Vision support resources.

For more detailed troubleshooting or technical assistance, please refer to the support section or contact Channel Vision customer service.

Specifikationer

Garanti og support

Garantioplysninger:

The Channel Vision NVR-04N-1000 comes with a 3 års garanti fra købsdatoen. Denne garanti dækker materiale- og fabrikationsfejl ved normal brug. Gem venligst din købsbevis i tilfælde af garantikrav.

Kundesupport:

For technical support, warranty service, or any questions regarding your Channel Vision NVR, please visit the official Channel Vision webwebstedet eller kontakt deres kundeserviceafdeling. Kontaktoplysninger kan typisk findes på produktemballagen eller i producentens webwebsted.

Bemærk: Uautoriserede reparationer eller ændringer kan ugyldiggøre din garanti.
