1. Introduktion og overview
The NEBO Larry C is a compact and durable LED work light designed for various applications. It features COB LED technology, providing 170 lumens of illumination. The integrated magnetic clip allows for hands-free operation, attaching to metallic surfaces. Its reinforced plastic body offers water and impact resistance, ensuring reliability in diverse environments.
2. Produktfunktioner
- COB LED Technology: Delivers 170 lumens of bright, uniform light.
- Magnetic Swivel Clip: Provides versatile hands-free lighting by attaching to metal surfaces and allowing directional adjustment.
- Holdbar konstruktion: Reinforced plastic body is water and impact-resistant.
- Top-Positioned ON/OFF Button: Easy access for power control.
- Protective LED Housing: Shields the light source from damage.
- Batteridrevet: Kører på 3 AAA-batterier (medfølger).
3. Opsætning
3.1 Batterikrav
The NEBO Larry C flashlight requires three (3) AAA alkaline batteries for operation. These batteries are typically included with the product.
3.2 Trin til installation af batteri
- Locate the battery cap at the bottom of the flashlight.
- Unscrew the battery cap by turning it counter-clockwise.
- Insert three (3) AAA batteries into the battery compartment, ensuring correct polarity (+/-) as indicated inside the compartment.
- Replace the battery cap by screwing it clockwise until securely tightened.

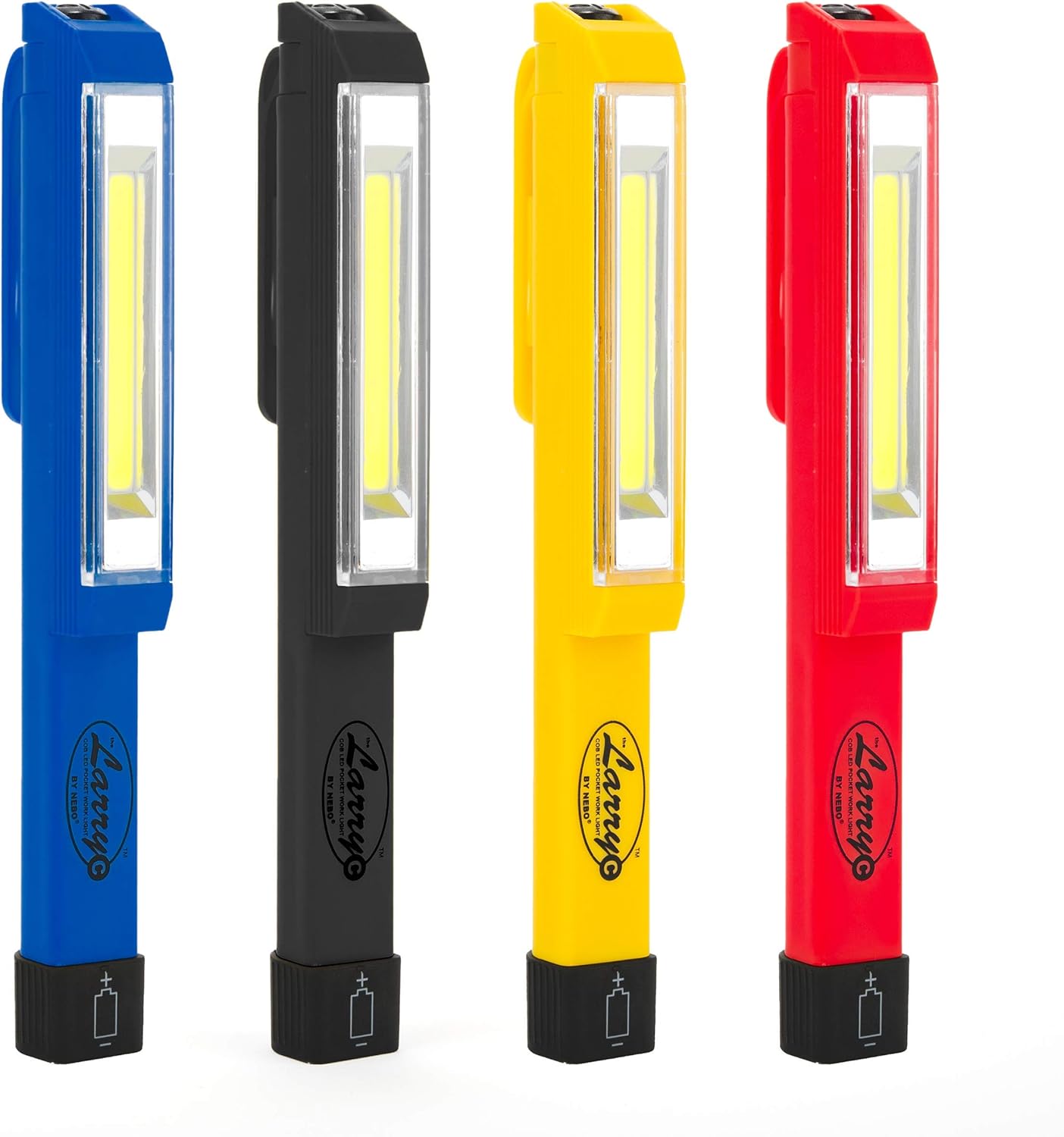

Image: NEBO Larry C flashlights. The bottom of each flashlight shows the battery cap with polarity markings, indicating where batteries are inserted.
4. Betjeningsvejledning
4.1 Tænd/sluk
To turn the flashlight ON, press the power button located at the top of the unit. Press the button again to turn the flashlight OFF.
4.2 Using the Magnetic Clip
The NEBO Larry C features a magnetic swivel clip. This clip allows the flashlight to be securely attached to any ferrous metal surface for hands-free illumination. The swivel function enables adjustment of the light beam direction.
5. Vedligeholdelse
- Rensning: Tør lommelygtens hus af med en blød kludamp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Udskiftning af batteri: Replace all three AAA batteries simultaneously when the light output diminishes. Do not mix old and new batteries or different battery types.
- Opbevaring: If storing the flashlight for an extended period (more than 30 days), remove the batteries to prevent leakage and potential damage to the device. Store in a cool, dry place.
- Vandtæthed: While water-resistant, avoid submerging the flashlight in water. Ensure the battery cap is securely tightened to maintain water resistance.
6. Fejlfinding
| Spørgsmål | Mulig årsag | Løsning |
|---|---|---|
| Lommelygten tænder ikke. |
|
|
| Lyset er svagt eller flimrer. |
|
|
| Magnetic clip does not hold securely. |
|
|
7. Specifikationer
| Model: | 6327 |
| Lysoutput: | 170 lumen |
| Lyskildetype: | COB LED |
| Strømkilde: | 3 x AAA Batteries (Alkaline) |
| Materiale: | Forstærket plast |
| Vandtæthed: | Vandtæt |
| Impact Resistance: | Ja |
| Dimensioner: | 0.88 x 7.4 x 1.13 tommer |
| Varens vægt: | 0.16 ounce (uden batterier) |
8. Garanti og support
For information regarding warranty coverage, product support, or to contact customer service, please refer to the official NEBO webwebstedet eller den dokumentation, der fulgte med dit køb. Gem dit købsbevis i tilfælde af garantikrav.
