1. Introduktion
This manual provides comprehensive instructions for the safe and efficient operation of your DBPOWER RD-805 Portable Multimedia Mini LED Projector. Please read this manual thoroughly before using the projector and retain it for future reference. This projector is designed for versatile multimedia applications, offering a compact solution for home entertainment, presentations, and more.
2. Sikkerhedsoplysninger
- Se ikke direkte ind i projektorlinsen, når lamp er tændt. Det intense lys kan forårsage øjenskader.
- Sørg for ordentlig ventilation. Bloker ikke ventilationsåbningerne. Overophedning kan beskadige projektoren.
- Use only the power adapter supplied with the projector. Using an incorrect adapter may cause malfunction or fire.
- Hold projektoren væk fra vand eller andre væsker. Må ikke anvendes i fugtige omgivelser.
- Undgå at placere projektoren på ustabile overflader.
- Frakobl strømkablet under tordenvejr eller når apparatet ikke bruges i længere perioder.
- Forsøg ikke at reparere projektoren selv. Overlad al service til kvalificeret personale.
3. Pakkens indhold
Bekræft, at alle nedenstående varer er inkluderet i din pakke. Hvis der mangler eller er beskadigede varer, bedes du kontakte din forhandler.

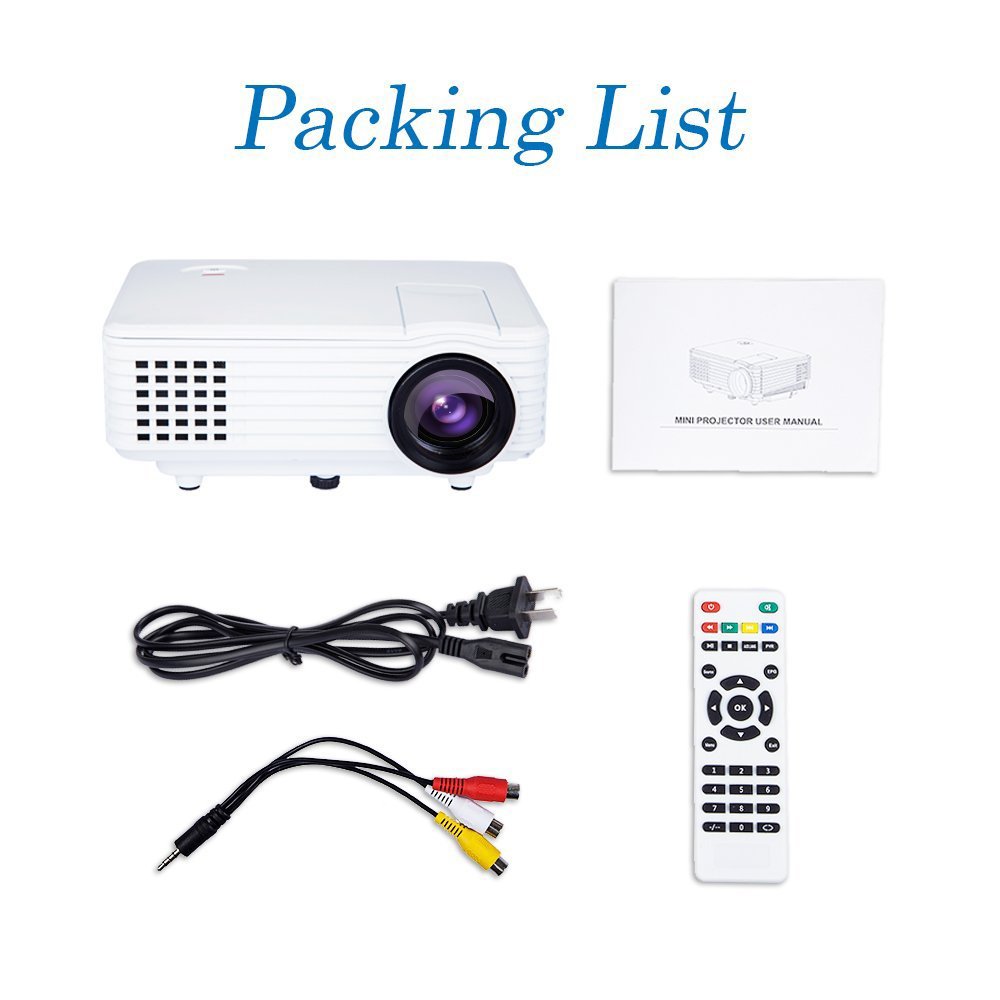

Image: Contents of the DBPOWER RD-805 projector package, showing the projector unit, power cable, AV cable, remote control, and user manual.
- DBPOWER RD-805 Mini LED Projector
- Strømkabel
- Fjernbetjening
- AV-kabel
- Brugermanual
4. Produktet er slutview
Familiarize yourself with the various parts of your projector.
Image: The DBPOWER RD-805 projector held in a hand, illustrating its portable and compact design.
4.1 Forside og top View
- Projektionsobjektiv: Udsender billedet.
- Fokusring: Justerer billedets klarhed.
- Keystone Correction Dial: Korrigerer trapezformet billedforvrængning.
- Kontrolpanel: Buttons for menu navigation and basic functions.
4.2 Bagpanel og tilslutninger
Billede: Detaljeret view of the rear panel of the DBPOWER RD-805 projector, highlighting the power button, on/off switch, USB port, HDMI port, AV input, VGA input, and audio output jack.
- Power knap: Tænder/slukker projektoren.
- On/Off Button (Main Switch): Hovedafbryder.
- USB-port: Tilslut USB-drev til medieafspilning.
- HDMI-port: Connect devices via HDMI cable (e.g., laptops, gaming consoles).
- AV IN-port: Connect devices using the AV cable (e.g., DVD players).
- VGA port: Connect computers via VGA cable.
- Audio Output (Earphone) Jack: Tilslut eksterne højttalere eller hovedtelefoner.
- Micro USB: (Not explicitly labeled in image, but mentioned in features) For specific connectivity.
5. Opsætning
5.1 Placering
Place the projector on a stable, flat surface. Ensure there is adequate space around the projector for ventilation. The projection distance will determine the image size (20-80 inches recommended).
Image: The DBPOWER RD-805 projector set up on a tripod next to a laptop, demonstrating a typical usage scenario for presentations or media viewing.
5.2 Strømtilslutning
- Tilslut strømkablet til projektorens strømindgang.
- Sæt den anden ende af strømkablet i en stikkontakt.
- Flip the main On/Off switch on the rear panel to the 'On' position.
5.3 Tilslutning af enheder
Projektoren understøtter forskellige inputkilder:
Image: A circular diagram illustrating the wide range of devices compatible with the DBPOWER RD-805 projector, including laptops, desktops, gaming consoles (PS4, Xbox 360, Wii), mobile phones, tablets, DVD players, and MP4/MP5 players.
- HDMI: Connect laptops, gaming consoles (PS4, Xbox 360), Blu-ray players.
- VGA: Tilslut stationære computere eller ældre bærbare computere.
- AV: Connect DVD players, set-top boxes using the included AV cable.
- USB: Insert USB flash drives for direct playback of photos, videos, and music.
- Micro USB: For specific device connections (refer to device manual for compatibility).
- Lydudgang: Tilslut eksterne højttalere eller hovedtelefoner for forbedret lyd.
6. Betjening af projektoren
6.1 Tænd/sluk
- Ensure the main On/Off switch on the rear is in the 'On' position.
- Tryk på tænd/sluk-knappen på projektoren eller fjernbetjeningen for at tænde enheden.
- To power off, press the Power button again. The indicator light will change.
6.2 Justering af billede
- Fokus: Drej fokusringen nær objektivet, indtil det projicerede billede er klart og skarpt.
- Keystone-korrektion: Use the keystone correction dial to adjust the image if it appears trapezoidal (wider at the top or bottom). The projector supports up to 15 degrees of keystone correction.
6.3 Valg af indgangskilde
Use the 'Source' button on the remote or projector control panel to cycle through available input sources (HDMI, VGA, AV, USB).
6.4 Multimedieafspilning
When a USB drive is connected, navigate the on-screen menu to select the desired media type (Photo, Music, Movie, Text) and browse files. The projector supports MP3/WMA/OGG/AAC/FLAC/APE/WAV audio and JPEG/BMP/PNG image formats.
6.5 Ansøgninger
The DBPOWER RD-805 is suitable for a variety of uses:
Image: A collage depicting various applications of the DBPOWER RD-805 projector, including outdoor movie nights, classroom teaching, business meetings, and gaming sessions.
Billede: Fire eks.amples of home theater environments utilizing the DBPOWER RD-805 projector for immersive viewing oplevelser.
- Hjemmebiografi: Enjoy movies, TV shows, and sports on a large screen.
- Spil: Connect your gaming console for an immersive gaming experience.
- Præsentationer: Ideal for small business meetings or educational purposes.
- Foto Viewing: Share your photos with friends and family on a big display.
7. Vedligeholdelse
7.1 Rengøring af linsen
Brug en blød, fnugfri klud, der er specielt designet til optiske linser. Brug ikke slibende rengøringsmidler eller klude, der kan ridse linsen.
7.2 Rengøring af projektorhuset
Tør projektorens yderside af med en blød, tør klud. Ved genstridige mærker kan du bruge en let tør klud.amp en klud kan bruges, efterfulgt af en tør klud.
7.3 Ventilation
Regularly check and clean the ventilation grilles to prevent dust buildup, which can impede airflow and cause overheating.
7.4 Lamp Liv
LED lamp in your projector has a long lifespan, rated for approximately 50,000 hours, significantly reducing the need for lamp udskiftning.
Image: An illustration highlighting the long lamp life of the DBPOWER RD-805 projector, indicating an estimated lifespan of 50,000 hours for its LED light source.
8. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Intet billede projiceret | Strøm ikke tilsluttet; Forkert indgangskilde; Objektivdæksel på. | Kontroller strømtilslutningen; Vælg den korrekte indgangskilde; Fjern linsedækslet. |
| Billedet er sløret | Fokus ikke justeret; Projektoren er for tæt på/langt fra skærmen. | Adjust focus ring; Adjust projection distance (20-80 inches). |
| Billedet er trapezformet | Keystone ikke justeret. | Juster keystone-korrektionsknappen. |
| Ingen lyd | Volume too low; External speakers not connected; Audio format not supported. | Increase volume; Connect external speakers to audio out; Check audio format compatibility. |
| Fjernbetjening virker ikke | Batteries dead; Obstruction between remote and projector. | Udskift batterierne; Sørg for frit udsyn til IR-modtageren. |
9. Specifikationer
Image: The DBPOWER RD-805 projector with its physical dimensions (21cm length, 14.5cm width, 8cm height) and weight (1250g) indicated, alongside a "1 Year Warranty" badge.
| Mærke | DBPOWER |
| Modelnavn | RD-805 |
| Varemodelnummer | FP8048H1W-IV6 |
| Displayteknologi | LCD |
| Display Type | LED |
| Projektionsstørrelse | 20-80 tommer (anbefales) |
| Max Screen Display Size | 120 tommer / 305 cm |
| Keystone korrektion | Manual, 15 degrees |
| Lamp Liv | Op til 50,000 timer |
| Indgangsgrænseflader | USB, VGA, HDMI, AV, Micro USB |
| Output Interface | Earphone (3.5mm Audio Jack) |
| Understøttede lydformater | MP3 / WMA / OGG / AAC / FLAC / APE / WAV |
| Understøttede billedformater | JPEG/BMP/PNG (with zoom, 360 degree rotate) |
| Strømforbrug | 20 watt |
| Strømkilde | AC |
| Produktmål (LxBxH) | 21.08 x 14.48 x 7.87 cm |
| Varens vægt | 907.18 g |
10. Garanti og support
Your DBPOWER RD-805 Projector comes with a 1-års garanti fra købsdatoen. Denne garanti dækker fabrikationsfejl og udførelse under normal brug.
For technical support, warranty claims, or any inquiries, please contact DBPOWER customer service through the contact information provided on their official website or your purchase platform. Please have your model number (RD-805) and purchase details ready when contacting support.
