Defiant Outdoor LED Bluetooth 270 Degree Motion Security Light User Manual

1. Produktet er slutview

The Defiant Outdoor LED Bluetooth 270 Degree Motion Security Light is designed to provide enhanced outdoor security lighting with advanced features. It integrates LED technology for energy efficiency and long life, eliminating the need for bulb changes. The innovative Bluetooth Smart Technology allows for convenient control of sensor settings directly from your smartphone device, including adjustable dimming. The DualBrite feature offers two levels of lighting: an accent light from dusk-to-dawn and full illumination when motion is detected, optimizing energy use and security.

This light offers a 270-degree motion detection range with up to 70 feet of coverage and can be mounted on a wall or eave. Installation is simplified with a '3 Easy Steps to Connect' process.

2. Sikkerhedsoplysninger

ADVARSEL: Risk of electric shock. Disconnect power at the fuse or circuit breaker before installation or servicing. All wiring connections must be in accordance with local and national electrical codes. If you are unsure about proper wiring, consult a qualified electrician.

• Ensure the power supply is turned OFF before beginning installation.
• Do not install this fixture on surfaces that are not structurally sound.
• Driftstemperaturområde: -25°C (-13°F) til +50°C (+120°F).
• This product is designed for outdoor use and is weather resistant.

3. Pakkens indhold

Please check to ensure all components are present before beginning installation:

• Defiant Outdoor LED Bluetooth Motion Security Light Unit
• Monteringsudstyr (skruer, trådmøtrikker, pakning)
• Instruktionsmanual

4. Installationsvejledning

4.1. Før du begynder

Tools you may need (not included):

• Phillips skruetrækker
• Afisoleringstænger
• Tang
• Elektrisk tape
• Stige (hvis nødvendigt)

4.2. Montering af lyset

This fixture can be mounted on a wall or eave. Ensure the mounting surface is stable and can support the weight of the fixture. Follow the '3 Easy Steps to Connect' for quick and safe installation.

Step 1: Prepare Wiring. Turn off power at the circuit breaker. Remove the existing fixture (if any). Pull the electrical wires through the mounting plate.

Step 2: Mount Fixture. Secure the mounting plate to the junction box. Connect the fixture wires to the house wires (black to black, white to white, ground to ground) using wire nuts. Carefully push wires into the junction box and attach the fixture to the mounting plate.

Step 3: Seal and Adjust. Apply silicone sealant around the fixture base to prevent water entry. Adjust the lamp heads and motion sensor to the desired angles.

Figur 4.2.1: Forside view of the Defiant Outdoor LED Bluetooth Motion Security Light, showing the adjustable lamp hoveder og bevægelsessensor.

4.3. Første opsætning og app-forbindelse

After installation, restore power to the fixture. To utilize the Bluetooth Smart Technology, download the Defiant app on your smartphone. The app allows for easy adjustment of sensor settings without needing to climb ladders.

• The app works with iPhone 4S or later.
• The app works with Android version 4.3 or later.
• Your phone requires Bluetooth version 4.0 or later.

5. Betjeningsvejledning

5.1. Bluetooth-app-kontrol

Once the light is installed and powered, open the Defiant app on your compatible smartphone. The app will guide you through connecting to your security light. Through the app, you can:

• Juster bevægelsesdetektionsfølsomheden.
• Set the duration of the light after motion is detected.
• Control the dimming feature for the accent light.
• Manage the DualBrite settings.

5.2. Motion Sensing

The light features a 270-degree motion detection angle with a range of up to 70 feet. The sensor is designed to detect movement within this area and activate the full brightness of the light. Sensitivity can be fine-tuned via the mobile app to prevent false triggers from small animals or distant objects.

5.3. DualBrite Feature

The DualBrite feature provides two levels of lighting for energy efficiency and continuous security:

• Accentlys: From dusk-to-dawn, the light will emit a low-level accent illumination, providing subtle ambient light and deterring potential intruders.
• Fuldt lys: When motion is detected within the sensor's range, the light will automatically switch to full brightness (2300 lumens) for a set duration, providing maximum visibility and security.

6. Vedligeholdelse

To ensure optimal performance and longevity of your security light, follow these maintenance guidelines:

• Rensning: Rengør armaturet regelmæssigt med en blød, tør klud.amp klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler, da de kan beskadige overfladen eller de elektriske komponenter.
• Inspektion: Regularly inspect the wiring and mounting for any signs of wear, damage, or loose connections. Ensure the fixture remains securely mounted.
• Sensorområde: Hold bevægelsessensorlinsen fri for snavs, støv og forhindringer (f.eks. edderkopperwebs, leaves) to ensure accurate detection.
• lysdioder: The integrated LED technology means there are no bulbs to change. If the LEDs fail, the entire fixture may need replacement.

7. Fejlfinding

If you experience issues with your Defiant security light, refer to the following table for common problems and solutions:

8. Produktspecifikationer

Detailed specifications for the Defiant Outdoor LED Bluetooth 270 Degree Motion Security Light:

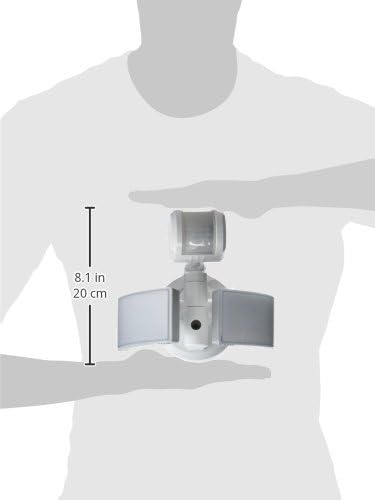

Figure 8.1: Dimensions of the Defiant Outdoor LED Bluetooth Motion Security Light.

9. Garanti og support

Specific warranty details for the Defiant Outdoor LED Bluetooth 270 Degree Motion Security Light are not provided in this manual. For warranty information, please refer to the product packaging or contact Defiant customer support directly.

For technical assistance, troubleshooting beyond this guide, or to inquire about replacement parts, please contact Defiant customer service. You may find contact information on the manufacturer's webwebstedet eller på produktemballagen.
