THINKWARE X500D Dashcam User Manual

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of your THINKWARE X500D Dashcam with Rear View Camera. The X500D is designed to provide comprehensive front and rear surveillance of your vehicle, capturing Full HD 1080p video with a Sony Exmor image sensor for the front camera and a Full HD 1080p rear camera.

Key features include advanced driver assistance systems (ADAS) such as lane departure, front collision, red light, and speed camera alerts, as well as a built-in GPS tracker for recording time, speed, and location data. For optimal performance and longevity, please read this manual thoroughly before using the device.

2. Sikkerhedsoplysninger

• Installation: Sørg for, at dashcam'et er installeret et sted, der ikke blokerer førerens view eller forstyrre bilens sikkerhedsfunktioner (f.eks. airbags).
• Strømkilde: Use only the provided cigarette power cable or an official THINKWARE hardwiring cable for power. Using unauthorized power sources may damage the device and void the warranty.
• Driftstemperatur: The device is designed to operate within a specific temperature range. Avoid exposing the dash cam to extreme temperatures (e.g., direct sunlight for extended periods in hot climates) to prevent damage.
• MicroSD-kort: Use only genuine THINKWARE microSD cards or high-endurance cards from reputable brands. Frequent formatting of the microSD card is recommended to maintain optimal recording performance.
• Rensning: Clean the lens and screen with a soft, dry cloth. Do not use harsh chemicals or abrasive materials.
• Firmwareopdateringer: Søg regelmæssigt efter og installer firmwareopdateringer for at sikre optimal ydeevne og adgang til nye funktioner.
• Ansvarsfraskrivelse: Denne enhed er forudinstalleret med firmware og GPS-data, der er specifikke til brug i USA. Korrekt drift af enheden kan ikke garanteres uden for USA.

3. Pakkens indhold

Bekræft at alle varer er til stede i din pakke:

• Main Dash Cam Unit (THINKWARE X500D)
• Bag View Kamera
• Monter med ekstra 3M klæbebånd
• Cigaret strømkabel
• Selvklæbende kabelclips
• THINKWARE 32GB MicroSD-kort med SD-kortadapter
• Quick Start Guide/Warranty Information
• Bag View Kamerakabel

Image: The THINKWARE X500D Dashcam main unit, rear camera, 32GB MicroSD card, and SD card adapter, representing the typical package contents.

4. Produktet er slutview

4.1. Front Dash Cam Unit (X500D)

Billede: Forside view of the THINKWARE X500D Dashcam, showing the main lens and the "FHD Recorder" label.

Billede: Bagside view of the THINKWARE X500D Dashcam, displaying the LCD screen with live view and control buttons on the left side.

The main unit features a Full HD 1080p camera with a Sony Exmor image sensor, a 2.7-inch LCD touchscreen for live view and settings, and various control buttons. It also includes a built-in GPS module and G-sensor for incident detection.

4.2. Bagside View Kamera

Image: The compact THINKWARE rear view camera, designed for discreet installation on the rear window.

Bagsiden view camera provides Full HD 1080p recording for the rear of your vehicle, connecting to the main dash cam unit via the provided cable.

4.3. MicroSD-kort

Image: A THINKWARE branded 32GB MicroSD card alongside its larger SD card adapter.

The included 32GB MicroSD card is specifically designed for THINKWARE Dash Cams, featuring SPOR (Sudden Power Off Recovery) technology to protect recorded data.

5. Opsætning og installation

5.1. Isætning af MicroSD -kortet

1. Sørg for, at dashcam'et er slukket.
2. Locate the microSD card slot on the side of the main unit.
3. Insert the 32GB MicroSD card into the slot until it clicks into place. Ensure the card is inserted with the correct orientation.

5.2. Mounting the Front Dash Cam

1. Rengør forruden, hvor dashcam'et skal monteres. Sørg for, at det er fri for støv og fedt.
2. Attach the mount to the dash cam unit.
3. Remove the protective film from the 3M adhesive tape on the mount.
4. Tryk holderen godt fast på forruden, helst bag bagendenview spejlet, og sørg for, at det ikke blokerer for din viewHold i mindst 30 sekunder.
5. Adjust the camera angle to ensure the road ahead is clearly visible and centered in the frame.

Image: The THINKWARE X500D Dashcam mounted on a car's windshield, viewed from inside the vehicle, showing the screen and controls.

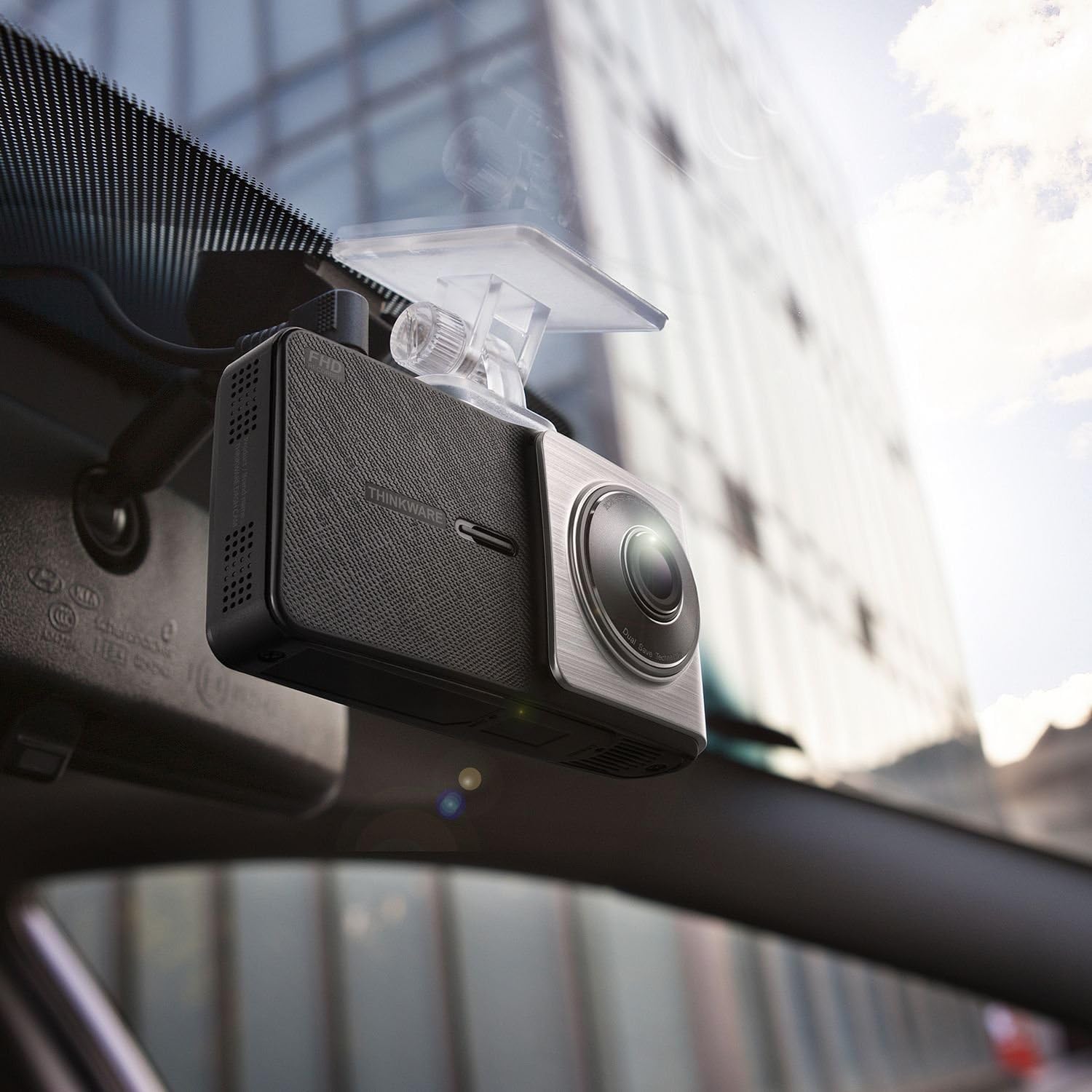

Billede: En vinklet view of the THINKWARE X500D Dashcam installed on a car's windshield, showing its compact design and how it blends with the interior.

5.3. Mounting the Rear View Kamera

1. Clean the rear windshield area where the rear camera will be mounted.
2. Remove the protective film from the adhesive tape on the rear camera mount.
3. Firmly press the rear camera onto the rear windshield, ensuring it captures a clear view af vejen bagved.
4. Connect the rear camera cable to the rear camera and route it neatly along the vehicle's headliner and pillars to the main dash cam unit. Use the provided adhesive cable clips to secure the cable.
5. Connect the other end of the rear camera cable to the designated port on the main dash cam unit.

5.4. Tilslutning af strøm

1. Connect the cigarette power cable to the power port on the main dash cam unit.
2. Plug the other end of the cigarette power cable into your vehicle's 12V power outlet (cigarette lighter socket).
3. Upon starting your vehicle, the dash cam will power on automatically and begin recording.
4. Valgfri: For Parking Surveillance mode, a separate hardwiring cable (sold separately) is required. Refer to the hardwiring kit's instructions for installation.

6. Betjeningsvejledning

6.1. Optagelsestilstande

• Kontinuerlig optagelse: The dash cam automatically records continuously when the vehicle's ignition is on. Videos are saved in 1-minute segments.
• Hændelsesoptagelse: In the event of an impact or sudden braking, the built-in G-sensor triggers incident recording. These files are saved separately and are protected from being overwritten by continuous recording.
• Manuel optagelse: Press the manual recording button on the device to initiate a manual recording of an event.
• Parkeringsovervågningstilstand: If the dash cam is hardwired, it can record events while the vehicle is parked. This mode includes motion detection and impact detection.

6.2. GPS-funktionalitet

The built-in GPS module records your vehicle's speed, location, and time data, which can be viewed during video playback using the THINKWARE PC Vieweh software.

6.3. Advanced Driver Assistance Systems (ADAS)

The X500D includes ADAS features to enhance driving safety:

• Vognbaneassistent (LDWS): Advarer dig, hvis dit køretøj kommer ud af sin vognbane.
• Front Collision Warning System (FCWS): Alerts you to potential collisions with the vehicle ahead.
• Red Light Camera Alert: Giver dig besked om kommende rødlyskameraer.
• Fotofældealarm: Notifies you of upcoming speed cameras.

These features can be configured or toggled on/off via the dash cam's settings menu.

6.4. Using the LCD Screen and Buttons

The 2.7-inch LCD screen allows for live view, video playback, and access to settings. Navigate through menus using the physical buttons located on the side of the device.

• Hjemknappen: Vender tilbage til hovedmenuen.
• Optag knap: Initiates manual recording.
• Menu/Indstillinger-knap: Får adgang til enhedsindstillinger.
• Op/Ned knapper: Naviger gennem menuindstillinger.
• OK knap: Bekræfter valg.

7. Vedligeholdelse

7.1. Administration af microSD-kort

Regularly format the microSD card (at least once a month) to prevent recording errors and ensure optimal performance. This can be done through the dash cam's settings menu or using the THINKWARE PC Vieweh software.

Note: Formatting the card will delete all recorded files. Back up important videos before formatting.

7.2. Rengøring af enheden

Use a soft, dry, lint-free cloth to clean the dash cam's lens and LCD screen. Do not use liquid cleaners or abrasive materials, as they may damage the device.

7.3. Firmwareopdateringer

THINKWARE periodically releases firmware updates to improve performance, add features, or fix bugs. Visit the official THINKWARE website to download the latest firmware for your X500D model. Follow the instructions provided with the firmware update package carefully.

8. Fejlfinding

9. Specifikationer

10. Garanti og support

10.1. Producentens garanti

The THINKWARE X500D Dashcam comes with a One-year Manufacturer's Limited Warranty. This warranty covers units sold at authorized retailers only. Please note that microSD cards typically have a shorter warranty period, often 6 months.

For specific warranty terms and conditions, please refer to the Quick Start Guide/Warranty information included in your package or visit the official THINKWARE webwebsted.

10.2. Kundesupport

For technical assistance, troubleshooting, or warranty claims, please contact THINKWARE customer support. Contact information can typically be found on the official THINKWARE webwebstedet eller i dit produkts dokumentation.

When contacting support, please have your product model number (TW-X500D) and proof of purchase readily available.
