LUXUL XWC-1000 Stand Alone Wireless Controller User Manual

1. Introduktion

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your LUXUL XWC-1000 Stand Alone Wireless Controller. Please read this manual thoroughly before using the device to ensure proper functionality and to maximize its performance.

2. Produktet er slutview

The LUXUL XWC-1000 is a stand-alone wireless controller designed to manage Luxul access points within a network environment. It provides centralized control for simplified network management.

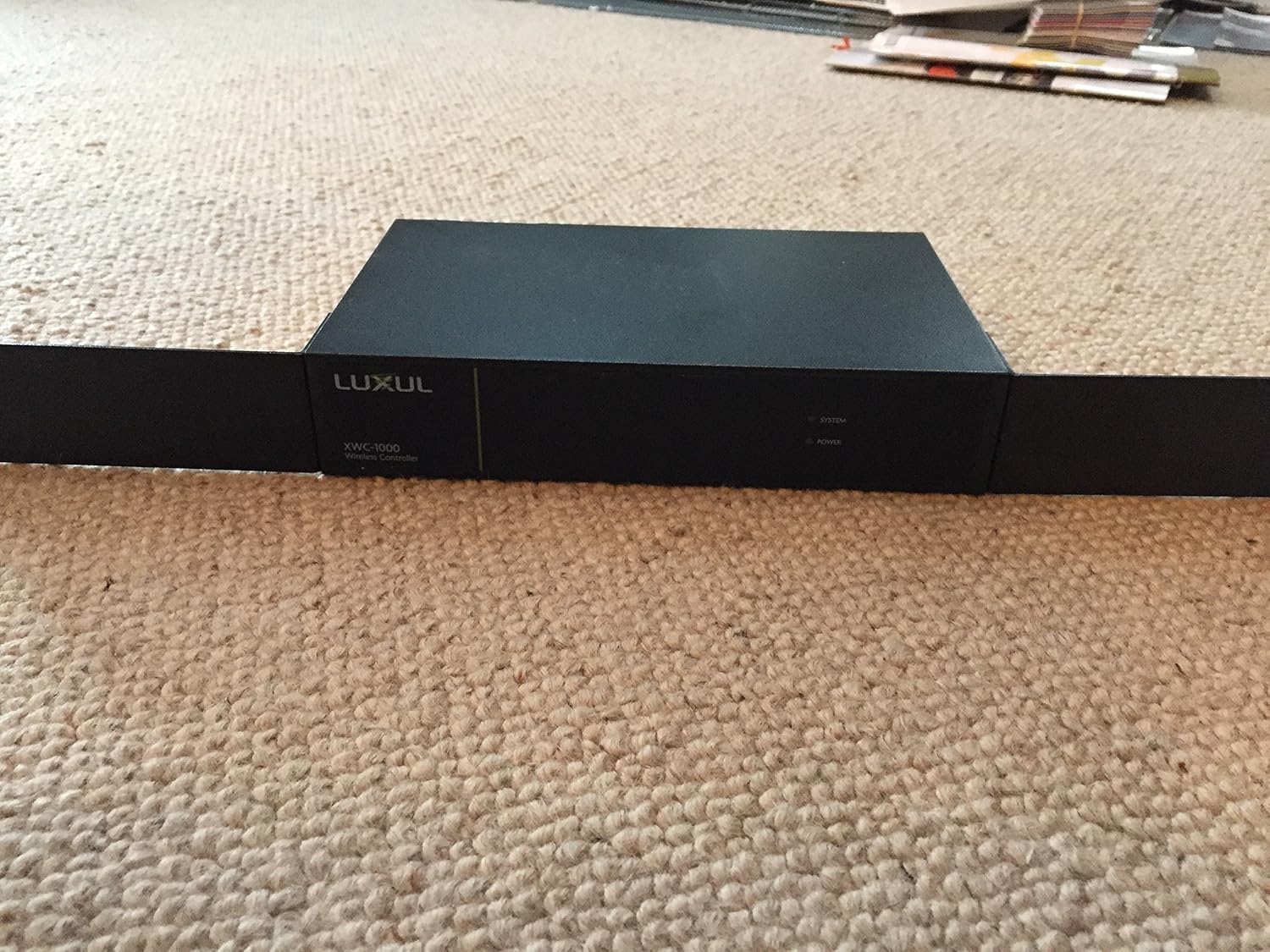

Figure 2.1: The LUXUL XWC-1000 Stand Alone Wireless Controller unit.

Figure 2.2: Packaging detail showing the LUXUL XWC-1000 Wireless Controller model name.

Figure 2.3: Product label displaying essential information including Model No.: XWC-1000, Vers. 2, default IP Address: 192.168.0.19, User Name: admin, Password: admin, Power: 100-240VAC 50/60Hz 0.6A. Serial numbers are XWC100010151097 and A4134E294581.

Figure 2.4: Front panel of the controller, showing SYSTEM, POWER, and RESET indicators, along with the LAN port and its LINK/ACTIVITY and 1000Mbps status lights.

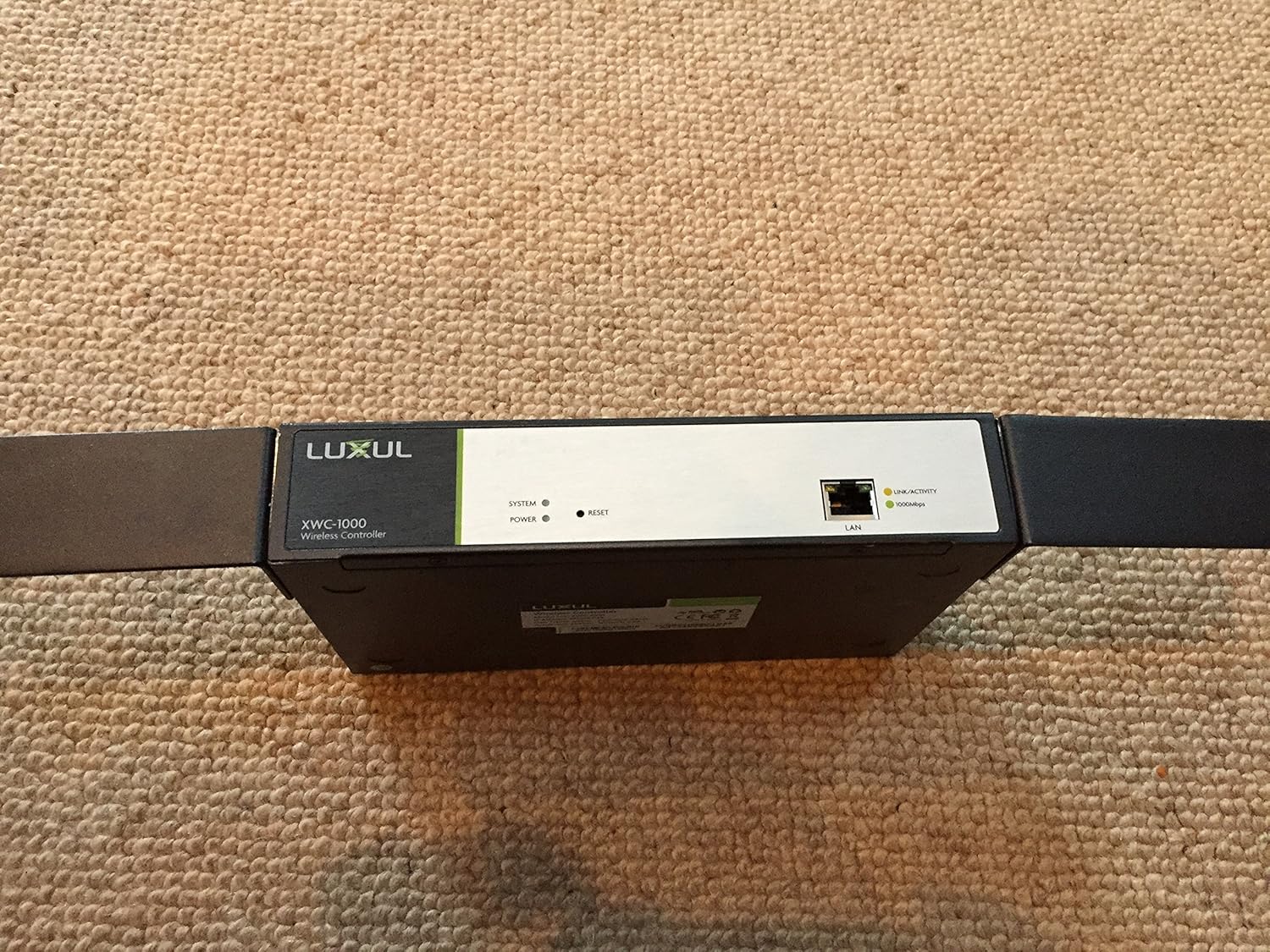

Figure 2.5: Close-up of the LAN port area, highlighting the BLUE/GREEN indicator switch, LAN port, and RESET button, along with LINK/ACTIVITY and 1000Mbps indicators.

3. Opsætning

1. Udpakning: Carefully remove the XWC-1000 controller from its packaging. Ensure all components are present.
2. Strømtilslutning: Connect the provided power adapter to the XWC-1000 and then to a suitable power outlet (100-240VAC, 50/60Hz). The POWER indicator light should illuminate.
3. Netværks forbindelse: Connect an Ethernet cable from your network router or switch to the LAN port on the XWC-1000. The LINK/ACTIVITY and 1000Mbps indicators should show network activity.
4. Førstegangsadgang: To access the controller's web interface, åbn en web browser and navigate to the default IP address: 192.168.0.19. Use the default credentials: User Name: admin, Adgangskode: admin. It is highly recommended to change the default password immediately after the first login for security purposes.
5. Access Point Integration: Once logged in, follow the on-screen instructions or refer to the controller's internal help documentation to discover and integrate your Luxul Access Points (APs).

4. Betjeningsvejledning

The LUXUL XWC-1000 provides a centralized interface for managing your wireless network. Key operational aspects include:

• Access Point Management: View the status of connected APs, configure their settings, and monitor their performance.
• Konfiguration af trådløst netværk: Set up SSIDs, security protocols (WPA2/WPA3), and guest network access.
• Firmwareopdateringer: Regularly check for and apply firmware updates to the controller and connected APs to ensure optimal performance and security.
• Systemovervågning: Monitor network traffic, client connections, and system logs for diagnostic purposes.
• Brugeradministration: Create and manage user accounts with different access levels for the controller interface.

5. Vedligeholdelse

• Regelmæssige firmwareopdateringer: Periodically check the Luxul website for the latest firmware versions for your XWC-1000 and connected access points. Updating firmware can resolve issues and introduce new features.
• Fysisk rengøring: Keep the device free from dust and debris. Use a soft, dry cloth for cleaning. Do not use liquid cleaners directly on the device.
• Miljøforhold: Ensure the controller is operated within its specified temperature and humidity ranges to prevent damage. Avoid placing it near heat sources or in direct sunlight.
• Backupkonfiguration: Regularly back up your controller's configuration settings. This allows for quick restoration in case of a system reset or replacement.

6. Fejlfinding

If you encounter issues with your LUXUL XWC-1000, consider the following troubleshooting steps:

• Controlleren tænder ikke: Verify the power adapter is securely connected to both the device and the power outlet. Check the power outlet with another device.
• Kan ikke få adgang Web Interface:
  • Ensure your computer is on the same network segment as the controller (e.g., if the controller is 192.168.0.19, your computer should be 192.168.0.x).
  • Confirm the Ethernet cable is properly connected and the LAN port indicators are active.
  • Try resetting the controller by pressing the RESET button (refer to Figure 2.5).
  • Verify you are using the correct IP address (default is 192.168.0.19) and login credentials.
• Access Points Not Recognized:
  • Ensure your access points are Luxul brand and compatible with the XWC-1000.
  • Check that the APs are powered on and properly connected to the network.
  • Verify that the controller's firmware is up to date. Outdated firmware can sometimes cause compatibility issues with newer AP models.
  • Consult the Luxul support documentation for specific AP discovery procedures.
• Problemer med netværksforbindelse: Check all network cables and ensure your router/switch is functioning correctly.

If problems persist, contact Luxul technical support for further assistance.

7. Specifikationer

8. Garanti og support

For warranty information, please refer to the documentation included with your product or visit the official LUXUL website. For technical support, product registration, or to download the latest drivers and firmware, please visit www.luxul.com or contact Luxul customer service directly.
