The KING K102A is a double pole line voltage thermostat designed for controlling electric heating systems. It features a bimetal sensor for temperature regulation and is suitable for 120V, 208V, 240V, and 277V applications with a 22A capacity. This mechanical thermostat offers a straightforward and reliable solution for maintaining desired room temperatures.

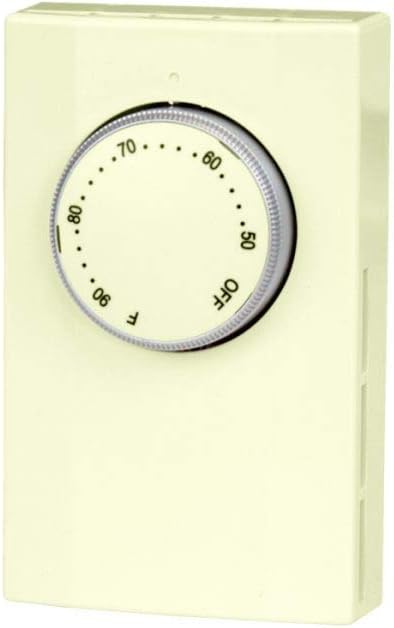

Billede: Forside view of the KING K102A Double Pole Line Voltage Thermostat, showing the temperature dial with settings from 41°F to 90°F and an 'OFF' position. The thermostat is almond-colored and designed for vertical mounting.

Specifikationer

Opsætning og installation

Installation of the KING K102A thermostat should be performed by a qualified electrician in accordance with all local and national electrical codes. Ensure power to the heating circuit is completely disconnected at the main breaker before beginning any installation work.

The K102A is a double pole thermostat, meaning it interrupts both incoming power lines when switched to the 'OFF' position, providing a complete disconnect for safety during maintenance or extended periods of non-use. It is designed to sit flush against the wall, allowing for ample wiring room within the electrical box.

Wiring Considerations:

• Bekræft voltage og amperage requirements of your heating system match the thermostat's specifications (120-277V, 22A).
• Tilslut ledningen voltage wires to the appropriate terminals as indicated in the detailed wiring diagram provided with the product packaging.
• Sørg for, at alle forbindelser er sikre og korrekt isolerede.
• This thermostat does not require a ground wire connection.

Betjeningsvejledning

The KING K102A thermostat features a simple rotary dial for temperature control. To operate:

1. Tænd/sluk: Rotate the dial clockwise from the 'OFF' position to turn the heating system on. Rotate counter-clockwise to the 'OFF' position to completely shut off power to the heating system.
2. Indstil temperatur: Turn the dial to your desired temperature setting, indicated in Fahrenheit. The thermostat will automatically activate or deactivate the heating system to maintain the set temperature.
3. Temperaturkontrol: The bimetal sensor provides temperature control within approximately ±3°F of the set point.

For optimal performance, avoid placing the thermostat in direct sunlight, near heat sources, or in areas with drafts, as this can affect temperature readings.

Opretholdelse

The KING K102A thermostat requires minimal maintenance. To ensure continued accurate operation and longevity:

• Rensning: Tør termostatens yderside regelmæssigt af med en blød klud.amp klud. Brug ikke slibende rengøringsmidler eller opløsningsmidler. Sørg for, at der ikke trænger fugt ind i de indvendige komponenter.
• Støvophobning: Keep the thermostat free from dust and debris, especially around the ventilation slots, to prevent interference with the bimetal sensor.
• Ingen dele, der kan serviceres af brugeren: There are no user-serviceable parts inside the thermostat. Do not attempt to open or repair the unit.

Fejlfinding

If you experience issues with your KING K102A thermostat, refer to the following common problems and solutions:

• Thermostat Not Activating Heating System:
  • Ensure the thermostat dial is turned past the 'OFF' position to a desired temperature setting.
  • Check the circuit breaker for the heating system to ensure it has not tripped.
  • Verify that the thermostat is correctly wired according to the installation instructions.
• Inaccurate Temperature Readings / Room Too Hot or Cold:
  • The bimetal sensor can be affected by internal current flow, potentially leading to readings that are 5 to 7 degrees off. This is a characteristic of mechanical bimetal thermostats.
  • Sørg for, at termostaten ikke udsættes for direkte sollys, træk eller varmekilder (f.eks.amps, appliances) that could influence its internal temperature sensor.
  • Allow sufficient time for the thermostat to stabilize and react to changes in room temperature.
• Thermostat Feels Warm to the Touch:
  • It is normal for line voltage thermostats to feel slightly warm due to the current passing through them. This does not indicate a malfunction unless accompanied by other issues like burning smells or excessive heat.

If problems persist after attempting these troubleshooting steps, contact a qualified electrician or KING customer support.

Garantioplysninger

The KING K102A Double Pole Line Voltage Thermostat comes with a Begrænset 1 års garanti fra købsdatoen. Denne garanti dækker materiale- og fabrikationsfejl under normal brug og service.

For detailed warranty terms and conditions, please refer to the documentation included with your product or visit the official KING Electric Heat webwebsted.

Kundesupport

For further assistance, technical support, or inquiries regarding your KING K102A thermostat, please contact KING Electric Heat directly.

• Fabrikant: King Electric
• Webwebsted: www.king-electric.com
• Kontaktoplysninger: Se producentens website or product packaging for the most current contact details, including phone numbers and email addresses.

When contacting support, please have your product model number (K102A) and purchase information readily available.
