Indledning
This manual provides essential information for the proper setup, operation, and maintenance of your Stagg ECL 4/4 WH Electric Cello. Designed for musicians seeking a balanced combination of traditional cello feel and modern electronic versatility, this instrument allows for silent practice and amplified performance. Please read this manual thoroughly before using your instrument to ensure optimal performance and longevity.
Sikkerhedsoplysninger
- Always handle the instrument with care to prevent damage.
- Do not expose the cello to extreme temperatures, humidity, or direct sunlight.
- Keep the instrument away from water or other liquids.
- Use only recommended accessories and power sources.
- Ensure all connections are secure before powering on the instrument or connecting to amplifikation.
Pakkens indhold
Ved udpakning skal du kontrollere, at alle følgende varer er inkluderet:
- Stagg ECL 4/4 WH Electric Cello (Solid maple construction with active preamp)
- Gigbag
- Sløjfe
- Headphones (if included, not explicitly stated but implied by "output for headphones")
- Power adapter/batteries (not explicitly stated, but necessary for active preamp)
Image: The included gig bag, designed for convenient transport and protection of your electric cello.
Opsætning
1. Instrument Assembly
Stagg ECL 4/4 WH Electric Cello features a minimalist design. Attach the included body supports and endpin as shown in the diagrams. Ensure they are securely fastened to provide stable playing posture. Note that the body supports may have some slight movement even when tightened, which is part of the design.
Image: The Stagg ECL 4/4 WH Electric Cello fully assembled with its body supports, ready for use.
Billede: Et nærbillede view of the adjustable endpin, which provides stability and allows for height customization.
2. Powering the Preamp
The active preamp requires power. Locate the battery compartment on the back of the instrument. Insert a 9V battery (not included) ensuring correct polarity. The blue pilot light will illuminate when headphones or an external jack are plugged in, indicating the preamp is active. Remember to unplug all cables when finished to prevent battery drain.
Image: The battery compartment located on the back of the electric cello, where a 9V battery is inserted to power the active preamp.
3. Indstilling
Stagg ECL 4/4 WH features mechanical tuners for precise string adjustment. Use a chromatic tuner to tune the four alloy steel strings to standard cello tuning (C-G-D-A, low to high). Turn the tuning pegs slowly and carefully to avoid over-tightening and breaking strings.

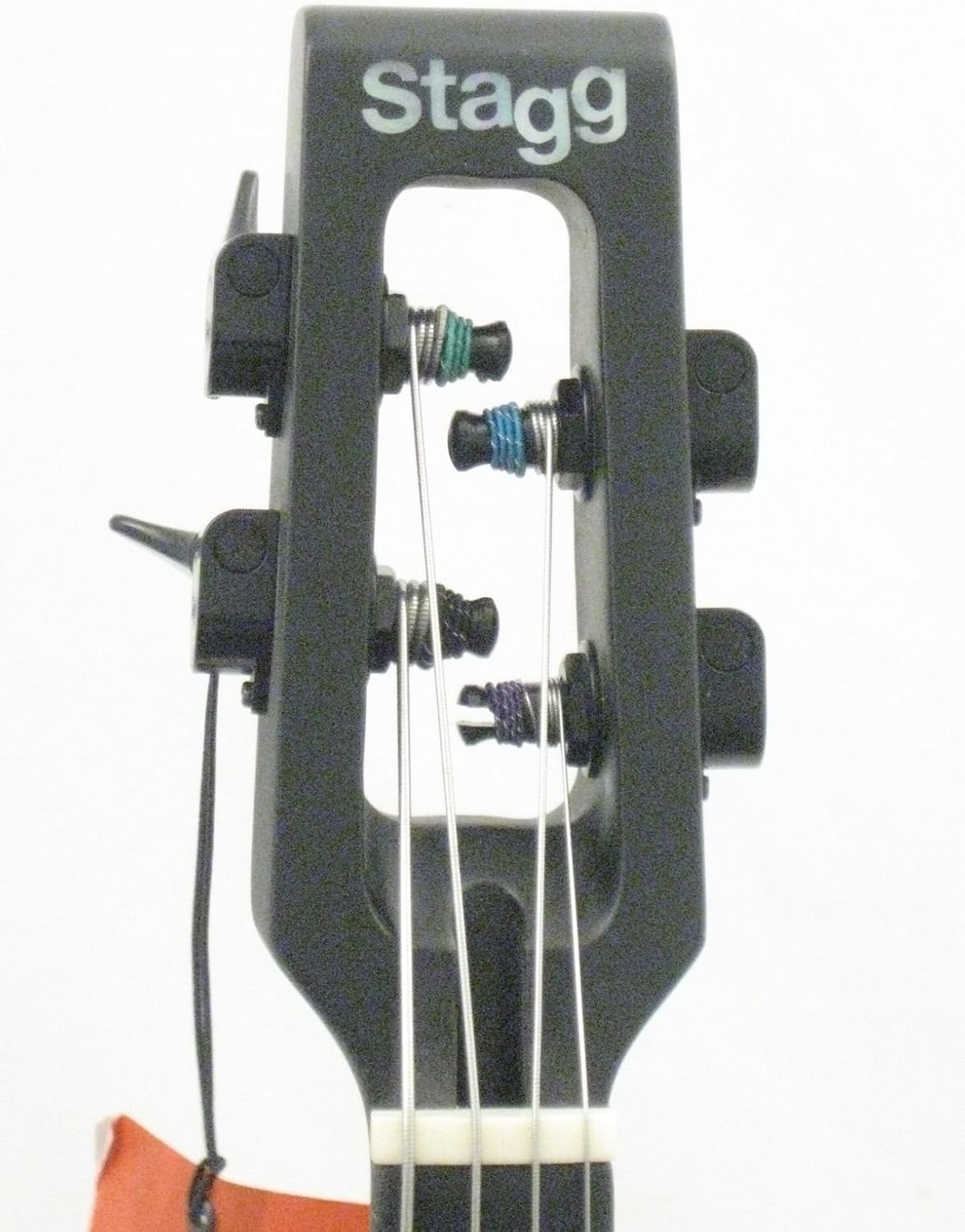

Image: The headstock of the electric cello, showing the mechanical tuning pegs for adjusting string tension and pitch.
Betjeningsvejledning
1. Forudamp Kontrolelementer
The active preamp includes Volume and Bass controls. Adjust the Volume knob to control the overall output level. The Bass knob allows you to boost or cut the low frequencies, shaping your tone. Experiment with these controls to find your desired sound.
Image: Close-up of the preamp control panel, featuring the Volume and Bass knobs, along with the 1/8" stereo mini jack for MP3 input and headphone output.
2. Connecting Headphones and MP3 Player
For silent practice, connect standard headphones to the 1/8" stereo mini jack labeled "Phones". You can also connect an MP3 player or other audio source to the "MP3 In" 1/8" stereo mini jack to play along with backing tracks. Adjust the volume on your MP3 player as needed.
3. Connecting to PA Systems and Amplivførere
For amplified performance, use a standard 1/4" instrument cable to connect the cello's 1/4" output jack to a PA system, amplifier, or audio interface. Adjust the volume on your amplifier/PA system and the cello's volume control to achieve the desired output level.
Opretholdelse
1. Rensning
Wipe down the instrument with a soft, dry cloth after each use to remove rosin dust and fingerprints. For deeper cleaning, use a specialized instrument cleaner sparingly on a cloth, avoiding direct application to the instrument's surface.
2. Udskiftning af strenge
Strings should be replaced periodically to maintain optimal tone and playability. When replacing strings, do so one at a time to maintain tension on the bridge and soundpost (though this model is solid body, it's good practice). Use high-quality alloy steel cello strings for best results.
Billede: En detaljeret view of the bridge and strings on the Stagg Electric Cello. The bridge can be adjusted for correct string height.
3. Batteripleje
To prolong battery life, always unplug headphones and external cables from the instrument when not in use. The blue pilot light indicates when the preamp is drawing power. If the instrument will not be used for an extended period, remove the battery to prevent leakage.
Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| No sound from output (headphones/amp) | Dead or improperly inserted battery; loose cable connection; preamp ikke aktiv. | Check battery and replace if necessary. Ensure cables are fully inserted. Verify the blue pilot light is on when connected. Test with different cables/amps/headphones. |
| Buzzing or rattling noise | Loose components; string not seated correctly; bridge issue; excessive bowing pressure. | Check all screws and connections. Ensure strings are properly seated in the bridge and nut. Adjust bowing technique. If persistent, consult a technician. |
| Wobbly body supports | Supports not fully tightened. | Ensure the body supports are screwed in as tightly as possible. A slight wobble may be inherent to the design. |
| Hurtig batteriafladning | Cables left plugged in when not in use. | Always unplug headphones and external cables when the instrument is not in active use. |
| Difficulty keeping in tune | New strings stretching; faulty tuner; extreme temperature changes. | New strings require frequent tuning initially. Ensure tuners are functioning correctly. Allow instrument to acclimate to room temperature. |
Specifikationer
| Mærke | Stagg |
| Modelnummer | ECL 4/4 WH |
| Instrumenttype | Electric Cello |
| Størrelse | 4/4 |
| Farve | Hvid |
| Byggemateriale | Solid Maple (Body), Maple/Basswood (Back), Maple (Top) |
| Antal strenge | 4 |
| Strengemateriale | Legeret stål |
| Preamp | Aktiv præamp with under saddle pickup |
| Kontrolelementer | Lydstyrke, bas |
| Indgange/udgange | 1/8" stereo mini jack (CD/MP3 player input, Headphone output), 1/4" jack (main output) |
| Varens vægt | 16 pund (7.26 kg) |
| Produktdimensioner | 48 x 4 x 14 tommer (121.9 x 10.2 x 35.6 cm) |
| Oprindelsesland | Kina |
Garanti og support
For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official Stagg webwebsted. Gem din købsbevis i tilfælde af garantikrav.
For further assistance, you may contact Stagg customer service through their official channels. Please have your model number (ECL 4/4 WH) and purchase date ready when contacting support.
