1. Introduktion
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Tecnolite PAN-LED/72W/40/S LED Panel. Please read this manual thoroughly before installation and keep it for future reference.
The Tecnolite PAN-LED/72W/40/S is a high-efficiency LED panel designed for various lighting applications, operating at 100-240V, with a Color Rendering Index (CRI) of 85, 72W power consumption, and a color temperature of 4000K.
2. Sikkerhedsinstruktioner
- Afbryd altid strømmen før installation, vedligeholdelse eller rengøring.
- Installationen skal udføres af en kvalificeret elektriker i overensstemmelse med lokale el-forskrifter.
- Do not operate the LED panel if it is damaged.
- Sørg for, at monteringsfladen kan bære armaturets vægt.
- Se ikke direkte ind i LED-lyskilden, når den er tændt.
- This product is designed for indoor use unless otherwise specified.
3. Pakkens indhold
Kontroller, at alle komponenter er til stede og ubeskadigede:
- 1 x Tecnolite PAN-LED/72W/40/S LED Panel
- Mounting accessories (e.g., suspension cables, ceiling anchors) - Specific components may vary.
- Instruktionsmanual (dette dokument)
4. Opsætning og installation
The Tecnolite PAN-LED/72W/40/S LED Panel is typically installed using a suspension system. Follow these general steps for installation:
- Forbered installationsområdet: Ensure the power is off at the circuit breaker. Mark the desired locations for the suspension points on the ceiling.
- Install Ceiling Anchors: Securely attach the ceiling anchors for the suspension cables.
- Attach Suspension Cables: Connect the suspension cables to the ceiling anchors and to the designated attachment points on the LED panel. Adjust the cable length to achieve the desired hanging height.
- Ledningsføring: Connect the LED panel's electrical wiring to the main power supply (100-240V) according to local electrical codes. Ensure proper grounding.
- Endelig kontrol: Verify all connections are secure and the panel is level. Restore power and test the light.
Image 1: The Tecnolite PAN-LED/72W/40/S LED Panel shown suspended from a ceiling by four cables, illustrating its typical installation method.

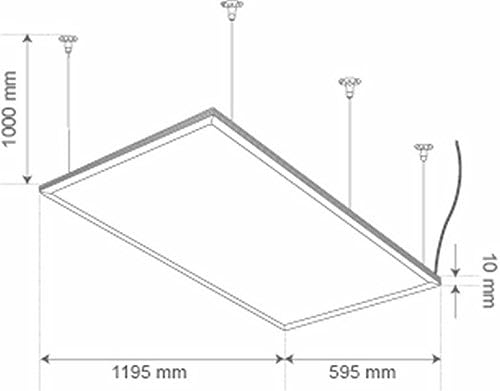

Image 2: A technical diagram illustrating the approximate surface dimensions of the LED panel (1195mm x 595mm) and a thickness of 10mm, along with recommended suspension cable length (1000mm). These are the physical panel dimensions.
Note on Bulb Base E27: While the specifications mention an E27 bulb base, this is typically for traditional light fixtures. For an integrated LED panel like this, it likely refers to a connection point or a component within the driver, not a user-replaceable bulb. Consult a qualified electrician for wiring details.
5. Betjeningsvejledning
The Tecnolite PAN-LED/72W/40/S LED Panel operates as a standard lighting fixture. Once properly installed and wired, it can be controlled via a standard wall switch connected to its power supply circuit.
- Tænd/sluk: Use the connected wall switch to turn the LED panel on or off.
- Dæmpning: This panel is not explicitly stated to be dimmable. If dimming functionality is desired, ensure a compatible dimmer switch and driver are used, and consult a qualified electrician.
6. Vedligeholdelse
The Tecnolite PAN-LED/72W/40/S LED Panel requires minimal maintenance.
- Rensning: Ensure the power is off before cleaning. Gently wipe the surface of the panel with a soft, dry, or slightly damp klæde. Brug ikke slibende rengøringsmidler eller opløsningsmidler.
- Inspektion: Periodically inspect the suspension cables and electrical connections for any signs of wear or damage.
- LED-levetid: LED panels have a long operational life and do not require bulb replacement.
7. Fejlfinding
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Lyset tændes ikke. | No power supply, loose wiring, faulty switch. | Check circuit breaker. Verify all electrical connections. Test the switch. |
| Lyse flimrer. | Unstable power supply, loose connection, incompatible dimmer (if used). | Ensure stable power. Check wiring. Remove dimmer or replace with compatible one. |
| Reduceret lysudbytte. | Dust accumulation, end of product life. | Clean the panel surface. If the product is very old, it may be reaching its end of life. |
If troubleshooting steps do not resolve the issue, contact Tecnolite customer support or a qualified electrician.
8. Specifikationer
| Feature | Detalje |
|---|---|
| Modelnummer | PAN-LED/72W/40/S |
| Mærke | Tecnolite |
| Lys type | LED |
| Wattage | 72W |
| Voltage | 100-240V |
| Farvetemperatur | 4000 Kelvin |
| Color Rendering Index (CRI) | 85 |
| Længde | 6.5 cm |
| Bredde | 129 cm |
| Højde | 65.5 cm |
| Vægt | 10.4 kilo |
| Pære base | E27 (Note: Refers to internal connection, not a user-replaceable bulb.) |
| Batterier påkrævet | Ingen |
Image 3: A low-resolution image of a technical data table. The specific content is unreadable, but it appears to contain various electrical and performance specifications for the product.
9. Garanti og support
For warranty information and customer support, please refer to the official Tecnolite website or contact your local Tecnolite distributor. Keep your purchase receipt as proof of purchase.
You can visit the Tecnolite store on Amazon for more information: Tecnolite Store
