1. Introduktion
This manual provides essential information for the proper installation, operation, and maintenance of the Weil-McLain 383-700-187 Igniter Kit, designed specifically for ECO 155 Boilers. Please read this manual thoroughly before attempting any installation or service to ensure safe and efficient operation.
2. Sikkerhedsoplysninger
ADVARSEL: Forkert installation, justering, ændring, service eller vedligeholdelse kan forårsage skade på ejendom, personskade eller død. Læs installations-, betjenings- og vedligeholdelsesinstruktionerne grundigt, før du installerer eller servicerer dette udstyr.
- Always disconnect power to the boiler before installing or servicing the igniter kit.
- Installation og service skal udføres af en kvalificeret installatør eller et servicefirma.
- Brug passende personlige værnemidler (PPE) under installation og vedligeholdelse.
- Ensure all gas and electrical connections are secure and conform to local codes.
- Do not operate the boiler if any part of the igniter kit is damaged or missing.
3. Kitets indhold
The Weil-McLain 383-700-187 Igniter Kit typically includes the following components:
- Igniter assembly (ceramic insulator, electrode, and wires)
- Monteringspakning
- Monteringsskruer

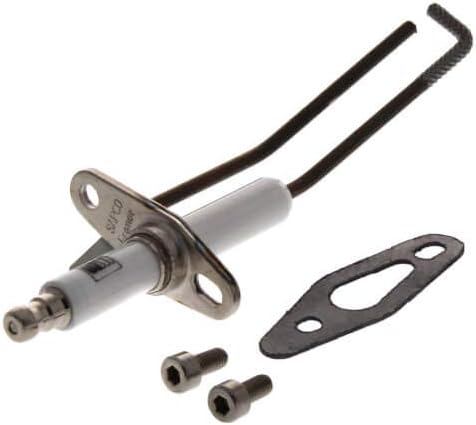

Figure 1: Components of the Weil-McLain 383-700-187 Igniter Kit. Shown are the igniter with its ceramic body and electrode wires, a black gasket, and two mounting screws.
4. Opsætning og installation
Follow these steps for the correct installation of the igniter kit:
- Forberedelse:
- Ensure the boiler is completely shut down and cooled.
- Turn off the main power supply to the boiler at the circuit breaker.
- Close the main gas supply valve to the boiler.
- Adgang til tændingsapparatet:
- Locate the existing igniter assembly on your ECO 155 Boiler. Refer to your boiler's specific service manual for exact location.
- Carefully disconnect any electrical wiring connected to the igniter. Note the wiring configuration for reinstallation.
- Fjern den gamle tændingsanordning:
- Unscrew the mounting screws holding the old igniter in place.
- Gently remove the old igniter and its gasket. Dispose of them properly.
- Installer ny tændingsanordning:
- Place the new gasket onto the mounting surface, ensuring it aligns with the screw holes and the igniter opening.
- Carefully insert the new Weil-McLain 383-700-187 igniter into position, aligning its mounting plate with the gasket and screw holes.
- Secure the igniter with the new mounting screws provided in the kit. Tighten them firmly but do not overtighten.
- Tilslut ledningerne igen:
- Reconnect the electrical wiring to the new igniter, ensuring correct polarity and secure connections. Refer to your notes from step 5 or the boiler's wiring diagram.
- Afsluttende kontrol:
- Visually inspect all connections for tightness and proper seating.
- Ensure no tools or debris are left inside the boiler compartment.
5. Driftsprincipper
The Weil-McLain 383-700-187 Igniter is a critical component in the ignition sequence of your ECO 155 Boiler. When the boiler calls for heat, the control system sends an electrical signal to the igniter. The igniter then heats up rapidly to a high temperature, becoming incandescent. Simultaneously, gas flows to the burner. The hot surface of the igniter ignites the gas, initiating the combustion process. Once a flame is established and confirmed by the flame sensor, the igniter typically de-energizes, and the boiler continues its heating cycle.
6. Vedligeholdelse
Regular inspection of the igniter is recommended as part of your boiler's annual maintenance schedule. A qualified service technician should perform these checks.
- Visuel inspektion: Check the ceramic insulator for cracks or damage. Inspect the electrode for signs of erosion, carbon buildup, or discoloration.
- Rensning: If minor carbon buildup is present, gently clean the igniter surface with a soft brush. Avoid abrasive materials that could damage the ceramic or electrode.
- Ledningsføring: Ensure all electrical connections to the igniter are clean, tight, and free from corrosion.
- Udskiftning: If the igniter shows significant wear, damage, or fails to ignite consistently, it should be replaced with a genuine Weil-McLain 383-700-187 Igniter Kit.
7. Fejlfinding
If your boiler is experiencing ignition issues, consider the following common problems related to the igniter:
| Problem | Mulig årsag | Løsning |
|---|---|---|
| Igniter does not glow | No power to igniter, faulty igniter, loose wiring. | Check power supply to boiler. Inspect wiring connections. Test igniter for continuity (if qualified). Replace igniter if faulty. |
| Igniter glows but no ignition | Insufficient gas supply, igniter not hot enough, igniter positioned incorrectly, faulty gas valve. | Verify gas supply is open. Check igniter for carbon buildup. Ensure igniter is correctly positioned. Consult a qualified technician for gas valve inspection. |
| Intermitterende tænding | Weak igniter, fluctuating power, dirty flame sensor. | Inspect igniter for wear. Check electrical connections. Clean flame sensor. |
Note: For complex issues or if you are unsure about any troubleshooting step, always contact a qualified HVAC technician.
8. Specifikationer
- Varenummer: 383-700-187
- Kompatibilitet: Weil-McLain ECO 155 Boilers
- Type: Hot Surface Igniter (HSI) Kit
- Mærke: Weil-McLain
9. Garanti og support
For specific warranty information regarding the Weil-McLain 383-700-187 Igniter Kit, please refer to the documentation provided with your original boiler purchase or contact Weil-McLain customer support directly. Keep your purchase receipt as proof of purchase.
For technical support or service inquiries, please contact a certified Weil-McLain service provider or visit the official Weil-McLain webwebsted for autoriserede servicecentre.
