ORICO 9558RU3 5-Bay RAID HDD-kabinet brugermanual

1. Produktet er slutview

The ORICO 9558RU3 is a 5-bay external RAID enclosure designed for 3.5-inch SATA hard disk drives. It provides a quick and simple solution for expanding storage capacity with USB 3.0 connectivity, supporting various RAID modes for data management and protection. The aluminum housing ensures effective heat dissipation, and its tool-free design simplifies drive installation.

Figure 1: ORICO 9558RU3 5-Bay RAID HDD Enclosure front view.

2. Pakkens indhold

Kontroller venligst, at alle varer er til stede i pakken:

• 1x ORICO 9558RU3 5-Bay Enclosure
• 1x 12V 6.5A strømadapter
• 1x 3.3-Foot USB 3.0 Cable (Type B to Type A)
• 1x 3.3-Foot USB 3.0 Cable (Type B to Type C)
• 1x HDD Care Locking Key
• 1x Brugermanual (dette dokument)

3. Opsætning og installation

3.1. Installation af harddisk

The enclosure features a tool-free design for easy installation of 3.5-inch SATA hard drives.

1. Gently pull the front door of an empty bay to open it.
2. Slide a 3.5-inch SATA HDD into the open bay until it is securely seated. Ensure the SATA connectors align properly.
3. Close the front door of the bay.
4. Repeat for additional hard drives. The enclosure supports up to five 3.5-inch SATA HDDs.
5. Use the provided HDD Care Locking Key to secure the drive bays, preventing accidental removal.

Figure 2: Inserting a 3.5-inch SATA HDD into the enclosure.

Figure 3: Front panel illustrating tool-free installation and HDD activity LEDs.

3.2. Tilslutning til din computer

1. Connect the 12V 6.5A power adapter to the DC-IN port on the rear panel of the enclosure and then to a power outlet.
2. Use either the USB 3.0 Type B to Type A cable or the USB 3.0 Type B to Type C cable to connect the enclosure's USB 3.0 port to an available USB 3.0 port on your computer.
3. Drej tænd/sluk-knappen på bagpanelet til 'TIL'-positionen.

Figure 4: Rear panel connections including USB 3.0, DC-IN, and ON/OFF switch.

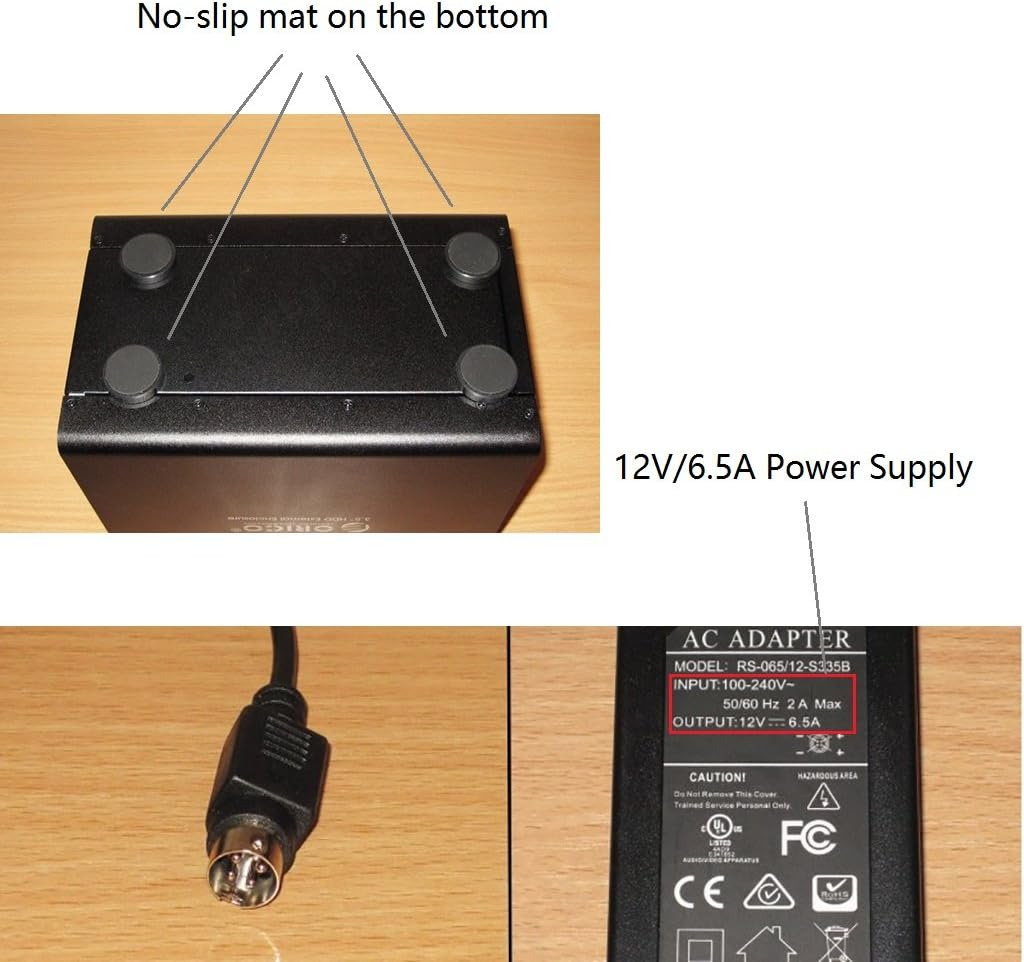

Figure 5: Power adapter details and non-slip base of the enclosure.

4. Betjeningsvejledning

4.1. RAID-konfiguration

The ORICO 9558RU3 supports various RAID modes to optimize for speed, redundancy, or a combination of both. RAID configuration can be performed using the control switches on the rear panel or via the ORICO HW RAID Manager software.

Available RAID Modes:

• RAID 0 (Striping): Combines drives for maximum speed and capacity, but offers no data redundancy.
• RAID 1 (spejling): Duplicates data across drives for redundancy, reducing usable capacity by half.
• RAID 3 (Striping with dedicated parity): Data is striped across drives, with one dedicated drive for parity information. Offers good performance and data redundancy.
• RAID 5 (Striping with distributed parity): Data and parity information are striped across all drives. Offers good performance and data redundancy with efficient storage.
• RAID 10 (RAID 1+0): Combines mirroring and striping for both performance and redundancy. Requires at least four drives.
• Combine (JBOD): Drives are concatenated to form one large volume without striping or redundancy.
• Ryd tilstand: Resets the RAID configuration.

Hardware RAID Configuration (Rear Panel Switches)

1. Sluk indhegningen.
2. Locate the DIP switches on the rear panel (refer to Figure 6).
3. Set the DIP switches according to the desired RAID mode as indicated in the diagram.
4. Press and hold the 'SET' button for approximately 5 seconds until the indicator lights confirm the change.
5. Tænd the enclosure. The new RAID configuration will be applied.

Figure 6: RAID Mode DIP switch settings on the rear panel.

Software RAID Configuration (ORICO HW RAID Manager)

For advanced RAID management and monitoring, use the ORICO HW RAID Manager software. This software is compatible with Windows, Linux, and Mac operating systems.

1. Ensure the enclosure is connected and powered on.
2. Download and install the ORICO HW RAID Manager software from the official ORICO webwebsted.
3. Launch the software. It will detect the connected enclosure.
4. Follow the on-screen instructions within the software to configure RAID, view event logs, or manage disk information.

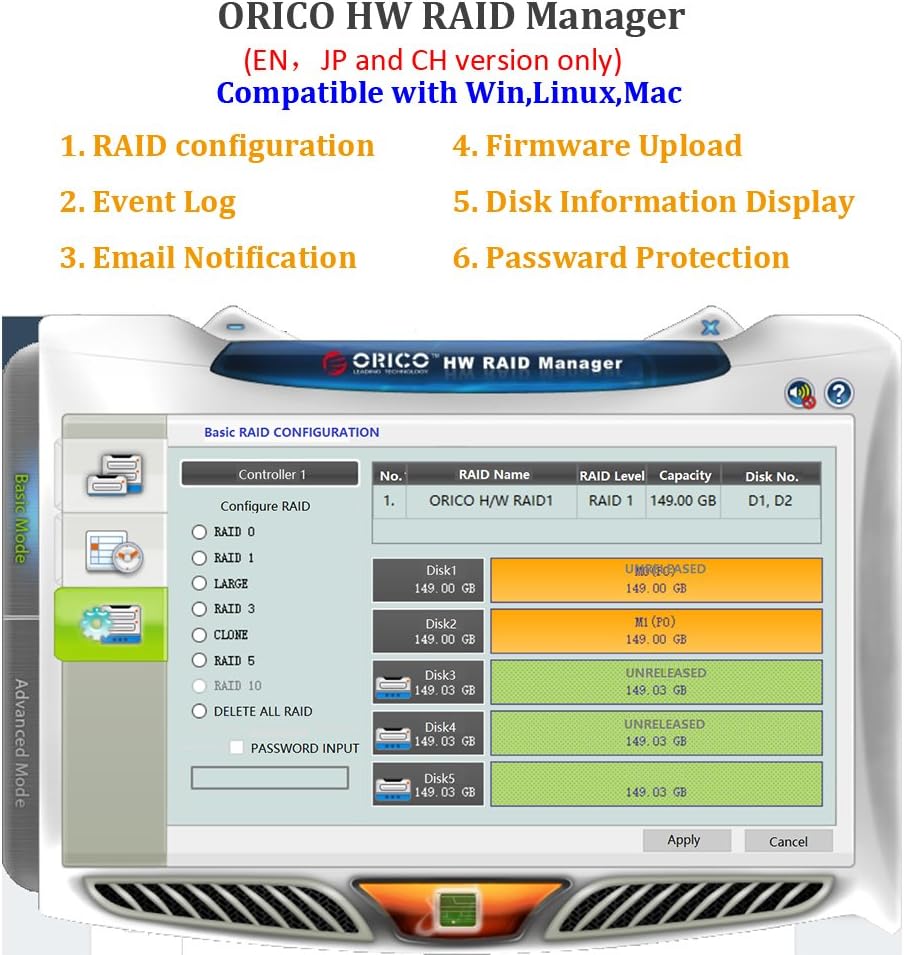

Figure 7: ORICO HW RAID Manager software interface for RAID configuration.

4.2. Strømstyring

The enclosure features an Intelligent Sleep Function. If the device does not receive data for 5 minutes, or if no data cable is connected for more than 5 minutes, it will enter Intelligent Sleep Mode to conserve energy and prolong HDD lifespan. The device will automatically wake up upon data access.

4.3. LED-indikatorer

Each drive bay has an LED indicator that shows HDD activity. A blue light typically indicates power, while a flashing light indicates data access.

5. Vedligeholdelse

To ensure optimal performance and longevity of your ORICO 9558RU3 enclosure:

• Keep the enclosure in a well-ventilated area to assist with heat dissipation.
• Rengør ydersiden med en blød, tør klud. Undgå flydende rengøringsmidler.
• Do not block the ventilation fan on the rear panel.
• Undgå at udsætte enheden for ekstreme temperaturer, fugt eller direkte sollys.
• Ensure the power adapter is securely connected to prevent power interruptions.

6. Fejlfinding

If you encounter issues with your ORICO 9558RU3, please refer to the following common solutions:

• Computeren genkender ikke kabinettet:
  • Sørg for, at alle kabler (strøm og USB) er tilsluttet korrekt.
  • Verify the enclosure is powered on.
  • Prøv at tilslutte til en anden USB-port på din computer.
  • Test med et andet USB-kabel.
  • Sørg for, at dine operativsystemdrivere er opdaterede.
• Hard drives not detected:
  • Confirm that hard drives are properly seated in their bays.
  • Check if the hard drives are functional by testing them individually.
  • If using RAID, ensure the RAID configuration is correctly set and initialized. New drives may need to be formatted or partitioned by your operating system.
• Langsomme dataoverførselshastigheder:
  • Sørg for, at du er tilsluttet en USB 3.0-port på din computer. USB 2.0-porte vil resultere i langsommere hastigheder.
  • Verify the health of your hard drives.
  • Consider the performance characteristics of your chosen RAID mode.
• Enclosure enters sleep mode unexpectedly:
  • The Intelligent Sleep Function activates after 5 minutes of inactivity. This is normal behavior.
  • If it sleeps during active use, ensure the USB data cable is firmly connected and not faulty.

7. Specifikationer

Figur 8: Produktdimensioner.

8. Garanti og support

For warranty information and technical support, please refer to the official ORICO webwebstedet eller kontakt din forhandler. Gem din købskvittering til garantikrav.
