Taylor Big and Bold vægtermometer model 6700 brugsanvisning

1. Produktet er slutview

The Taylor Big and Bold Dial Wall Thermometer offers a classic design suitable for both indoor and outdoor environments. It features a precision-made, factory-calibrated thermometer coil for accurate temperature readings. The construction is low-profile and high-impact, ensuring durability, while a clear view protective lens allows for easy reading from a distance. The graphics are UV-fade-resistant to withstand outdoor elements. Bold, easy-to-read numbers indicate temperature in 2-degree increments, with a coordinated red pointer showing the current temperature. No batteries are required for operation.

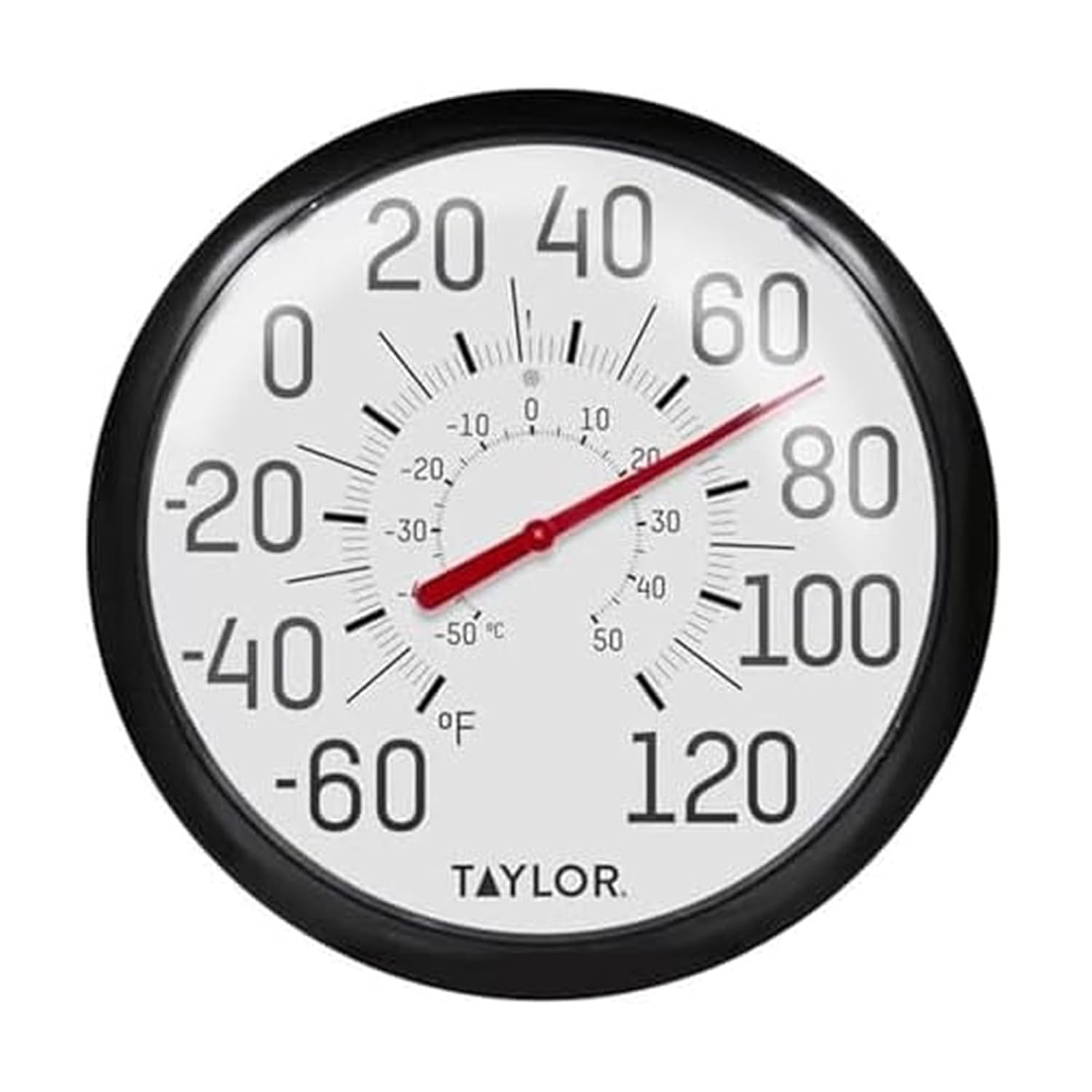

Figur 1: Forside view of the Taylor Big and Bold Wall Thermometer, featuring a black frame and large, easy-to-read numbers.

2. Nøglefunktioner

• Klassisk design: Features a sleek bezel frame that integrates well with any indoor or outdoor decor.
• Stort display: An extra-large 13.25-inch display provides at-a-glance readings.
• Holdbar konstruktion: Equipped with a shatterproof lens designed to withstand harsh weather conditions.
• Bredt temperaturområde: Precision thermometer coil measures temperatures from -60°F to 120°F (-50°C to 50°C).
• Nem montering: Includes a built-in hanger for secure installation.
• Ingen batterier påkrævet: Operates mechanically without the need for external power.

Figur 2: Overview of key features including precision accuracy, easy-to-read F/C display, and weather-resistant construction.

3. Opsætning og installation

1. Vælg placering: Choose a wall location that is out of direct sunlight. Direct sunlight or proximity to heat sources/large bodies of water can affect temperature accuracy.
2. Forbered monteringspunkter: Two screws or nails (not included) are required. Place the first screw approximately 2.75 inches below the point where the top of the thermometer will be positioned. Ensure the screw or nail head protrudes approximately 0.25 inches.
3. Second Mounting Point: Place the second screw or nail 8 inches directly below the first.
4. Monter termometer: Carefully place the thermometer over the screw or nail heads using the built-in hangers on the back. Ensure it is securely mounted to prevent damage from wind or accidental falls.

Figure 3: Diagram illustrating the recommended mounting procedure with two screws or nails for stability.

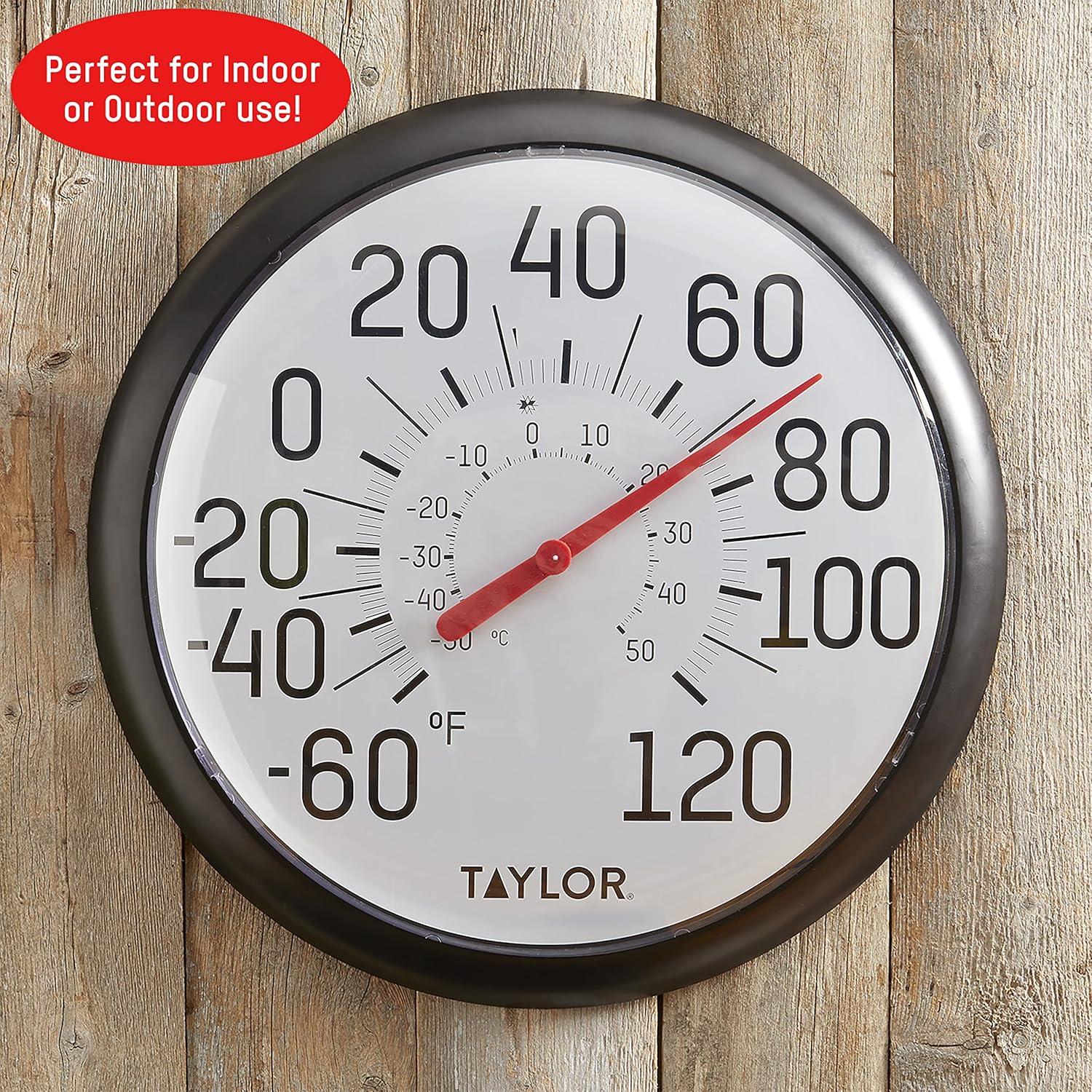

Figur 4: Eksample of the thermometer installed in an outdoor setting, suitable for patios or gardens.

4. Betjening

The Taylor Big and Bold Wall Thermometer operates mechanically using a bimetallic coil, requiring no batteries or external power. Once properly installed in a suitable location (away from direct sunlight or heat sources), the red pointer will indicate the current ambient temperature in both Fahrenheit and Celsius. Allow some time for the thermometer to acclimate to its environment for the most accurate reading.

5. Vedligeholdelse

To maintain the appearance and functionality of your thermometer, simply wipe it clean with a soft, damp cloth as needed. Avoid using harsh chemicals or abrasive cleaners, which could damage the finish or the clear protective lens. Regular cleaning will help ensure continued readability.

6. Fejlfinding

Upræcise læsninger:

• Tjek placering: Ensure the thermometer is not in direct sunlight, near a heat source (like a grill or vent), or a large body of water. These factors can significantly skew readings.
• Manual Calibration (if necessary): If the needle appears stuck or consistently inaccurate after proper placement, it may require manual adjustment. Carefully remove the clear plastic lens by gently prying the clips from the back. The needle is attached to a bimetallic spring. Gently pull the needle outwards slightly to free it from any binding against the face. Then, while holding the bimetallic spring mechanism on the backside, carefully move the needle to align with a known accurate temperature (e.g., from a calibrated digital thermometer or a reliable weather source). Reattach the lens securely.

Needle Not Moving:

• This can occur if the needle is pressed too tightly against the thermometer's face. Follow the manual calibration steps above to gently pull the needle outwards, allowing it to move freely.

7. Specifikationer

Figure 5: Detailed dimensions of the 13.25-inch diameter thermometer.

Figur 6: Sideprofile view of the thermometer, highlighting its slim design.

8. Garanti og support

This Taylor product is covered by a Et (1) års begrænset garanti. This warranty ensures the product is free from defects in material or workmanship. For warranty claims, repair, or replacement, please contact Taylor Precision Products. For additional support and product information, visit the official webwebsted:

www.taylorusa.com
