Brita WD 3030 integreret vandfilterhane brugsanvisning

1. Introduktion

This manual provides detailed instructions for the installation, operation, and maintenance of your Brita WD 3030 Integrated Water Filter Faucet. This system delivers fresh, filtered Brita water directly from your tap, reducing substances that affect taste and odor, such as chlorine, as well as limescale and metals like lead and copper that may be present in domestic plumbing.

Læs venligst denne manual grundigt inden installation og brug for at sikre korrekt funktion og levetid for dit produkt.

2. Produktet er slutview

The Brita WD 3030 is a 3-way faucet system designed to provide both filtered and unfiltered water. It includes a Brita P 1000 filter cartridge and all necessary installation accessories.

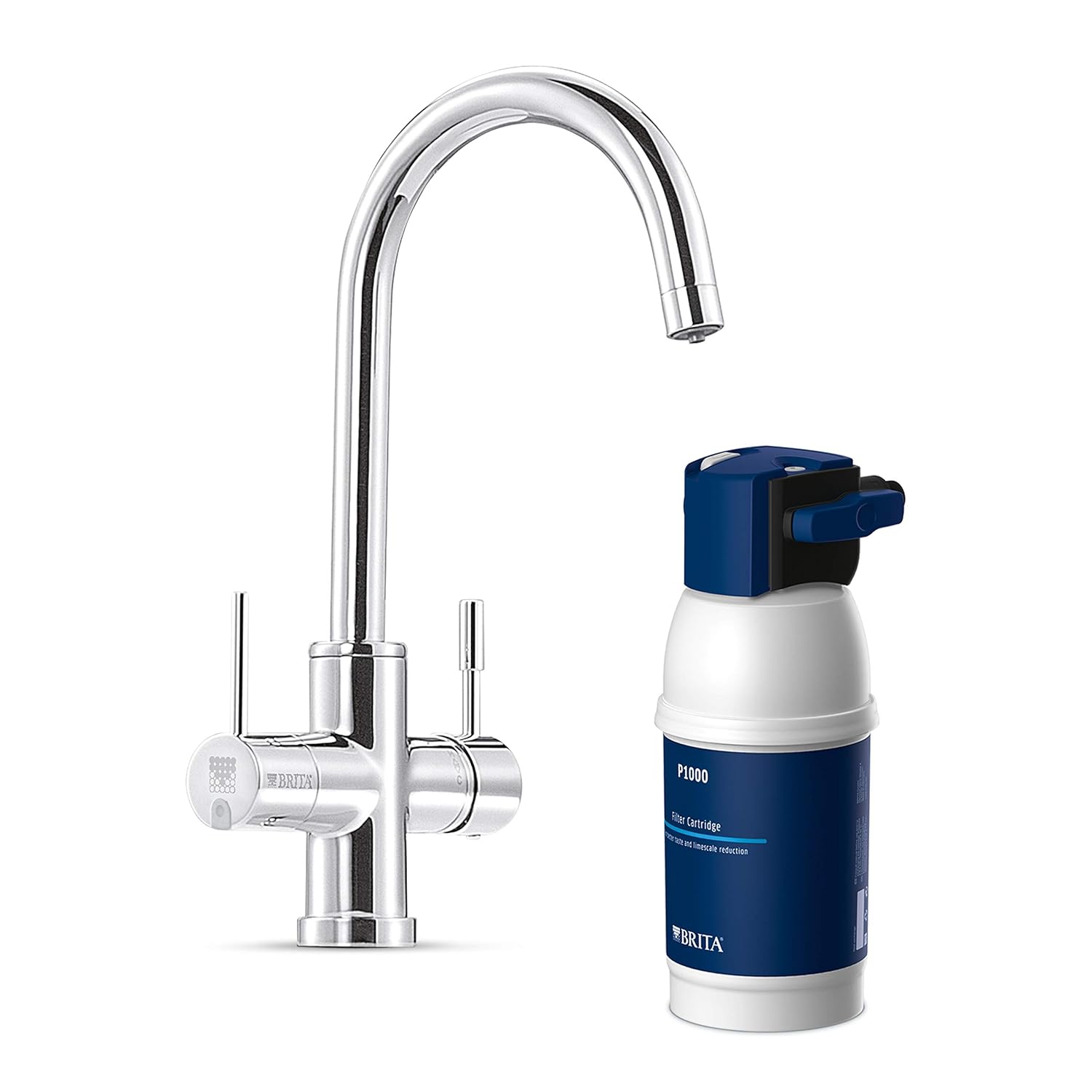

Image 1: Brita WD 3030 Faucet and P1000 Filter Cartridge. This image displays the chrome-finished Brita WD 3030 faucet alongside the blue and white P1000 filter cartridge, illustrating the main components of the system.

Nøglefunktioner:

• Integreret filtrering: Provides fresh, filtered Brita water on demand.
• Reduktion af forurenende stoffer: Reduces limescale, chlorine, and other taste-impairing substances, as well as metals like lead and copper.
• Justerbar vandhårdhed: The filter cartridge can be adjusted to three different water hardness levels (A, B, C) to suit local water conditions.
• Dual Lever Operation: Two distinct levers allow easy selection between filtered water and unfiltered hot or cold water.
• Certificerede materialer: All components are specifically designed for drinking water treatment and are TÜV, KTW, SVGW, and ACS certified.
• Komplet startsæt: Includes a Brita P 1000 filter cartridge, a practical wall mount, and all necessary installation accessories.

Image 2: Brita WD 3030 Water Filter Kit Packaging. This image shows the product packaging, highlighting the faucet, filter, and installation components, along with key features and benefits.

3. Opsætning og installation

The Brita WD 3030 system is designed for under-sink installation. The starter kit includes all necessary components for setup.

Vigtige overvejelser:

• This water filter faucet cannot be installed with a low-pressure water heater.
• Ensure sufficient space under the sink for the filter cartridge and its wall mount.
• If you are not confident with plumbing installations, it is recommended to consult a qualified plumber.

Installationstrin (generelt overview):

1. Sluk for hovedvandforsyningen.
2. Remove your existing faucet.
3. Install the Brita WD 3030 faucet into the sink or countertop opening.
4. Mount the filter head and P 1000 cartridge under the sink using the provided wall mount.
5. Connect the water lines from the faucet to the filter head and the main water supply according to the detailed instructions provided in the physical manual.
6. Before connecting the filter cartridge, adjust the water hardness setting on the filter head (A, B, or C) based on your local water conditions. This should be done before the first use.
7. Insert the P 1000 filter cartridge into the filter head.
8. Tænd langsomt for hovedvandforsyningen og kontroller for lækager.
9. Flush the filter system as per the instructions to remove any air and carbon fines.

Image 3: Brita P1000 Filter Installed Under Sink. This image illustrates the compact installation of the P1000 filter cartridge and its housing neatly mounted under a kitchen sink, connected to the faucet.

Image 4: Brita Filter Head Hardness Setting. A close-up view of the filter head, showing the "Hardness" dial with settings A, B, and C, and an Allen key used for adjustment. This setting should be configured during installation.

4. Betjeningsvejledning

The Brita WD 3030 faucet features two levers for easy control of water flow and type.

• Unfiltered Water: Use the main lever (typically on the right or front) to dispense unfiltered hot or cold water, similar to a standard kitchen faucet.
• Filtreret vand: Use the smaller, dedicated lever (typically on the left or side) to dispense Brita filtered water. This water is separate from the unfiltered supply.

Image 5: Child Drinking Filtered Water from Brita Faucet. This image shows a child happily drinking water directly from the Brita faucet, demonstrating the ease of access to filtered water.

Filterstatusindikator:

Some models of the Brita WD 3030 faucet may include an electronic filter status indicator, often located on the faucet body. This indicator typically uses a color-coded light (e.g., green, yellow, red) to signal the remaining filter capacity or when a filter change is due.

Image 6: Brita Faucet Filter Status Indicator. A close-up of the faucet base showing a small green light, indicating the operational status or remaining life of the filter cartridge.

5. Vedligeholdelse

Regular maintenance, primarily filter cartridge replacement, is essential to ensure optimal performance and water quality.

Filter Cartridge Replacement (Brita P 1000):

• The Brita P 1000 filter cartridge has a capacity of approximately 1200 liters or a maximum lifespan of 6 months, whichever comes first.
• Replace the filter cartridge when the filter status indicator signals a change is needed, or after 6 months of use.
• For at erstatte:
  1. Sluk for vandtilførslen til filtersystemet.
  2. Release any pressure by opening the filtered water tap.
  3. Twist and remove the old filter cartridge from the filter head.
  4. Insert the new Brita P 1000 cartridge, twisting it into place until secure.
  5. Turn on the water supply and flush the new filter as per the initial installation instructions.
  6. Reset the filter status indicator (if applicable).

Image 7: Brita P1000 Filter Cartridge Dimensions. This image shows the P1000 filter cartridge with its dimensions (265mm height, 114mm width), useful for planning under-sink space.

Rengøring af vandhanen:

Clean the exterior of the faucet with a soft cloth and mild detergent. Avoid abrasive cleaners or scouring pads, which can damage the finish.

6. Fejlfinding

If you encounter issues with your Brita WD 3030 faucet, refer to the following common problems and solutions:

• Reduced Water Flow (Filtered Water):
  • Check if the filter cartridge needs replacement. A clogged filter will reduce flow.
  • Ensure the water supply valves to the filter system are fully open.
  • Verify that the filter head is correctly installed and the cartridge is properly seated.
• Unusual Taste or Odor in Filtered Water:
  • The filter cartridge may be exhausted and needs replacement.
  • Ensure the filter system was properly flushed after installation or cartridge replacement.
• Lækager:
  • Kontrollér alle forbindelser for tæthed. Spænd dem ikke for hårdt.
  • Inspect O-rings and seals for damage.
  • Ensure the filter cartridge is correctly inserted and sealed in the filter head.
• Ingen vandgennemstrømning:
  • Check if the main water supply is on.
  • Ensure all shut-off valves for the faucet and filter system are open.
  • The filter cartridge might be completely blocked; try replacing it.

If these steps do not resolve the issue, please contact Brita customer support or a qualified plumber.

7. Specifikationer

8. Garanti og support

For information regarding warranty coverage, please refer to the documentation included with your product or visit the official Brita website. For technical support, replacement parts, or further assistance, please contact Brita customer service.

You can find contact information on the Brita webwebsted: www.brita.com
