iReliev TENS + EMS Combination Unit Muscle Stimulator

Indledning

This manual provides instructions for the safe and effective use of your iReliev TENS + EMS Combination Unit Muscle Stimulator, Model ET-7070. This device is designed to offer both Transcutaneous Electrical Nerve Stimulation (TENS) for pain relief and Electrical Muscle Stimulation (EMS) for muscle performance and recovery. It features 8 pre-programmed TENS modes and 6 EMS modes, allowing for customized therapy. The unit includes 25 adjustable intensity levels and a 60-minute adjustable therapy timer.

Billede: The iReliev TENS + EMS Combination Unit, shown alongside its retail packaging, highlighting the device's compact design and the product branding.

Vigtige sikkerhedsoplysninger

ADVARSEL: Do not use this System if you have a cardiac pacemaker, implanted defibrillators or any other implanted metallic or electronic device. Do not use this System if you have undiagnosed chronic pain. Not indicated for Children under the age of 18.

Juridisk ansvarsfraskrivelse: Do not use this system if you have a cardiac pacemaker, implanted defibrillator or any other implanted metallic or electronic device. This product is not suitable for people with heart rhythm problems. Do not use this product if you have undiagnosed chronic pain otherwise. Do not use if pregnant or in labor. Do not use if you have cancer. Not suitable for children under 16 years of age. Keep out of reach of children. Please see the full user manual for additional warnings and cautions. Individual symptoms, situations, circumstances, and results may vary. Please consult your physician or qualified health care provider regarding your condition and appropriate medical treatment. The information provided is not intended to be used for medical diagnosis or treatment or as a substitute for professional medical advice.

Opsætning

Follow these steps to prepare your iReliev TENS + EMS unit for first use:

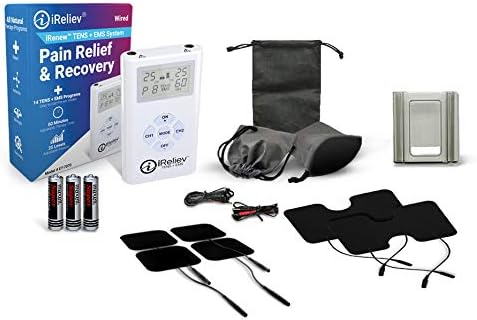

1. Udpak systemet: Carefully remove all components from the packaging. Ensure you have the iReliev device, electrode pads (small and XL), lead wires, 3 AAA batteries, a removable belt clip, and a carry pouch.


Billede: All components included in the iReliev TENS + EMS kit, including the device, various electrode pads, lead wires, batteries, and a storage pouch.

2. Indsæt batterier: Open the battery compartment on the back of the device and insert the 3 included AAA batteries, ensuring correct polarity. Close the compartment securely.
3. Attach Pads to Lead Wires: Connect the electrode pads to the lead wires by snapping them onto the connectors.
4. Connect Lead Wires to Device: Plug the lead wires into the output ports (CH1 and CH2) at the top of the iReliev device.
5. Apply Pads to Body: Clean and dry the skin area where you intend to place the pads. Remove the protective film from the electrode pads and firmly press them onto the skin. Ensure pads are placed on healthy, intact skin.

Betjeningsvejledning

Once the device is set up, follow these steps for operation:

1. Tænd: Press the 'ON +' button to turn on the device. The backlit display will illuminate.
2. Vælg tilstand: Press the 'MODE' button to cycle through the available TENS and EMS programs (P1-P8 for TENS, P1-P6 for EMS). Program P8 is specifically designed for Arthritis symptoms.


Billede: A close-up of the iReliev device's display, showing program P8 (TENS) and intensity levels, along with buttons for power, mode selection, and channel control.

3. Juster intensitet: Use the 'ON +' button for Channel 1 (CH1) and 'CH2' button for Channel 2 (CH2) to increase the intensity. Use the 'OFF -' button to decrease intensity. Start with a low intensity and gradually increase until you feel a comfortable, yet strong, sensation. The device offers 25 levels of adjustable intensity.
4. Indstil timer: The device has a default 60-minute therapy timer. Refer to the full user manual for instructions on adjusting the timer if needed.
5. Låsefunktion: The device features a lock function to prevent accidental changes to settings during use. Consult the full user manual for details on how to activate and deactivate this feature.
6. Pad Placement: Proper pad placement is crucial for effective therapy. Refer to the diagrams below for recommended placements for both small and XL pads.

Billede: A visual guide illustrating recommended placements for small electrode pads on various body parts, including ankle, calves, elbow, feet, shoulder, knee, lower back, quads, wrist, upper back, and upper arm.

Billede: A visual guide illustrating recommended placements for XL electrode pads on various body parts, including upper back, abs, calves, lower back, upper arm, shoulder, and knee.

Billede: A person sitting, holding the iReliev device, with an electrode pad applied to their upper arm, demonstrating typical use.

Billede: A person walking outdoors with a child and a dog, wearing the iReliev device clipped to their clothing, with an electrode pad on their upper arm, illustrating the device's portability.

Billede: A person performing push-ups, with an iReliev electrode pad placed on their shoulder, demonstrating the use of the device during physical activity or for muscle recovery.

Opretholdelse

Proper maintenance ensures the longevity and effectiveness of your iReliev device:

• Rengøring af enheden: Tør enheden af ​​med en blød, damp klæde. Brug ikke slibende rengøringsmidler eller nedsænk enheden i vand.
• Cleaning Electrode Pads: Gently wipe the adhesive side of the pads with a damp cloth or a small amount of water to remove any debris. Allow them to air dry completely before reapplying the protective film. Do not use soap or alcohol.
• Opbevaring: Store the device and pads in the provided carry pouch in a cool, dry place, away from direct sunlight and extreme temperatures.
• Udskiftning af batteri: Replace batteries when the low battery indicator appears on the display. Always use new AAA batteries.

Fejlfinding

If you encounter issues with your iReliev device, refer to the following common solutions:

• Enheden tænder ikke:
  • Check if the batteries are inserted correctly and are not depleted. Replace with new AAA batteries if necessary.
  • Sørg for, at batterirummet er forsvarligt lukket.
• Ingen følelse eller svag følelse:
  • Increase the intensity level using the 'ON +' or 'CH2' buttons.
  • Ensure the electrode pads are firmly attached to clean, dry skin.
  • Check that the lead wires are securely connected to both the pads and the device.
  • The electrode pads may be worn out. Replace them with new pads if they no longer adhere well or provide consistent sensation.
• Puder sidder ikke fast:
  • Clean the skin area thoroughly before application.
  • Gently clean the adhesive side of the pads with a damp cloth and let them air dry.
  • If pads are old or have lost their adhesiveness, replace them.
• Irregular or Uncomfortable Sensation:
  • Ensure both pads for a channel are making full contact with the skin.
  • Try a different program mode.
  • Reduce the intensity level.

Specifikationer

Garanti og support

For detailed warranty information, please refer to the documentation included with your product or visit the official iReliev website. If you require technical assistance, have questions about your device, or need to inquire about replacement parts, please contact iReliev customer support directly. Contact information can typically be found on the product packaging or the official brand webwebsted.
