Brugermanual til Waterway 711-3260 Super Hi-Flow Pool Sugefittingspakning

1. Introduktion

This manual provides essential information for the Waterway 711-3260 Super Hi-Flow Pool Suction Fitting Gasket. This gasket is designed to create a watertight seal for specific pool suction fittings, preventing leaks and ensuring proper system operation. Please read these instructions carefully before installation and use.

Billede 1: Forside view of the Waterway 711-3260 Super Hi-Flow Pool Suction Fitting Gasket. This image shows the circular gasket, which is translucent white, with its inner and outer diameters clearly visible. The part number "711-3580" is faintly visible on the gasket itself, indicating its specific model or mold number.

2. Installation

Proper installation of the gasket is crucial for preventing leaks and maintaining the efficiency of your pool's suction system. Always ensure the pool equipment is turned off and depressurized before beginning any installation or maintenance.

1. Sikkerhed først: Turn off all power to the pool pump and filtration system at the circuit breaker. Ensure there is no water pressure in the system.
2. Fjern den gamle pakning: Carefully disassemble the suction fitting components. Remove the old gasket, noting its orientation and position. Clean any debris or old sealant from the mating surfaces.
3. Inspicer overflader: Ensure that the surfaces where the new gasket will sit are clean, smooth, and free from cracks or damage.
4. Placering af ny pakning: Place the Waterway 711-3260 gasket into its designated groove or position within the suction fitting. Ensure it sits flat and is not twisted or pinched. The gasket's dimensions are 3-3/16 inches (ID) and 4-3/16 inches (OD).
5. Reassemble Fitting: Carefully reassemble the suction fitting components, ensuring proper alignment. Tighten fasteners evenly to compress the gasket and create a seal. Avoid over-tightening, which can damage the gasket or fitting.
6. Test for lækager: Restore power to the pool system and check for any leaks around the newly installed gasket. If leaks occur, turn off power, depressurize, and re-inspect the gasket's position and the tightness of the fitting.

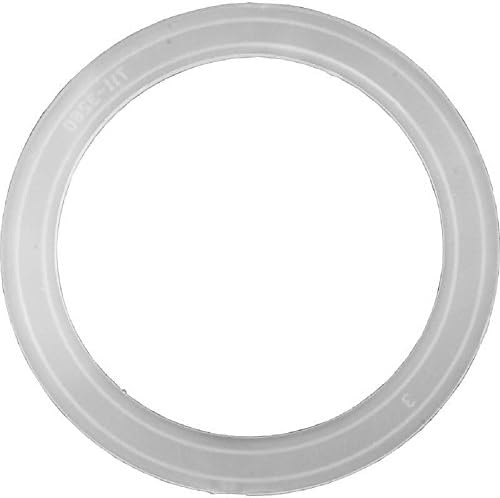

Billede 2: Vinklet view of the Waterway 711-3260 gasket. This image provides a slightly different perspective, highlighting the thickness and profile of the gasket, which is essential for proper seating within the pool suction fitting. The inner and outer edges are clearly defined.

3. Care and Replacement

The Waterway 711-3260 gasket is a wear item and will eventually require replacement. Regular inspection can help prolong its life and prevent unexpected leaks.

• Inspektion: Periodically inspect the gasket for signs of wear, cracking, hardening, or deformation. Any visible damage indicates a need for replacement.
• Rensning: When performing maintenance on your pool system, gently clean the gasket and its seating surfaces. Avoid using harsh chemicals that could degrade the gasket material.
• Opbevaring: If removed for seasonal storage, store the gasket in a cool, dry place away from direct sunlight and chemicals.
• Udskiftning: Replace the gasket immediately if you observe any leaks from the suction fitting or if the gasket shows signs of significant wear. Using a new gasket during any major disassembly of the suction fitting is recommended to ensure a reliable seal.

4. Specifikationer

5. Garanti og support

Specific warranty information for the Waterway 711-3260 Super Hi-Flow Pool Suction Fitting Gasket is not provided in this manual. For details regarding warranty coverage, technical support, or replacement parts, please contact Waterway Plastics directly or refer to their official webwebsted.

Manufacturer: Waterway Plastics

For yderligere hjælp, besøg venligst Waterway Plastics official webwebsted.
